1. Introduction
This manual provides detailed instructions for the assembly, operation, maintenance, and troubleshooting of your Polibi 5-Piece Extendable Farmhouse Dining Table Set. Please read all instructions carefully before assembly and use to ensure proper function and longevity of your furniture.
Image 1.1: The Polibi 5-Piece Extendable Farmhouse Dining Table Set in a typical home environment.
2. Safety Instructions
- Keep all assembly hardware out of reach of children.
- Ensure all bolts and screws are securely tightened before use. Periodically check and re-tighten as necessary.
- Do not stand or sit on the table.
- Do not exceed the weight capacity of the table (350 lbs) or chairs (250 lbs).
- Use on a level surface to prevent wobbling or tipping.
- Avoid placing hot items directly on the tabletop without protection.
3. Package Contents
Verify that all components are present before beginning assembly. If any parts are missing or damaged, contact customer support.
Table Components:
- Tabletop (with removable leaf)
- Table Legs (4)
- X-shaped Stretchers (2 sets)
- Hardware Pack (bolts, washers, Allen wrench)
Chair Components (x4):
- Chair Backrest (1 per chair)
- Chair Seat (1 per chair)
- Front Legs (2 per chair)
- Back Legs (2 per chair)
- Side and Front Stretchers (various per chair)
- Hardware Pack (bolts, washers, Allen wrench)
4. Setup and Assembly
Assembly typically requires two adults. Clear a spacious area and lay out all components on a soft, clean surface to prevent scratches.
4.1 Table Assembly
- Attach the table legs to the X-shaped stretchers. Ensure the stretchers are correctly oriented to form a stable base.
- Carefully place the tabletop upside down on a protected surface.
- Align the assembled leg and stretcher base with the pre-drilled holes on the underside of the tabletop.
- Secure the base to the tabletop using the provided bolts and washers. Tighten all fasteners evenly with the Allen wrench.
- Carefully flip the table upright.
Image 4.1.1: Detail of the table's X-shaped stretchers for stability.

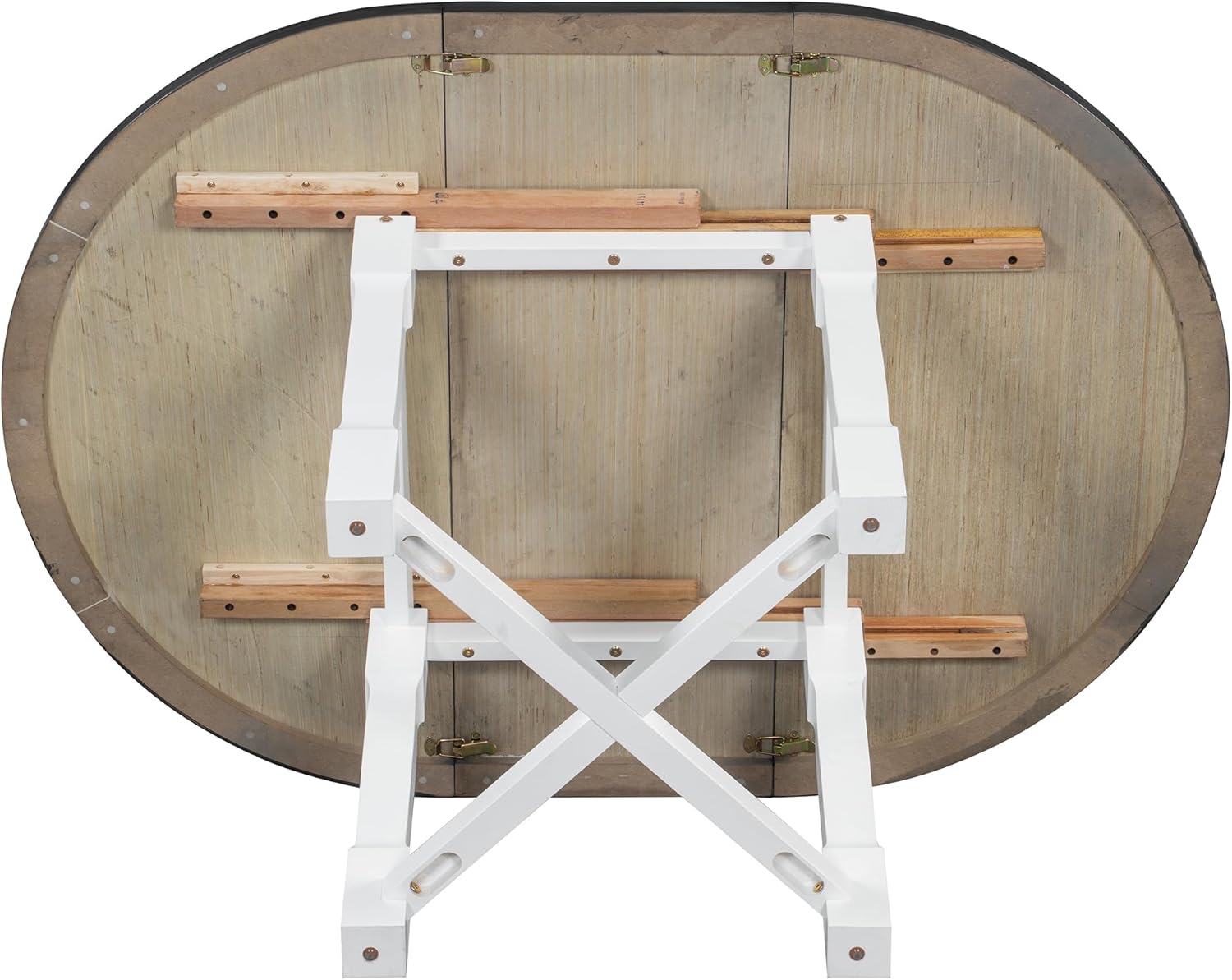

Image 4.1.2: Underside of the table, illustrating leg attachment points.
4.2 Chair Assembly (Repeat for each of the 4 chairs)
- Attach the front legs to the chair seat using the provided hardware.
- Attach the back legs to the chair seat and backrest.
- Connect the side and front stretchers between the legs to enhance stability.
- Ensure all bolts are tightened securely. Do not overtighten.
Image 4.2.1: Details of chair construction, including cushion and frame.
5. Operating Instructions: Extending and Retracting the Table Leaf
Your dining table features a removable leaf to adjust its length from 42 inches (round) to 57.7 inches (oval).
5.1 To Extend the Table:
- Gently pull the two halves of the tabletop apart from the center. The table will slide on its runners.
- Insert the 15.7-inch removable leaf into the gap created in the center of the table.
- Push the two tabletop halves back together until they are flush with the leaf and securely locked.
Image 5.1.1: Visual guide for extending the table with the removable leaf.
5.2 To Retract the Table:
- Pull the two halves of the tabletop apart slightly.
- Carefully lift and remove the middle leaf. Store the leaf in a safe place to prevent damage.
- Push the two tabletop halves back together until they meet, forming the round table.
Image 5.2.1: The table in its compact, round configuration with the leaf removed.
6. Maintenance
6.1 Wood Surfaces (Table)
- Wipe regularly with a soft, damp cloth. Dry immediately with a clean, dry cloth.
- Avoid using harsh chemicals, abrasive cleaners, or polishes that contain silicone.
- Protect from direct sunlight and extreme temperature changes to prevent warping or fading.
- Use coasters and placemats to protect the surface from spills and heat.
6.2 Upholstered Chairs
- Vacuum regularly with an upholstery attachment to remove dust and debris.
- Spot clean spills immediately with a clean, damp cloth and mild soap. Blot, do not rub.
- Allow to air dry completely.
- Avoid prolonged exposure to direct sunlight to prevent fabric fading.
7. Troubleshooting
7.1 Table or Chair is Wobbly
- Solution: Check all bolts and screws. Tighten any loose fasteners. Ensure the furniture is on a level surface.
7.2 Table Leaf Does Not Fit Properly
- Solution: Ensure the table halves are pulled apart evenly and fully before inserting the leaf. Verify the leaf is oriented correctly. If the issue persists, check for any obstructions in the sliding mechanism.
7.3 Scratches or Minor Damage to Wood
- Solution: For minor scratches, a wood repair marker or furniture polish designed for birch veneer may be used. Consult a professional for significant damage.
8. Specifications
| Feature | Detail |
|---|---|
| Brand | Polibi |
| Model | 5-Piece Extendable Farmhouse Dining Table Set |
| Color | Grey+white |
| Table Dimensions (Compact) | 42" (Diameter) x 30" (Height) |
| Table Dimensions (Extended) | 57.7" (Length) x 42" (Width) x 30" (Height) |
| Removable Leaf Length | 15.7" |
| Chair Dimensions | 18.5" (W) x 21.3" (D) x 35.8" (H) |
| Seat Cushion Thickness | 2.8" |
| Table Weight Capacity | 350 lbs |
| Chair Weight Capacity | 250 lbs |
| Materials | Birch Veneer, Rubber Wood, Upholstered Fabric |
| Assembly Required | Yes |
Image 8.1: Dimensional drawing of the table and chairs.
9. Warranty and Support
For warranty information, missing parts, or further assistance, please refer to your purchase documentation or contact Polibi customer support directly. Contact details can typically be found on the retailer's website or within your order history.
