Basic Split Air Conditioner User Manual

1. Introduction

Thank you for choosing the Basic BSACMA-FI18CB Split Air Conditioner. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your air conditioning unit. Please read this manual thoroughly before using the appliance and keep it for future reference.

2. Safety Information

To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring instructions may cause harm or damage.

• Professional Installation: Installation must be performed by qualified personnel in accordance with national wiring standards.
• Power Supply: Ensure the power supply matches the unit's specifications (220V). Do not use extension cords.
• Grounding: The unit must be properly grounded to prevent electric shock.
• Refrigerant: This unit uses R-410A refrigerant. Handle with care and ensure proper ventilation during service.
• Clearances: Maintain adequate clearance around the indoor and outdoor units for proper airflow.
• Cleaning: Disconnect power before cleaning or performing maintenance.

3. Product Overview

The Basic BSACMA-FI18CB is an inverter-type, cool-only split air conditioner designed for residential use. It features a powerful 18000 BTU cooling capacity and utilizes environmentally friendly R-410A refrigerant. Key features include Wi-Fi control, high-temperature sterilization technology, and anti-freeze technology for enhanced performance and durability.

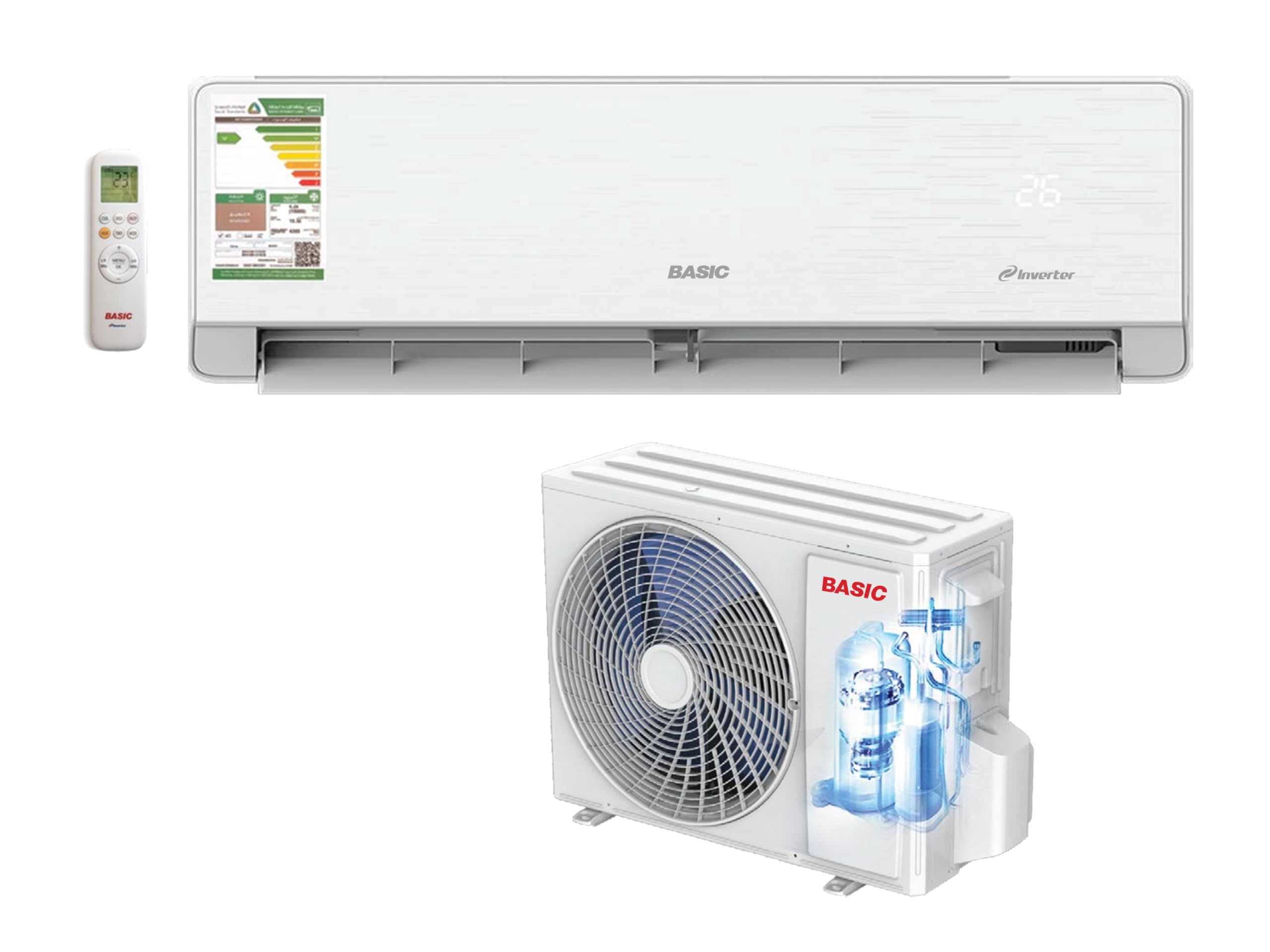

Figure 3.1: The indoor unit of the Basic BSACMA-FI18CB Split Air Conditioner, designed for efficient cooling.

Figure 3.2: Energy Efficiency Label for the Basic BSACMA-FI18CB, showing a 'B' rating and annual energy consumption. For more details, visit sls.gov.sa.

4. Setup

Installation of this split air conditioner requires specialized tools and knowledge. It is strongly recommended that installation be performed by a certified HVAC technician to ensure proper function, safety, and warranty validity.

4.1 Pre-Installation Checks

• Verify that the installation site meets the required structural integrity for both indoor and outdoor units.
• Ensure adequate space for air circulation around both units.
• Confirm that the electrical supply is compatible with the unit's requirements (220V).

4.2 Installation Steps (Overview)

1. Mount the indoor unit securely on a wall, ensuring it is level.
2. Install the outdoor unit on a stable, level surface, away from direct sunlight or obstructions.
3. Connect the refrigerant lines between the indoor and outdoor units, ensuring proper sealing and vacuuming.
4. Connect the electrical wiring according to the wiring diagram provided with the unit.
5. Perform a leak test and vacuum the refrigerant lines.
6. Open the service valves and release the refrigerant.
7. Test the unit's operation in all modes.

5. Operating Instructions

Your air conditioner can be controlled via the included remote control, a mobile application (Wi-Fi control), or voice commands (if integrated with smart home systems).

5.1 Remote Control Functions

• Power Button: Turns the unit ON/OFF.
• Mode Button: Cycles through operating modes: Cool, Fan, Dry, Auto.
• Temperature Buttons (▲/▼): Adjusts the desired temperature.
• Fan Speed Button: Selects fan speed (Low, Medium, High, Auto).
• Swing Button: Controls the louver swing direction.
• Timer Button: Sets ON/OFF timers.

5.2 Operating Modes

• Cool Mode: Provides cooling. Set desired temperature and fan speed.
• Fan Mode: Circulates air without cooling.
• Dry Mode: Reduces humidity in the room.
• Auto Mode: The unit automatically selects the operating mode based on the room temperature.

5.3 Wi-Fi and App Control

Refer to the separate Wi-Fi setup guide (if included) or the mobile application instructions for connecting your air conditioner to your home network and controlling it remotely via your smartphone or tablet.

6. Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your air conditioner. Always disconnect power before performing any maintenance.

6.1 Air Filter Cleaning

1. Open the front panel of the indoor unit.
2. Remove the air filters.
3. Clean the filters with a vacuum cleaner or wash them with lukewarm water and mild detergent.
4. Rinse thoroughly and allow to dry completely before reinstalling.
5. Clean filters every two weeks or more frequently depending on usage.

6.2 Outdoor Unit Cleaning

Periodically check the outdoor unit for dirt, leaves, or other debris that may obstruct airflow. Carefully remove any obstructions. Do not spray water directly onto the electrical components.

6.3 Seasonal Checks

• Before the cooling season, ensure all connections are secure and the unit is free from damage.
• Check for any unusual noises or odors during operation.
• Consider professional servicing annually for thorough cleaning and performance checks.

7. Troubleshooting

Before contacting customer support, please refer to the following table for common issues and their solutions.

8. Specifications

9. Warranty and Support

9.1 Warranty Information

This Basic BSACMA-FI18CB Air Conditioner comes with a one-year warranty from the date of purchase. The warranty covers manufacturing defects and malfunctions under normal use. Please retain your proof of purchase for warranty claims.

The warranty does not cover damage resulting from improper installation, misuse, neglect, unauthorized repairs, or acts of nature.

9.2 Customer Support

For technical assistance, warranty claims, or service inquiries, please contact your local dealer or the Basic customer support center. Ensure you have your model number (BSACMA-FI18CB) and purchase details ready when contacting support.
