TCL TAB 11 Gen2 Tablet User Manual

1. Introduction

This manual provides essential information for the safe and efficient use of your TCL TAB 11 Gen2 tablet. Please read this manual thoroughly before operating the device and retain it for future reference. The TCL TAB 11 Gen2 is an 11-inch tablet designed for everyday tasks, media consumption, and communication, featuring a vibrant display, robust performance, and a long-lasting battery.

Image: Front view of the TCL TAB 11 Gen2 tablet displaying the home screen with time and date.

2. Package Contents

Upon unpacking your TCL TAB 11 Gen2, please verify that all items listed below are present:

• TCL TAB 11 Gen2 Tablet
• USB-C Cable
• Quick Start Guide
• Safety and Warranty Information
• Protective Case (may vary by region/bundle)
• SIM Eject Tool (for microSD card slot access)

Note: A power adapter is typically not included and must be purchased separately.

Image: TCL TAB 11 Gen2 tablet securely placed in a black protective case, positioned to stand upright.

3. Device Overview

Familiarize yourself with the physical components of your TCL TAB 11 Gen2 tablet.

3.1 Front View

• Display: 11-inch LCD screen.
• Front Camera: Located at the top center when held in landscape orientation.
• Sensors: Ambient light sensor, proximity sensor.

3.2 Rear View

• Rear Camera: Main camera module.
• TCL Logo: Brand identification.

Image: Rear view of the TCL TAB 11 Gen2 tablet, highlighting the circular camera module and the TCL brand logo.

3.3 Side Views (Ports and Buttons)

• Power Button: Used to turn the device on/off or wake/sleep the screen.
• Volume Buttons: Adjust the device's volume.
• USB-C Port: For charging and data transfer.
• MicroSD Card Slot: Expandable storage.
• Speakers: Audio output.

4. Setup

4.1 Initial Power On

1. Press and hold the Power Button until the TCL logo appears.
2. Follow the on-screen prompts to select your language, connect to a Wi-Fi network, and set up your Google account.

4.2 Charging the Battery

Connect the provided USB-C cable to the tablet's USB-C port and the other end to a compatible USB power adapter (not included) or a computer. The battery indicator on the screen will show charging status.

4.3 Inserting a MicroSD Card

1. Locate the microSD card slot on the side of the tablet.
2. Use the SIM eject tool to open the tray.
3. Place the microSD card into the tray with the gold contacts facing down.
4. Gently push the tray back into the slot until it clicks into place.

5. Operating Instructions

5.1 Display Features (NXTVISION)

The TCL TAB 11 Gen2 features an 11-inch display with NXTVISION technology, offering a resolution of 1920x1200 pixels. This technology enhances color, clarity, and contrast for an improved viewing experience, making it suitable for video calls, web browsing, and media consumption.

Image: The TCL TAB 11 Gen2 tablet showcasing its vibrant display with NXTVISION technology, presenting rich colors and sharp details.

5.2 Performance

Powered by a MediaTek Helio G80 processor and equipped with 6GB of RAM, the tablet delivers smooth performance for streaming videos, browsing the web, and handling daily applications. The 256GB internal storage provides ample space for your files, photos, and apps, with further expansion possible via a microSD card.

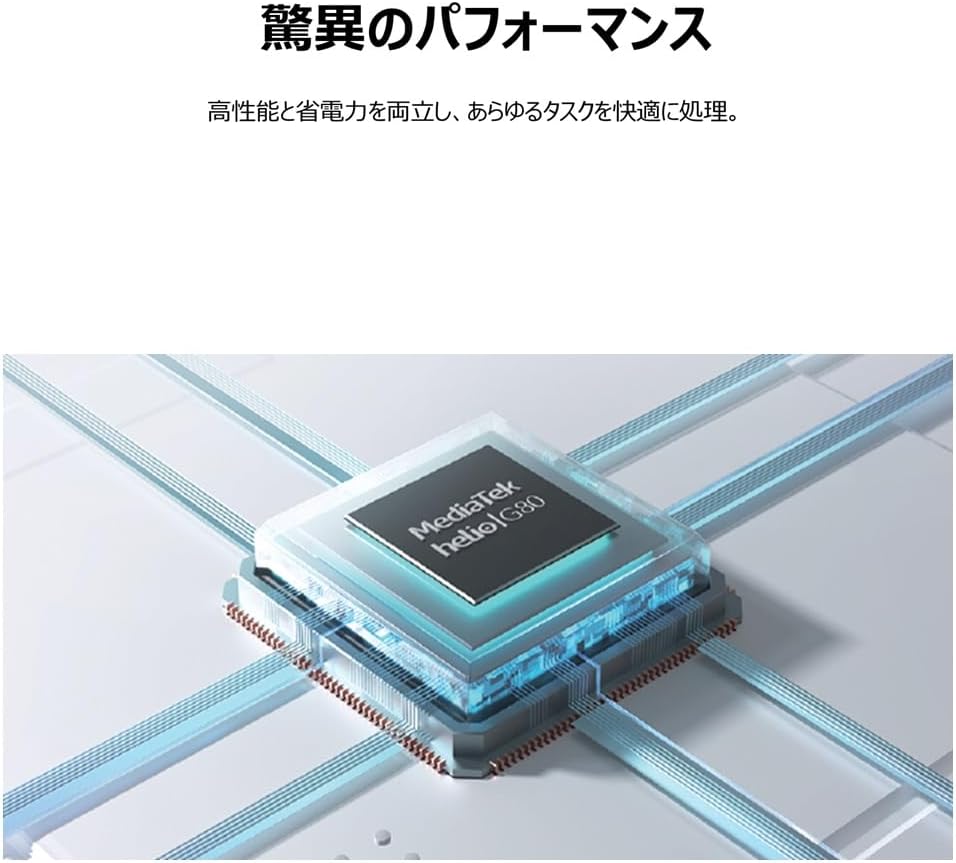

Image: An illustrative depiction of the MediaTek Helio G80 processor, symbolizing the tablet's processing capabilities.

Image: The TCL TAB 11 Gen2 tablet displaying a photo gallery, with a prominent '256GB' graphic, indicating its large storage capacity.

5.3 Battery Life

The tablet is equipped with an 8000mAh battery, designed to provide extended usage throughout the day. This large capacity also allows the tablet to function as a mobile power source for other devices, if supported by appropriate cables (sold separately).

Image: A cutaway diagram of the TCL TAB 11 Gen2 tablet, highlighting the large 8000mAh battery component.

5.4 Operating System

The TCL TAB 11 Gen2 runs on the Android operating system, providing access to a wide range of applications through the Google Play Store and a familiar user interface.

6. Maintenance

• Cleaning: Use a soft, lint-free cloth to clean the screen and body of the tablet. Avoid abrasive materials or harsh chemicals.
• Storage: Store the tablet in a cool, dry place away from direct sunlight and extreme temperatures.
• Battery Care: To prolong battery life, avoid fully discharging the battery frequently. Charge the device regularly.
• Software Updates: Regularly check for and install software updates to ensure optimal performance and security.

7. Troubleshooting

If you encounter issues with your TCL TAB 11 Gen2, refer to the following common solutions:

• Device not turning on: Ensure the battery is charged. Connect the tablet to a power source and try again.
• Screen unresponsive: Try restarting the tablet by holding the Power Button for approximately 10-15 seconds.
• Wi-Fi connection issues: Check if Wi-Fi is enabled in settings. Restart your router and the tablet. Ensure you are within range of the Wi-Fi signal.
• Applications crashing: Close and reopen the application. Clear the app's cache in settings. If the issue persists, uninstall and reinstall the app.
• Slow performance: Close unnecessary background applications. Clear cache and temporary files. Consider a factory reset if performance issues continue after other troubleshooting steps (back up your data first).

8. Specifications

9. Warranty and Support

For warranty information, please refer to the warranty card included in your product packaging or visit the official TCL support website. If you require technical assistance or have questions not covered in this manual, please contact TCL customer support through their official channels.

You can find more information and support resources on the TCL Brand Store on Amazon.
