FULODE DT-4 Professional 4-Channel Audio Mixer User Manual

Introduction

Thank you for choosing the FULODE DT-4 Professional 4-Channel Audio Mixer. This device is designed to provide high-quality audio mixing, recording, and live streaming capabilities with a range of features including 99 DSP effects, a 5-band equalizer, 4 XLR/TRS combo inputs, 48V phantom power, vocal removal, USB playback, and Bluetooth connectivity. This manual will guide you through the setup, operation, and maintenance of your mixer to ensure optimal performance.

Safety Information

Please read and understand all safety instructions before operating the device. Keep this manual for future reference.

• Power Supply: Use only the specified power adapter. Ensure the voltage matches the requirements of your region.
• Water and Moisture: Do not expose the mixer to water, rain, or excessive moisture. Avoid placing liquid-filled objects on the unit.
• Ventilation: Ensure adequate ventilation around the mixer. Do not block ventilation openings.
• Heat Sources: Keep the unit away from heat sources such as radiators, heat registers, stoves, or other heat-producing appliances.
• Cleaning: Disconnect power before cleaning. Use a dry, soft cloth. Do not use liquid cleaners or aerosol cleaners.
• Servicing: Do not attempt to service this product yourself. Refer all servicing to qualified service personnel.
• Phantom Power: When using 48V phantom power, ensure condenser microphones are connected correctly before activating to prevent damage.

Package Contents

Verify that all items are present in the package:

• FULODE DT-4 Audio Mixer
• Power Adapter
• USB Cable
• User Manual

Product Overview: Controls and Connectors

The FULODE DT-4 mixer features an intuitive layout for easy control over your audio. Familiarize yourself with the various components:

Image: Top-down view of the FULODE DT-4 mixer with numbered labels indicating various controls and input/output ports.

Front Panel Controls

1. MIC INPUT/Audio input (1-4): XLR/TRS combo jacks for connecting microphones or line-level instruments.
2. GAIN (2): Adjusts the input sensitivity for each channel.
3. Treble equalization (HF) (3): Adjusts high frequencies for each channel.
4. Bass balance (LF) (4): Adjusts low frequencies for each channel.
5. Effect regulation (FX) (5): Controls the amount of effect sent from each channel.
6. Left-right balance (PAN) (6): Adjusts the stereo panning for each channel.
7. Channel volume (7): Fader to control the output level of each individual channel.
8. 99 Effects selection knobs (8): Rotary encoder to select one of the 99 built-in DSP effects.
9. USB display/Bluetooth display/Effects module display/Signal light display (9): Digital screen showing current mode, effect number, and audio levels.
10. 99 Effects adjustment knobs (10): Adjusts parameters of the selected DSP effect.
11. Mp3 adjustment knobs (11): Controls MP3 playback functions.
12. Mp3 REP (12): Repeat function for MP3 playback.
13. Mp3 VC (13): Vocal Cancellation button for MP3 playback.
14. Mp3 MODE (14): Switches between USB, Bluetooth, and other MP3 modes.
15. Earphone volume adjustment knob (PHONES) (15): Controls the volume of the headphone output.
16. Five stages of balanced regulation (Graphic Equalizer) (16): 5-band graphic equalizer for main output.
17. Effect volume (17): Controls the overall volume of the DSP effects.
18. Mp3 total volume (18): Controls the overall volume of the MP3 player.
19. Master output volume (19): Controls the main output volume.
20. TYPE-C/USB conversion (20): USB port for computer connection and power.
21. 48V power switch (21): Activates phantom power for condenser microphones.
22. Monitor output (22): Output for monitoring.
23. Main output (23): Left and Right XLR outputs for connecting to main speakers or recording devices.

Rear Panel Connections

Image: Rear view of the FULODE DT-4 mixer, highlighting the DC 12V power input, Type-C power port, and power switch.

1. DC 12V power port (24): Connect the included 12V DC power adapter here.
2. TYPE-C power port (25): Alternative power input via USB Type-C, also supports computer connection.
3. Power switch (26): Turns the mixer on or off.

Setup

1. Power Connection

Connect the provided power adapter to the DC 12V power port (24) on the rear panel of the mixer, then plug it into a suitable power outlet. Alternatively, you can power the mixer via the TYPE-C power port (25) using a compatible USB-C power source or by connecting it to a computer.

Image: Illustration showing the FULODE DT-4 mixer being powered via a USB cable connected to a computer or a phone charger.

2. Microphone and Instrument Connection

Connect your microphones or instruments to the MIC/LINE input jacks (1-4). These are combo jacks that accept both XLR and 1/4-inch TRS/TS connectors.

• For Condenser Microphones: If using a condenser microphone, ensure it is connected, then activate the +48V power switch (21). The indicator light will illuminate.
• For Dynamic Microphones/Instruments: Connect directly to the MIC/LINE inputs. No phantom power is needed.

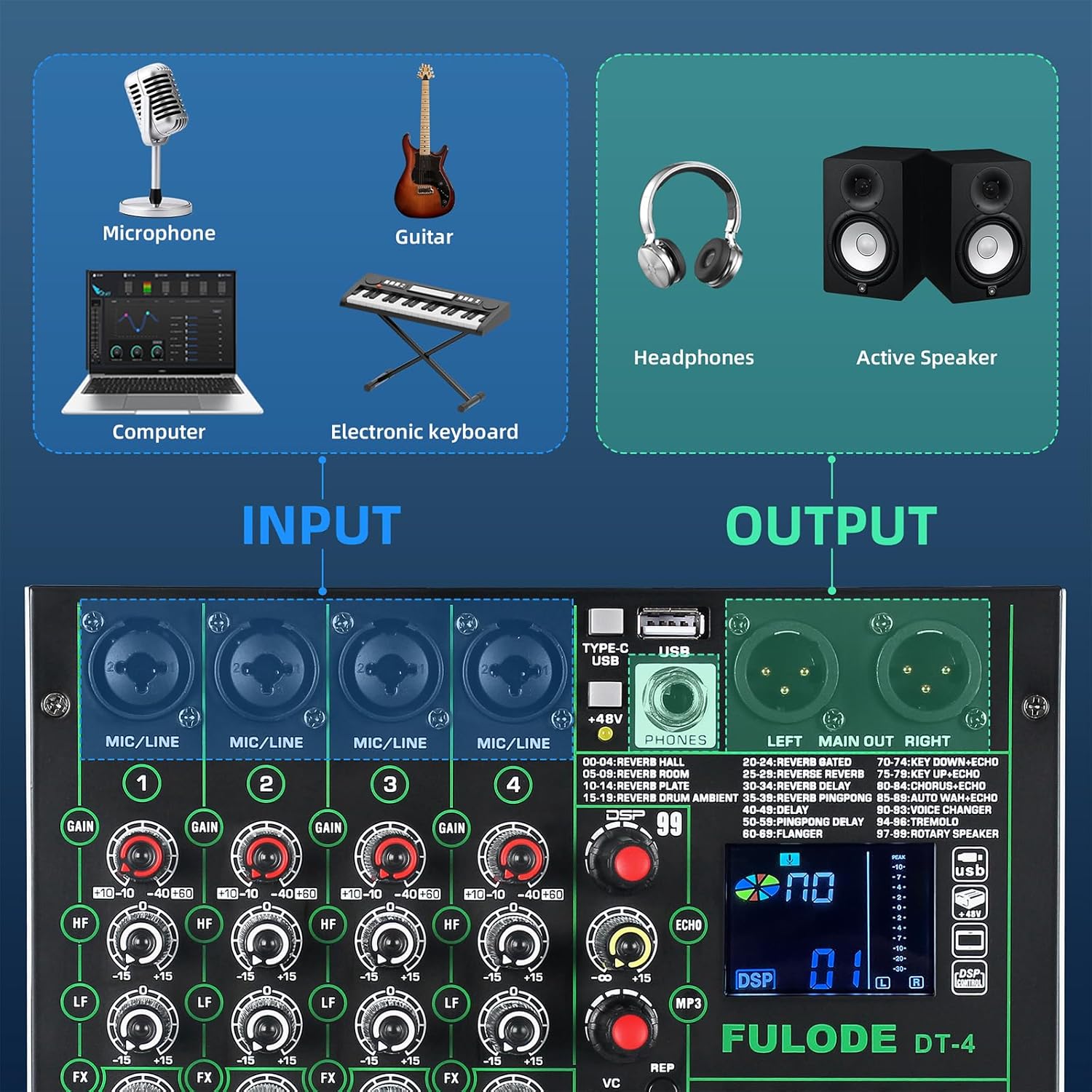

Image: Diagram illustrating various input sources (microphone, guitar, computer, electronic keyboard) connecting to the mixer, and output devices (headphones, active speakers) connected to the mixer.

3. Output Connections

• Main Output: Connect your main speakers or recording interface to the LEFT MAIN OUT RIGHT XLR outputs (23).
• Headphones: Plug your headphones into the PHONES jack. Adjust the headphone volume using the PHONES knob (15).

4. Computer/Mobile Device Connection

• USB Connection: Connect the mixer to your computer using a USB cable via the TYPE-C/USB port (20). The mixer will be recognized as an audio interface without requiring additional drivers.
• Bluetooth Connection: Press the MODE button (14) until 'BT' appears on the display. On your mobile device, search for 'BT_5.0' and pair.

Image: Illustration showing the FULODE DT-4 mixer connected to a laptop, tablet, and phone for audio playback via USB and Bluetooth.

Operating Instructions

1. Adjusting Input Levels (Gain)

Use the GAIN knob (2) for each channel to set the input level. Adjust it so that the PEAK indicator light for that channel flashes only occasionally during the loudest parts of your audio. Avoid constant illumination of the PEAK light, as this indicates clipping and distortion.

2. Equalization (EQ)

Each channel has HF (3) and LF (4) knobs for basic high and low frequency adjustments. The main output features a 5-band Graphic Equalizer (16) to fine-tune the overall sound. Adjust the sliders to boost or cut specific frequency ranges (70Hz, 200Hz, 1KHz, 5KHz, 12KHz) for the main mix.

Image: Close-up view of the 5-band graphic equalizer section on the FULODE DT-4 mixer, showing the sliders for frequency adjustment.

3. DSP Effects

The mixer includes 99 built-in DSP effects. Use the 99 Effects selection knob (8) to scroll through the available effects (e.g., Reverb, Delay, Chorus). The selected effect number will appear on the display (9). Adjust the effect parameters using the 99 Effects adjustment knobs (10) and the overall effect send level for each channel with the FX knob (5). The master effect volume is controlled by the Effect volume knob (17).

Image: Display showing the '99 DSP' effects feature of the FULODE DT-4 mixer, with a list of various reverb, delay, and other effects.

4. Vocal Removal

To remove vocals from a track playing via USB or Bluetooth, press the Mp3 VC button (13). This feature attempts to isolate and reduce the vocal track, leaving an instrumental version. The effectiveness may vary depending on the original audio source.

Image: A person operating the FULODE DT-4 mixer, with a highlighted 'VC' button indicating the one-tap vocal elimination feature.

5. USB Playback

Insert a USB flash drive containing MP3 audio files into the USB port (20). The mixer will automatically detect and begin playing the files. Use the Mp3 adjustment knobs (11) and Mp3 REP (12) to control playback (play/pause, skip tracks, repeat). Adjust the overall USB playback volume with the Mp3 total volume knob (18).

6. Bluetooth Connectivity

After pairing your device (as described in Setup), ensure the mixer is in Bluetooth mode (display shows 'BT'). You can now stream audio wirelessly from your smartphone, tablet, or computer to the mixer. Control playback and volume from your connected device or using the mixer's MP3 controls.

7. Live Streaming

Connect your mobile phone or computer to the mixer via USB (TYPE-C/USB port 20). The mixer acts as an audio interface, sending the mixed audio directly to your streaming software or application. This plug-and-play functionality simplifies your live broadcast setup.

Image: A person setting up a live broadcast with the FULODE DT-4 mixer connected to a computer and smartphone, demonstrating its plug-and-play capability.

Maintenance

Proper care ensures the longevity of your FULODE DT-4 mixer.

• Cleaning: Regularly wipe the surface with a soft, dry cloth. For stubborn dirt, use a slightly damp cloth and immediately dry the surface. Avoid abrasive cleaners or solvents.
• Storage: When not in use, store the mixer in a cool, dry place, away from direct sunlight and extreme temperatures.
• Dust Protection: Cover the mixer with a dust cover when not in use to prevent dust accumulation in faders and knobs.
• Cable Management: Avoid bending cables sharply or placing heavy objects on them to prevent damage to connectors and internal wiring.

Troubleshooting

If you encounter issues, refer to the following table for common problems and solutions:

Specifications

Key technical details for the FULODE DT-4 Audio Mixer:

• Model: DT-4
• Number of Channels: 4
• DSP Effects: 99 Presets
• Equalization: 5-Band Graphic EQ (Main Out), 2-Band EQ (HF/LF) per channel
• Phantom Power: +48V (switchable)
• Connectivity: XLR/TRS Combo Inputs, USB (Type-C for data/power), Bluetooth, Main XLR Outputs, Headphone Output
• Power Source: DC 12V (adapter included), USB Type-C
• Voltage: 110 Volts (AC)
• Item Weight: 3.97 pounds (1.8 KG)
• Product Dimensions: 9.45"D x 8.66"W x 2.17"H (240mm x 220mm x 55mm)

Image: Diagram illustrating the physical dimensions of the FULODE DT-4 mixer, showing its length, width, and height in both millimeters and inches, along with its weight.

Warranty and Support

Warranty Information

Your FULODE DT-4 Audio Mixer is covered by a manufacturer's warranty against defects in materials and workmanship. Please refer to the warranty card included in your package or contact FULODE customer support for specific terms and conditions. Keep your purchase receipt as proof of purchase.

Customer Support

For technical assistance, troubleshooting, or warranty claims, please contact FULODE customer support through the retailer where you purchased the product or visit the official FULODE website for contact information.
