Important Safety Information
Read all instructions before using this appliance. Failure to follow these instructions may result in electric shock, fire, or personal injury.
- Do not place heavy objects on the shelves to prevent tip-over.
- Secure the fireplace to the wall to prevent accidents, especially if children or pets are present.
- Exercise caution when handling the product during assembly, as it may arrive in multiple packages.
- Always unplug the fireplace when not in use and allow it to cool before touching any heated surfaces to prevent burns.
- Do not place heat-sensitive materials near the fireplace.
- A 20A circuit with 12-2 wiring and a 20A outlet is recommended for optimal safety and performance. Consult an electrician for installation if unsure.
Product Overview

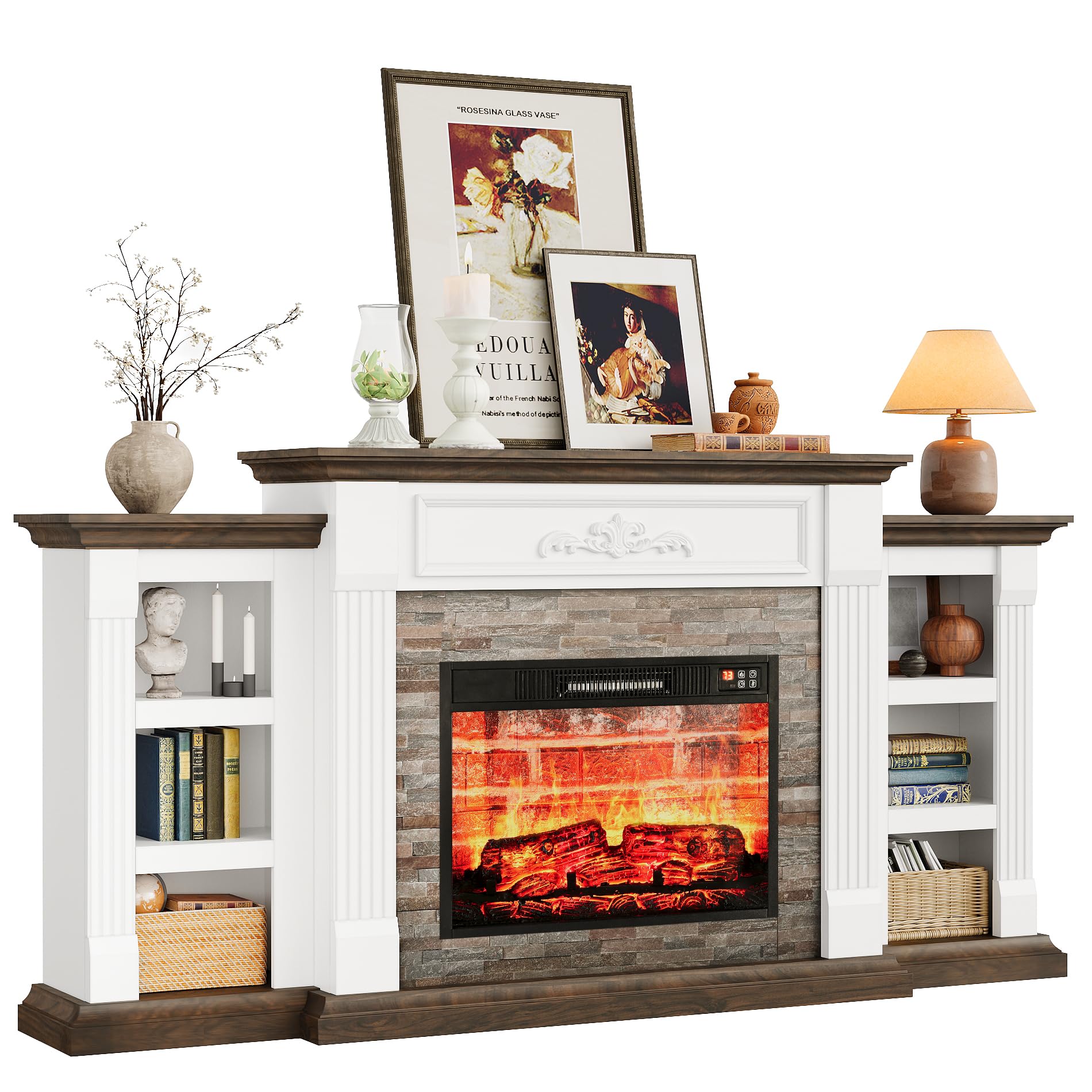

The LGHM 72-inch Electric Fireplace TV Stand with Mantel is designed to accommodate TVs up to 80 inches, offering both an electric fireplace heater and ample storage. Its design features a realistic stacked stone surround and decorative edges.
LGHM 72-inch Electric Fireplace TV Stand with Mantel in a living room setting.
Key Features:
- Dimensions: 13.6''D x 72''W x 36.4''H.
- Realistic Stacked Stone Surround: Features a rustic and traditional style with a stacked stone look and decorative edges.
- Ample Storage Space: Three open shelves on each side for media devices, remotes, and decorative items.
- Dual Control Options: Convenient control for flame, heat, and timer functions.
- Efficient Heating: 1400W fireplace heater with 5,000 BTU output, capable of warming up to 400 square feet.

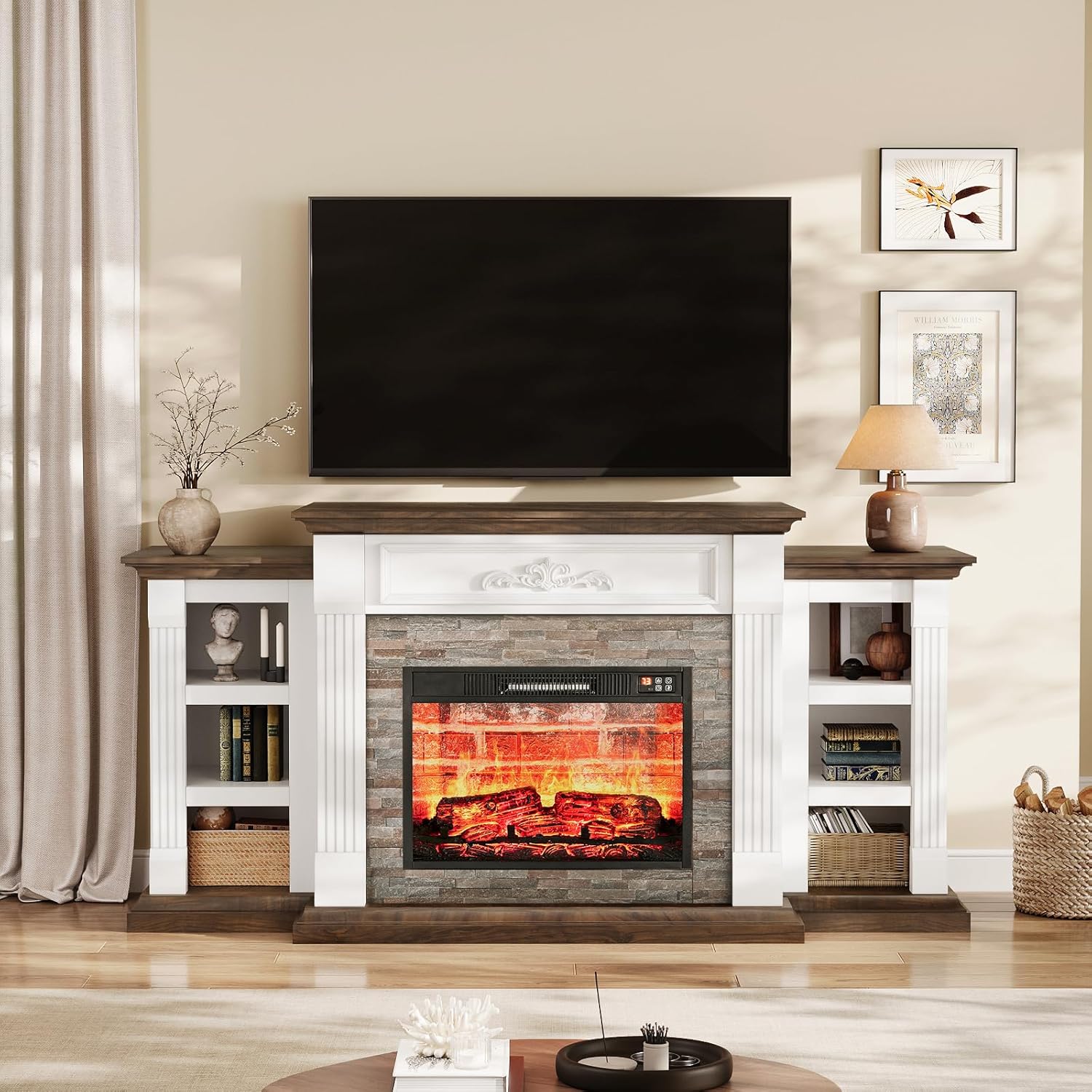

LGHM 72-inch Electric Fireplace TV Stand with Mantel in a living room, showcasing the integrated electric fireplace and shelving.
Specifications
| Feature | Detail |
|---|---|
| Brand | LGHM |
| Model | 72 Inch Electric Fireplace TV Stand |
| Color | Brown & White |
| Material Type | Engineered Wood |
| Item Dimensions (Overall) | 13.6 x 72 x 36.4 inches (D x W x H) |
| Fireplace Insert Dimensions | 5"D x 23"W x 17.5"H |
| Heating Power | 1400W, 5,000 BTU |
| Heating Area | Up to 400 square feet |
| Assembly Required | Yes |
Diagram showing the dimensions of the 72-inch fireplace TV stand.
Diagram illustrating the recommended TV sizes (55, 65, 80 inches) compatible with the 72-inch fireplace TV stand.
Setup and Assembly
The LGHM 72-inch Electric Fireplace TV Stand is shipped in three separate packages, which may arrive at different times. Please ensure all packages have been received before beginning assembly.
Illustration showing the product being shipped in three separate boxes labeled A, B, and C.
Follow the detailed assembly instructions provided in the packaging. Some steps may require self-tapping screws; using an awl or small drill bit to start pilot holes can be helpful for easier assembly.
Operating Instructions
Electric Fireplace Insert Controls:
The electric fireplace insert features a simple control panel for managing its functions. You can also use a remote control (if included) for convenience.
Close-up of the electric fireplace control panel, showing buttons for flame control, timer, heater control, and power.
- Power Button: Turns the fireplace on or off.
- Flame Control (L1-L3): Adjusts the brightness and intensity of the realistic 3D flames.
- Heater Control: Sets the heating level, typically adjustable between 62°F and 82°F.
- Timer Control: Sets an auto-shutoff timer for 0-6 hours.
Video demonstrating the features and operation of the 72-inch LED Fireplace TV Stand.
Flame and Heat Settings:
The fireplace offers adjustable flame brightness and a powerful heater to create a comfortable ambiance.
Visual representation of three flame brightness levels (Level 1, Level 2, Level 3) for the electric fireplace.
Comparison image showing the electric fireplace with and without the heating function active, highlighting warmth and ambiance.
Storage Features:
The TV stand includes open shelving on both sides of the fireplace insert, providing convenient storage and display options.

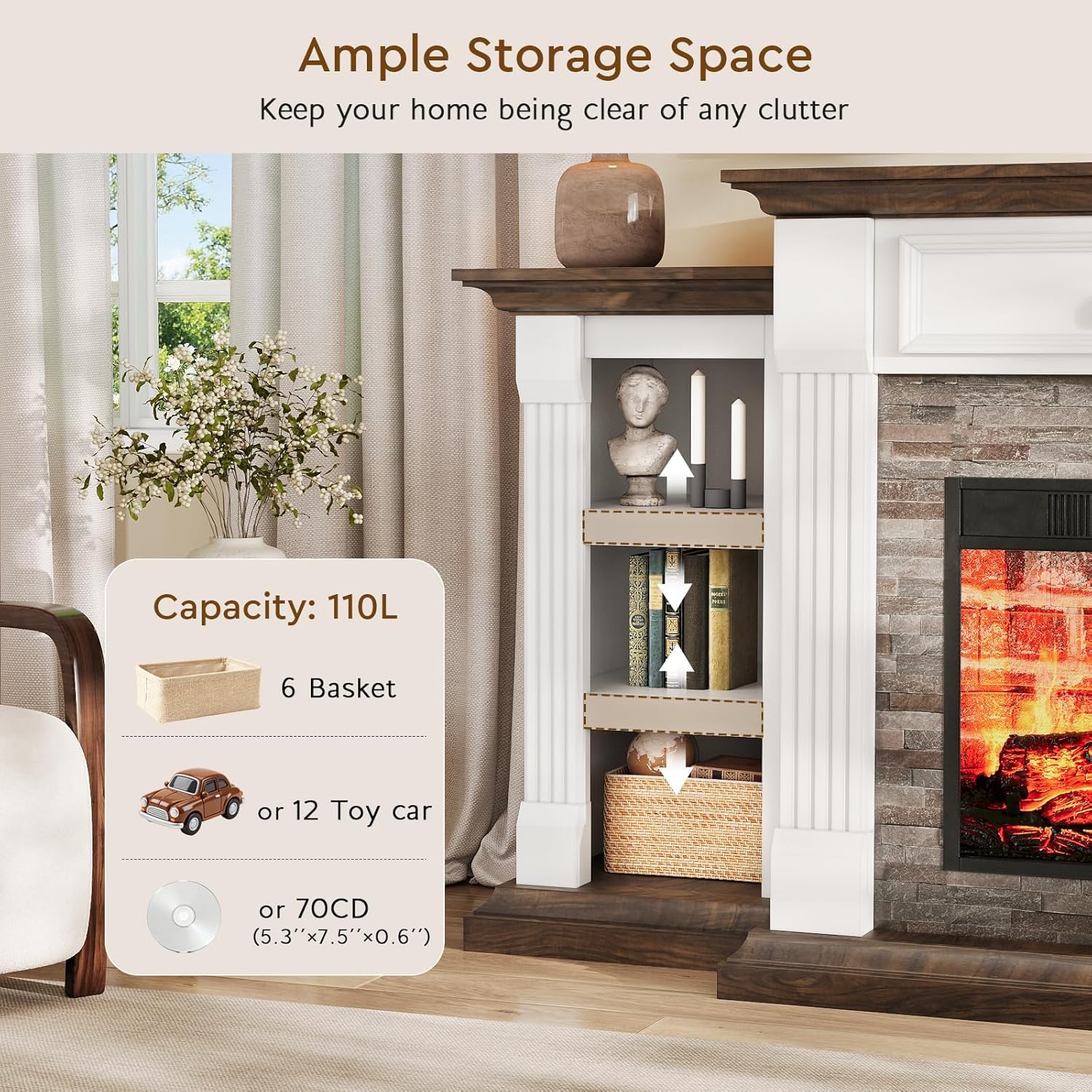

Image detailing the ample storage space on the side shelves of the fireplace TV stand, with examples of items that can be stored.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your electric fireplace TV stand.
- Cleaning: Dust the surfaces with a soft, dry cloth. For the fireplace insert, ensure it is unplugged and cool before wiping the glass or vents with a slightly damp cloth. Avoid abrasive cleaners.
- Electrical Connections: Periodically check the power cord and plug for any signs of damage. Do not use if damaged.
- Ventilation: Ensure the air intake and outlet vents of the fireplace insert are clear of obstructions to prevent overheating.
Troubleshooting
If you encounter issues with your LGHM Electric Fireplace TV Stand, refer to the following common solutions:
| Problem | Possible Cause / Solution |
|---|---|
| Fireplace does not turn on. | Check if the power cord is securely plugged into a working outlet. Ensure the main power switch on the unit is in the 'ON' position. Verify the circuit breaker has not tripped. |
| No heat output. | Confirm the heater function is activated on the control panel or remote. Check the temperature setting; it may be set too low. Ensure vents are not blocked. |
| Flames are not visible or dim. | Adjust the flame brightness setting using the control panel or remote. |
| Unusual noise from the unit. | A low fan noise is normal during heating operation. If the noise is excessive or unusual, ensure the unit is on a stable, level surface and that no objects are obstructing the fan. |
| Unit shuts off unexpectedly. | This may indicate the overheat protection has activated. Unplug the unit, allow it to cool for 10-15 minutes, and check for any blocked vents before restarting. |
Warranty and Support
For warranty information or technical support, please refer to the documentation included with your product or contact LGHM customer service. Keep your purchase receipt for warranty claims.
For further assistance, you may visit the LGHM Store on Amazon.
