1. Introduction
Thank you for choosing the SARMOCARE Water Dental Flosser F800. This cordless oral irrigator is designed to provide effective and convenient oral hygiene, helping to remove food debris and plaque from between teeth and below the gumline. Please read this manual thoroughly before first use to ensure proper operation and maintenance.
2. Important Safety Information
To reduce the risk of electric shock, injury, or damage, always follow basic safety precautions when using electrical products, especially when children are present. This device is intended for personal oral hygiene only. Do not use for any other purpose. Consult your dentist before use if you have had oral surgery or have severe periodontal disease. Keep out of reach of children.
3. Product Components
The SARMOCARE Water Dental Flosser F800 package includes:
- SARMOCARE Water Dental Flosser Unit
- 4 x Nozzles (Standard, Orthodontic, Periodontal, Tonguescraper)
- Type-C USB Charging Cable
- User Manual
4. Setup
4.1 Charging the Device
Before first use, fully charge the water flosser. The device features a built-in 1500mAh rechargeable battery and a Type-C charging port.
- Ensure the waterproof plug on the charging port is securely open.
- Connect the Type-C USB charging cable to the charging port on the device.
- Connect the other end of the USB cable to a compatible power source (e.g., power bank, wall adapter, car charger, notebook).
- The charging indicator light will illuminate. A full charge takes approximately 4 hours and provides up to 45 days of usage.
- Once fully charged, disconnect the cable and ensure the waterproof plug is firmly closed to maintain IPX7 water resistance.
Figure 1: Charging the SARMOCARE Water Dental Flosser.
Figure 2: Battery life and charging options.
4.2 Attaching a Nozzle
- Select the desired nozzle (Standard, Orthodontic, Periodontal, or Tonguescraper).
- Insert the nozzle into the hole at the top of the flosser unit until it clicks into place.
- To remove, press the nozzle release button (usually located on the back or side of the unit) and pull the nozzle out.
4.3 Filling the Water Tank
The flosser features a 300ML large capacity, removable water tank with two filling options.
- Option 1 (Direct Fill): Open the small cap on the side of the water tank and fill directly with water.
- Option 2 (Remove Tank): Detach the water tank from the main unit by twisting or pulling it down (refer to device specific mechanism). Fill the tank with lukewarm water. Reattach the tank securely to the main unit.
Ensure the tank is securely attached to prevent leaks. The open visual tank design allows for easy monitoring of water levels.

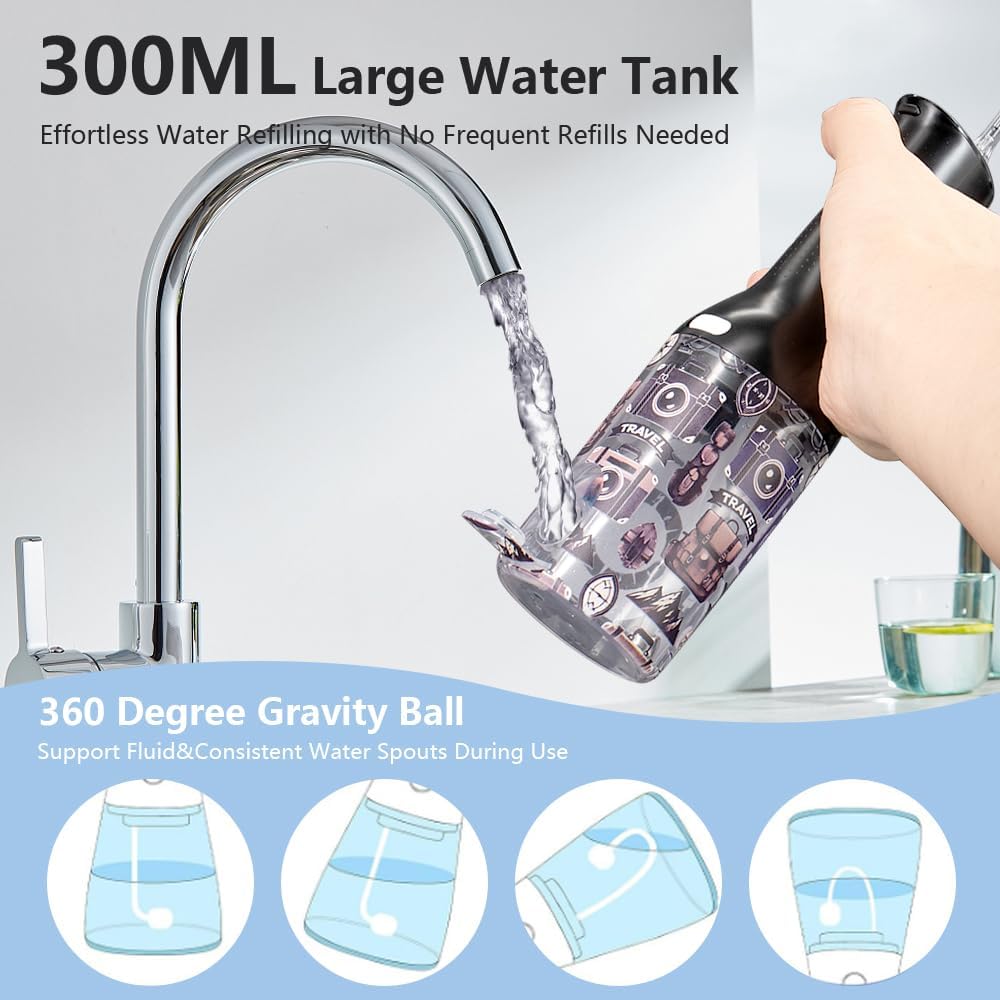

Figure 3: Filling the 300ML water tank.
5. Operating Instructions
5.1 Powering On/Off and Mode Selection
The device features a double button design for enhanced protection, allowing you to select the mode before switching on.
- Press the 'M' (Mode) button to cycle through the 4 available modes:
- Soft Mode: Gentle pressure, suitable for beginners and sensitive teeth.
- Normal Mode: Standard pressure for daily cleaning and gum massage.
- Strong Mode: High pressure for deep cleaning.
- Pulse Mode: Variable pressure for gum stimulation and massage.
- Once the desired mode is selected, press the Power button to start the water flosser.
- To turn off the device, press the Power button again.
Figure 4: 4 Mode Settings for the Water Flosser.
Figure 5: Overview of the 4 Cleaning Modes.
5.2 Using Different Nozzles
The SARMOCARE Water Dental Flosser comes with four specialized nozzles:
- Standard Jet Tip: For daily gumline cleaning.
- Orthodontic Jet Tip: Designed for people wearing orthodontic braces.
- Periodontal Jet Tip: For cleaning periodontal pockets and dental devices.
- Tonguescraper Jet Tip: For cleaning tongue coating to freshen breath.
Figure 6: Specialized Jet Tips and their applications.
Figure 7: Professional Cleaning Tools.
5.3 Proper Flossing Technique
- Lean over a sink and place the nozzle tip into your mouth, aiming it at your gumline at a 90-degree angle.
- Close your lips slightly to prevent splashing, but allow water to flow from your mouth into the sink.
- Start with your back teeth and work your way to the front. Glide the tip along the gumline, pausing briefly between teeth.
- Floss both the front and back surfaces of your teeth.
- Empty any remaining water from the tank after each use.
Figure 8: Proper usage of the water flosser.
6. Maintenance
6.1 Cleaning the Device
The SARMOCARE Water Dental Flosser is IPX7 waterproof, allowing for easy cleaning.
- After each use, turn off the device and empty any remaining water from the tank.
- Rinse the water tank and the main unit under running water.
- Wipe the exterior of the device with a soft, damp cloth.
- Ensure the waterproof plug for the charging port is always closed when cleaning or not charging.
Figure 9: IPX7 Waterproof feature and waterproof plug.
Figure 10: IPX7 Waterproof design for easy cleaning.
6.2 Cleaning Nozzles
Rinse each nozzle under running water after use. For deeper cleaning, nozzles can be soaked in a denture cleaning solution or a mixture of water and white vinegar for 10-15 minutes, then rinsed thoroughly.
6.3 Storage
Store the device in a cool, dry place away from direct sunlight. Ensure the water tank is empty and clean before storing for extended periods.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Device does not turn on. | Low battery. | Charge the device for at least 4 hours. |
| No water flow or weak water pressure. | Water tank empty or improperly attached. Nozzle clogged. | Refill water tank and ensure it is securely attached. Remove and clean the nozzle. |
| Water leakage. | Water tank or nozzle not properly installed. Waterproof plug open. | Ensure water tank and nozzle are securely clicked into place. Close the charging port waterproof plug firmly. |
| Charging indicator not lighting up. | Charging cable or adapter issue. | Try a different Type-C USB cable or power adapter. Ensure cable is fully inserted. |
8. Specifications
- Model: F800
- Dimensions: 2.76 x 2.76 x 9.45 inches
- Weight: 11.89 ounces
- Water Tank Capacity: 300ML
- Power Source: Rechargeable Battery (1500mAh)
- Charging Time: Approximately 4 hours
- Usage Time: Up to 45 days on a full charge (depending on usage)
- Waterproof Rating: IPX7
- Modes: Soft, Normal, Strong, Pulse
9. Warranty and Support
SARMOCARE is committed to providing quality products and customer satisfaction. If you encounter any issues with your Water Dental Flosser F800 or have questions regarding its operation, please contact SARMOCARE customer service. Our team will assist you with pre-sales consulting and after-sales service to ensure your satisfaction.
Please refer to your purchase documentation for specific warranty terms and contact information.
