1. Introduction and Overview
This manual provides comprehensive instructions for the Hisense RQ760N4SBFE Cross Door Refrigerator. It covers installation, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your appliance. This refrigerator features a 584-liter capacity, Total No Frost technology, a flexible Triple Zone with My Fresh Choice, an integrated Ice and Water Dispenser, and Metal-Tech Cooling.

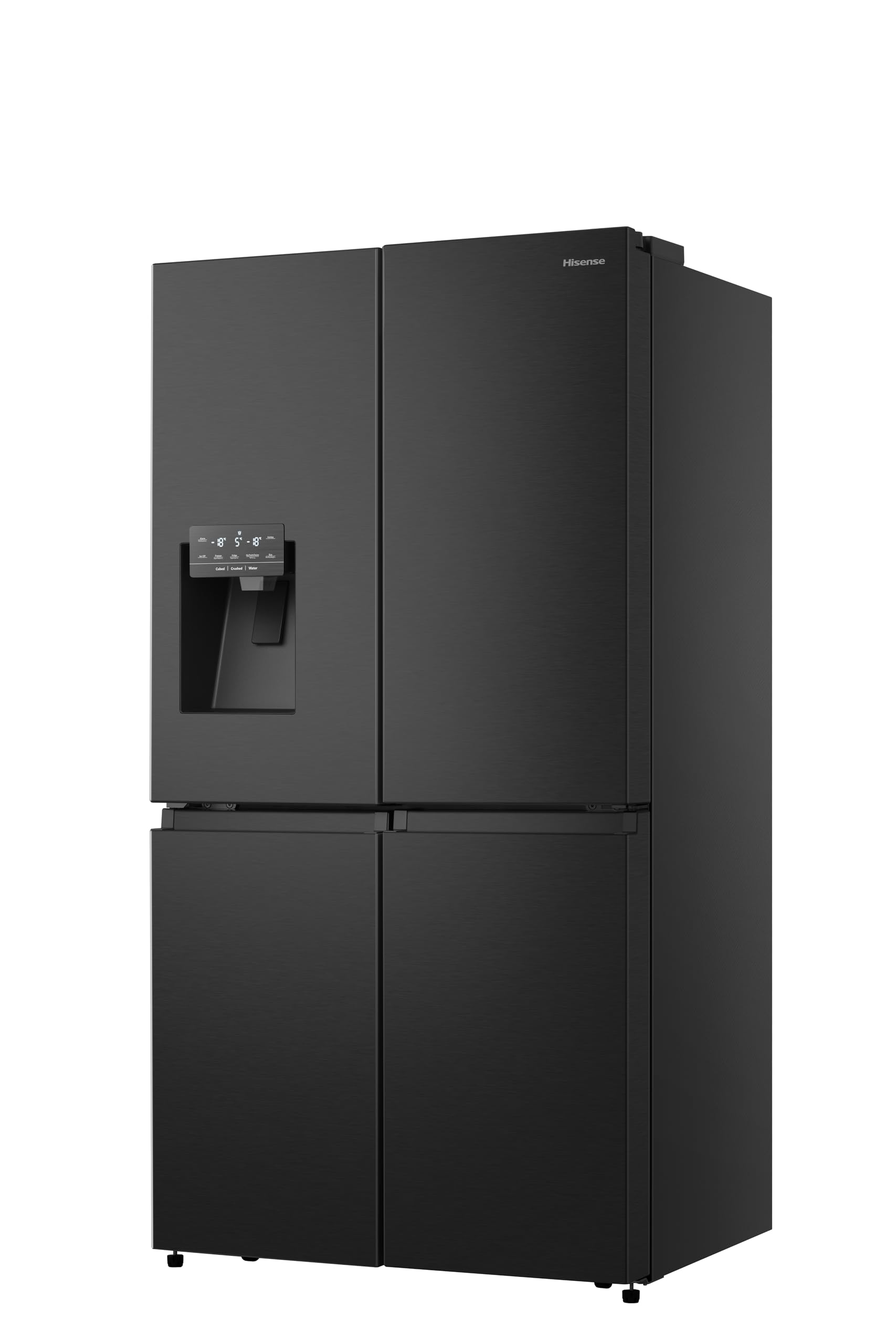

Front view of the Hisense RQ760N4SBFE Cross Door Refrigerator.
Interior view of the refrigerator with all doors open, showcasing compartments and Metal-Tech Cooling back panel.
2. Safety Information
Before operating the appliance, read all safety instructions carefully. Keep this manual for future reference. Failure to follow these instructions may result in electric shock, fire, or damage to the appliance.
- Ensure proper grounding. Do not use extension cords or ungrounded adapters.
- Keep ventilation openings in the appliance enclosure or in the built-in structure clear of obstruction.
- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
- This appliance is intended for household use only.
- Do not damage the refrigerant circuit.
- Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
- Unplug the appliance before cleaning or performing maintenance.
3. Setup
3.1 Unpacking
Carefully unpack the refrigerator and remove all packaging materials, including tape and protective films. Inspect the appliance for any shipping damage. Report any damage to your retailer immediately.
3.2 Placement
Place the refrigerator on a firm, level surface. Ensure adequate clearance around the appliance for proper ventilation. Maintain at least 10 cm (4 inches) of space at the back and sides, and 30 cm (12 inches) at the top for optimal cooling performance and energy efficiency. Avoid direct sunlight or heat sources.
3.3 Electrical Connection
Connect the refrigerator to a dedicated, grounded power outlet (230 Volts, Type F - 2 pin German plug). Do not use adapters or extension cords. Ensure the voltage and frequency match the ratings on the appliance's rating plate.
3.4 Initial Cleaning
Clean the interior and exterior surfaces of the refrigerator with a damp cloth and mild detergent before first use. Dry thoroughly.
3.5 First Power On
Allow the refrigerator to stand upright for at least 2-4 hours after moving it before plugging it in. This allows the refrigerant to settle. After plugging in, allow the appliance to cool for several hours (at least 4-6 hours) before loading food.
4. Operating Instructions
4.1 Control Panel
The refrigerator features an intuitive control panel, typically located on the exterior of the upper left door, allowing you to adjust temperatures, select modes, and control the ice and water dispenser.
4.2 Triple Zone and My Fresh Choice
This refrigerator offers three distinct temperature zones: the main refrigerator compartment, the freezer compartment, and the flexible My Fresh Choice compartment. The My Fresh Choice compartment can be adjusted to function as either a refrigerator or a freezer, providing flexible storage options based on your daily needs. Use the control panel to set the desired temperature for each zone.
4.3 Ice and Water Dispenser
The integrated ice and water dispenser provides chilled water, ice cubes, and crushed ice. Select your desired option from the control panel on the door. Ensure the water supply is connected and the water filter (if applicable) is properly installed for optimal performance.
Close-up view of the water and ice dispenser with control options for cubed, crushed ice, and water.
4.4 Total No Frost
The Total No Frost system prevents ice build-up in both the refrigerator and freezer compartments, eliminating the need for manual defrosting and ensuring consistent cooling performance.
4.5 Metal-Tech Cooling
The back wall of the refrigerator compartment is lined with stainless steel, which helps to evenly distribute cool air. This technology maintains stable temperatures and humidity levels, preserving food freshness.
4.6 Multi Airflow System
The Multi Airflow system optimizes air circulation throughout the appliance, ensuring consistent cooling and precise temperature control in all compartments.
Diagram showing the Multi Airflow system distributing cool air throughout the refrigerator compartments.
4.7 Metal Glide Trays
The freezer drawers feature robust, lightly sliding metal guides, allowing for easier access to frozen items. The transparent design provides a clear overview of the contents.
4.8 WIFI and App Control
This model supports App Control via WIFI, allowing for remote monitoring and adjustment of settings. Refer to the separate app manual or Hisense website for pairing instructions and detailed features.
4.9 Super Cool and Super Freeze Functions
Use the Super Cool function to rapidly cool fresh food items, and the Super Freeze function to quickly freeze new items, helping to preserve their quality and nutritional value.
5. Maintenance
5.1 Cleaning
- Interior: Regularly clean the interior surfaces with a solution of mild detergent and warm water. Rinse with clean water and dry thoroughly. Do not use abrasive cleaners, solvents, or harsh chemicals.
- Exterior: Wipe the exterior surfaces with a soft, damp cloth. For stainless steel finishes, use a specialized stainless steel cleaner.
- Door Seals: Inspect and clean door seals regularly to ensure they are free from food particles and maintain a tight seal for energy efficiency.
5.2 Defrosting
This appliance features Total No Frost technology, eliminating the need for manual defrosting. However, ensure that air vents inside the compartments are not blocked by food items to maintain proper air circulation.
5.3 Water Filter Replacement (if applicable)
If your model includes a water filter for the dispenser, replace it as recommended by the manufacturer, typically every 6 months, to ensure optimal water quality and dispenser performance. Refer to the filter replacement instructions provided with the filter or on the Hisense website.
6. Troubleshooting
Before contacting customer service, refer to the following table for common issues and their potential solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Refrigerator not cooling | No power supply; Temperature setting too high; Door not closed properly. | Check power cord and outlet; Adjust temperature settings; Ensure doors are fully closed and seals are intact. |
| Unusual noises | Appliance not level; Items touching the back wall; Normal operational sounds. | Adjust leveling feet; Rearrange items; Some sounds (e.g., refrigerant flow, compressor) are normal. |
| Water dispenser not working | Water supply off; Water filter clogged; Dispenser locked. | Check water line connection and valve; Replace water filter; Unlock dispenser if applicable. |
| Ice maker not producing ice | Water supply off; Ice maker arm in 'off' position; Freezer temperature too high. | Check water supply; Ensure ice maker arm is down; Lower freezer temperature. |
| Condensation inside | Door left open frequently; High humidity; Door seal issues. | Minimize door openings; Ensure door seals are clean and intact. |
7. Specifications
Detailed specifications for the Hisense RQ760N4SBFE Cross Door Refrigerator:
| Feature | Specification |
|---|---|
| Model Name | RQ760N4SBFE |
| Brand | Hisense |
| Product Dimensions (D x W x H) | 72.5D x 91.4W x 178.5H Centimeters |
| Total Capacity | 584 Liters |
| Fresh Food Capacity | 352 Liters |
| Freezer Capacity | 188 Liters |
| Configuration | Full-Sized French Door (Cross Door) |
| Colour | Black |
| Defrost System Type | Frost Free (Total No Frost) |
| Voltage | 230 Volts |
| Cooling Method | Compressor |
| Number of Doors | 4 |
| Number of Shelves | 6 |
| Door Shelf Count | 12 |
| Item Weight | 134 Kilograms |
| Annual Energy Consumption | 352 Kilowatt Hours Per Year |
| Refrigerant | R-600A |
| Additional Features | Adjustable Shelves, App Control, Digital Temperature Control, External Ice Dispenser, Frost Free |
| Installation Type | Freestanding |
| Included Components | Manual, egg holder |
Diagram illustrating the dimensions (1785mm H x 914mm W x 725mm D) and capacities (352L refrigerator, 188L freezer) of the RQ760N4SBFE model.
8. Warranty and Support
For warranty information, terms, and conditions, please refer to the warranty card included with your product at the time of purchase. For technical support, service requests, or to find authorized service centers, please visit the official Hisense website or contact Hisense customer service directly. Ensure you have your model number (RQ760N4SBFE) and proof of purchase available when seeking support.
