Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your Empava 24 Inch Electric Induction Cooktop. Please read this manual thoroughly before using the appliance to ensure safe and efficient operation. Keep this manual for future reference.

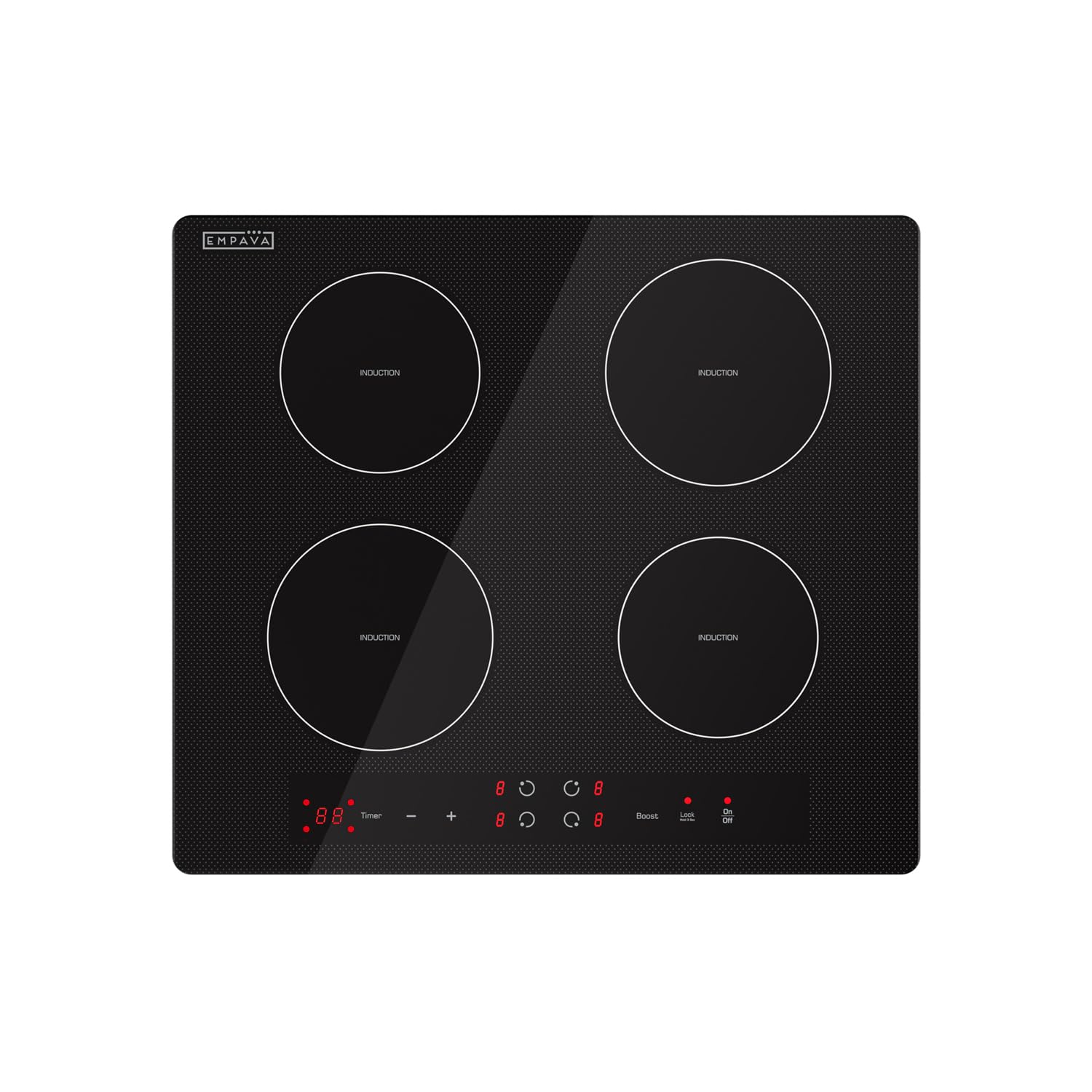

Image: Empava 24 Inch Electric Induction Cooktop, top view.
Safety Information
Always prioritize safety when operating electrical appliances.
- Read all instructions before use.
- Ensure proper installation by a qualified technician.
- Do not touch hot surfaces. Use handles or knobs.
- Supervise children near the appliance.
- Do not immerse cord, plugs, or appliance in water or other liquid.
- Unplug from outlet when not in use and before cleaning.
- Do not operate any appliance with a damaged cord or plug.
- Use only recommended accessories.
- Do not use outdoors.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Always attach plug to appliance first, then plug cord into the wall outlet.
- To disconnect, turn any control to "off", then remove plug from wall outlet.
- Do not use appliance for other than intended use.
- The cooktop surface remains hot after use. Do not touch until cooled.
- This appliance is hardwired and requires professional installation.
Setup
Unboxing
Carefully remove the cooktop from its packaging. Inspect for any damage during transit. Retain packaging materials for potential future transport or service.
Video: Empava 24 Inch Induction Cooktop Unboxing. This video demonstrates the unboxing process of the cooktop, showing how to safely remove it from its packaging and revealing its components.
Installation
The Empava 24 Inch Electric Induction Cooktop is designed for built-in installation. Ensure the countertop cutout dimensions match the specifications provided. Professional installation is recommended due to the hardwired connection requirement.
- Overall Width: 23.23 inches (59 cm)
- Overall Depth: 20.47 inches (52 cm)
- Overall Height: 2.17 inches (5.5 cm)
- Cut-out Depth: Minimum 2 inches (51 mm)
- Minimum Clearance: 13 inches (330 mm) above cooktop, 2.5 inches (64 mm) from rear wall.
Image: Detailed installation diagram showing cooktop dimensions and required clearances for built-in setup.
Cookware Compatibility
Induction cooktops require cookware made of ferromagnetic materials. To check if your cookware is compatible, a magnet should stick to the bottom.
- Compatible: Iron frying pan, stainless steel pot, iron pan, enamel stainless steel kettle, enamel steel pot, iron plate.
- Incompatible: Non-magnetic stainless steel, cookware with bottom measuring less than 5 inches, cookware with jagged edges or a curved base, heat resistant glass, ceramic containers, copper, aluminum.
Image: Visual guide demonstrating how to test cookware compatibility with a magnet and examples of compatible and incompatible cookware types.
Operating Instructions
The cooktop features touch-sensitive controls for easy operation.
Image: Close-up of the cooktop's touch control panel, showing power, timer, boost, and lock functions.
- Power On/Off: Touch the power symbol to turn the cooktop on or off.
- Zone Selection: Select the desired cooking zone by touching its corresponding control.
- Temperature Adjustment: Use the '+' and '-' buttons to increase or decrease the heat level.
- Power Boost: Activate the 'Boost' function for an instant surge of heat, ideal for rapid boiling or searing. This function is temporary and will automatically reduce power after a set time.
- Timer Function: Each burner has an independent timer. Touch the timer control and use '+' and '-' to set the desired cooking duration (up to 99 minutes). The cooktop will automatically shut off the selected zone when the timer expires.
- Child Lock: To prevent accidental activation or changes to settings, press and hold the 'Lock' button for 3 seconds. The lock indicator will illuminate. Repeat the action to unlock.
- Residual Heat Indicator: After use, the 'H' symbol will appear on the display for zones that are still hot, indicating residual heat. Do not touch these surfaces until the 'H' disappears.
Video: Empava 24 Inch Induction Cooktop in use. This video demonstrates the cooktop's features, including cooking with multiple zones, using the boost function, and general operation.
Maintenance
Cleaning the Cooktop
The smooth glass surface of the Empava induction cooktop is easy to clean.
- Always ensure the cooktop is cool before cleaning.
- Wipe spills immediately with a damp cloth.
- For stubborn stains, use a ceramic cooktop cleaner and a non-abrasive sponge.
- Avoid using abrasive pads, harsh chemicals, or sharp objects that could scratch the glass surface.
- Ensure the control panel is dry before operating the cooktop.
Image: A hand wiping the smooth glass surface of the cooktop with a cloth, demonstrating ease of cleaning.
Troubleshooting
If you encounter issues with your cooktop, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Cooktop does not turn on. | No power supply; Child Lock activated. | Check circuit breaker. Deactivate Child Lock by pressing and holding the 'Lock' button for 3 seconds. |
| Cooktop not heating. | Incompatible cookware; cookware not centered; small cookware size. | Use induction-compatible cookware (magnet test). Center cookware on the zone. Ensure cookware base is at least 5 inches in diameter. |
| "E3" error message. | Voltage supply issue (too high or too low). | Consult a qualified electrician to verify the power supply voltage. This issue often requires professional diagnosis. |
| Loud fan noise. | Normal operation of cooling fans. | This is normal for induction cooktops as internal components require cooling. The noise level may vary. |
| Touch controls unresponsive. | Surface is wet or dirty; Child Lock activated. | Ensure the control panel is clean and dry. Deactivate Child Lock. |
Specifications
| Feature | Detail |
|---|---|
| Brand | Empava |
| Model Number | EMPV-IDC24 |
| Product Dimensions | 20.47"D x 23.23"W x 2.17"H |
| Item Weight | 23.5 pounds |
| Heating Elements | 4 |
| Burner Type | Induction |
| Color | Black |
| Power Source | Corded Electric (Hardwired) |
| Fuel Type | Electric |
| Special Features | Automatic Shut-Off, Hot Surface Indicator, Safety Lock, Timer, Power Boost |
| Heater Surface Material | Glass Ceramic |
| Manufacturer | Empava |
Warranty and Support
Warranty Information
Specific warranty details for the Empava 24 Inch Electric Induction Cooktop are typically provided with the product documentation at the time of purchase. Please refer to the warranty card or contact Empava customer service for detailed information regarding coverage, terms, and conditions.
Customer Support
For technical assistance, troubleshooting, or service inquiries, please contact Empava customer support. Contact information can usually be found on the manufacturer's website or in the product packaging.
Online Resources: Visit the official Empava website for FAQs, product registration, and additional support materials.
