PURPLE LEAF 14' x 28' Outdoor Hardtop Gazebo Instruction Manual

1. Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your PURPLE LEAF 14' x 28' Outdoor Hardtop Gazebo. Please read all instructions carefully before beginning assembly and retain this manual for future reference. Proper assembly and care will ensure the longevity and safe use of your gazebo.

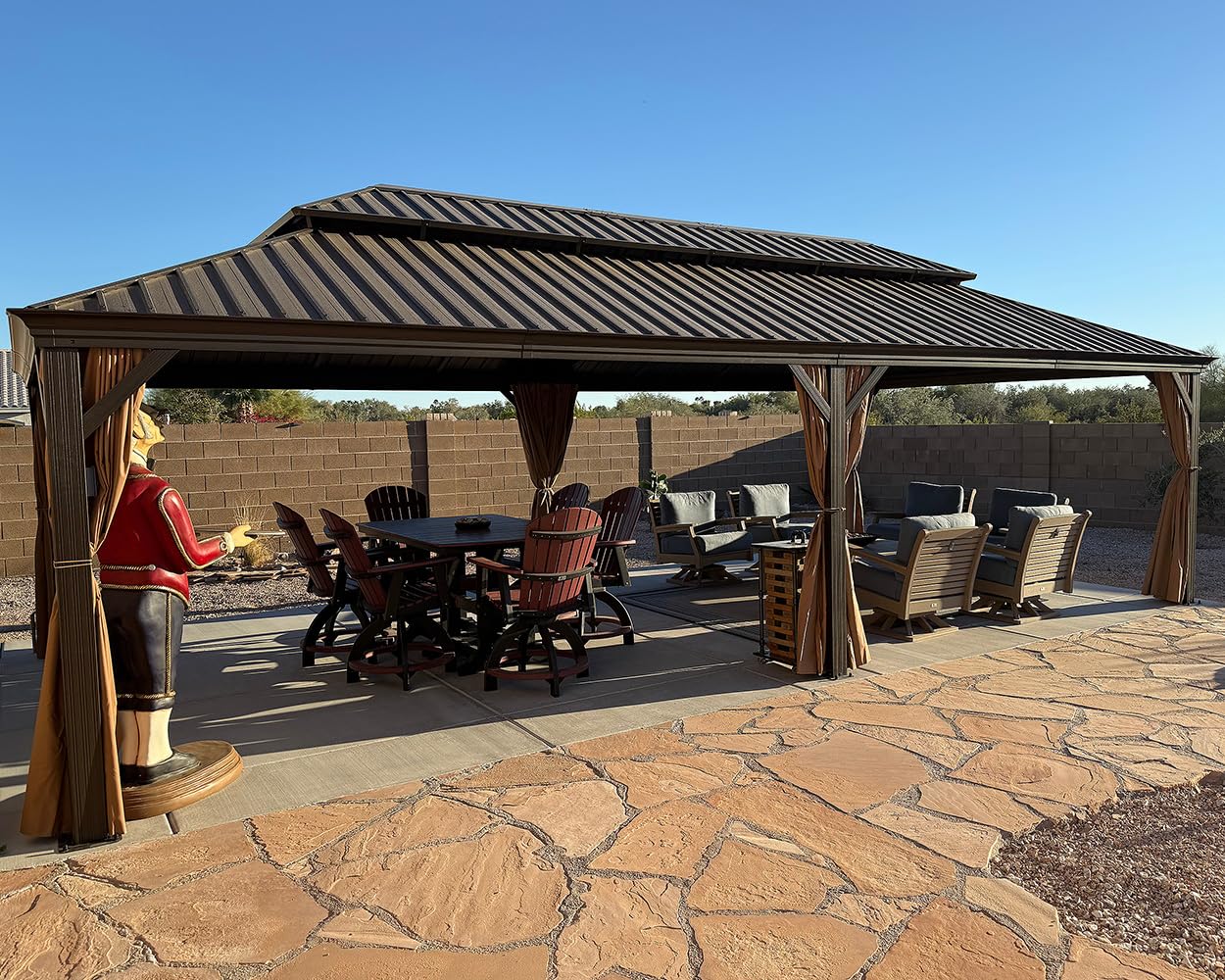

Image 1.1: The PURPLE LEAF 14' x 28' Outdoor Hardtop Gazebo, showcasing its large size and elegant design in a patio setting.

2. Safety Information

Before purchasing and installing this gazebo, it is crucial to check with your local Homeowners Association (HOA) guidelines and building codes. A permit may be required for installation. Always follow safety guidelines during assembly, disassembly, and use of the gazebo to prevent injury or damage.

• Ensure the assembly area is clear of obstructions and hazards.
• Use appropriate safety gear, such as gloves and eye protection, during assembly.
• Do not attempt to assemble the gazebo alone. A minimum of 2-3 adults is recommended for safe and efficient assembly, especially for roof sections.
• Securely anchor the gazebo to the ground or deck once fully assembled to withstand high winds.
• Do not hang excessively heavy items from the ceiling hooks; refer to the specifications for weight limits.
• Regularly inspect the gazebo for any loose parts or damage and address them promptly.

3. Setup and Assembly

The assembly process requires careful attention to detail. It is highly recommended to have at least two to three adults for assembly, particularly when installing the roof panels and upper structure. The product comes in multiple labeled boxes; ensure all boxes are received and inspected for damage upon delivery.

3.1 Tools Required

• Cordless drill with hex bits (recommended for efficiency)
• Phillips head screwdriver
• Two full-sized ladders (essential for roof assembly)
• Needle-nosed pliers (useful for minor adjustments)
• Painter's tape (helpful for securing small parts during roof installation)

3.2 Assembly Tips

• Unpack and Organize: All parts are clearly labeled. Organize them according to the instruction manual's diagrams before starting.
• Leave Bolts Loose: When instructed to leave bolts loose, ensure they are very loose, not just a few threads. This flexibility is crucial for aligning angled pieces and roof panels.
• Roof Panel Installation: The plastic clips for the slanted roof panels (e.g., Z/Z1/Z2) can be tricky. Use painter's tape to temporarily hold them in place while aligning panels into the top/corner rails. Use screwdrivers to help align panels with holes in supporting cross rails, then secure with bolts.
• Frame Alignment: Do not bolt the gazebo down to the ground or deck until it is fully assembled. This allows for minor adjustments to ensure the frame is square, which is critical for proper roof panel fit.
• Optimized Assembly: The design aims to streamline assembly, potentially reducing installation time.

Image 3.1: Detailed product information and dimensions for the 14' x 28' gazebo.

Video 3.2: An official video demonstrating the PURPLE LEAF 14' X 28' Outdoor Hardtop Gazebo.

4. Operating Instructions

4.1 Curtains and Netting

The gazebo includes yarn-dyed curtains and heavy-duty netting. The curtains are designed for strong fade resistance and can be tied back to the posts or closed for privacy and sun protection. The 260 GSM high-tensile netting provides protection against insects and remains stable in winds up to 10 mph.

Image 4.1: The upgraded yarn-dyed curtains offer enhanced fade resistance.

Image 4.2: The heavy-duty 260 GSM Textilene netting provides superior strength and durability.

4.2 Drainage System

The gazebo features a built-in drainage design. The pitched roof directs rainwater efficiently from the top to the interior of the poles, preventing water from spilling around the perimeter and keeping the area below dry.

Image 4.3: The integrated drainage system channels rainwater through the poles.

Video 4.4: An official video highlighting the robust construction and features of the PURPLE LEAF Luxury Hardtop Gazebo.

4.3 Ventilation

The reinforced double roof design enhances ventilation, allowing air to circulate freely. This helps dissipate heat and maintain a cooler environment under the gazebo.

Image 4.5: The double roof design promotes airflow for better ventilation.

4.4 Ceiling Hooks

The gazebo is equipped with solid ceiling hooks. These hooks can hold up to 20 pounds and are suitable for hanging lightweight items such as ceiling fans or decorative chandeliers.

Image 4.6: Ceiling hooks provide convenience for hanging accessories.

5. Maintenance

Regular maintenance will extend the life and appearance of your gazebo.

• Cleaning: Clean the frame and roof panels with mild soap and water. Rinse thoroughly and dry to prevent water spots. The yarn-dyed curtains are designed for fade resistance, but occasional cleaning will help maintain their appearance.
• Fastener Check: Periodically check all bolts and fasteners to ensure they are tight. Re-tighten as necessary to maintain structural integrity.
• Rust Resistance: The gazebo features rust-resistant components, including optimized screws, for extended durability and reduced maintenance. However, inspect for any signs of rust, especially in coastal or humid environments, and treat as needed.
• Snow Load: The galvanized steel roof is designed to support up to 3000 lbs of snow. In areas with heavy snowfall, it is advisable to clear excessive snow accumulation to prevent potential damage.
• Curtain and Netting Care: Store curtains and netting during extreme weather conditions or off-season to prolong their lifespan.

Image 5.1: Rust-resistant screws contribute to the gazebo's long-term durability.

6. Troubleshooting

This section addresses common issues you might encounter during assembly or use.

• Difficulty Aligning Parts: If parts are difficult to align, ensure all connecting bolts are loose. The frame may need slight adjustments to become perfectly square before tightening.
• Roof Panels Not Fitting: Double-check the orientation of roof support rails. Some holes only line up in one specific way. Ensure plastic clips are properly seated and consider using painter's tape to hold them during installation.
• Missing or Damaged Parts: In the event of missing or damaged parts, contact PURPLE LEAF customer service immediately. Provide your purchase details and a description of the issue.
• Curtains/Netting Not Sliding Smoothly: Ensure the hooks are correctly inserted into the channel. If they are not sliding easily, they may be misaligned.

7. Specifications

Image 7.1: The 4.7-inch wide aluminum frame provides enhanced stability and durability.

8. Warranty and Support

PURPLE LEAF offers the following warranty coverage for your gazebo:

• Hardtop Roof: 5 years
• Frame Construction: 1 year
• Curtains & Netting: 2 years

For any questions, concerns, or warranty claims, please contact PURPLE LEAF customer support. Ensure you have your purchase receipt and product model information available when contacting support.

Additional protection plans may be available for purchase, offering extended coverage for your product. Please refer to your retailer for details on available plans.
