SPNANMA 1200W 10-inch Slim Underseat Car Subwoofer and Amplifier Package

1. Introduction

This manual provides comprehensive instructions for the installation, operation, maintenance, and troubleshooting of your SPNANMA 1200W 10-inch Slim Underseat Car Subwoofer and Amplifier Package (Model ZZ01). Please read this manual thoroughly before installation and use to ensure proper function and safety.

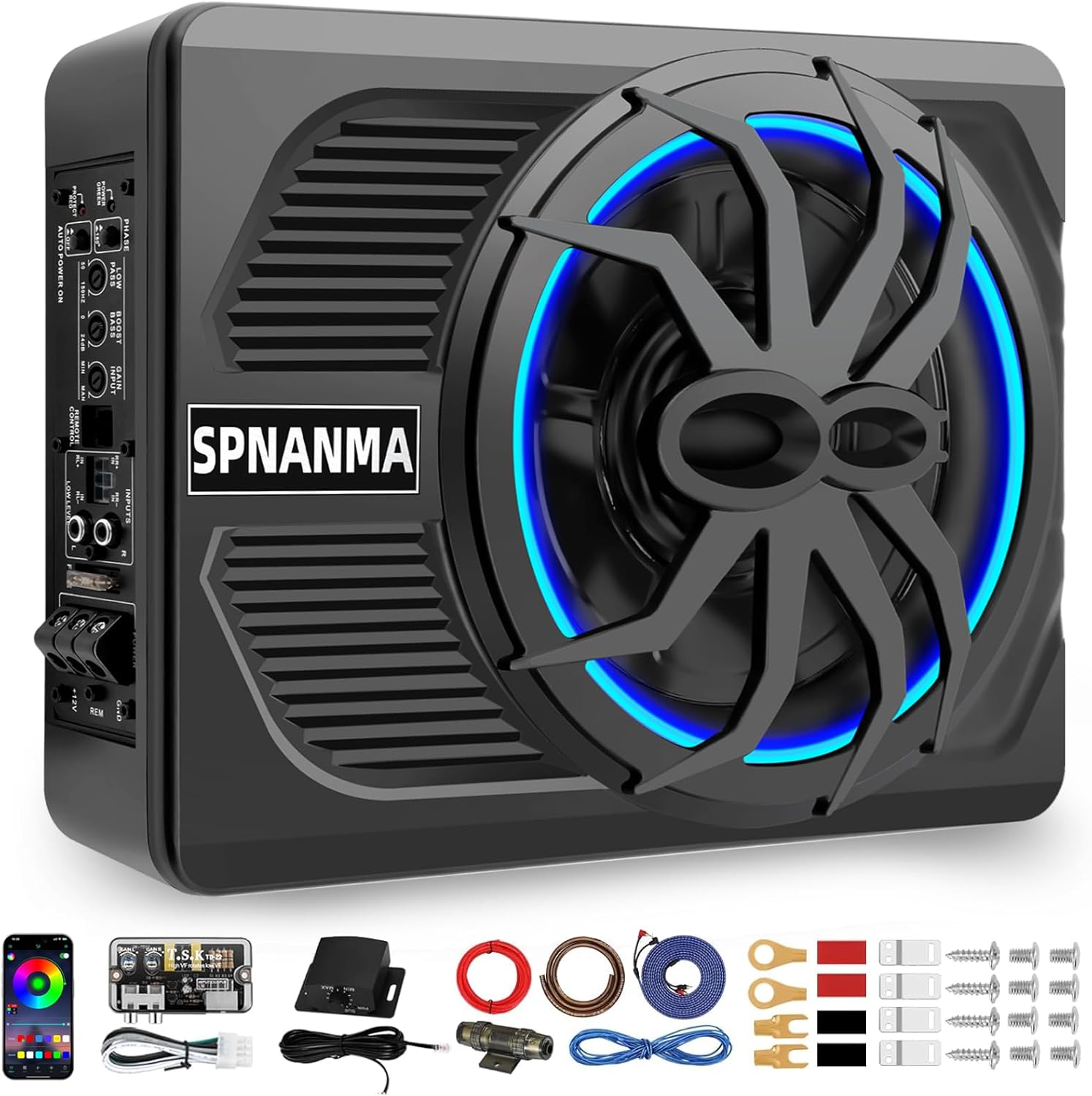

Figure 1.1: SPNANMA 10-inch Slim Underseat Car Subwoofer and Amplifier Package.

2. Safety Information

Always observe the following safety precautions during installation and operation:

• Disconnect the vehicle's negative battery terminal before beginning any electrical work.
• Ensure all wiring is properly insulated and secured to prevent short circuits and damage.
• Do not install the subwoofer in a location that obstructs vehicle operation or safety features.
• Avoid exposing the unit to moisture or extreme temperatures.
• If you are unsure about any installation steps, consult a qualified car audio professional.

3. Package Contents

Verify that all items are present in your package:

• SPNANMA 10-inch Slim Underseat Car Subwoofer with Built-in Amplifier
• Volume Controller
• RCA Input/Output Cables
• High to Low Level Converter
• Power Cable (+12V) with Fuse
• Ground Cable
• REM Cable
• Mounting Iron Sheets & Screws
• Connector Terminals
• User Manual

Figure 3.1: All components included in the package.

4. Product Overview

The SPNANMA Model ZZ01 is a compact, high-performance car subwoofer designed to deliver powerful bass. Its slim profile allows for flexible installation options, such as under a seat or in the trunk. Key features include a built-in amplifier, adjustable audio controls, and beat-synced RGB lighting.

4.1 Key Features

• 1200W Max Power: Engineered for clear, powerful bass output.
• Advanced Cooling: Cast aluminum housing with built-in thermal protection for heat dissipation.
• Adjustable Audio Controls: Features Low Pass Filter (50-150Hz), Bass Boost (0-24dB), and Gain Control.
• Beat-Synced RGB Lighting: Dynamic multicolor LED lighting that syncs with music, controllable via a wireless remote (or app, if applicable).
• Universal Compatibility: High-level and low-level inputs for connection with various stereo systems.
• Safety Features: Built-in overload protection and short-circuit prevention.

Figure 4.1: Subwoofer dimensions and smart app control for lighting.

Figure 4.2: Detail of the 10-inch woofer for enhanced bass.

Figure 4.3: Control panel for customizing audio output.

Figure 4.4: RGB beat-synced lighting feature.

5. Installation Guide

Proper installation is crucial for optimal performance and safety. Follow these steps carefully.

5.1 Control Panel Overview

Familiarize yourself with the control panel and its functions before making connections.

Figure 5.1: Labeled control panel instructions.

5.2 Wiring Connections

There are two primary methods for connecting the audio input: low-level (RCA) or high-level (speaker wire). Do not connect both high-level and low-level inputs simultaneously.

5.2.1 Power and Ground Connections

1. Connect the +12V Power Cable (red) to the positive terminal of your vehicle's battery. Ensure the fuse holder is installed in series, close to the battery.
2. Connect the Ground Cable (black) to a clean, unpainted metal surface on the vehicle's chassis. Ensure a secure connection for proper grounding.
3. Connect the REM Control Switch (blue wire) to the remote turn-on output of your head unit. This wire signals the amplifier to turn on and off with your stereo.

5.2.2 Low-Level Input (RCA) Connection

Use this method if your head unit has RCA pre-out connections.

• Connect the provided RCA Input Cables to the 'LOW LEVEL' RCA inputs on the subwoofer and the corresponding RCA pre-outs on your head unit.

Figure 5.2: Low-level input connection using RCA cables.

5.2.3 High-Level Input Connection

Use this method if your head unit does not have RCA pre-out connections. The included High-to-Low Level Converter is used for this purpose.

• Connect the speaker wires from your head unit's speaker outputs to the High-to-Low Level Converter.
• Connect the output of the converter to the 'HIGH LEVEL' input on the subwoofer.

Figure 5.3: High-level input connection using the provided converter.

5.3 Mounting the Subwoofer

Choose a secure location for the subwoofer, such as under a seat or in the trunk. Use the provided mounting brackets and screws to firmly attach the unit to the vehicle's structure. Ensure adequate ventilation around the unit.

6. Operation

6.1 Audio Adjustments

Use the controls on the subwoofer's panel to fine-tune the audio output:

• Low Pass Filter (LPF): Adjusts the upper frequency limit for the subwoofer (50-150Hz). Set it to blend smoothly with your main speakers.
• Bass Boost: Increases the bass output at a specific frequency (0-24dB). Use sparingly to avoid distortion.
• Gain Input: Matches the input sensitivity of the subwoofer to the output of your head unit. Start low and gradually increase until desired volume is reached without distortion.
• Phase Transfer Switch: Adjusts the phase (0° or 180°) to ensure the subwoofer's output is in sync with your main speakers. Listen to both settings and choose the one that provides the most impactful bass.

6.2 Remote Volume Control

The included wired remote control allows for convenient adjustment of the bass level from the driver's seat.

• Connect the remote control cable to the 'REMOTE CONTROL' port on the subwoofer.
• Use the knob to increase or decrease the subwoofer's output level.

6.3 RGB Lighting Control

The subwoofer features beat-synced RGB ambient lighting. Control modes and brightness can be adjusted via a wireless remote or a dedicated smartphone application (refer to app instructions if applicable).

7. Maintenance

To ensure the longevity and optimal performance of your subwoofer, follow these maintenance guidelines:

• Regularly inspect all wiring connections for tightness and corrosion.
• Keep the subwoofer clean by wiping it with a soft, dry cloth. Avoid using harsh chemicals or abrasive cleaners.
• Ensure the cooling fins are free from dust and debris to maintain efficient heat dissipation.
• Check the fuse periodically and replace it only with a fuse of the same type and rating (15A).

8. Troubleshooting

If you encounter issues with your subwoofer, refer to the following common problems and solutions:

Figure 8.1: Troubleshooting steps for issues 1-5.

Figure 8.2: Troubleshooting steps for issues 6-9.

Common Issues and Solutions:

1. Amplifier does not start:
   • Check ground wire connection.
   • Verify positive battery voltage.
   • Ensure REM voltage is not lower than 5VDC.
   • Confirm positive power terminal voltage is +12V.
   • Check for damaged fuses.
   • Confirm protection indicator is off; if on, restart amplifier.
2. Protection indicator light is on after amplifier starts:
   • Check speaker terminals for short circuit.
   • Turn down volume potentiometer for overload protection.
   • Remove horn connecting line and restart amplifier.
3. No output:
   • Check for damaged fuses.
   • Ensure amplifier is properly grounded.
   • Amplifier startup voltage should not be lower than 5VDC.
   • Check RCA audio cable or high frequency input cable connections.
   • Verify speaker cable connection.
4. Low power output:
   • Reset the volume potentiometer.
   • Check that the filter potentiometer is in the correct position.
   • Disconnect the signal input line; if noise disappears, the problem is with the signal source.
   • Turn the volume potentiometer of the power amplifier as low as possible, and turn up the volume of the host as much as possible (do not distort).
5. Distortion:
   • Check the size of the power amplifier volume potentiometer.
   • Check the size of the filter potentiometer.
6. Power amplifier is overheating:
   • Check if speaker impedance is lower than the indicated impedance of the amplifier.
   • Check the installation location of the amplifier for adequate ventilation.
7. Engine noise:
   • Check if RCA signal line is not connected to the chassis.
   • Check that the host is properly grounded.

9. Specifications

10. Warranty and Support

The SPNANMA 10-inch Slim Underseat Car Subwoofer and Amplifier Package (Model ZZ01) comes with a 1-year replacement warranty. For installation assistance, technical support, or warranty claims, please contact SPNANMA customer service. Our support team is available 7 days a week, 24 hours a day, to assist you.

For further assistance, please visit the official SPNANMA store or contact your retailer.
