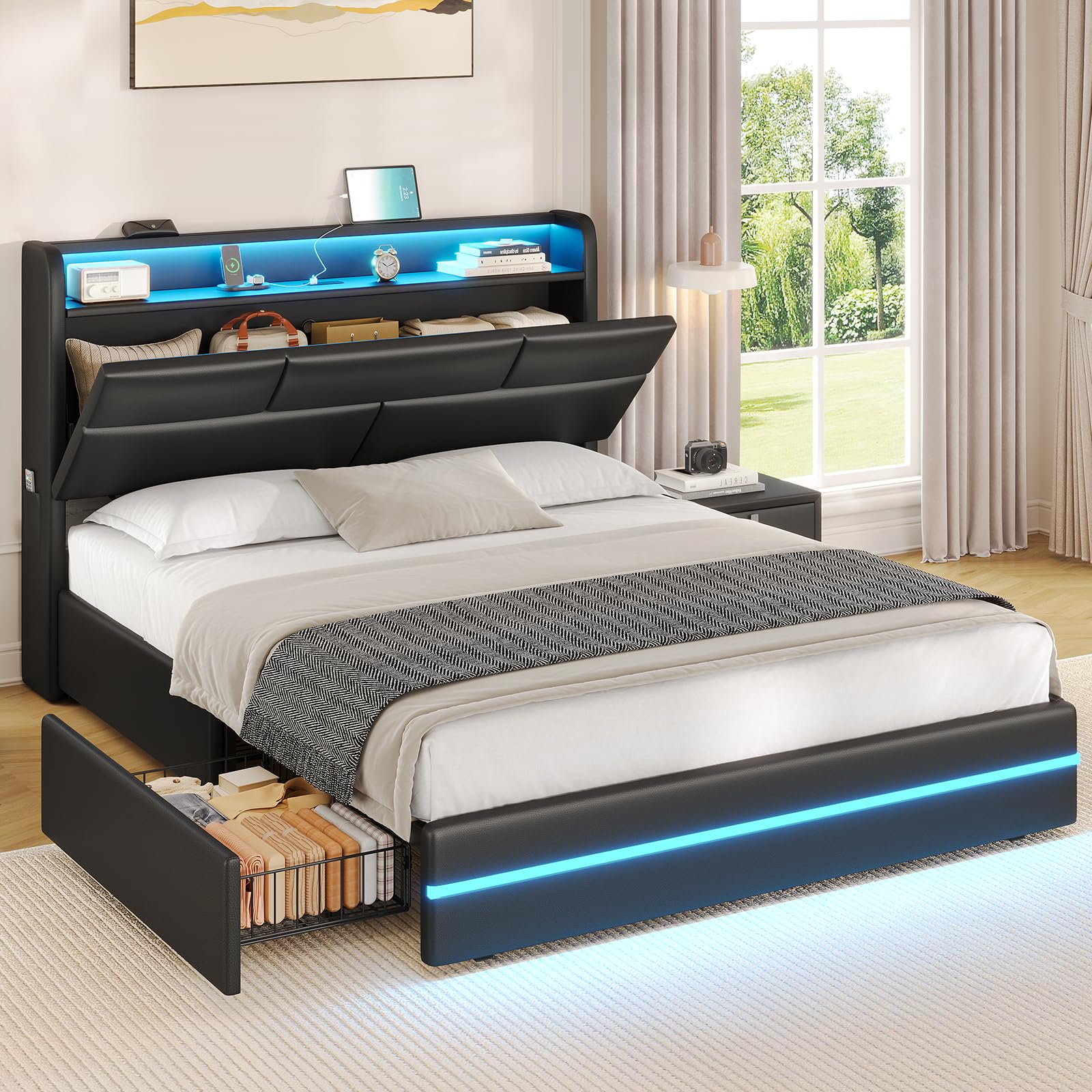

VIAGDO Queen Bed Frame with Storage Headboard, LED Lights, and Charging Station

Introduction

This manual provides comprehensive instructions for the assembly, operation, maintenance, and troubleshooting of your new VIAGDO Queen Bed Frame. Please read all instructions carefully before assembly and use to ensure safe and proper functionality. Keep this manual for future reference.

Important Safety Information

WARNING:

• Do not exceed the weight capacity of 1000 lbs (453.6 kg).
• Exercise caution around sharp edges during assembly and use.
• Keep small parts away from children and pets during assembly to prevent choking hazards.
• Ensure all connections are secure before use.

Parts List

Before beginning assembly, verify that all parts and hardware are present. Refer to the included installation manual for a detailed list of numbered parts and assembly tools. If any parts are missing or damaged, please contact customer support.

Figure 1: All components and hardware included with the VIAGDO Queen Bed Frame.

Setup and Assembly

Assembly of the VIAGDO Queen Bed Frame is designed to be straightforward. Follow the step-by-step instructions provided in the included installation manual. All parts are numbered for easy identification.

Assembly Steps Overview:

1. Unpack all components and lay them out on a clean, soft surface to prevent scratches.
2. Assemble the headboard structure, including the storage shelves and charging station.
3. Attach the side rails and footboard to the headboard.
4. Install the bed slats and secure them. The slats feature sound-absorbing EVA straps for quiet use.
5. Assemble and insert the four storage drawers into the bed frame.
6. Connect the LED light strips and charging station power cord to a suitable outlet.

Figure 2: Key construction details showing Velcro assembly, stable structure, silent bar design, and embedded footboard.

Operating Instructions

Storage Headboard:

The headboard features a 2-tier storage shelf for easy access to items like books, phones, or alarm clocks. A hidden compartment behind the upholstered panels provides discreet storage for essentials. Two side pouches are also available for smaller items such as remote controls or charging cables.

Figure 3: Overview of the versatile storage headboard with open shelves and a hidden compartment.

Built-in Charging Station:

The headboard includes a convenient charging station with 1 USB port, 1 Type-C port, and 2 AC outlets. A 6.6ft power supply cord is integrated. Simply plug your devices into the appropriate ports for quick and easy charging.

Figure 4: Detail of the charging station, providing convenient power access.

LED Lights:

The bed frame features double LED light strips, encased behind the headboard bar and sealed in a transparent panel on the footboard. Control the lights using the provided remote or a smartphone application. Choose from over 60,000 colors, 29 dynamic modes, and adjust brightness and speed. The lights also include a microphone function for music synchronization and a timing function.

Figure 5: The LED lighting system with various color options and control methods.

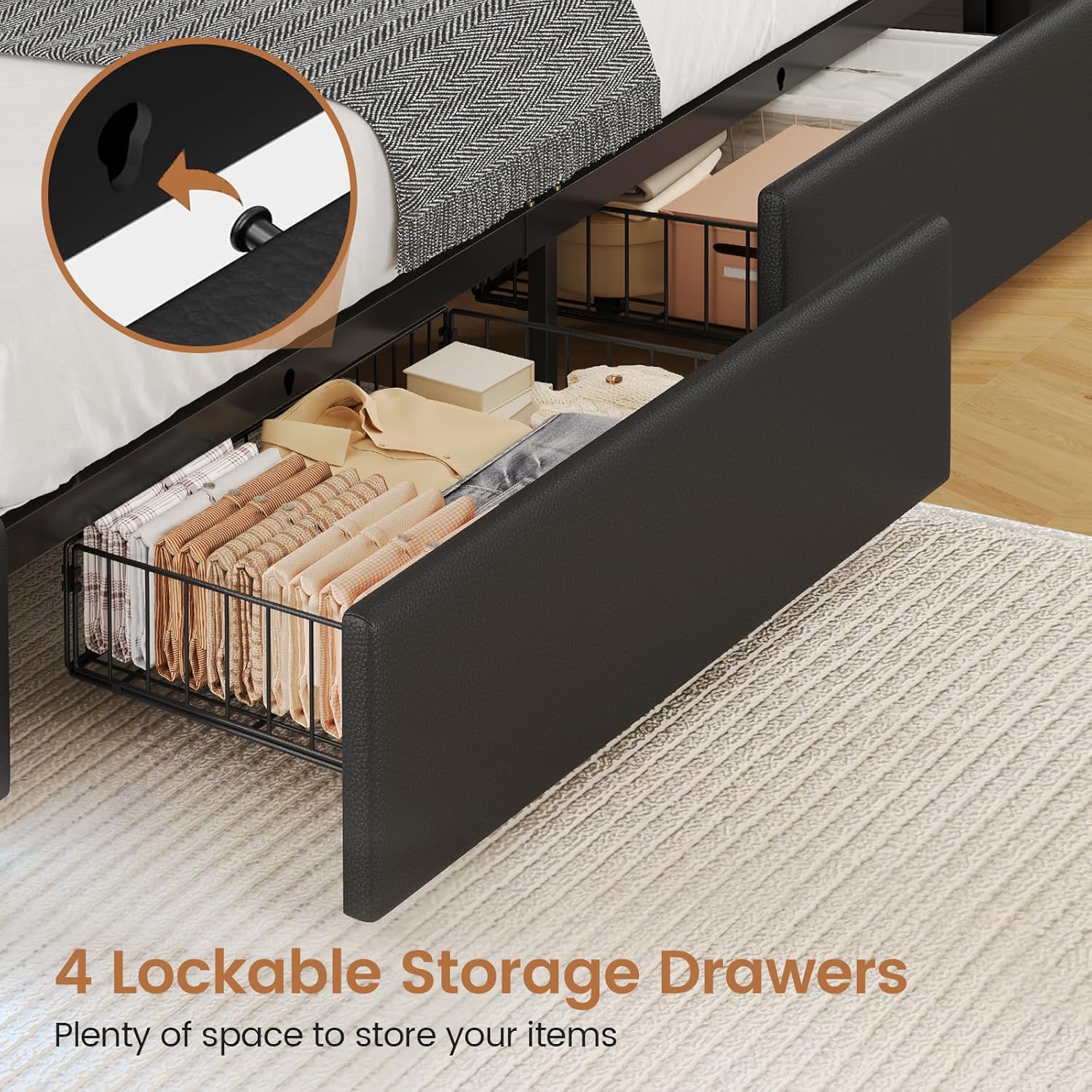

Storage Drawers:

The bed frame includes four large storage drawers, two on each side. Each drawer is equipped with four smooth wheels for easy sliding and a fixing system to secure them to the bed frame, preventing unwanted movement. These drawers provide ample space for bedding, clothing, or other personal items.

Figure 6: A view of the spacious and lockable storage drawers.

Maintenance

Cleaning:

Wipe the bed frame surfaces with a damp cloth. Avoid using harsh chemicals or abrasive cleaners that may damage the finish or upholstery. For the leather upholstered parts, use a mild leather cleaner if necessary, following the product's instructions.

General Care:

• Regularly check all screws and bolts to ensure they remain tight. Retighten as needed to maintain stability.
• Avoid jumping on the bed to prevent damage to the frame and slats.
• Keep the bed frame away from direct sunlight and excessive heat to prevent material degradation.

Troubleshooting

Bed Frame Squeaks or Wobbles:

• Ensure all assembly bolts and screws are securely tightened.
• Check that the bed slats are properly seated and the EVA straps are intact.
• Verify that the center support legs are making firm contact with the floor.

LED Lights Not Functioning:

• Confirm the power cord for the LED lights is securely plugged into both the bed frame and a working wall outlet.
• Check the remote control or smartphone app for battery levels or connectivity issues.
• Ensure no wires are pinched or damaged during assembly.

Charging Station Not Working:

• Verify the main power cord for the charging station is correctly plugged into a functional wall outlet.
• Test with different devices and cables to rule out device-specific issues.

Drawers Not Sliding Smoothly:

• Check for any obstructions under the drawers or along their tracks.
• Ensure the wheels are clean and free of debris.
• Verify the drawers are correctly aligned within their designated slots.

Specifications

Figure 7: Detailed dimensions of the VIAGDO Queen Bed Frame.

Warranty and Support

For any questions, concerns, or assistance with your VIAGDO Queen Bed Frame, please refer to the contact information provided in your purchase documentation or visit the official VIAGDO store on Amazon. Our service team is available to help and provide solutions.

Note: Specific warranty details may vary. Please consult your purchase receipt or product packaging for precise warranty terms and conditions.
