1. Introduction
Thank you for choosing the Voluas 309B Wireless Stainless Steel Cat Water Fountain. This manual provides essential information for the safe and efficient operation, setup, and maintenance of your new pet water fountain. Please read it thoroughly before use and retain it for future reference.
This fountain is designed to encourage your cat to drink more water by providing a continuous flow of fresh, filtered water, contributing to their overall health and well-being.
2. Safety Information
- This product is intended for indoor use only.
- Always disconnect the power supply before cleaning or performing maintenance.
- Do not immerse the main control module (containing the battery and electronics) in water.
- Do not run the fountain without water, as this may damage the pump.
- Use only the provided charging cable and adapter.
- Keep the product away from direct sunlight and heat sources to prevent overheating.
- Ensure the fountain is placed on a stable, level surface.
- Keep out of reach of children.
3. Package Contents
Verify that all items listed below are included in your package:
- Stainless Steel Fountain Body (1)
- Stainless Steel Lid with Pump Module (1)
- Water Pump (1)
- Spout (1)
- Filter Tray (1)
- Filters (4)
- Sponges (4)
- USB-C Charging Cable (1)
- Cleaning Brush (1)
- User Manual (1)
Image: All components included in the Voluas 309B Cat Water Fountain package.
4. Product Overview
The Voluas 309B features a sleek stainless steel design with a wireless pump module for flexible placement. Key components include:
- Stainless Steel Basin: Holds 3.2 liters of water. Features MIN and MAX fill lines.
- Water Level Window: A transparent window on the front of the basin allows for easy monitoring of the water level without removing the lid.
- Pump Module: Houses the battery, control buttons for operating modes (Sensor, Time, Continuous), and the USB-C charging port.
- Spout: Directs the filtered water flow into the basin.
- Quadruple Filtration System: Consists of a filter tray, PP cotton, ion resin, activated carbon, and a pre-filter sponge to ensure clean and fresh water.
Image: Assembled Voluas 309B Cat Water Fountain.
Image: Water level viewing window for easy monitoring.
5. Setup
Follow these steps to assemble and prepare your water fountain for first use:
- Unpack: Carefully remove all components from the packaging.
- Rinse: Rinse the stainless steel basin, lid, filter tray, and spout thoroughly with clean water. Do not wash the pump module.
- Assemble Pump: Attach the pre-filter sponge to the water pump intake. Connect the spout to the water pump.
- Insert Filter: Place one filter into the filter tray.
- Attach to Lid: Secure the assembled pump module with the spout and filter tray onto the designated area of the stainless steel lid.
- Fill Basin: Fill the stainless steel basin with fresh water up to the 'MAX' line indicated inside.
- Secure Lid: Carefully place the assembled lid onto the basin, ensuring it sits securely.
- Charge (Optional): If using the battery-operated modes, connect the USB-C charging cable to the pump module's charging port and a power source. Charge fully before first use.
- Power On: Long press the power button on the pump module to turn on the fountain.
Video: Step-by-step guide on how to install the Voluas Cat Water Fountain.
Image: Disassembled components ready for assembly.
Image: Filling the fountain with water up to the indicated level.
6. Operating Modes
The Voluas 309B offers three intelligent operating modes to suit your pet's needs and conserve battery life. Short press the function key on the pump module to switch between modes.
- Sensor Mode: The fountain activates water flow for 30 seconds when your pet is detected within a 5-foot range. This mode is ideal for battery conservation.
- Timer Mode: Water is dispensed for 15 seconds every 10 minutes. This mode offers a balance between continuous flow and battery efficiency.
- Continuous Flow Mode: Provides a constant stream of water 24/7. This mode requires the fountain to be continuously plugged into a power source.
The blue light indicator on the water level window signifies sufficient water. If the light turns red, it indicates low water level, and you should refill the basin.
Video: Demonstration of the Voluas Wireless Cat Water Fountain's features and operating modes.
Image: Overview of the three smart hydration modes.
Image: Sensor Mode in action, dispensing water when a pet approaches.
7. Maintenance
Regular cleaning and filter replacement are crucial for maintaining water quality and extending the life of your fountain.
7.1 Daily Cleaning
- Rinse the filter, filter tray, and pre-filter sponge with clean water.
- Wipe the inside of the water container with a clean cloth.
7.2 Weekly Cleaning (or every 3 days)
- Disconnect the power supply and turn off the product.
- Remove the lid and empty the water from the basin.
- Disassemble the pump module: Remove the spout, foam filter, pump cover, and impeller.
- Clean the pump body, impeller, and impeller cap thoroughly using the provided cleaning brush and clean water.
- Wash the stainless steel basin, lid, filter tray, and spout with mild soap and water. Rinse thoroughly.
- Reassemble all components.
- Refill the basin with fresh water.
7.3 Filter and Sponge Replacement
- Replace the filter every 2-4 weeks, depending on usage and water quality.
- Replace the pre-filter sponge every 1-2 weeks.
Video: Detailed instructions on how to clean the Voluas Water Pump.

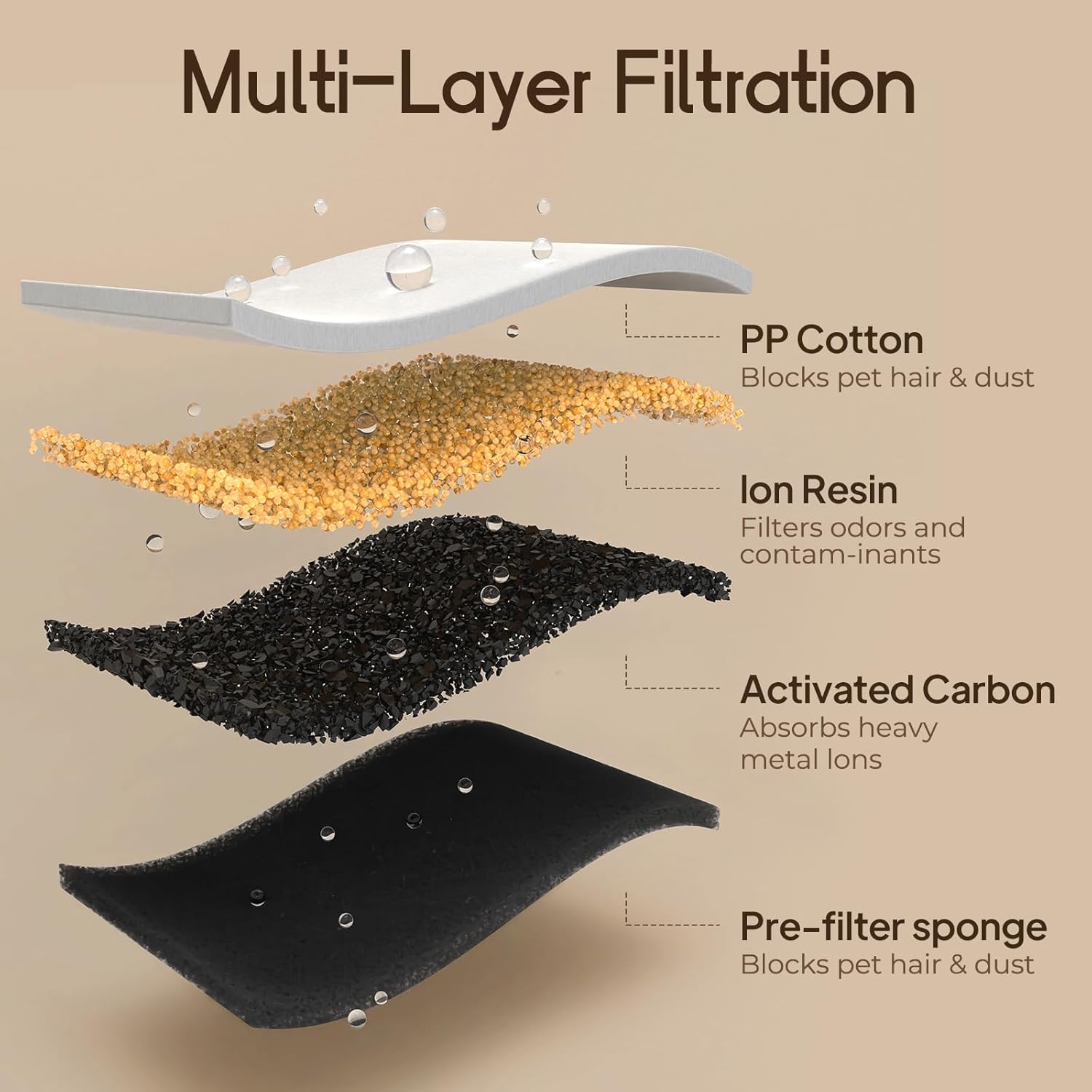

Image: Multi-layer filtration system components.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No water flowing from the spout. | Low water level; pump clogged; battery low; pump not properly installed. | Refill water to MAX line; clean pump and impeller; charge battery; ensure pump is correctly seated. |
| Fountain is noisy. | Low water level; pump clogged with debris. | Refill water; clean pump and impeller thoroughly. |
| Water tastes or smells bad. | Filter needs replacement; fountain needs cleaning. | Replace filter; perform thorough cleaning of all components. |
| Water level indicator is red. | Water level is low. | Refill the basin with fresh water. |
9. Specifications
- Model: 309B
- Capacity: 3.2 Liters (108 oz)
- Material: 304 Stainless Steel
- Battery: 1 Lithium Polymer battery (included), 4200mAh
- Battery Life: Up to 30 days (depending on mode and usage)
- Noise Level: <25dB
- Dimensions (LxWxH): 8.6" x 8.5" x 4.5"
- Item Weight: 1.96 pounds (0.89 kg)
- Input: DC5V/1A
Image: 3.2L large capacity for extended use.
Image: Long-lasting battery providing up to 30 days of operation.
Image: Ultra-silent operation at less than 25dB.
10. Warranty and Support
The Voluas 309B Wireless Stainless Steel Cat Water Fountain comes with a 1-year warranty from the date of purchase.
This warranty covers manufacturing defects and malfunctions under normal use. It does not cover damage caused by misuse, accident, unauthorized modification, or failure to follow the instructions in this manual.
For warranty claims, technical support, or any questions regarding your product, please refer to the contact information provided on the product packaging or visit the official Voluas website.
