Canoly C16 Cold Press Juicer User Manual

1. Introduction

Welcome to the Canoly C16 Cold Press Juicer user manual. This guide provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new juicer. Please read this manual thoroughly before first use and retain it for future reference.

The Canoly C16 is designed to extract maximum nutrients from fruits and vegetables, offering both juice and sorbet functions with its innovative dual-strainer system. Its powerful yet quiet motor ensures a pleasant juicing experience.

2. Product Overview

2.1 Key Features

• 2-IN-1 Strainers: Includes a juice mesh filter for fresh fruits and vegetables and a sorbet filter for frozen fruits, adapting to various needs.
• Advanced AC Brushless Motor: Features a whisper-quiet (35dB) and durable motor designed for a long lifespan, outperforming traditional juicer machines.
• 6" Extra-Wide Feed Chute: Allows for whole fruits and vegetables (like apples, carrots) to be inserted directly, reducing preparation time.
• Pre-Cutter & Anti-Clog Design: Evenly cuts produce before pressing to prevent jams and maximize juicing efficiency.
• High Yield & Easy Clean: Extracts more juice with optimal pulp separation and features a detachable pulp container for quick and easy cleanup.

2.2 Components

Familiarize yourself with the components of your Canoly C16 Juicer:

Figure 2.1: Canoly C16 Juicer and its included accessories.

• Juicer Base: Contains the motor and controls.
• Hopper/Feed Chute: Where fruits and vegetables are inserted.
• Auger/Squeezing Screw: Presses the produce.
• Juice Strainer: For extracting juice.
• Sorbet Strainer: For making sorbets from frozen fruits.
• Pusher: Used to guide produce into the feed chute.
• Juice Cup: Collects the extracted juice.
• Pulp Container: Collects the separated pulp.
• Cleaning Brush: For easy cleaning of components.

3. Setup and Assembly

Before first use, wash all detachable parts with warm, soapy water. Rinse thoroughly and dry. Ensure the juicer is placed on a stable, flat surface.

Assembly Steps:

1. Place the bowl on the base: Align the bowl with the motor base and rotate until it locks securely into place.
2. Insert the screw and the strainer: Choose either the juice strainer or the sorbet strainer. Insert the auger (squeezing screw) into the center of the strainer, then place both into the bowl. Screw it in tightly.
3. Align the hopper: Place the hopper (feed chute) onto the assembled bowl and strainer. Align the triangles on the bowl and hopper, then turn clockwise until they click into place, indicating a secure lock.
4. Position containers: Place the juice cup under the juice outlet and the pulp container under the pulp outlet.

Figure 3.1: Step-by-step assembly of the Canoly C16 Juicer.

4. Operating Instructions

4.1 Juicing Fruits and Vegetables

1. Ensure the juicer is properly assembled and plugged into a power outlet.
2. Place the juice cup and pulp container in their designated positions.
3. Turn on the juicer using the power button.
4. Gradually feed whole or large pieces of fruits and vegetables into the 6-inch extra-wide feed chute. The built-in pre-cutter will automatically process larger items.
5. Use the pusher only if necessary to gently guide produce down the chute. Do not force ingredients.
6. Allow the juicer to process the ingredients completely. The juice will flow into the juice cup, and the pulp will be expelled into the pulp container.
7. Once juicing is complete, turn off the machine and unplug it before disassembling.

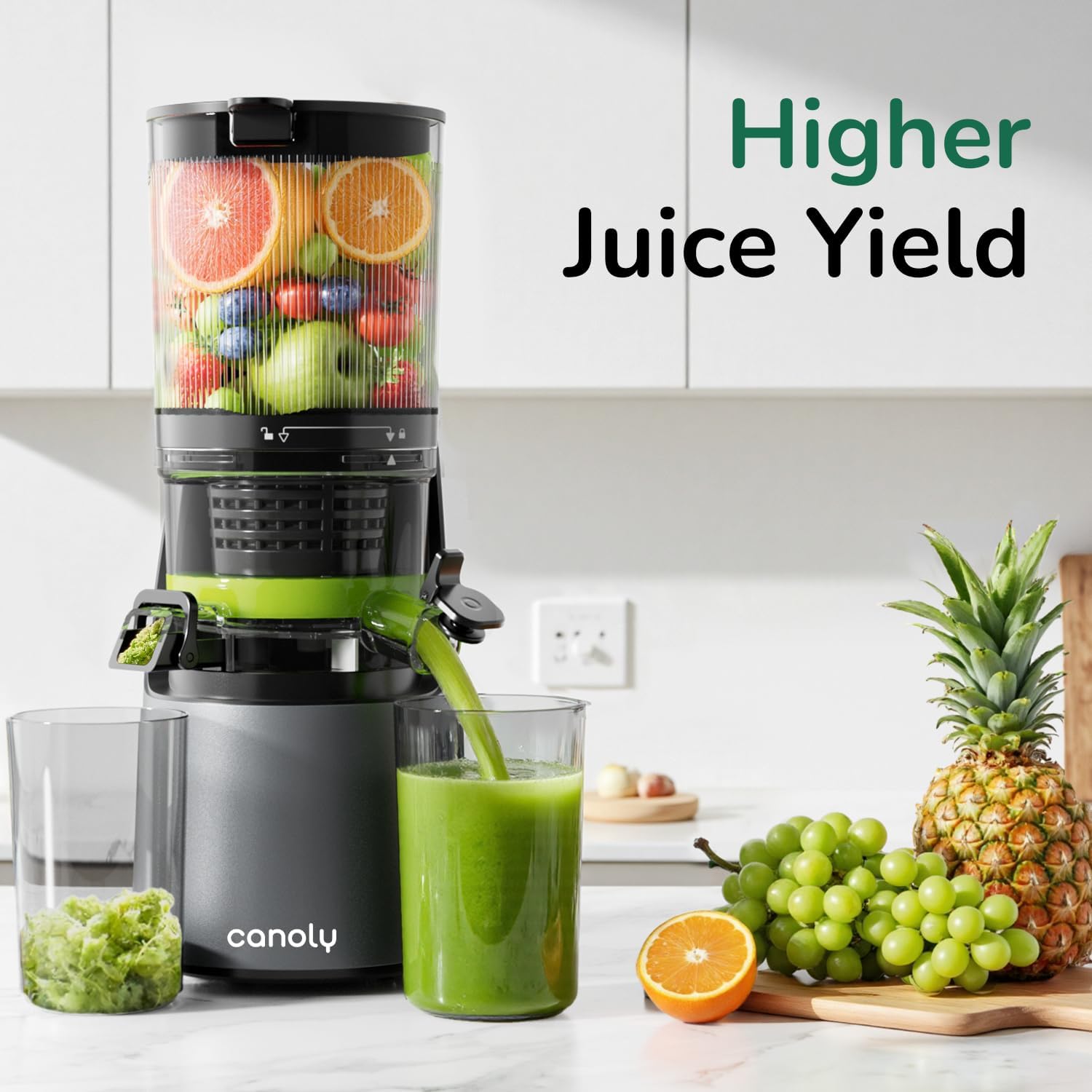

Figure 4.1: The Canoly C16 Juicer in operation, demonstrating its wide feed chute and juice output.

Figure 4.2: Illustration of the advanced AC Brushless Motor, emphasizing its quiet operation and durability.

4.2 Making Sorbet

To make sorbet, ensure the sorbet strainer is installed instead of the juice strainer. Use frozen fruits, allowing them to thaw slightly for a few minutes before processing for optimal consistency.

Figure 4.3: Examples of delicious sorbets that can be made with the dedicated sorbet strainer.

5. Maintenance and Cleaning

Regular cleaning ensures the longevity and optimal performance of your Canoly C16 Juicer.

5.1 Disassembly for Cleaning

1. Unplug the juicer from the power outlet.
2. Remove the pulp container and juice cup.
3. Unlock and remove the hopper by rotating it counter-clockwise.
4. Remove the auger and strainer from the bowl.
5. Unlock and remove the bowl from the motor base.

5.2 Cleaning Instructions

• Rinse all detachable parts (hopper, auger, strainer, bowl, juice cup, pulp container) under running water immediately after use to prevent pulp from drying.
• Use the provided cleaning brush to remove any stubborn pulp or fiber from the strainer mesh.
• All detachable parts are dishwasher safe for convenience. Place them on the top rack of your dishwasher.
• Wipe the motor base with a damp cloth. Never immerse the motor base in water or any other liquid.
• Ensure all parts are completely dry before reassembling or storing the juicer.

Figure 5.1: Simple cleaning process for the detachable components of the juicer.

6. Troubleshooting

If you encounter any issues with your Canoly C16 Juicer, please refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact Canoly customer support for assistance.

7. Product Specifications

8. Warranty and Support

Canoly is committed to providing high-quality products and excellent customer service.

• 1-Year Warranty: Your Canoly C16 Juicer comes with a 1-year limited warranty from the date of purchase, covering manufacturing defects.
• 30-Day Return Policy: Enjoy a 30-day no-reason return policy from the date of purchase.
• Lifetime Support: Canoly offers lifetime support for its products, ensuring long-term satisfaction.
• 24-Hour Response: For any inquiries or support needs, contact Canoly customer service via email for a quick response within 24 hours.

For warranty claims, technical assistance, or general inquiries, please refer to the contact information provided with your product packaging or visit the official Canoly website.
