Introduction
This manual provides essential information for the proper setup, operation, and maintenance of your ABBREE AR-771S SMA-Female Dual Band Ham Radio Antenna. The AR-771S is a high-gain, flexible whip antenna designed to enhance communication range and signal clarity for compatible two-way radios operating on VHF and UHF frequencies.
Image: The ABBREE AR-771S antenna is suitable for various applications, including outdoor activities, travel, logistics, office buildings, property communities, and construction sites, demonstrating its versatility.
Setup Instructions
Follow these steps to correctly install your AR-771S antenna:
- Inspect the Antenna: Before installation, carefully inspect the antenna for any physical damage. Ensure the SMA-Female connector is clean and free of debris.
- Identify Radio Connector: Confirm that your two-way radio has an SMA-Male antenna connector. The AR-771S is designed specifically for radios with an SMA-Female connection point.
- Attach the Antenna: Align the SMA-Female connector of the AR-771S antenna with the SMA-Male connector on your radio. Gently screw the antenna clockwise until it is finger-tight. Do not overtighten, as this can damage the connector on either the antenna or the radio.
- Verify Connection: Ensure the antenna is securely attached and there is no wobble. A loose connection can result in poor performance or damage.
Image: This image illustrates the SMA-Female connector on the ABBREE AR-771S antenna and how it connects to an SMA-Male port on a radio, ensuring a proper fit.
Compatibility
The ABBREE AR-771S antenna is compatible with many ham radios featuring an SMA-Female connector. Known compatible models include, but are not limited to:
- Baofeng: UV-5R, GT-5R, BF-F8HP Pro, 5RM, K5PLUS, UV-21R, GM-21, UV-5G Plus, AR-152, GM-15PRO, BF-888S, UV-82, GM-5RH
- Quansheng: UV-K5, K6, UVK5(8)
- And other radios with SMA-Female antenna ports.
Image: This graphic displays the ABBREE AR-771S antenna alongside a list of various compatible two-way radio models, highlighting its broad applicability.
Operating Instructions
Once the antenna is securely attached, your radio is ready for operation. The AR-771S is a dual-band antenna, meaning it operates on both VHF (144MHz) and UHF (430MHz) frequencies, providing versatility for various communication needs.
- Signal Enhancement: The high-gain design of the AR-771S significantly improves signal reception and transmission, extending your communication range compared to standard stock antennas.
- Flexible Design: The antenna's soft whip design allows for considerable flexibility, reducing the risk of damage during movement or accidental impact. This makes it ideal for outdoor and portable use.
- Optimal Positioning: For best performance, try to keep the antenna as vertical as possible when transmitting and receiving. Avoid obstructions that could block the signal.

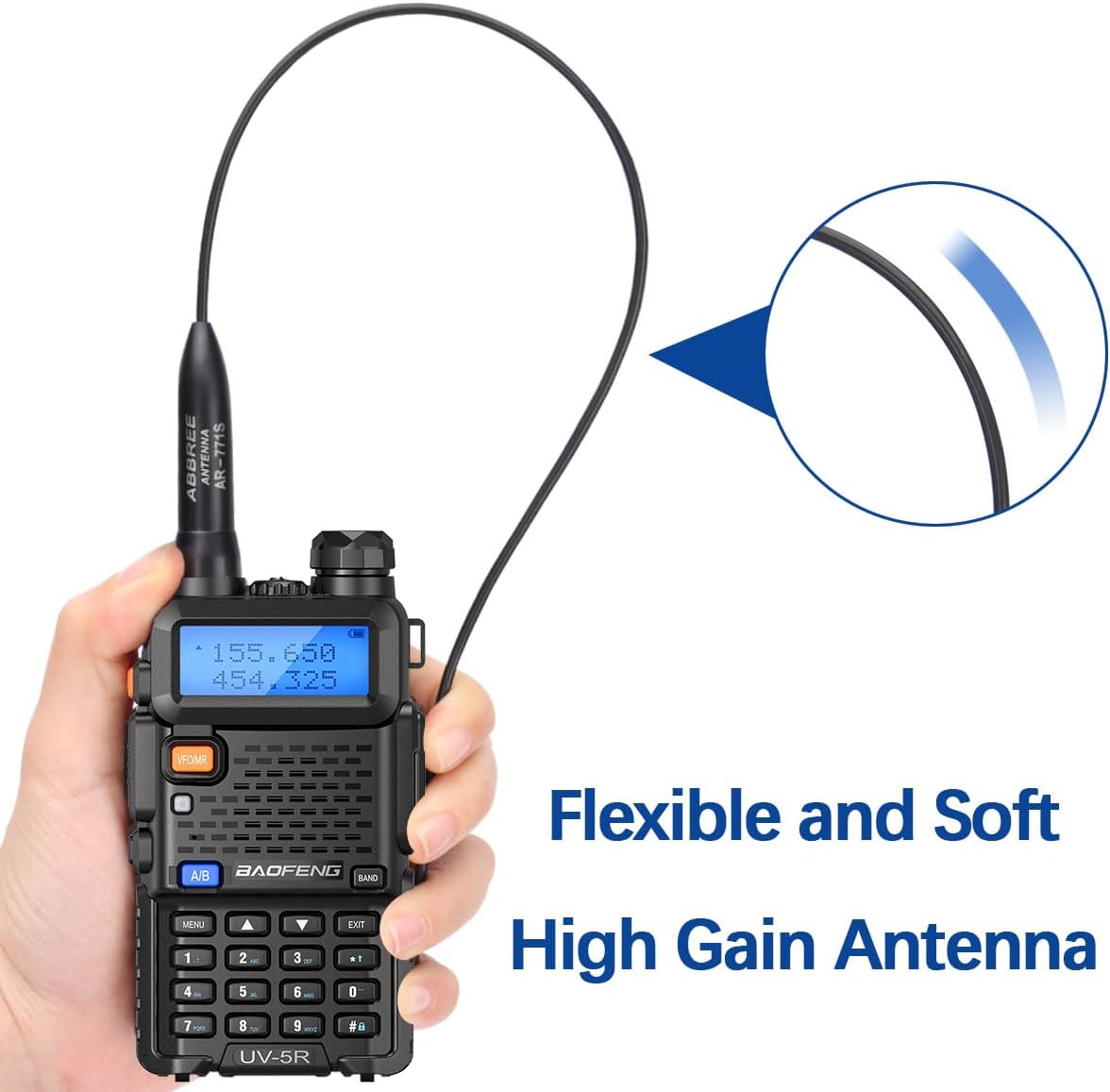

Image: A hand holds a two-way radio equipped with the ABBREE AR-771S antenna, demonstrating its flexible and soft nature, which contributes to its durability and ease of use.
Image: This image depicts the ABBREE AR-771S antenna in an outdoor environment, illustrating how its dual-band capabilities and high gain enhance radio signals and expand communication distance, particularly in challenging terrains.
Maintenance
Proper maintenance ensures the longevity and optimal performance of your antenna:
- Cleaning: Periodically wipe the antenna with a soft, damp cloth to remove dirt, dust, or grime. Avoid using harsh chemicals or abrasive cleaners.
- Connector Care: Keep the SMA-Female connector clean and dry. Moisture or corrosion can degrade performance. If necessary, use a small, soft brush to clean the threads.
- Storage: When not in use, store the antenna in a clean, dry place away from extreme temperatures and direct sunlight. While flexible, avoid tightly coiling or sharply bending the antenna for extended periods.
- Inspection: Regularly check the antenna for any signs of wear, such as cracks in the casing or damage to the whip. Replace the antenna if significant damage is observed.
Troubleshooting
If you experience issues with your AR-771S antenna, consider the following:
- Poor Signal Reception/Transmission:
- Ensure the antenna is securely connected to the radio.
- Verify that your radio is set to the correct frequency band (VHF or UHF) for your communication.
- Check for environmental obstructions (buildings, terrain) that might be blocking the signal.
- Test with another known good antenna to rule out radio issues.
- Antenna Not Fitting:
- Confirm your radio has an SMA-Male connector. This antenna is SMA-Female.
- Do not force the connection; this can damage the threads.
- Physical Damage:
- If the antenna whip is severely bent or broken, or the connector is damaged, replace the antenna.
Specifications
Key technical specifications for the ABBREE AR-771S antenna:
| Feature | Specification |
|---|---|
| Model | AR-771S |
| Frequency Range | Dual Band VHF/UHF (144MHz/430MHz) |
| Connector Type | SMA-Female |
| Gain | 2.15dBi |
| Max Power | 10W |
| Length | Approximately 39 cm (15.35 inches) |
| Weight | Approximately 30g (1.13 ounces) |
| Color | Black |

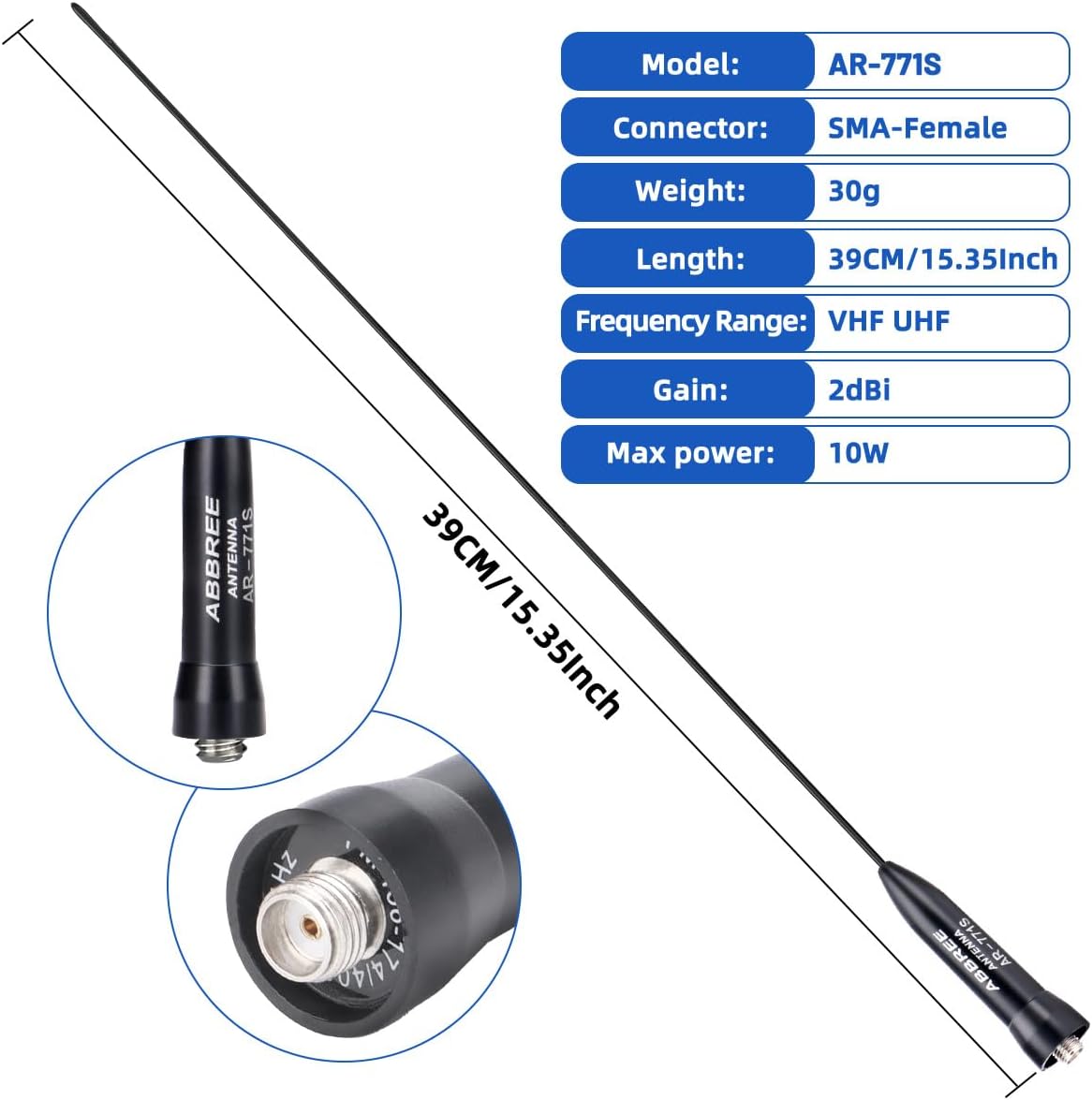

Image: This visual provides a clear overview of the ABBREE AR-771S antenna, detailing its model, connector type, weight, length (39cm/15.35 inches), frequency range, gain, and maximum power handling.
Warranty and Support
For warranty information and customer support, please refer to the documentation provided with your purchase or contact the retailer where you purchased the ABBREE AR-771S antenna. You may also visit the official ABBREE website for further assistance and product information.
