Findepot 24-inch Corner Bathroom Vanity Sink Combo User Manual

1. Introduction

Thank you for choosing the Findepot 24-inch Corner Bathroom Vanity Sink Combo. This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your new bathroom vanity. Please read these instructions thoroughly before beginning assembly and retain them for future reference.

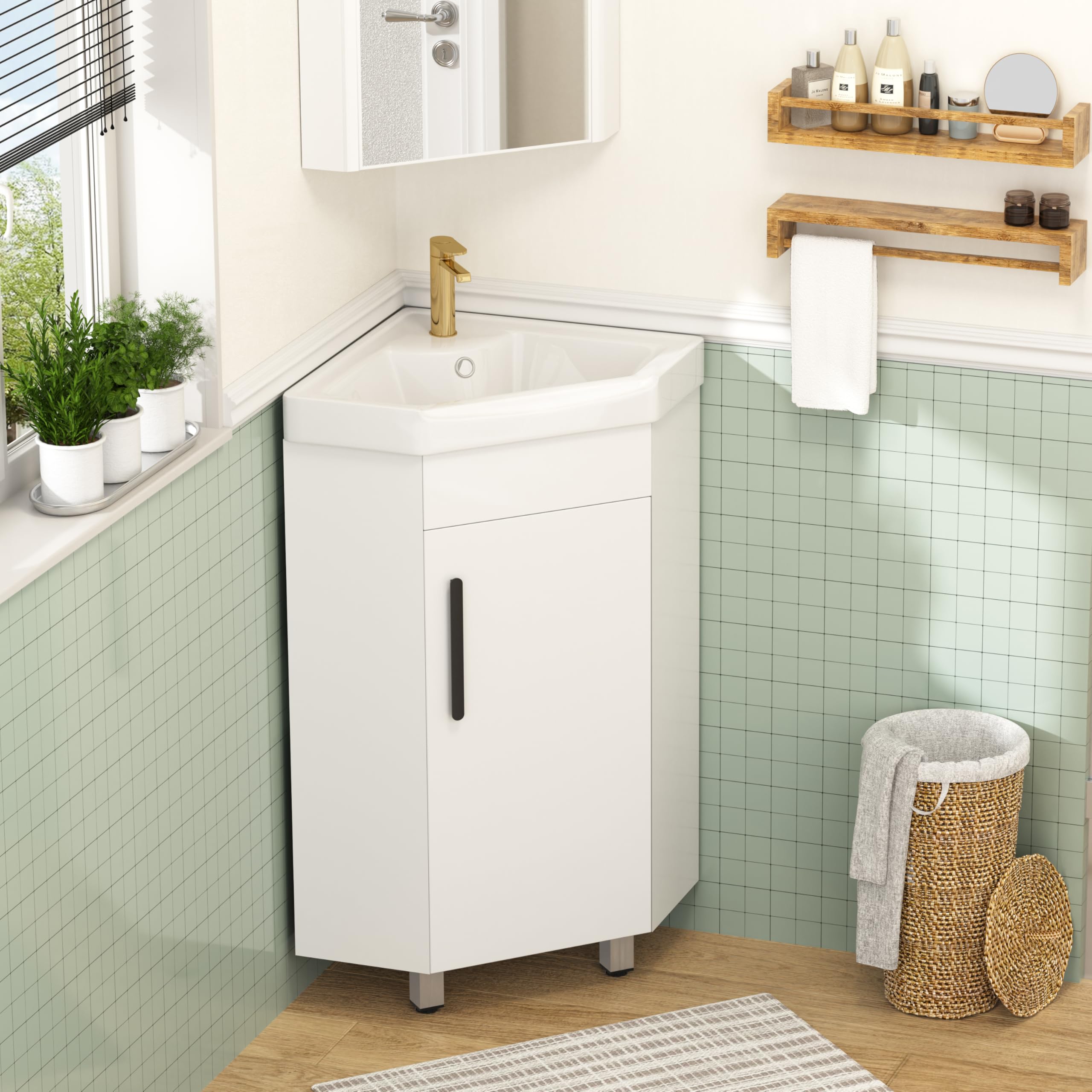

Image 1: Findepot 24-inch Corner Bathroom Vanity Sink Combo

2. Safety Information

• Always handle components with care to prevent injury or damage.
• Ensure all fasteners are securely tightened during assembly. Do not overtighten.
• Keep small parts away from children to avoid choking hazards.
• This product is designed for indoor bathroom use only.
• Do not stand or sit on the vanity.
• If any parts are missing or damaged, do not proceed with assembly. Contact customer support immediately.

3. Package Contents

Your Findepot Corner Bathroom Vanity Sink Combo is shipped in two separate packages. These packages may arrive on different dates. Please ensure you have received both packages before beginning assembly.

Image 2: Product packaging indicating two boxes for delivery.

Package 1: Vanity Cabinet & Installation Instructions

• Vanity Cabinet components
• Adjustable Shelf
• Black Handle
• Assembly Hardware (screws, dowels, cam locks, hinges)
• Installation Instruction Manual

Package 2: Ceramic Sink & Additional Accessories

• White Ceramic Sink
• Seal Stickers (Optional, for moisture blocking)
• Wall Anchors and Brackets

4. Assembly Instructions

This section provides a step-by-step guide for assembling your Findepot Corner Bathroom Vanity. For a visual guide, please refer to the embedded installation videos.

Assembly Video Guide

Step-by-Step Written Instructions:

1. Unpack and Identify Parts: Carefully unbox all components. Lay them out and identify each part using the provided hardware list and diagrams in the instruction manual.
2. Assemble Base Frame: Begin by attaching the side panels to the bottom panel using the provided screws and dowels. Ensure all connections are secure.
3. Install Back Panels: Secure the back panels to the assembled frame. These panels provide structural integrity.
4. Attach Top Panel: Fasten the top panel to the frame, ensuring it aligns correctly with all pre-drilled holes.
5. Install Legs: Turn the cabinet upside down. Attach the metal legs to the bottom of the vanity using the provided screws. Adjust the legs as needed for stability.
6. Prepare Door: Attach the hinges to the cabinet door. Ensure they are securely fastened.
7. Mount Door: Attach the door to the cabinet frame using the hinges. Adjust the hinges to ensure proper door alignment and soft-closing functionality. If the door gap is uneven, refer to the hinge adjustment guide in your printed manual.
8. Install Handle: Secure the black handle to the cabinet door.
9. Install Adjustable Shelf: Insert the shelf pins into the desired height holes inside the cabinet. Place the adjustable shelf onto the pins.
10. Secure to Wall: Position the vanity in the desired corner. Mark the wall anchor points through the pre-drilled holes in the vanity's back. Drill pilot holes, insert wall anchors, and then secure the vanity to the wall using the provided brackets and screws for stability.
11. Place Ceramic Sink: Carefully place the ceramic sink onto the top of the vanity cabinet. Ensure it sits flush and is properly aligned. (Faucet not included).
12. Apply Seal Stickers (Optional): For enhanced moisture protection, apply the provided seal stickers to the interior edges of the cabinet where the sink meets the cabinet.

5. Operation

The Findepot Corner Bathroom Vanity is designed for practical use in small spaces. The ceramic sink is ready for plumbing connections (faucet and drain not included). The cabinet features a soft-close door and an adjustable shelf for organized storage of bathroom essentials.

Image 3: Ample storage with adjustable shelf inside the vanity.

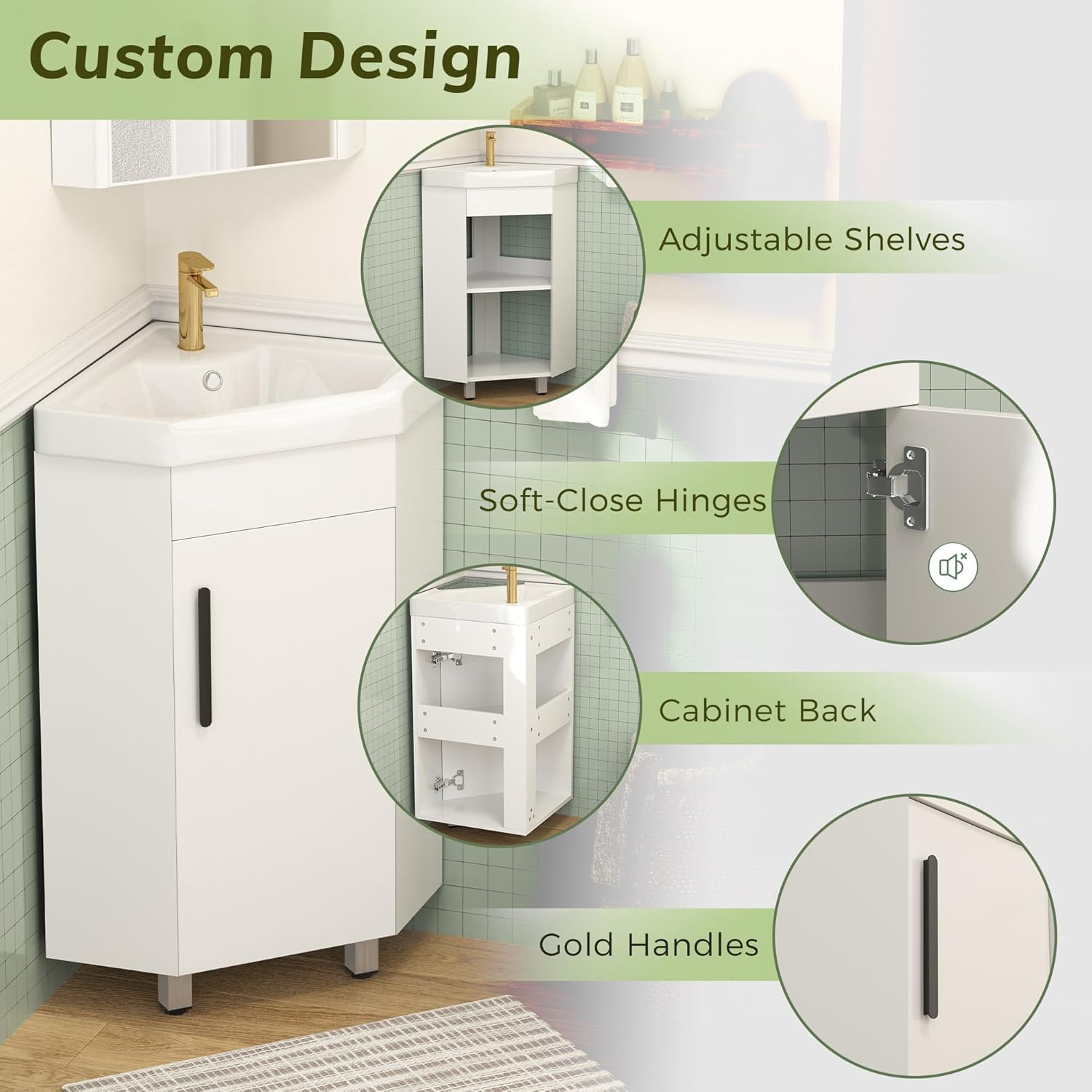

Image 4: Custom design features including soft-close hinges and adjustable shelves.

6. Maintenance and Care

• Cleaning: Wipe surfaces with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that may damage the waterproof coating or ceramic finish.
• Moisture Protection: The MDF board features a waterproof coating. However, promptly wipe away any standing water to ensure long-lasting durability.
• Hinge Adjustment: Periodically check and adjust the soft-close hinges if the door alignment changes over time.
• General Inspection: Regularly inspect all fasteners and connections to ensure they remain tight.

Image 5: Humidity-proof durable build with waterproof coating.

7. Troubleshooting

If you encounter any issues during assembly or use, please review the assembly steps and ensure all components are correctly installed. For persistent problems or specific concerns, refer to the contact information in the 'Warranty and Support' section.

8. Specifications

Image 6: Product dimensions for the Findepot Corner Bathroom Vanity.

Image 7: Ceramic sink design with deeper basin.

9. Warranty and Support

Findepot is committed to providing quality products and customer satisfaction. If you have any questions, require assistance with assembly, or need to report missing/damaged parts, please contact Findepot customer support. Our team is available to assist you within 24 hours.

For further information or to reach customer support, please visit the official Findepot store on Amazon: Findepot Store
