Streamlight ProTac HP-X USB Flashlight Instruction Manual

Product Overview

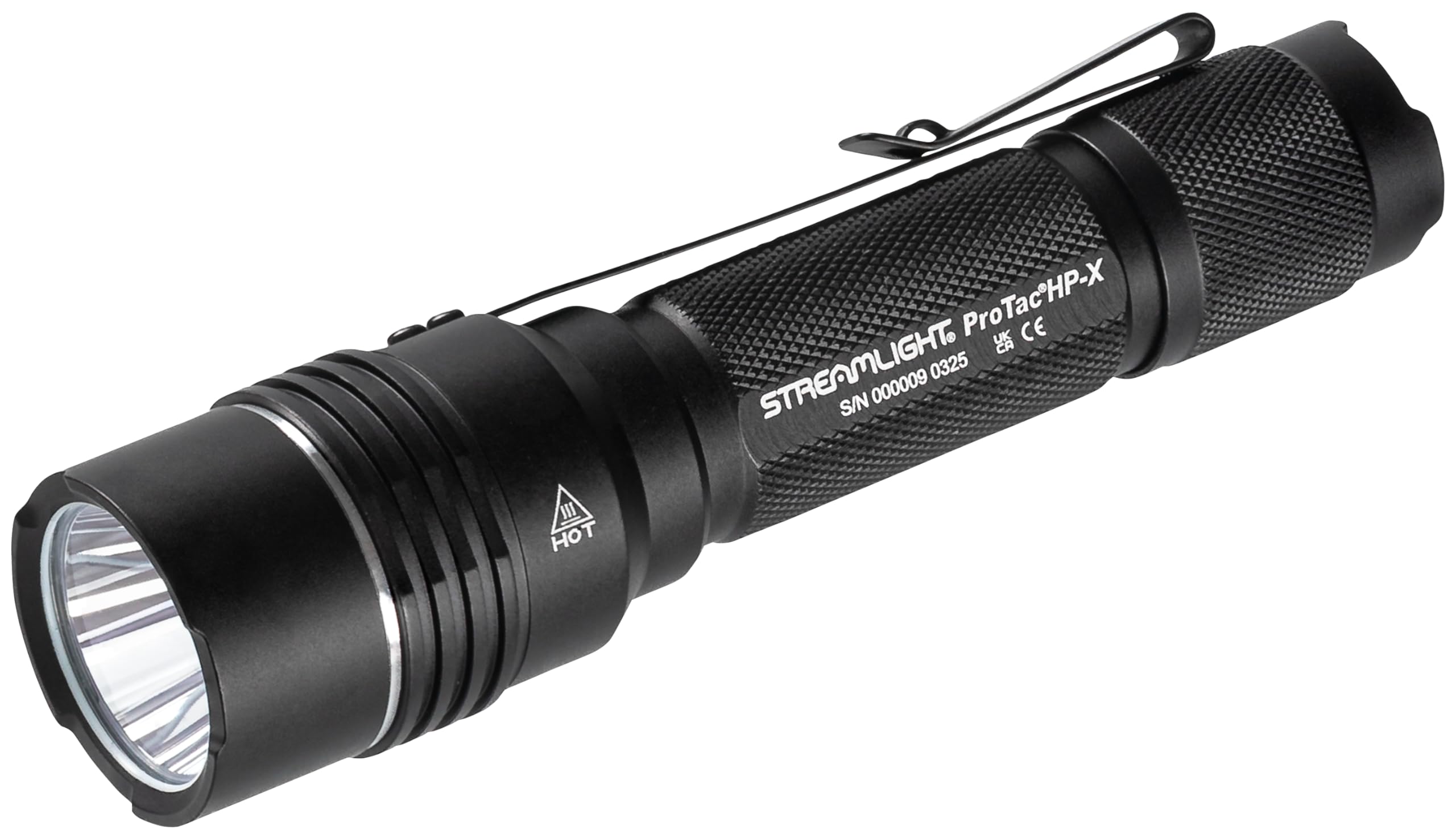

The Streamlight 89022 ProTac HP-X USB is a high-performance tactical flashlight designed for demanding environments. It features an intense 105,000 Candela beam for long-range visibility, an 800-Lumen output, and convenient USB-C rechargeable functionality. The flashlight includes Streamlight’s customizable TEN-TAP programming, allowing users to select various operating modes. Its durable construction of 6000 series machined aircraft aluminum with a Type II MIL-Spec anodized coating ensures resilience. The IP68 rating confirms it is dust-tight and waterproof up to 2 meters, with O-ring sealed openings for enhanced protection. Impact resistance is tested to 2 meters, making it suitable for rugged field use.

Image: Streamlight ProTac HP-X USB Flashlight highlighting its dimensions and multi-fuel capability.

Package Contents

• ProTac HP-X USB Flashlight
• USB Rechargeable Battery Pack (SL-B26)
• USB-C Cable
• Removable Pocket Clip
• Nylon Holster
• User Guide

Battery Installation and Charging

Battery Options

The ProTac HP-X USB flashlight is designed to operate with either the included Streamlight SL-B26 USB-C rechargeable lithium-ion battery pack or two CR123A lithium batteries. The SL-B26 battery offers improved sustainability and lower operating costs due to its rechargeable nature.

Installing Batteries

1. Unscrew the tail cap of the flashlight.
2. Insert the SL-B26 rechargeable battery with the positive (+) end facing towards the head of the flashlight, or insert two CR123A batteries with the positive (+) ends facing towards the head.
3. Screw the tail cap back on securely.

Charging the SL-B26 Battery

The SL-B26 battery features an integrated USB-C port for direct charging. To charge:

1. Remove the SL-B26 battery from the flashlight.
2. Connect the provided USB-C cable to the port on the battery.
3. Plug the other end of the USB-C cable into a suitable USB power source.
4. An indicator light on the battery will show its charging status: Red indicates charging is in progress, and Green indicates a sufficient charge.

Operating Instructions

Tail Switch Operation

The flashlight is operated using the multi-function push-button tactical tail switch. A quick press activates the light, and subsequent presses cycle through modes or turn it off, depending on the selected program.

TEN-TAP Programming

The ProTac HP-X USB features TEN-TAP programming, allowing you to customize the sequence of light modes. There are three available programs:

• Program 1 (Default): High > Strobe > Low
• Program 2: High Only
• Program 3: Low > Medium > High

To change the program setting:

1. Ensure the flashlight is in the OFF position.
2. Rapidly tap the tail switch 10 times (within 0.4 seconds per tap). On the 10th tap, hold the switch down.
3. The light will cycle through the available programs. Release the switch when the desired program is illuminated.
4. The flashlight is now set to the new program.

Light Output Modes

The flashlight offers various output modes with different performance characteristics:

Image: Detailed output specifications for High, Medium, and Low modes, including Lumens, Candela, Distance, and Run Time for both CR123A and SL-B26 batteries.

Key Features

• High Candela Output: 105,000 Candela for exceptional long-range beam throw (648 meters on high).
• Bright Illumination: Up to 800 Lumens on high mode.
• Multi-Fuel Capability: Compatible with Streamlight SL-B26 USB-C rechargeable battery or two CR123A lithium batteries.
• Durable Construction: Crafted from 6000 series machined aircraft aluminum with a Type II MIL-Spec anodized finish.
• Weatherproof and Dust-tight: IP68 rated, ensuring complete dust protection and waterproofness up to 2 meters.
• Impact Resistant: Tested to withstand impacts from 2 meters.
• Removable Pocket Clip: Dual-sided clip allows for versatile attachment in up or down positions.
• Tactical Tail Switch: Provides quick, reliable one-handed operation.

Image: The Streamlight ProTac HP-X USB flashlight, showcasing its durable construction and textured grip.

Technical Specifications

Maintenance

• Cleaning: Wipe the flashlight body with a soft, damp cloth. Do not use abrasive cleaners.
• O-Rings: Periodically inspect O-rings for wear and tear. Lubricate with silicone grease to maintain waterproof integrity. Replace if damaged.
• Battery Care: For optimal performance and longevity, store the SL-B26 rechargeable battery with a partial charge if not used for extended periods. Avoid fully discharging lithium-ion batteries.
• Storage: Store the flashlight in a cool, dry place away from direct sunlight. Remove batteries if storing for prolonged periods to prevent leakage.

Troubleshooting

• Light Does Not Turn On:
  • Check battery orientation.
  • Ensure batteries are fully charged or replace CR123A batteries.
  • Verify the tail cap is screwed on tightly.
• Intermittent Light:
  • Clean battery contacts and tail cap threads.
  • Ensure batteries are securely installed.
• Charging Issues (SL-B26):
  • Ensure the USB-C cable is properly connected to both the battery and the power source.
  • Try a different USB-C cable or power adapter.
  • Check the charging indicator light on the battery (Red for charging, Green for charged).

Warranty and Support

The Streamlight ProTac HP-X USB flashlight comes with a Limited Lifetime Warranty. For detailed warranty information, service, or support, please refer to the official Streamlight website or contact their customer service.
