1. Introduction
The INFANTI Unix Convertible Car Seat is designed to ensure the safety and comfort of your child during car journeys. Its detachable backrest allows it to convert into a booster seat, making it an ideal companion for your child's growth and facilitating their transition to using the vehicle's seat belt. Travel with peace of mind, knowing your child is protected at every stage of their development.
2. Safety Information
- Weight Range: Suitable for children weighing 9 to 36 kg.
- Safety Certification: Complies with European safety standards ECE R44/04, ensuring the product has been tested and meets current safety requirements in Europe.
- Harness System: Features a 5-point harness for Group 1 (9-18 kg), distributing impact forces across the child's strongest bones (shoulders, hips, and between the legs) for secure restraint.
- Adjustable Head Support: Incorporates a head support with multiple adjustable heights to adapt to the child's growth, ensuring optimal protection at all times.

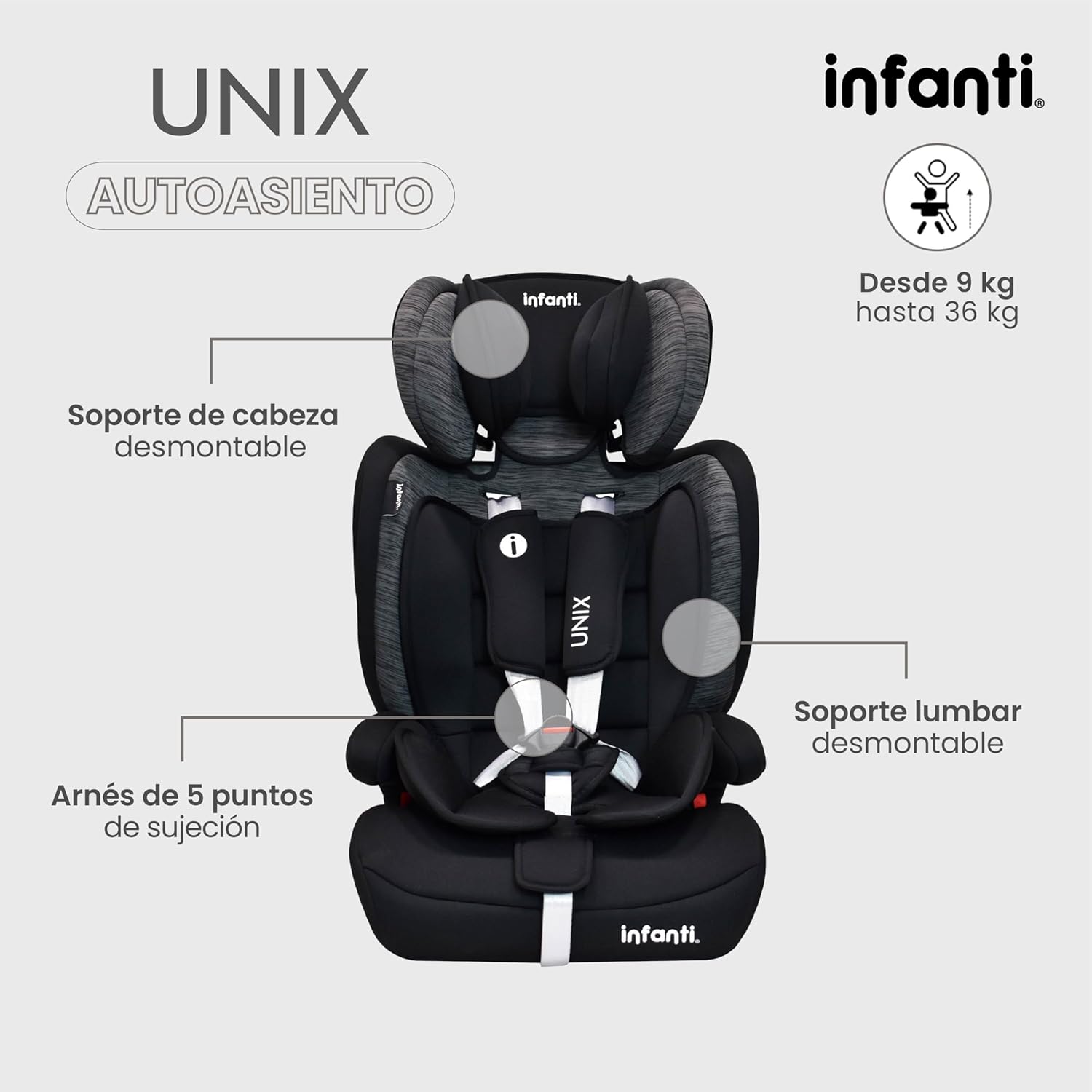

- Detachable Supports: Includes additional head and lumbar supports that can be removed as the child grows, providing greater comfort and adaptability.
- Important Note: Recommended age and weight groups are indicative. Always consider your child's actual size and weight, as each child's development varies.
3. Product Features and Configurations
4. Installation and Usage
4.1. Group 1 (9-18 kg): Using the 5-Point Harness
- Place the car seat in the vehicle's rear seat, facing forward.
- Secure the car seat using the vehicle's 3-point seat belt. Thread the vehicle's seat belt through the designated belt paths on the car seat. Ensure the belt is taut and the car seat is firmly installed.
- Place your child in the car seat.
- Fasten the 5-point harness. Ensure the shoulder straps are at or slightly above your child's shoulders.
- Tighten the harness straps until they are snug against your child's body, with no slack. You should not be able to pinch any excess webbing at your child's collarbone.
4.2. Group 2 (15-25 kg): Using Vehicle's Seat Belt with Backrest
- Remove the 5-point harness from the car seat (refer to the product manual for specific instructions on harness removal).
- Place the car seat in the vehicle's rear seat, facing forward.
- Place your child in the car seat.
- Route the vehicle's 3-point seat belt over your child and through the designated belt guides on the car seat's backrest and base.
- Ensure the lap belt is low on your child's hips, touching the thighs, and the shoulder belt rests across the middle of their shoulder and chest. Tighten the vehicle's seat belt securely.

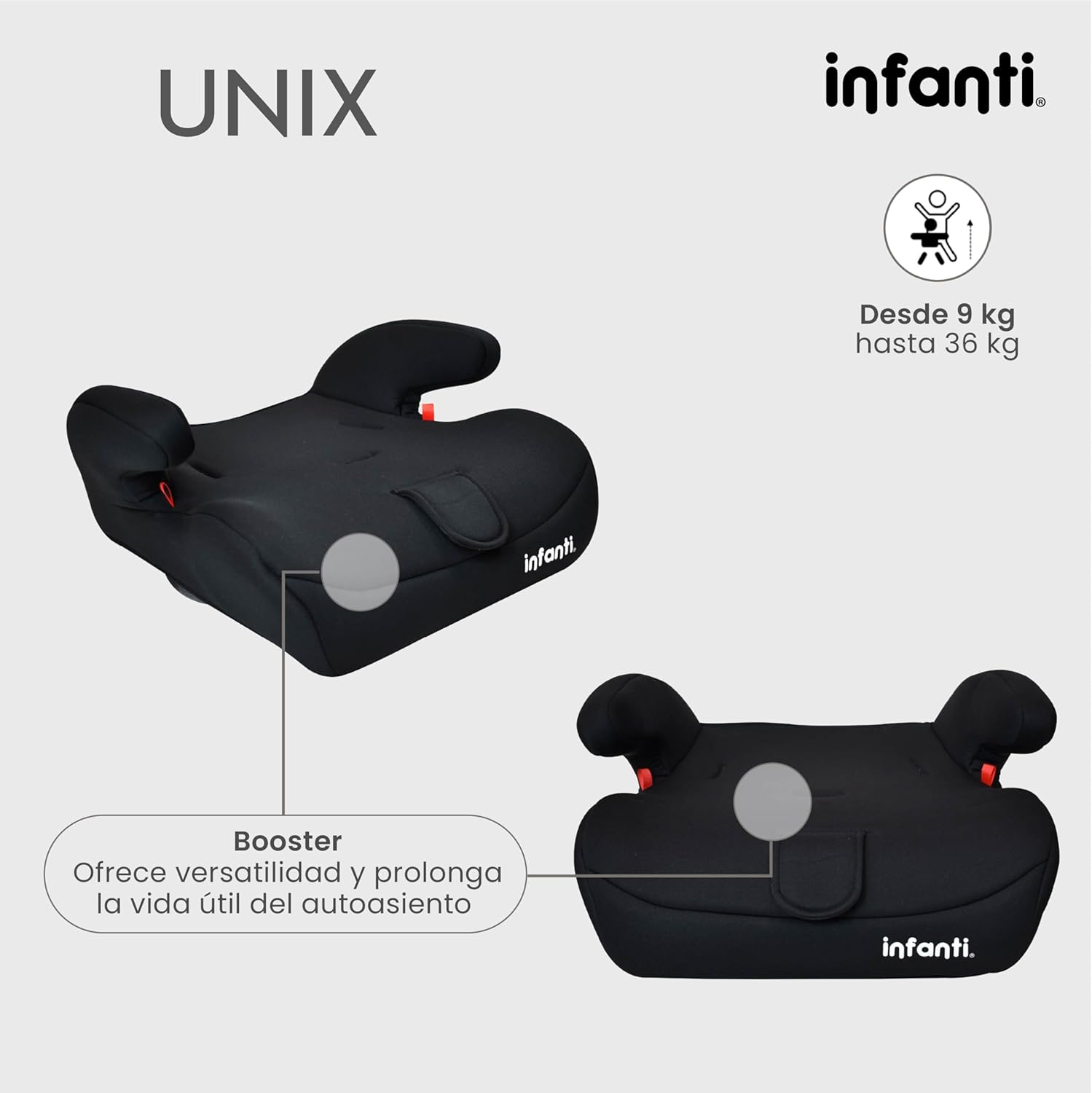

4.3. Group 3 (22-36 kg): Booster Seat Configuration
- Detach the backrest from the car seat base (refer to the product manual for specific instructions on backrest removal).
- Place the booster seat in the vehicle's rear seat.
- Place your child on the booster seat.
- Route the vehicle's 3-point seat belt over your child and through the designated belt guides on the booster seat.
- Ensure the lap belt is low on your child's hips, touching the thighs, and the shoulder belt rests across the middle of their shoulder and chest. Tighten the vehicle's seat belt securely.
5. Maintenance
- Cleaning: The fabric covers can typically be removed and machine washed on a gentle cycle with mild detergent. Refer to the care label on the fabric for specific washing instructions.
- Hard Parts: Wipe plastic and metal parts with a damp cloth and mild soap. Do not use abrasive cleaners or solvents.
- Harness: Clean the harness straps with a damp cloth. Do not machine wash or immerse the harness in water, as this can weaken the webbing.
- Storage: Store the car seat in a cool, dry place away from direct sunlight when not in use.
6. Specifications
| Feature | Detail |
|---|---|
| Maximum Weight Recommendation | 36 Kilograms |
| Material Type | Plastic, Polyester |
| Batteries Required | No |
| Orientation | Forward-facing |
| Harness Type | 5-Point Harness |
| Product Dimensions | 41 x 35 x 79 cm |
| Product Weight | 5 Kilograms |
| Installation Type | Vehicle Seat Belt |
| Color | Gray |
7. Warranty and Support
For warranty information and customer support, please refer to the documentation included with your product or visit the official Infanti store. Extended warranty plans may be available for purchase.
