Angoily 310Z641239P2H Detachable Silent Hydraulic Damping Two-Section Drawer Rails Instruction Manual

1. Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your Angoily 310Z641239P2H Detachable Silent Hydraulic Damping Two-Section Drawer Rails. Please read this manual thoroughly before installation and retain it for future reference. Proper installation and care will ensure optimal performance and longevity of the product.

2. Product Overview

The Angoily 310Z641239P2H drawer rails are designed for smooth, quiet, and reliable operation in various furniture applications, including kitchen cabinets, wardrobes, and office drawers. Constructed from high-strength cold-rolled alloy steel, these two-section glides feature hydraulic damping for silent closing and a detachable design for easy installation and removal.

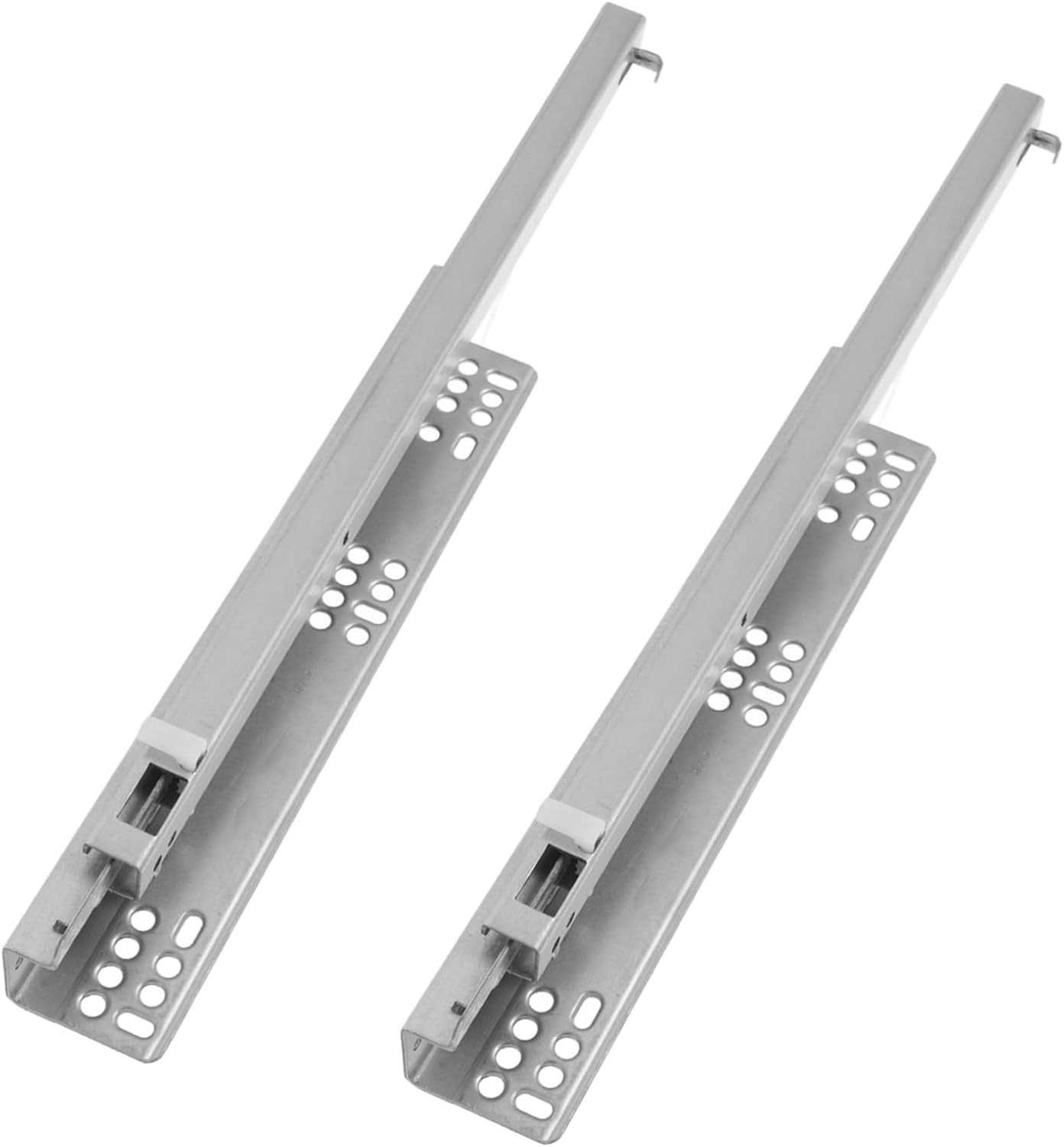

This image displays a pair of Angoily drawer slides, highlighting their two-section design and silver alloy steel construction.

Key Features:

• Material: High-strength cold-rolled alloy steel for durability.
• Design: Two-section glides for full extension.
• Damping: Hydraulic damping mechanism for silent and soft closing.
• Detachable: Allows for easy installation and removal of drawers.
• Application: Suitable for most household and office drawers.

3. Safety Information

• Always wear appropriate personal protective equipment (PPE), such as safety glasses, during installation.
• Ensure the work area is well-lit and clear of obstructions.
• Use the correct tools for the job to prevent damage to the product or injury.
• Do not overload drawers beyond their recommended weight capacity.
• Keep small parts away from children to prevent choking hazards.

4. Package Contents

Verify that all components are present before beginning installation.

• 1 Pair of Angoily Detachable Silent Hydraulic Damping Two-Section Drawer Rails
• Mounting Screws (may be included or sold separately)

5. Setup and Installation

Follow these steps for proper installation of the drawer rails.

Tools Required:

• Measuring Tape
• Pencil
• Drill with appropriate drill bits
• Screwdriver (Phillips head recommended)
• Level

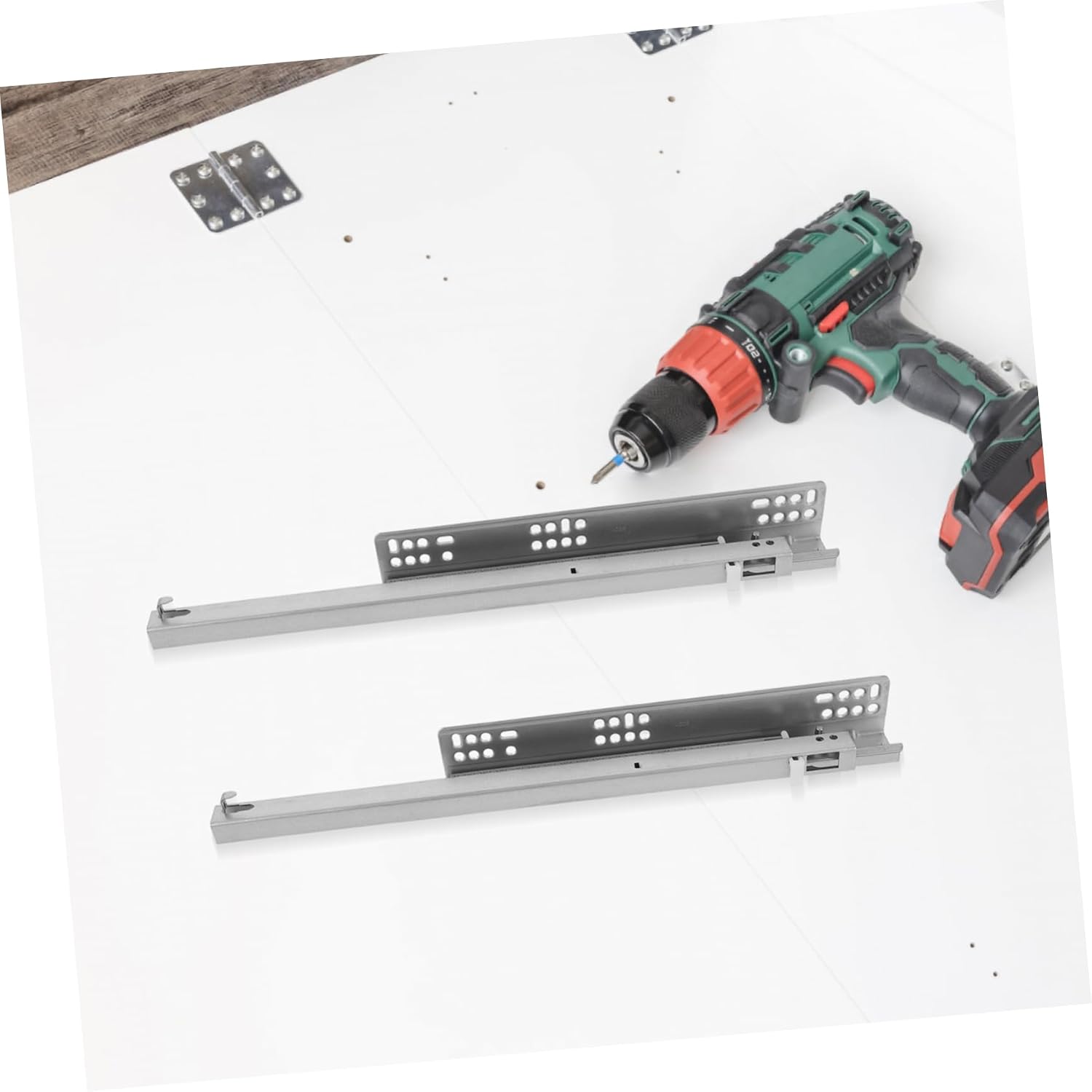

The image presents a pair of drawer slides alongside a power drill, indicating the tools required for secure installation into furniture.

Installation Steps:

1. Separate the Drawer Slide Sections: Each drawer slide consists of two main sections: the inner slide (attaches to the drawer) and the outer slide (attaches to the cabinet). Gently press the release lever or button on the slide to separate these two sections.

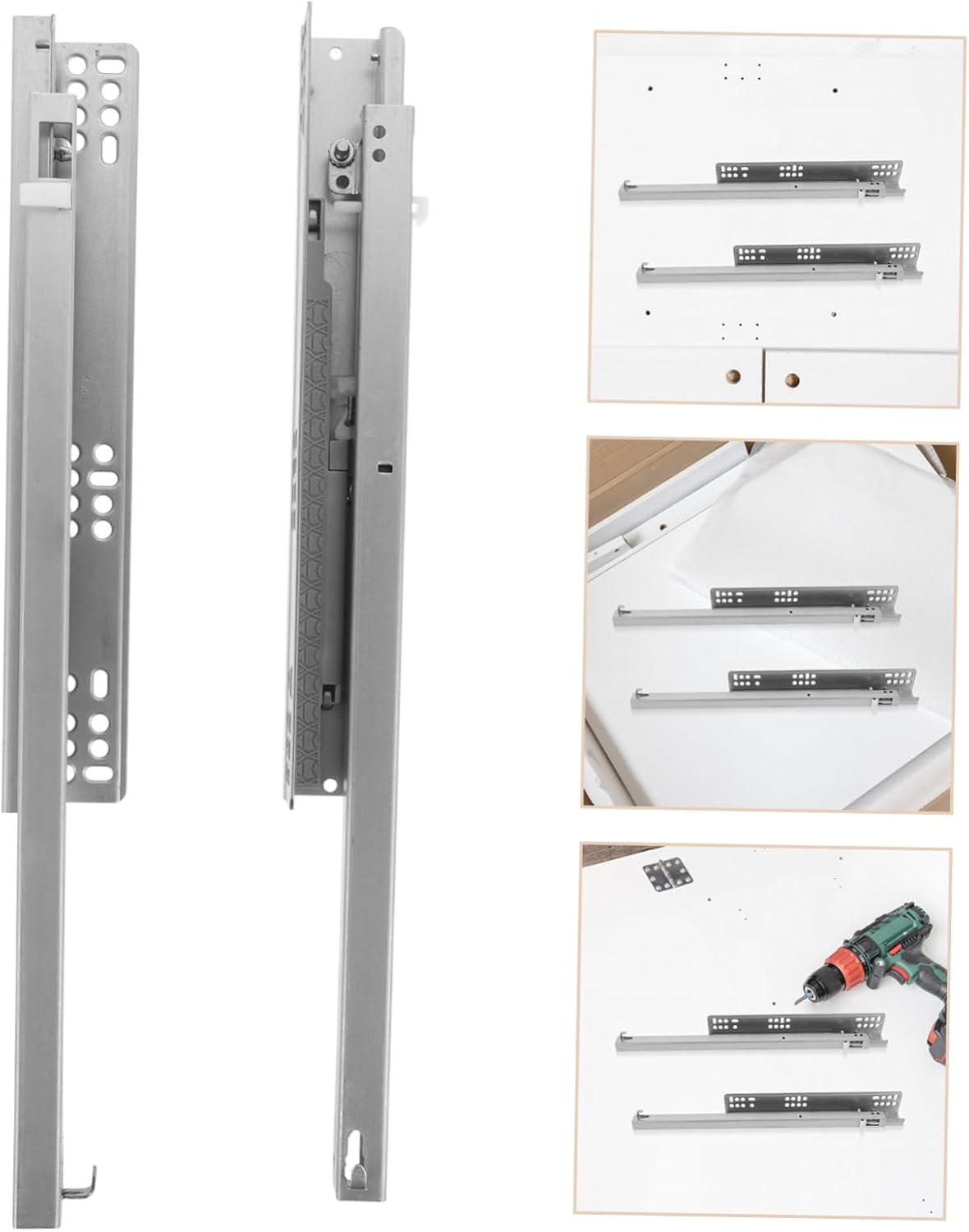

This image shows the separate components of the drawer slides and how they are positioned on a drawer and cabinet side, illustrating the initial steps of installation.

2. Attach Inner Slides to Drawer: Position the inner slide section along the bottom edge of each side of the drawer. Ensure the slide is flush with the front edge of the drawer. Mark the screw holes with a pencil. Pre-drill pilot holes if necessary, then secure the inner slides using appropriate screws.

A person is shown actively installing one section of the drawer slide onto the side of a wooden drawer using a screwdriver, demonstrating a key installation step.
3. Attach Outer Slides to Cabinet: Position the outer slide section inside the cabinet opening, ensuring it is level and aligned correctly. The front edge of the outer slide should be flush with the front edge of the cabinet frame. Mark the screw holes, pre-drill if needed, and secure the outer slides with screws. Repeat for the opposite side, ensuring both outer slides are parallel and at the same height.


This image illustrates the drawer slides laid out on the interior side of a cabinet, ready for attachment, showing the alignment before securing.

4. Insert the Drawer: Align the inner slides (attached to the drawer) with the outer slides (attached to the cabinet). Gently push the drawer into the cabinet until the slides engage. Push firmly until the drawer is fully closed and the hydraulic damping mechanism activates, providing a soft close.

6. Operating Instructions

To operate the drawer, simply pull it open. The two-section design allows for full extension, providing complete access to the drawer contents. When closing, gently push the drawer until the hydraulic damping mechanism takes over, ensuring a silent and soft closure. To detach the drawer, pull it out to its full extension, locate the release levers on both sides (usually colored plastic), and press them simultaneously while pulling the drawer completely out.

7. Maintenance

• Cleaning: Wipe the drawer rails periodically with a clean, damp cloth to remove dust and debris. Avoid using abrasive cleaners or solvents.
• Lubrication: The hydraulic damping mechanism is factory-lubricated and generally does not require additional lubrication. If the slides become stiff, a small amount of silicone-based lubricant can be applied to the moving parts, avoiding the damping mechanism itself.
• Inspection: Periodically check all mounting screws to ensure they are tight. Loose screws can affect performance and potentially damage the slides or furniture.

8. Troubleshooting

• Drawer is stiff or difficult to open/close: Check for obstructions within the drawer or along the slides. Ensure the slides are clean and free of debris. Verify that all mounting screws are securely tightened and that the slides are parallel.
• Drawer does not close softly: Ensure the drawer is not overloaded. Check if the hydraulic damping mechanism is free of obstructions. The mechanism may require a full closing cycle to reset.
• Drawer is crooked or misaligned: This often indicates improper installation. Re-check the alignment of both inner and outer slides. Ensure they are level and parallel to each other. Adjust screw positions if necessary.
• Excessive noise during operation: Inspect the slides for any loose parts or foreign objects. Ensure the slides are properly lubricated (if applicable, as per maintenance section).

9. Specifications

A detailed view of a single drawer slide with measurements indicating its length (41.2 cm / 16.19 inches), height (4.2 cm / 1.65 inches), and width (4 cm / 1.57 inches).

10. Warranty and Support

For any questions, technical assistance, or support regarding your Angoily drawer rails, please contact the seller or manufacturer directly through your purchase platform. Please have your model number (310Z641239P2H) and purchase details ready when contacting support.
