Ledwood ACCESS130 Portable HiFi Speaker

Introduction

Thank you for choosing the Ledwood ACCESS130 Portable HiFi Speaker. This manual provides essential information for the safe and efficient operation of your device. The ACCESS130 is a versatile portable speaker featuring dynamic RGB LED effects, Bluetooth 5.3 connectivity, USB input, and a karaoke function with an included wireless microphone. It is designed to deliver a powerful audio experience for various occasions.

Safety Information

• Read all instructions carefully before using the product.
• Do not expose the speaker to water or excessive moisture. This product is not waterproof.
• Keep the speaker away from heat sources, direct sunlight, and flammable materials.
• Do not attempt to disassemble, repair, or modify the device. Refer all servicing to qualified personnel.
• Use only the provided USB-C charging cable.
• Avoid listening at high volume levels for extended periods to prevent hearing damage.
• Keep out of reach of children.

Package Contents

Please check the package for the following items:

• Ledwood ACCESS130 Portable HiFi Speaker
• USB-C Charging Cable
• Wireless Microphone
• Carrying Strap

Product Overview

Familiarize yourself with the components and controls of your Ledwood ACCESS130 speaker.

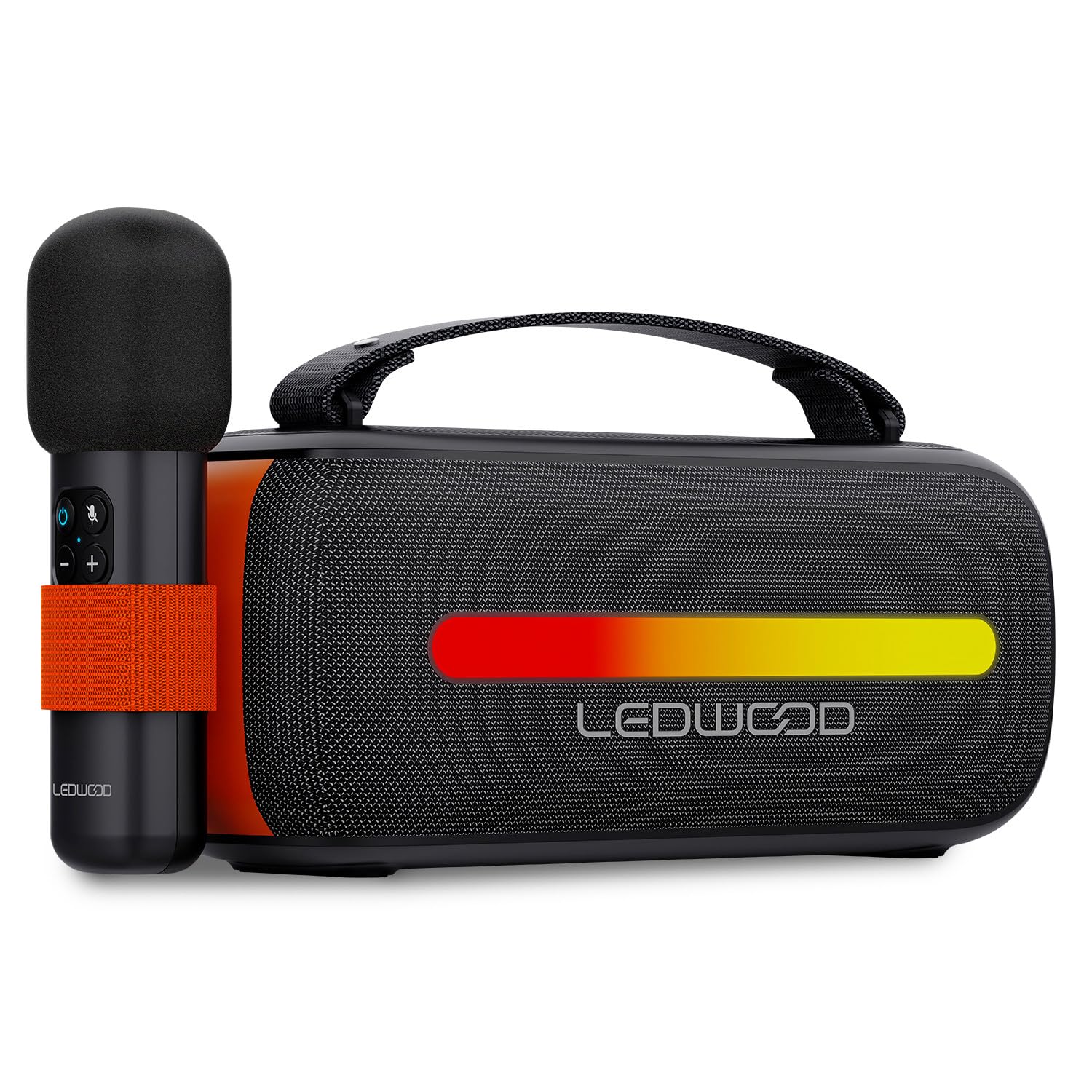

Image: The Ledwood ACCESS130 portable speaker shown with its wireless microphone attached to the side. The speaker features a black mesh grille and an illuminated LED strip on the front.

Controls and Ports

Image: A top-down view of the Ledwood ACCESS130 speaker, highlighting the control panel with buttons for power, volume, mode, and LED effects. Icons for LED colors, microphone, karaoke function, USB-C, and wireless connection are also visible.

• Power Button: Press and hold to turn the speaker On/Off.
• Mode Button (M): Press to switch between Bluetooth, USB, and other input modes.
• Volume Up (+): Increase volume.
• Volume Down (-): Decrease volume.
• Play/Pause Button: Play or pause audio playback.
• LED Effect Button: Cycle through different LED lighting modes or turn them off.
• USB-C Port: For charging the speaker.
• USB-A Port: For USB audio playback.

Setup

1. Charging the Speaker

1. Connect the provided USB-C charging cable to the speaker's USB-C port.
2. Connect the other end of the cable to a compatible USB power adapter (not included) or a computer's USB port.
3. The LED indicator will show charging status. A full charge takes approximately [Charging Time - not specified in input, omit if not available].

2. Powering On/Off

• To power on, press and hold the Power button until the speaker activates.
• To power off, press and hold the Power button again until the speaker shuts down.

3. Bluetooth Pairing

1. Ensure the speaker is powered on and in Bluetooth mode (indicated by a flashing Bluetooth LED). If not, press the 'M' (Mode) button to switch to Bluetooth mode.
2. On your smartphone, tablet, or computer, enable Bluetooth and search for available devices.
3. Select "Ledwood ACCESS130" from the list of devices.
4. Once paired, the Bluetooth LED will stop flashing and remain solid, indicating a successful connection.

4. Connecting the Wireless Microphone

1. Ensure the wireless microphone is charged and powered on.
2. The microphone should automatically connect to the speaker when both are powered on and within range.
3. Test the microphone by speaking into it to confirm audio output from the speaker.

Operating

1. Bluetooth Playback

• After successful Bluetooth pairing, open your music application on your connected device.
• Start playing audio. The sound will be transmitted wirelessly to the ACCESS130 speaker.
• Use the volume buttons on the speaker or your connected device to adjust the audio level.
• Press the Play/Pause button on the speaker to control playback.

2. USB Playback

• Insert a USB flash drive containing audio files (e.g., MP3) into the speaker's USB-A port.
• Press the 'M' (Mode) button to switch to USB mode.
• The speaker will automatically begin playing audio from the USB drive.
• Use the speaker's controls to adjust volume and navigate tracks.

3. Karaoke Function

• Ensure the wireless microphone is connected to the speaker as described in the Setup section.
• Play your desired instrumental track via Bluetooth or USB.
• Speak or sing into the microphone. Your voice will be amplified through the speaker, mixing with the music.

4. LED Light Effects

• Press the LED Effect button to cycle through various dynamic RGB lighting modes.
• Continue pressing the button to select your preferred lighting effect or to turn the LEDs off.

Maintenance

• Cleaning: Use a soft, dry cloth to clean the speaker's surface. Do not use abrasive cleaners or solvents.
• Storage: Store the speaker in a cool, dry place away from direct sunlight and extreme temperatures when not in use for extended periods.
• Battery Care: To prolong battery life, fully charge the speaker before first use and recharge it at least once every three months if not used regularly. Avoid completely draining the battery.

Troubleshooting

Specifications

Warranty and Support

For warranty information or technical support, please refer to the documentation provided at the time of purchase or contact your retailer. You may also visit the official Ledwood website for further assistance.
