1. Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Bomann KS 7254 refrigerator with a freezer compartment. Please read these instructions carefully before using the appliance and keep them for future reference.
The Bomann KS 7254 is a compact and efficient refrigerator designed for optimal food storage, featuring a 91-liter capacity, a small freezer compartment, and a reversible door hinge for flexible placement.
2. Safety Information
Always adhere to the following safety precautions to prevent personal injury or damage to the appliance.
- Ensure the appliance is disconnected from the power supply before cleaning or maintenance.
- Do not damage the refrigerant circuit.
- Do not use electrical appliances inside the food storage compartments unless they are of the type recommended by the manufacturer.
- This appliance is intended for household use only.
- Keep ventilation openings clear of obstruction.
- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
- Children should be supervised to ensure they do not play with the appliance.
3. Unpacking and Setup
3.1 Unpacking
Carefully remove all packaging materials. Inspect the appliance for any damage during transit. Report any damage to your retailer immediately.
3.2 Placement
Place the refrigerator on a firm, level surface. Ensure adequate ventilation around the appliance. Avoid direct sunlight and heat sources. The appliance dimensions are approximately 47 cm (depth) x 44.5 cm (width) x 83.5 cm (height).
Image: Front view of the Bomann KS 7254 refrigerator with its dimensions (47 cm depth, 44.5 cm width, 83.5 cm height) indicated. Also shows icons for 40 dB noise level, Energy Class E, stepless temperature control, and LED interior lighting.
3.3 Door Reversal
The door hinge is reversible, allowing you to change the opening direction to suit your space. Refer to the detailed instructions in the separate door reversal guide (if provided) or consult a qualified technician for this procedure.
Image: Interior view of the Bomann KS 7254 refrigerator showing its shelves and a transparent vegetable drawer. An inset icon highlights the reversible door hinge feature.
3.4 Initial Power-On
After placing the appliance, wait at least 2-4 hours before plugging it in to allow the refrigerant to settle. Connect the appliance to a properly grounded power outlet. The power cord length is approximately 120 cm.
Image: Front view of the Bomann KS 7254 refrigerator next to a circular graphic highlighting its power plug and a cable length of approximately 120 cm.
4. Operating Instructions
4.1 Temperature Control
The refrigerator features a stepless temperature control dial located inside the compartment. Turn the dial to adjust the cooling intensity. The recommended operating temperature range is 0°C to +8°C.
Image: Close-up view of the interior of the Bomann KS 7254 refrigerator, showing the temperature control dial and the LED interior lighting. Various food containers are visible on the shelves.
4.2 Interior Organization
The refrigerator is equipped with 2 glass shelves, 3 door shelves (including an egg tray), and a transparent vegetable drawer for flexible storage. The small freezer compartment includes an ice cube tray.
Image: Interior view of the Bomann KS 7254 refrigerator, highlighting the two glass shelves and the small freezer compartment. A blue line points to the freezer, indicating its function for short-term storage.
Image: Interior view of the Bomann KS 7254 refrigerator, focusing on the three door shelves, which include an egg tray. A blue arrow indicates that the bottom shelf can accommodate large bottles.
4.3 LED Interior Lighting
The refrigerator features energy-efficient LED lighting inside the compartment for clear visibility of your stored items.
5. Maintenance
5.1 Cleaning
Regularly clean the interior and exterior of the refrigerator. Unplug the appliance before cleaning. Use a soft cloth and a mild detergent. Do not use abrasive cleaners or sharp objects.
5.2 Defrosting
This appliance features manual defrosting for the freezer compartment. When ice accumulation in the freezer compartment reaches a thickness of 3-5 mm, defrost the appliance. To defrost:
- Unplug the refrigerator.
- Remove all food items and place them in a cool place.
- Leave the door open to allow ice to melt naturally. Place a towel or container to collect water.
- Once defrosted, clean and dry the interior thoroughly before plugging the appliance back in and returning food items.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Refrigerator does not operate. | No power supply. | Check if the plug is properly inserted and the power outlet is working. |
| Appliance is not cooling sufficiently. | Temperature setting too high; door opened too frequently; warm food placed inside; poor ventilation. | Adjust temperature control to a lower setting; avoid frequent door openings; allow hot food to cool before placing inside; ensure adequate space around the appliance. |
| Excessive ice formation in freezer. | Door not sealed properly; high humidity; frequent door opening. | Check door gasket for proper seal; avoid opening door unnecessarily; defrost as per instructions. |
| Unusual noises. | Appliance not level; objects vibrating against the unit. | Adjust leveling feet; ensure nothing is touching the back or sides of the refrigerator. Normal operating noise level is 40 dB. |
If the problem persists after checking these points, please contact customer service.
7. Specifications
| Feature | Detail |
|---|---|
| Brand | Bomann |
| Model Number | KS 7254 (772541) |
| Type | Mini Refrigerator with Freezer Compartment |
| Total Capacity | 91 Liters |
| Dimensions (D x W x H) | 47 x 44.5 x 83.5 cm |
| Weight | 19 kg |
| Energy Efficiency Class | E |
| Annual Energy Consumption | 85 kWh/year |
| Noise Level | 40 dB |
| Temperature Range | 0°C to +8°C |
| Defrost System | Manual |
| Door Hinge | Reversible |
| Power Supply | 240 Volt |
| Certification | CE |
For more detailed product information, including the product data sheet and energy label, please visit the EPREL database:

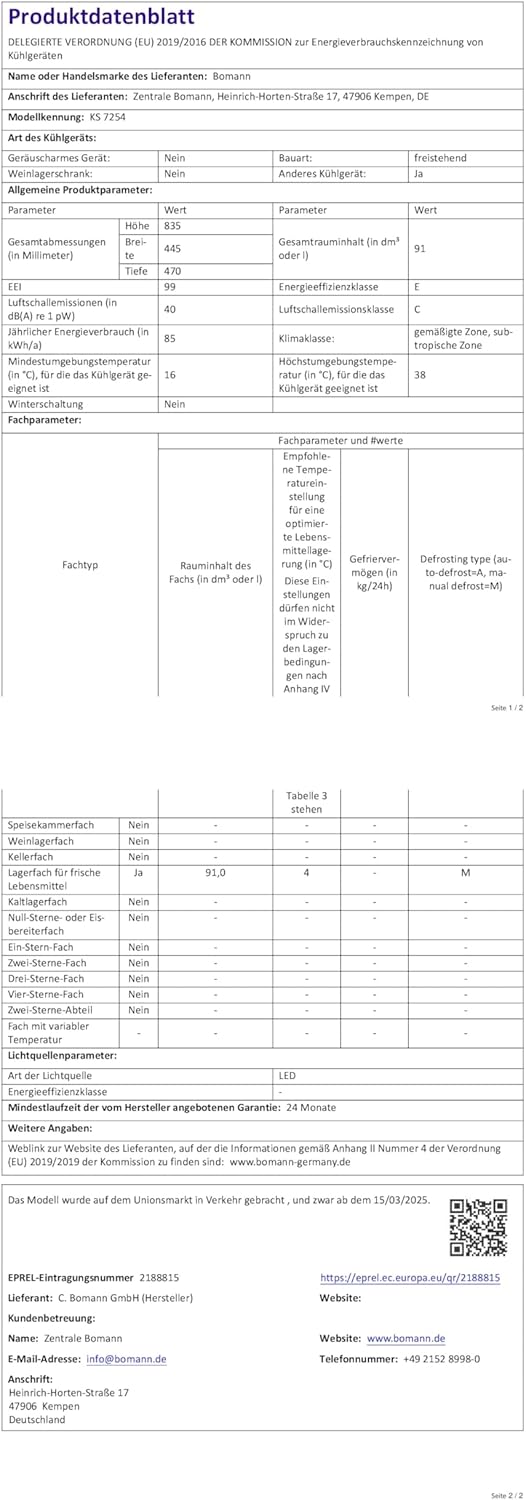

Image: Official product data sheet for the Bomann KS 7254 refrigerator, detailing technical specifications and energy consumption. Includes a QR code and EPREL link.
Image: Energy label for the Bomann KS 7254 refrigerator, showing its energy efficiency class E, annual energy consumption of 85 kWh, 91L capacity, and 40 dB noise level. Includes a QR code and EPREL link.
8. What's in the Box
Your Bomann KS 7254 refrigerator package includes:
- Bomann KS 7254 Refrigerator Unit
- Transparent Vegetable Drawer
- Egg Tray
- Ice Cube Tray (for freezer compartment)
- User Manual (this document)
9. Warranty and Support
This Bomann appliance comes with a 24-month manufacturer's warranty. For warranty claims, technical support, or spare parts, please contact Bomann customer service or your retailer.
You can find more information and contact details on the official Bomann website: www.bomann.de
