K-Silver TMR Joystick Replacement Kit

1. Introduction

This manual provides comprehensive instructions for the installation, operation, and maintenance of your K-Silver TMR Joystick Replacement Kit. This kit is designed to replace worn or drifting joysticks in your Nintendo Switch, Switch Lite, or Switch OLED Joy-Con controllers, utilizing advanced Tunnel Magnetoresistance (TMR) technology for enhanced precision and durability.

2. Product Overview

The K-Silver TMR Joystick features a contactless, wear-free TMR sensor, engineered for exceptional durability and an extended lifespan. This technology significantly reduces the likelihood of stick drift, a common issue with traditional joysticks.

Image 2.1: K-Silver TMR Joystick compatible with Nintendo Switch, Switch Lite, and Switch OLED Joy-Con controllers.

The TMR sensor offers superior accuracy, speed, and low power consumption compared to other sensor types, ensuring a responsive and reliable gaming experience.

Image 2.2: Comparison table illustrating the performance benefits of TMR sensor technology in accuracy, speed, and power consumption.

Each joystick includes an interchangeable stick cap, designed as a 1:1 replica of the original, with non-removable caps to prevent slipping during gameplay.

Image 2.3: A Nintendo Switch Joy-Con controller showcasing the interchangeable stick cap feature of the replacement joystick.

3. Package Contents

Your K-Silver TMR Joystick Replacement Kit includes the following items:

• 2 x K-Silver TMR Joysticks
• 1 x Y00 Screwdriver
• 1 x 1.5+ Screwdriver
• Pry Tools
• Tweezers
• Additional screws (if applicable)

Image 3.1: The complete K-Silver TMR Joystick Replacement Kit, including two joysticks and all necessary repair tools.

Image 3.2: Close-up of the non-stripping, non-magnetic Y00 and 1.5+ screwdrivers and a pry tool provided for installation.

4. Installation Guide

The installation process for the K-Silver TMR Joystick is designed to be straightforward. It typically takes approximately 5 minutes per Joy-Con controller. While this manual provides general guidance, a detailed step-by-step illustrated guide is included with your kit. An HD video tutorial is also available by scanning the QR code provided in the kit, which can assist with the repair process.

General Steps (Refer to detailed guide for specifics):

1. Power off your Nintendo Switch console and detach the Joy-Con controller you intend to repair.
2. Carefully open the Joy-Con casing using the provided Y00 screwdriver and pry tools.
3. Disconnect the battery and other necessary ribbon cables.
4. Remove the old joystick using the appropriate screwdriver.
5. Install the new K-Silver TMR Joystick, ensuring all connections are secure.
6. Reassemble the Joy-Con controller, ensuring all screws are tightened appropriately.

Caution: Exercise care when handling small components and ribbon cables to avoid damage. If you are unsure about any step, consult the video tutorial or seek professional assistance.

5. Calibration

After installing a new joystick, it is essential to calibrate it within your Nintendo Switch system settings to ensure accurate and responsive control. This process helps the system recognize the new joystick's neutral position and full range of motion.

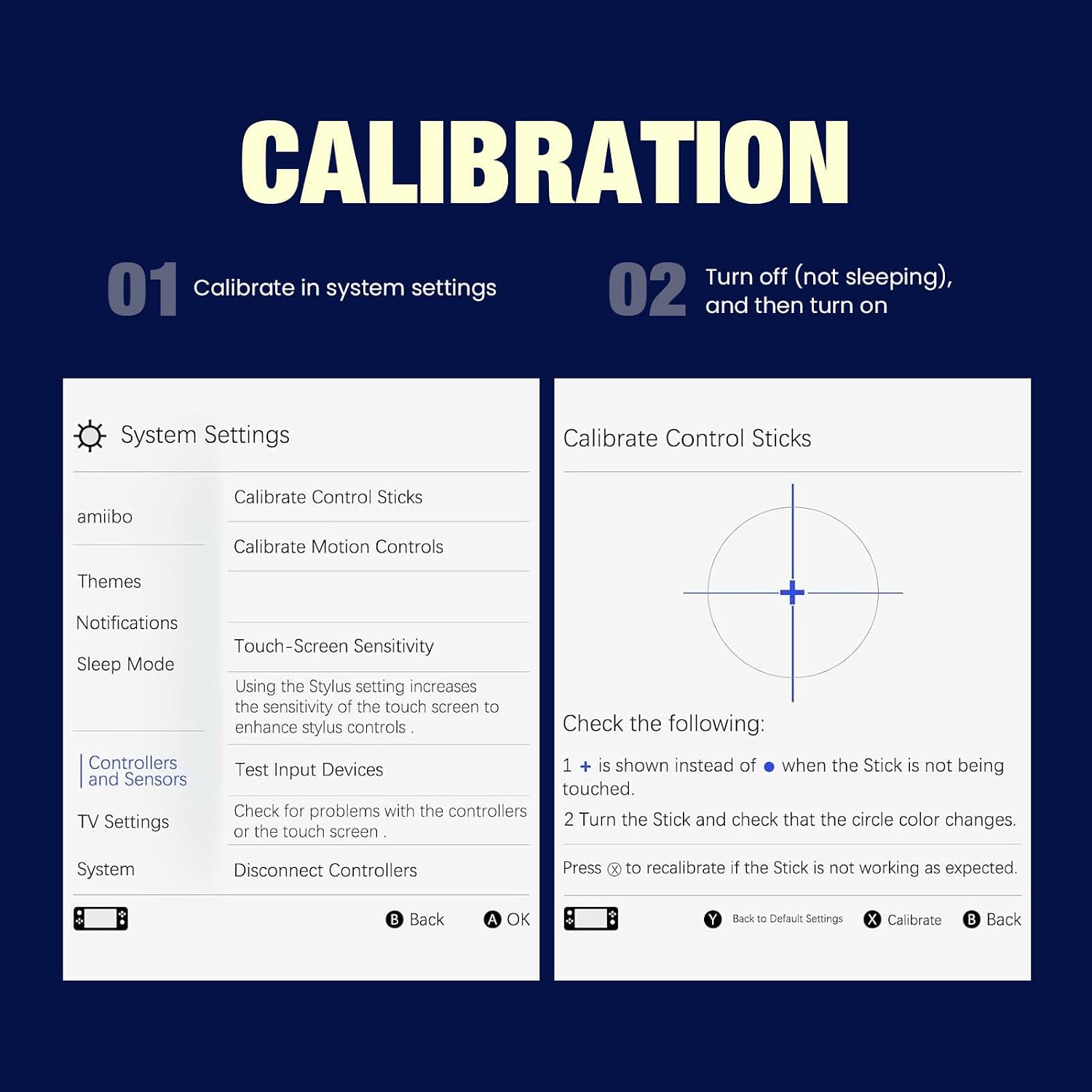

Image 5.1: Screenshot of the Nintendo Switch system settings menu, showing the 'Calibrate Control Sticks' option.

Calibration Steps:

1. Navigate to the System Settings on your Nintendo Switch.
2. Scroll down and select Controllers and Sensors.
3. Choose Calibrate Control Sticks.
4. Follow the on-screen prompts to calibrate your joystick. Ensure that a + symbol is shown instead of a • when the stick is not being touched.
5. Move the stick in a full circle to check that the circle color changes consistently.
6. If the stick is not working as expected, press the X button to recalibrate.

It is recommended to turn off (not just put to sleep) and then turn on your console after calibration for optimal performance.

6. Maintenance

The K-Silver TMR Joysticks are built for longevity, rated for over 5,000,000 rotations, which is significantly longer than standard joysticks. The TMR sensor's contactless design inherently reduces wear and tear. Additionally, the joysticks feature dust and water resistance, contributing to their durable construction.

To maintain optimal performance:

• Keep your Joy-Con controllers clean and free from dust and debris.
• Avoid exposing controllers to excessive moisture or extreme temperatures.
• Handle controllers with care to prevent physical damage.

7. Troubleshooting

If you encounter issues after installation, consider the following troubleshooting steps:

• Stick Drift: The primary purpose of TMR joysticks is to eliminate drift. If you experience drift, ensure the joystick was installed correctly and perform a calibration as described in Section 5.
• Unresponsive Joystick: Verify all ribbon cable connections inside the Joy-Con are secure. Re-open the Joy-Con if necessary to check connections.
• Incorrect Input: Recalibrate the joystick in the system settings. Ensure the console is fully powered off and restarted after calibration.
• Tools: Ensure you are using the correct screwdriver sizes (Y00 and 1.5+) to avoid stripping screws during installation or re-assembly.

For further assistance, refer to the detailed installation guide or the online video tutorial.

8. Specifications

9. Warranty and Support

K-Silver products are designed for quality and reliability. For information regarding returns or replacements, please refer to the retailer's return policy where the product was purchased. Typically, a 30-day return/replacement policy is offered.

For technical support or further inquiries, please contact K-Silver customer service through the official channels provided with your product packaging or on the manufacturer's website.
