Panda 1.34 Cu.ft Portable Washing Machine User Manual

Introduction

Thank you for choosing the Panda 1.34 Cu.ft Portable Washing Machine. This fully automatic top-load washer is designed for efficiency and convenience in compact living spaces. With its versatile functions and user-friendly features, it simplifies your laundry routine. Please read this manual thoroughly before operation to ensure safe and optimal performance.

Figure 1: Overview of the Panda Portable Washing Machine.

Setup

Setting up your Panda portable washing machine is straightforward. Follow these steps for proper installation:

1. Unpacking: Carefully remove the washing machine from its packaging. Inspect for any damage during transit.
2. Positioning: Place the washer on a flat, stable surface. Ensure there is enough space around the unit for ventilation and hose connections. The unit features two wheels at the back bottom for easier movement; simply tilt the machine to a 45-degree angle and drag or push it into position.


Figure 2: The washing machine features two wheels at the back for easy relocation.

3. Water Inlet Connection: Locate the water inlet hose. Connect one end of the inlet hose to the water inlet on the back of the washing machine.

Figure 3: Connecting the water inlet hose to the washing machine's inlet.
4. Faucet Connection: Attach the quick adapter to your faucet. Then, connect the other end of the water inlet hose to the quick adapter on your faucet. The machine only has one water inlet, so water temperature adjustment must be done at the faucet.


Figure 4: The inlet hose and quick adapter for faucet connection.


Figure 5: Detailed view of the inlet hose and quick adapter for easy faucet connection.
5. Drain Hose Setup: Hang the drain hose into a sink or a wash basin. Ensure the hose is securely placed to prevent it from falling out during the drain cycle.


Figure 6: Proper placement of the drain hose in a sink or basin.

6. Power Connection: Plug the power cord into a grounded electrical outlet.

Operating Instructions

The Panda portable washing machine is designed for fully automatic operation once a program is selected. Here’s how to use it:

1. Loading Laundry: Open the transparent lid and load your clothes into the stainless steel tub. Do not overload the machine; ensure clothes can move freely. The transparent lid allows you to monitor the washing process.


Figure 7: The transparent and foldable lid provides visibility during operation.



Figure 8: The durable stainless steel tub for laundry.

2. Adding Detergent: Add the appropriate amount of detergent to the dispenser.
3. Control Panel Overview: The easy-operated control panel allows you to select various settings.

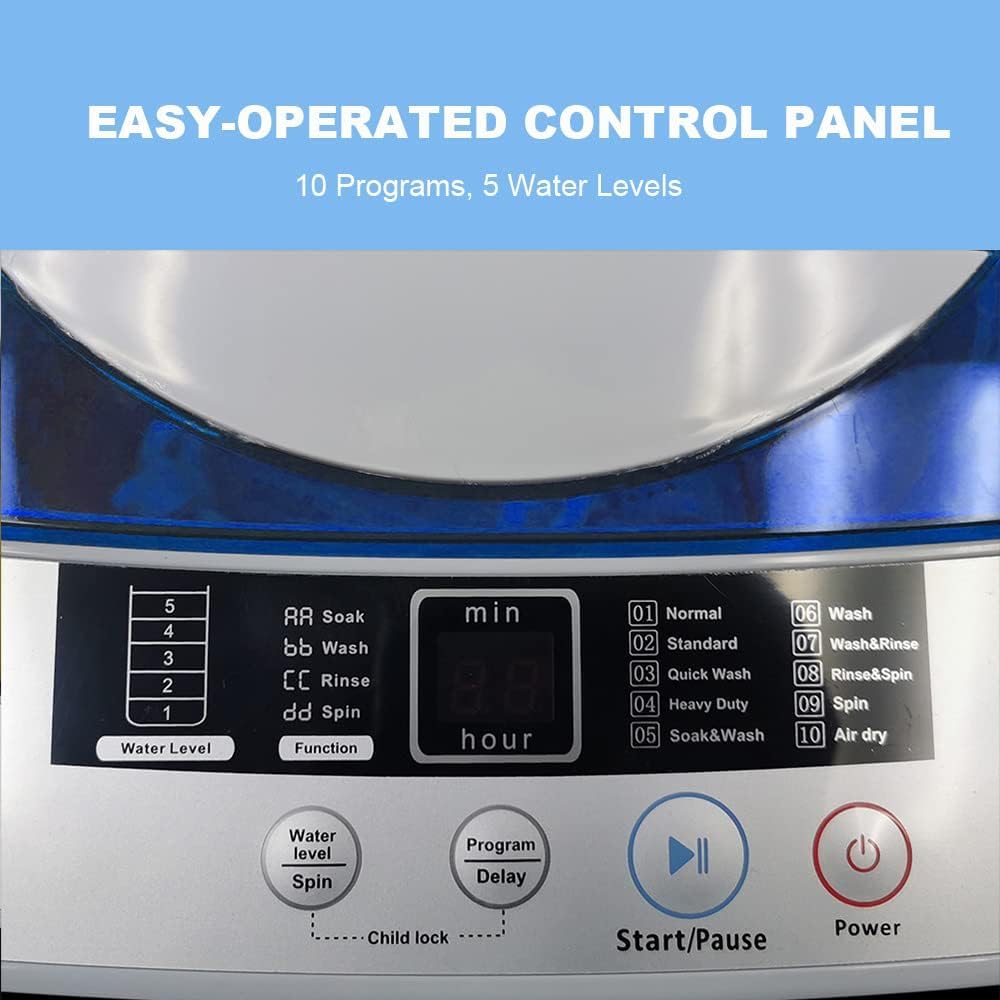

Figure 9: The control panel with program and water level selections.
4. Selecting Water Level: Choose from 5 adjustable water levels (1/22L to 5/33L) based on your load size to conserve water and energy.
5. Choosing a Wash Program: Select one of the 10 versatile wash programs:
   • Normal
   • Quick Wash
   • Heavy Duty
   • Soak & Wash
   • Rinse
   • Spin
   • Wash
   • Rinse & Spin
   • Air Dry
6. Special Features: Utilize features such as Child Lock protection (press and hold for 3 seconds) and Delay Start for added convenience and safety. The auto unbalance detection technology helps ensure stable operation.
7. Starting the Cycle: Press the 'Start/Pause' button to begin the selected wash cycle. The machine will automatically proceed through the chosen program.

Maintenance

Regular maintenance ensures the longevity and efficient operation of your washing machine:

• Cleaning the Tub: Periodically run a 'Tub Clean' cycle (if available on your model) or a normal cycle with hot water and a washing machine cleaner to prevent mold and mildew buildup.
• Cleaning the Lint Filter: Check and clean the lint filter regularly, typically located inside the tub or near the top rim, to maintain drainage efficiency.
• Hose Inspection: Regularly inspect the water inlet and drain hoses for any signs of wear, cracks, or leaks. Replace them if necessary to prevent water damage.
• Exterior Cleaning: Wipe down the exterior of the machine with a soft, damp cloth. Avoid abrasive cleaners that could damage the finish.
• Storage: If storing the machine for an extended period, ensure it is completely drained and dry. Disconnect hoses and store them properly.

Troubleshooting

If you encounter issues with your washing machine, refer to the following common troubleshooting tips:

• Machine Not Starting: Ensure the power cord is securely plugged in and the power button is pressed. Check if the lid is fully closed, as a safety mechanism prevents operation with an open lid.
• No Water Filling: Verify that the water supply faucet is fully open and the water inlet hose is not kinked or blocked. Check the water pressure from your faucet.
• Water Leaking: Check all hose connections (inlet and drain) to ensure they are tight and properly sealed. Ensure the drain hose is correctly positioned in the sink/basin and not overflowing. Avoid overfilling the machine with water.
• Excessive Vibration/Noise: Ensure the machine is placed on a level surface. An unbalanced load can also cause excessive vibration; redistribute clothes evenly inside the tub. The auto unbalance detection system will attempt to correct this, but manual adjustment may be needed for very uneven loads.
• Clothes Not Clean: Ensure you are using the correct amount of detergent for your load size and water hardness. Select an appropriate wash program for the type and soil level of your laundry. Avoid overloading the machine.
• Drainage Issues: Check if the drain hose is kinked, blocked, or positioned too high. Clean the lint filter if it is clogged.

If the problem persists after attempting these solutions, please contact customer support.

Specifications

Warranty and Support

This Panda Portable Washing Machine comes with a 1 Year Manufacturer Warranty. Please retain your proof of purchase for warranty claims.

For technical support, troubleshooting assistance, or warranty inquiries, please contact Panda customer service through the retailer where you purchased the product or visit the official Panda website for contact information.
