Aux ASW-12A2/FFR2 Mini-Split Air Conditioner User Manual

Model: ASW-12A2/FFR2

1. Introduction

Thank you for choosing the Aux ASW-12A2/FFR2 Mini-Split Air Conditioner. This manual provides essential information for the safe installation, operation, and maintenance of your new air conditioning unit. Please read this manual thoroughly before installing or operating the unit and keep it for future reference. Proper use and maintenance will ensure optimal performance and extend the lifespan of your appliance.

2. Safety Information

Always observe the following safety precautions to reduce the risk of electric shock, fire, injury, or property damage.

  • Professional Installation: Installation, maintenance, and repair of this appliance must be performed by qualified service personnel. Incorrect installation can lead to electric shock, fire, or water leakage.
  • Electrical Safety: Ensure the power supply matches the unit's specifications (220V). Do not use extension cords or multi-outlet adapters. The unit must be properly grounded. Never operate the unit with wet hands.
  • Refrigerant Handling: This unit contains refrigerant. Only qualified personnel should handle refrigerant. Do not discharge refrigerant into the atmosphere.
  • Clearances: Maintain adequate clearance around both indoor and outdoor units for proper airflow and maintenance.
  • Children and Pets: Keep children and pets away from the unit during operation and maintenance. Do not allow children to play with the remote control.
  • Flammable Materials: Do not place flammable materials or spray aerosols near the unit.
  • Damage: If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons to avoid a hazard.

3. Product Overview

The Aux ASW-12A2/FFR2 is a conventional mini-split air conditioner designed for residential cooling. It consists of an indoor evaporator unit and an outdoor condenser unit.

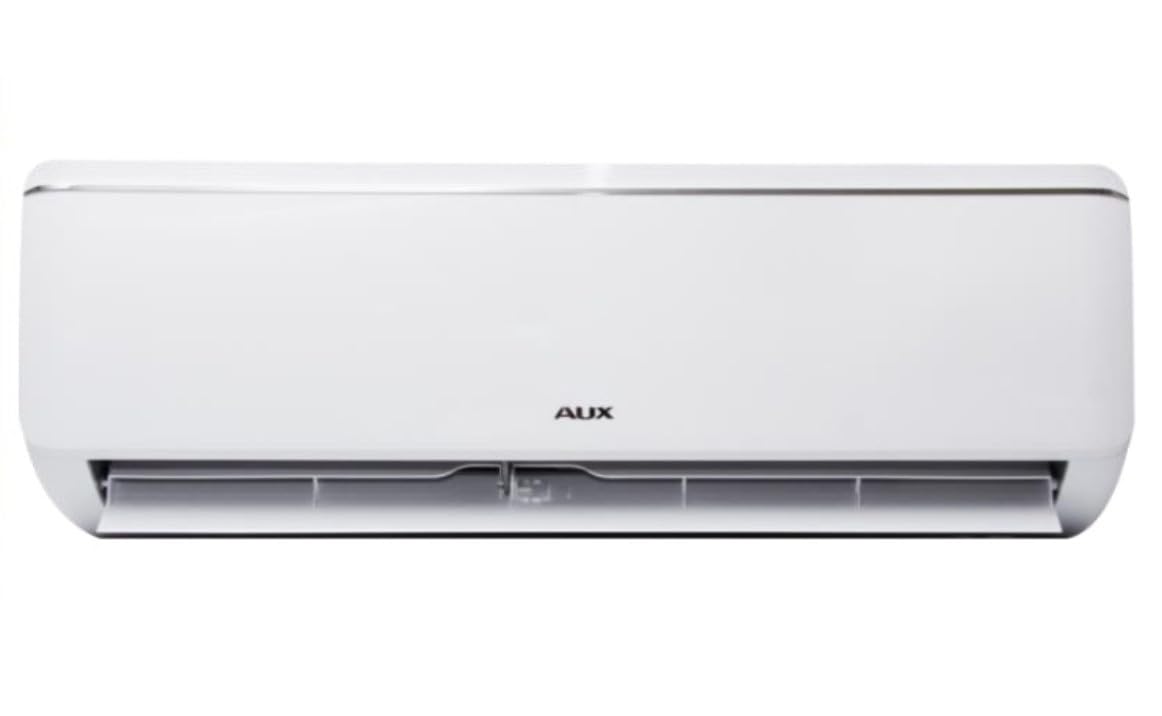

Aux ASW-12A2/FFR2 Mini-Split Air Conditioner

Figure 3.1: Example image of an Aux Mini-Split Air Conditioner. This unit includes an indoor evaporator and an outdoor condenser for efficient cooling.

Key Features:

  • Cooling Capacity: 12,000 BTU (1 Ton) for effective cooling of residential spaces.
  • Power Supply: Operates on 220 Volts.
  • Operation Mode: Cooling only.
  • Control: Convenient remote control operation.
  • Components: Includes both indoor (evaporator) and outdoor (condenser) units.

4. Setup and Installation

Installation of this mini-split air conditioner requires specialized tools and knowledge. It is strongly recommended that installation be performed by a certified HVAC technician to ensure safety and proper operation.

4.1 Pre-Installation Checks

  • Verify that the installation site meets all local building codes and electrical regulations.
  • Ensure the wall for the indoor unit is strong enough to support its weight.
  • Confirm adequate space for the outdoor unit, ensuring proper airflow and drainage.
  • Check that the power supply is 220V and has a dedicated circuit with appropriate overcurrent protection.

4.2 Indoor Unit Installation

  1. Mounting Plate: Securely fasten the mounting plate to the wall, ensuring it is level.
  2. Wall Hole: Drill a hole through the wall for refrigerant piping, drainage hose, and electrical cables. Ensure a slight downward slope for proper drainage.
  3. Piping and Wiring: Connect the refrigerant pipes, drainage hose, and electrical cables to the indoor unit.
  4. Mounting: Carefully hang the indoor unit onto the mounting plate.

4.3 Outdoor Unit Installation

  1. Location: Place the outdoor unit on a firm, level surface, ensuring it is away from direct sunlight, heat sources, and areas with excessive dust or debris.
  2. Piping Connection: Connect the refrigerant pipes from the indoor unit to the outdoor unit. Ensure proper flaring and tightening to prevent leaks.
  3. Electrical Connection: Connect the electrical wiring between the indoor and outdoor units, and to the main power supply, following the wiring diagram provided with the unit.
  4. Vacuuming and Charging: Evacuate the refrigerant lines using a vacuum pump to remove air and moisture. If necessary, add additional refrigerant according to the manufacturer's specifications.
  5. Leak Test: Perform a leak test on all refrigerant connections using a leak detector or soapy water.

4.4 Drainage

Ensure the drainage hose from the indoor unit is properly routed to an outdoor drain point, allowing for continuous, unobstructed water flow. The hose must have a downward slope to prevent water accumulation and overflow.

5. Operating Instructions

Your Aux ASW-12A2/FFR2 air conditioner is controlled via a wireless remote control. Familiarize yourself with the remote's functions for optimal use.

5.1 Remote Control Functions

  • POWER Button: Turns the unit ON or OFF.
  • MODE Button: Selects the operating mode. For this unit, the primary mode is COOL.
  • TEMP ▲/▼ Buttons: Adjusts the desired temperature setting.
  • FAN Button: Selects the fan speed (Auto, Low, Medium, High).
  • SWING Button: Controls the vertical louver movement for air direction.
  • TIMER Button: Sets the ON/OFF timer for automatic operation.
  • SLEEP Button: Activates sleep mode, which adjusts temperature and fan speed for comfortable sleep.

5.2 Basic Cooling Operation

  1. Press the POWER button to turn on the unit.
  2. Press the MODE button until 'COOL' mode is displayed (usually indicated by a snowflake icon).
  3. Use the TEMP ▲/▼ buttons to set your desired temperature. A comfortable range is typically between 22°C and 26°C (72°F and 79°F).
  4. Adjust the fan speed using the FAN button as desired. 'Auto' mode allows the unit to automatically select the optimal fan speed.

6. Maintenance

Regular maintenance ensures efficient operation and prolongs the life of your air conditioner. Always turn off the power supply to the unit before performing any maintenance.

6.1 Cleaning Air Filters

The air filters should be cleaned every two weeks, or more frequently if the unit is used heavily or in dusty environments.

  1. Open the front panel of the indoor unit.
  2. Remove the air filters.
  3. Wash the filters with lukewarm water and a mild detergent. Rinse thoroughly.
  4. Allow the filters to dry completely in a shaded area before reinstalling them. Do not expose to direct sunlight.
  5. Reinstall the dry filters and close the front panel.

6.2 Cleaning the Indoor Unit

Wipe the exterior of the indoor unit with a soft, damp cloth. Do not use harsh chemicals, abrasive cleaners, or solvents, as these can damage the surface.

6.3 Cleaning the Outdoor Unit

Periodically check the outdoor unit for any obstructions such as leaves, dirt, or debris. Clear any blockages from the condenser coils and fan blades. For thorough cleaning of the coils, it is recommended to contact a professional technician.

7. Troubleshooting

Before contacting service, please check the following common issues and solutions:

ProblemPossible CauseSolution
Unit does not turn onNo power supply; Remote control batteries deadCheck circuit breaker; Replace remote control batteries
Insufficient coolingDirty air filters; Blocked outdoor unit; Temperature setting too high; Doors/windows openClean air filters; Clear obstructions from outdoor unit; Lower temperature setting; Close doors/windows
Water leakage from indoor unitClogged or kinked drain hose; Improper installationCheck and clear drain hose; Contact a professional for inspection
Unusual noiseLoose parts; Obstruction in fan; Unit not levelInspect for loose parts; Remove obstructions; Ensure unit is level; If noise persists, contact service
Remote control not workingDead batteries; Obstruction between remote and unit; Remote out of rangeReplace batteries; Remove obstructions; Operate within effective range

If the problem persists after attempting these solutions, or if you encounter an error code not listed, please contact qualified service personnel.

8. Specifications

SpecificationValue
Model NameASW-12A2/FFR2
BrandAux
Capacity1 Ton (12,000 BTU)
Operating ModeCooling Only
Voltage220 Volts
Wattage1510 watts
Annual Energy Consumption700 Kilowatt Hours
Noise Level51 Decibels
Dimensions (D x W x H)29 cm x 77.7 cm x 49.8 cm (Note: Original source listed as 0.29 x 7.77 x 4.98 Meters, likely a decimal placement error for a mini-split unit)
Item Weight8.25 Kilograms
ColorWhite
Power SourceWired Electric
Form FactorMini-split
Inverter TypeNon-inverter
Compressor TypeRotary Scroll
Outdoor Unit RequiredYes
ApplicationResidential
Control MethodRemote Control
Included ItemsCondenser, Evaporator
ManufacturerAUX
BEE Rating1 Star

9. Warranty and Support

9.1 Product Warranty

This Aux ASW-12A2/FFR2 air conditioner comes with the following warranty:

  • Parts: 1 Year Limited Warranty
  • Conventional Compressor: 5 Years Limited Warranty

The warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from improper installation, misuse, neglect, accident, or unauthorized repairs. Please retain your proof of purchase for warranty claims.

9.2 Customer Support

For technical assistance, warranty claims, or to schedule service, please contact your authorized Aux dealer or service center. Please have your model number (ASW-12A2/FFR2) and purchase date available when contacting support.
