JOYMOR Cedar Wood Swing Set WSS1TS Instruction Manual

Introduction

This manual provides essential information for the safe assembly, operation, and maintenance of your JOYMOR Cedar Wood Swing Set (Model WSS1TS). This swing set is designed for outdoor use, offering a durable and engaging play experience for children. It features dual swings and gymnastic rings, constructed from high-quality cedar wood with heavy-duty metal connectors for stability and longevity.

Please read this manual thoroughly before assembly and use to ensure proper installation and to maximize the safety and enjoyment of the product.

Safety Information

Your safety and the safety of others are paramount. Failure to follow these instructions can result in serious injury.

• Age and Weight Limits: This swing set is designed for children aged 3-15 years. The maximum weight capacity is 400 lbs (approximately 181 kg), safely accommodating multiple children or parent-child interaction.
• Adult Supervision: Constant adult supervision is required for children using the swing set.
• Proper Installation: Ensure the swing set is assembled on level ground and securely anchored using the provided ground stakes to prevent tipping. The stable triangle structure and heavy-duty steel plates are critical for stability.
• Clearance Area: Maintain a safe clearance area around the swing set, free from obstacles such as fences, trees, or other play equipment.
• Inspection: Before each use, inspect all components for wear, damage, or loose connections. Pay close attention to ropes, chains, seats, and structural wood. Replace any worn or damaged parts immediately.
• Clothing: Ensure children wear appropriate clothing, avoiding loose items that could get caught in moving parts.
• No Standing: Do not allow children to stand on the swings or rings.
• Weather Conditions: Do not use the swing set during adverse weather conditions such as strong winds, heavy rain, or lightning.

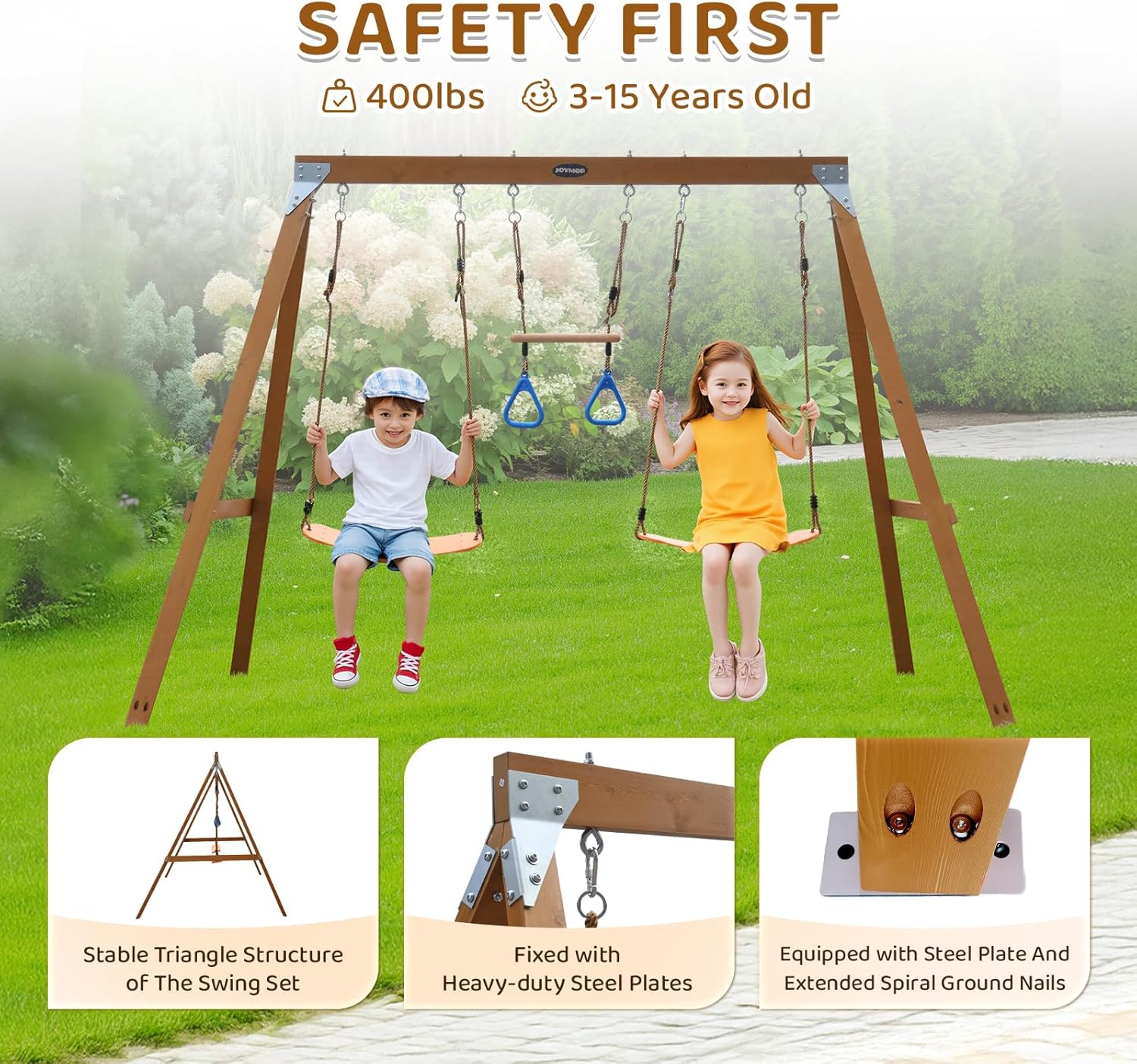

Image: This illustration highlights the key safety features of the swing set, including its stable triangle structure, the use of heavy-duty steel plates for secure connections, and the extended spiral ground nails designed to anchor the set firmly to the ground, ensuring stability during use.

Setup and Assembly

The JOYMOR Cedar Wood Swing Set is designed for easy assembly. It is recommended that two adults perform the assembly.

Required Tools (Not Included):

• Wrench set
• Screwdriver (Phillips head)
• Level
• Measuring tape
• Drill (optional, for pilot holes if needed)

Assembly Steps:

1. Unpack Components: Carefully unpack all parts and verify against the parts list (refer to the separate parts list document, if provided). Ensure all wooden beams, metal connectors, screws, hangers, swings, and rings are present and undamaged.
2. Assemble Main Frame: Connect the main horizontal beam to the A-frame legs using the heavy-duty metal connectors and steel screws. Ensure all connections are tight and secure. The design features intuitive wooden frame connections.
3. Attach Swings and Rings: Securely attach the swing seats and gymnastic rings to the hangers on the main beam. Double-check that all carabiners and hooks are properly closed and locked.
4. Position and Level: Place the assembled swing set on a flat, level surface in your desired outdoor location. Use a level to ensure the frame is perfectly horizontal and vertical.
5. Secure with Ground Stakes: Drive the extended spiral ground nails (stakes) into the ground through the designated points on the swing set legs. This step is crucial for stability and preventing tipping.
6. Final Inspection: Before first use, perform a thorough inspection of all nuts, bolts, and connections to ensure they are tightened and secure. Check for any sharp edges or protruding parts.

Image: This image illustrates the quality of construction, highlighting the thicker wood frame and the robust heavy-duty steel screws and hangers used in the JOYMOR swing set, emphasizing its durability and secure assembly.

Operating Instructions

Once assembled and secured, the JOYMOR Cedar Wood Swing Set is ready for use. Always ensure adult supervision.

• Using the Swings:
  • Children should sit centered on the swing seat.
  • Hold firmly onto the ropes or chains.
  • Swing in a controlled manner, avoiding excessive height or dangerous maneuvers.
  • Do not twist the ropes or chains.
  • The swing seats feature a user-friendly height adjustment mechanism. To adjust, locate the adjustment points on the ropes and follow the instructions for your specific rope adjustment system (e.g., buckle, knot, or clamp). Ensure both sides are adjusted evenly.
• Using the Gymnastic Rings:
  • Children should grasp the rings firmly with both hands.
  • Use for hanging, gentle swinging, or performing basic gymnastic movements appropriate for their age and skill level.
  • Avoid aggressive swinging or attempting complex acrobatics that could lead to falls.

Image: This image shows two children actively using the JOYMOR Cedar Wood Swing Set, with one child on a traditional swing and another on the gymnastic rings, illustrating the product in typical operation.

Maintenance

Regular maintenance will extend the life of your swing set and ensure continued safety.

• Monthly Inspection:
  • Check all nuts, bolts, and screws for tightness. Tighten as necessary.
  • Inspect all ropes, chains, and hangers for signs of wear, fraying, or rust. Replace any damaged components.
  • Examine the swing seats and rings for cracks, tears, or excessive wear.
  • Check the ground stakes to ensure they remain firmly anchored.
• Wood Care:
  • Inspect the cedar wood frame for splinters, cracks, or rot. Sand down splinters and treat cracks with appropriate wood filler.
  • Periodically apply a wood sealant or stain to protect the cedar from weathering and UV damage, extending its lifespan.
  • Clean the wood frame with a mild soap and water solution, rinsing thoroughly.
• Cleaning:
  • Clean swing seats and rings with a damp cloth and mild detergent.
  • Avoid harsh chemicals or abrasive cleaners that could damage the materials.
• Winter Storage (Optional): If possible, disassemble and store the swing set indoors during harsh winter months to protect it from extreme weather conditions.

Troubleshooting

Here are solutions to common issues you might encounter:

• Swing Set Feels Unstable:
  • Ensure the swing set is on a completely level surface.
  • Verify that all ground stakes are fully driven into the ground and secure.
  • Check all frame connections and tighten any loose bolts or screws.
• Squeaking Noises During Use:
  • Apply a silicone-based lubricant to metal-on-metal contact points, such as hangers and chain connections.
  • Check for any loose bolts or connections that might be causing friction.
• Swing Ropes/Chains Seem Uneven:
  • Adjust the height mechanism on both sides of the swing until the seat is level.
  • Ensure the swing is hanging freely without obstruction.
• Wood Developing Splinters:
  • Carefully sand down any rough areas or splinters.
  • Consider applying a child-safe wood sealant to prevent future splintering and protect the wood.

Specifications

Image: This diagram provides a comprehensive overview of the JOYMOR Cedar Wood Swing Set's dimensions, including overall height, width, and depth, as well as specific measurements for swing height and seat width, presented in both centimeters and inches.

Warranty and Support

JOYMOR is committed to providing high-quality products and customer satisfaction.

Warranty Information:

Specific warranty details may vary. Please refer to the product packaging or contact JOYMOR customer service for the most current warranty policy regarding manufacturing defects or component issues.

Customer Support:

For any questions, concerns, or assistance with assembly, parts, or operation, please contact JOYMOR customer service. We offer a 24/7 customer service commitment to ensure your peace of mind during playtime adventures.

Contact information can typically be found on the product packaging, the JOYMOR official website, or through your purchase platform.
