Introduction
Thank you for choosing the TIMU Portable Bluetooth Speaker SF20251010. This manual provides essential information for setting up, operating, and maintaining your speaker. Please read it carefully before use to ensure optimal performance and longevity of your device.
Package Contents
Ensure all items are present in the package:
- 1 x TIMU Portable Bluetooth Speaker
- 1 x Charging Cable (USB-C)
- 1 x AUX Connection Cable
- 1 x Nylon Braided Lanyard
- 1 x User Guide
Image: Contents of the TIMU Portable Bluetooth Speaker package.
Product Overview
Familiarize yourself with the speaker's components and controls.
Image: Front view of the speaker highlighting its control panel and sound output.
Controls and Ports:
- Power Button: Press and hold to power on/off.
- EQ Button: Press to cycle through EQ modes (Bass, Popular, Vocal).
- Volume Up (+): Increase volume.
- Volume Down (-): Decrease volume.
- Play/Pause Button: Play or pause audio.
- RGB Light Button: Press once to switch light modes, press twice to turn off lights.
- USB-C Charging Port: For charging the speaker.
- AUX Input: For wired audio connection.
- TF Card Slot: For playing music directly from a Micro-SD card.
Setup
1. Charging the Speaker
Before first use, fully charge the speaker. Connect the provided USB-C charging cable to the speaker's charging port and the other end to a USB power adapter (not included) or a computer's USB port. The charging indicator will show the charging status.
- Charging Time: Approximately 3 hours for a full charge.
- Battery Life: Up to 30 hours of playtime (at 30% volume with RGB lights off).
Image: Speaker indicating 30 hours of playtime and Type-C fast charging capability.
Image: Detailed view of the USB-C charging port.
2. Power On/Off
- To Power On: Press and hold the Power button (ⓘ) for 2-3 seconds until the indicator light turns on and you hear a startup sound.
- To Power Off: Press and hold the Power button (ⓘ) for 2-3 seconds until the indicator light turns off and you hear a shutdown sound.
3. Bluetooth Pairing
- Ensure the speaker is powered on and in Bluetooth pairing mode (indicator light will flash).
- On your device (smartphone, tablet, computer), enable Bluetooth and search for available devices.
- Select "TIMU SF20251010" from the list of devices.
- Once paired, the speaker will emit a confirmation sound, and the indicator light will become solid.
The speaker is equipped with Bluetooth 5.4 technology, offering a stable connection up to 20 meters (65 feet).
4. TWS (True Wireless Stereo) Pairing
For an immersive stereo experience, you can pair two TIMU SF20251010 speakers together.
- Ensure both speakers are powered on and not connected to any other Bluetooth device.
- On one speaker (this will be the primary speaker), press and hold the TWS button (if available, or a specific pairing button, otherwise refer to the general Bluetooth pairing instructions for TWS mode). The speaker will enter TWS pairing mode.
- The two speakers will automatically connect to each other. A confirmation sound will indicate successful TWS pairing.
- Once TWS paired, connect your device to the primary speaker via Bluetooth as described in step 3.
Image: Illustration of two speakers connected via TWS to a laptop for stereo sound.
Operating Instructions
1. EQ Modes
The speaker features three equalizer (EQ) modes to optimize your listening experience. Press the EQ button to cycle through them:
- Bass Mode: Enhances low frequencies for a powerful bass sound.
- Popular Mode: Balanced sound profile suitable for most music genres.
- Vocal Mode: Optimizes mid-range frequencies for clear vocals.

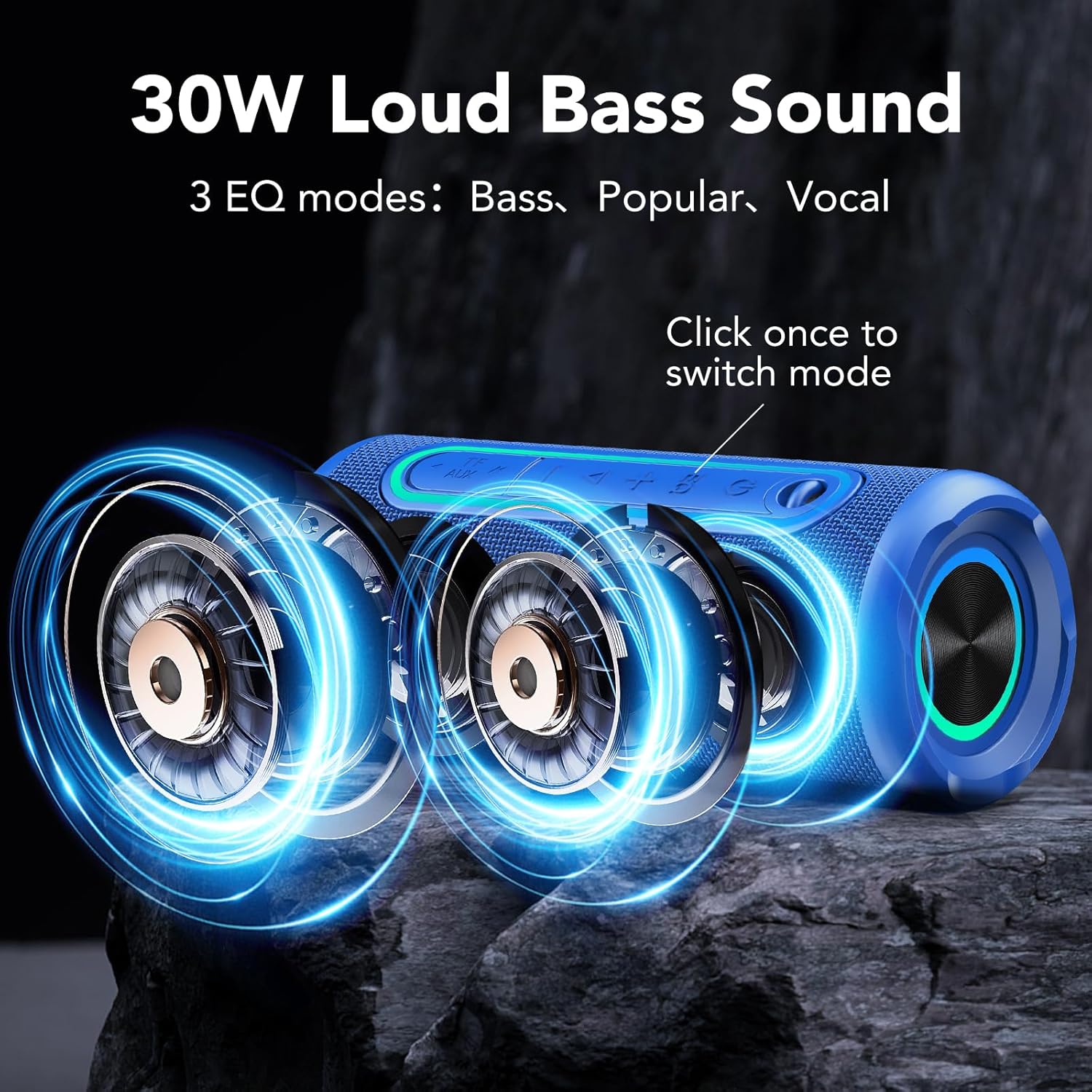

Image: Visual representation of the three EQ modes: Bass, Popular, and Vocal.
2. RGB Lights Control
The speaker features dynamic RGB lighting with multiple modes.
- Switch Light Mode: Press the RGB Light button once to cycle through the five available modes: Rhythm, Rainbow, Breathing, Gradient, and Off.
- Turn Off Lights: Press the RGB Light button twice quickly to turn off the lights completely.
Image: Speaker showcasing its multi-color RGB breathing light feature.
3. AUX Mode
Connect non-Bluetooth devices using the provided AUX cable.
- Connect one end of the 3.5mm AUX cable to the speaker's AUX input port.
- Connect the other end to the audio output jack of your device (e.g., MP3 player, computer).
- The speaker will automatically switch to AUX mode.
4. TF Card Mode
Play music directly from a Micro-SD (TF) card.
- Insert a TF card with music files (MP3, WAV, etc.) into the TF card slot on the speaker.
- The speaker will automatically detect the card and begin playing music.
- Use the Play/Pause and Volume buttons to control playback.
Maintenance
1. Waterproofing (IPX7)
The TIMU speaker is IPX7 waterproof, meaning it can be immersed in water up to 1.2 meters (3.9 feet) for 28 minutes. This makes it suitable for use near water, such as by the pool or beach.
- Ensure all port covers are securely closed before exposing the speaker to water.
- Do not expose the speaker to saltwater or other chemicals, as this may damage the seals.
- After exposure to water, wipe the speaker dry with a soft cloth before charging or opening port covers.
Image: Speaker shown in water, confirming its IPX7 waterproof capability.
2. Cleaning
Wipe the speaker with a soft, damp cloth. Do not use abrasive cleaners, alcohol, or chemical solvents, as these may damage the surface.
3. Storage
Store the speaker in a cool, dry place away from direct sunlight and extreme temperatures. If storing for an extended period, charge the battery every few months to maintain its health.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Speaker does not power on. | Low battery. | Charge the speaker fully. |
| Cannot pair via Bluetooth. | Speaker not in pairing mode; device Bluetooth off; too far from speaker. | Ensure speaker is in pairing mode. Turn device Bluetooth off/on. Move device closer to speaker (within 20m). |
| No sound. | Volume too low; incorrect input mode; device not playing. | Increase speaker and device volume. Check if correct mode (Bluetooth, AUX, TF) is selected. Ensure audio is playing on the connected device. |
| TWS pairing fails. | Speakers already connected to other devices; too far apart. | Disconnect both speakers from any Bluetooth devices. Ensure they are close to each other during TWS pairing. |
| RGB lights not working. | Lights turned off. | Press the RGB Light button once to cycle modes, or twice to turn them on if they were off. |
Specifications
| Feature | Detail |
|---|---|
| Brand | TIMU |
| Model Name | SF20251010 |
| Connectivity Technology | Bluetooth 5.4 |
| Wireless Range | Up to 20 meters (65 feet) |
| Speaker Output Power | 30 Watts |
| Audio Output Mode | Surround |
| Speaker Type | Portable Bluetooth Speaker, Outdoor Speaker |
| Special Features | TWS Pairing, Bass Boost, IPX7 Waterproof, Lightweight, RGB LED Lights, 3 EQ Modes |
| Water Resistance Level | IPX7 (Waterproof) |
| Battery Capacity | 4000 mAh |
| Average Battery Life | Up to 24-30 Hours (depending on usage) |
| Battery Charge Time | 3 Hours |
| Control Method | Buttons |
| Compatible Devices | Smartphones, Tablets, Computers, other Bluetooth devices |
| Input Options | Bluetooth, AUX, TF Card (Micro-SD) |
| Dimensions (D x W x H) | 9P x 9l x 18H cm (approx. 3.5 x 3.5 x 7 inches) |
| Color | Dark Blue |
Warranty and Support
Warranty Information
The TIMU Portable Bluetooth Speaker SF20251010 comes with a 2-year limited warranty from the date of purchase. This warranty covers manufacturing defects and workmanship under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear.
Please retain your proof of purchase for warranty claims.
Customer Support
For technical assistance, warranty claims, or any questions regarding your TIMU Portable Bluetooth Speaker, please contact our customer support team. Refer to the contact information provided on the product packaging or the official TIMU website.
