Introduction
The Amonax Motorized Mini Elliptical Pedal Exerciser (Model MEP1) is designed to provide a gentle and low-impact exercise solution, particularly beneficial for seniors and individuals undergoing rehabilitation. It helps maintain mobility, improve circulation, and strengthen leg and ankle muscles, all from a comfortable seated position. This manual provides essential information for the safe and effective use of your new device.
Important Safety Information
WARNING: To reduce the risk of serious injury, always follow these safety precautions.
- Always ensure the device is placed on a stable, flat surface before use.
- This device is designed for seated use only. Do not stand on the elliptical pedal exerciser at any time. Standing on the unit can lead to instability and serious injury.
- Consult your physician before starting any new exercise program, especially if you have pre-existing medical conditions, use a pacemaker, or an EKG machine.
- Keep children and pets away from the device during operation.
- Do not insert any objects into the device's openings.
- Unplug the device from the power outlet when not in use or before cleaning.
- Do not use the device if the power cord or plug is damaged.
- The device is equipped with non-slip pedals for enhanced safety. Ensure your feet are securely placed on the pedals during use.
Image: The Amonax Mini Elliptical showing its dimensions and a visual safety reminder: a green checkmark for seated use and a red cross for standing use.
Image: A visual guide emphasizing that the elliptical should only be used while seated, with an illustration of correct and incorrect usage.
Image: A scene depicting an elderly person with a caregiver, highlighting the rehabilitation aspect. A warning advises consulting a doctor if using a pacemaker or EKG machine.
What's in the Box
Upon opening the package, you should find the following components:
- 1 x Amonax Mini Elliptical Pedal Exerciser
- 1 x Remote Control (Note: Batteries are not included due to shipping regulations.)
- 1 x Power Cable
- 1 x User Manual (this document)
Image: The Amonax Mini Elliptical Pedal Exerciser shown with its accompanying remote control, illustrating the contents of the package.
Setup
The Amonax Mini Elliptical Pedal Exerciser comes fully assembled, requiring minimal setup before first use.
- Unpacking: Carefully remove the elliptical from its packaging.
- Placement: Place the elliptical on a stable, level surface. Ensure there is enough clear space around the device for comfortable use and to prevent obstruction. It can be used under a desk or in front of a chair/sofa.
- Power Connection: Connect the power cable to the elliptical and then plug it into a standard electrical outlet.
- Remote Control Batteries: Insert the required batteries (not included) into the remote control.
Image: The elliptical positioned under a desk, demonstrating its compact size and suitability for office or home use.
Image: The elliptical next to a sofa, illustrating its small footprint and how it fits into a living space, with key dimensions highlighted.
Operating Instructions
Your Amonax Mini Elliptical features an intuitive LED display and a convenient remote control for easy operation.
Control Panel and LED Display
The integrated LED display provides real-time workout data and allows for direct control of the device.

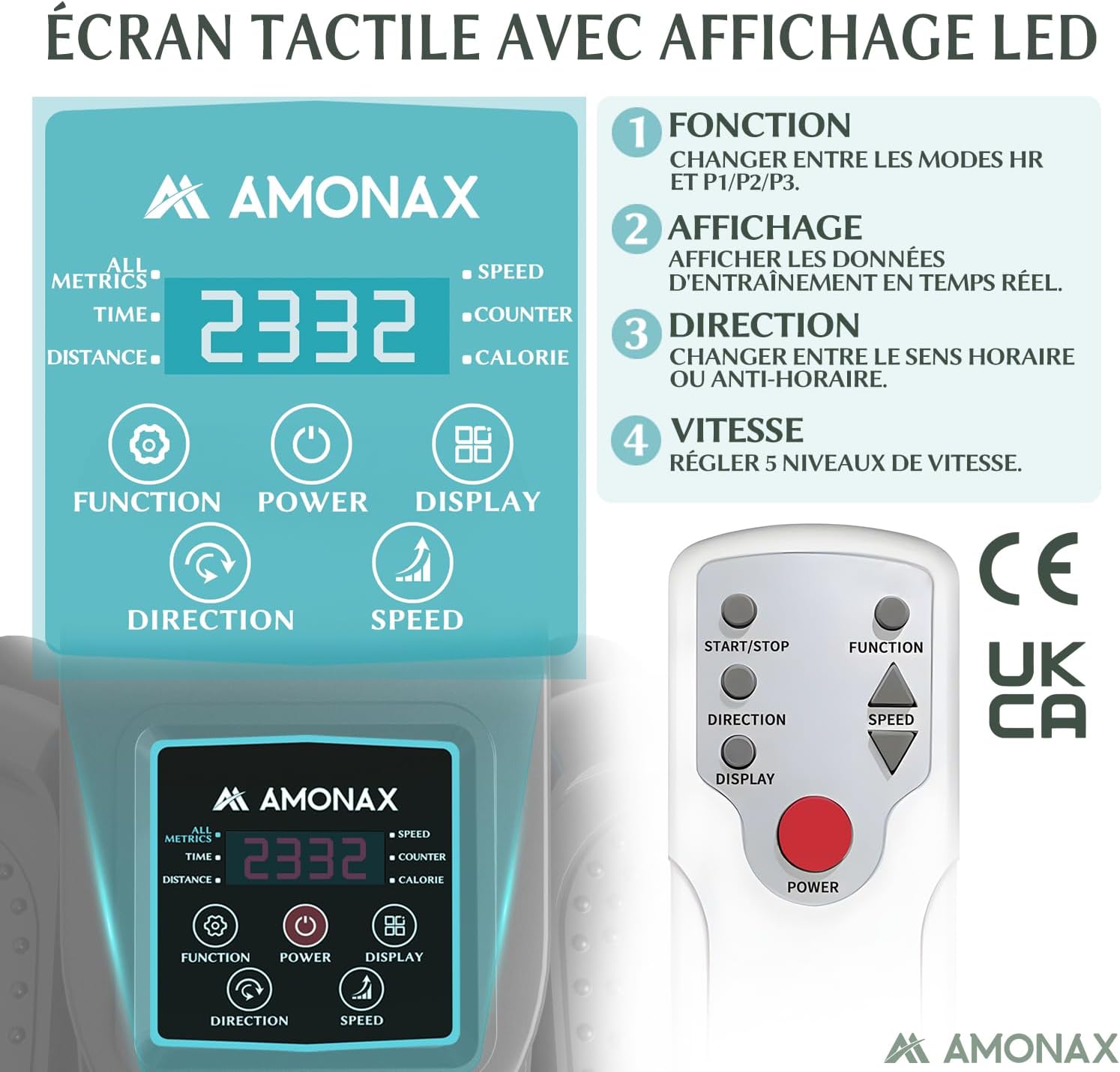

Image: Detailed view of the LED display and remote control, showing the various buttons and their corresponding functions.
Image: An explanatory diagram detailing the functions of the control panel buttons (Function, Power, Display, Direction, Speed) and the metrics shown on the LED screen (Time, Distance, Speed, Counter, Calories).
- POWER Button: Press to turn the device ON or OFF.
- FUNCTION Button: Cycles through different display modes (HR - Manual Mode, P1/P2/P3 - Preset Modes).
- DISPLAY: Shows real-time workout data including:
- TIME: Duration of your workout.
- DISTANCE: Estimated distance covered.
- SPEED: Current pedal speed (RPM or km/h).
- COUNT: Total number of rotations.
- CALORIES: Estimated calories burned.
- DIRECTION Button: Changes the pedaling direction (forward or reverse) in Manual Mode.
- SPEED Button: Adjusts the speed level (1-5) in Manual Mode.
Remote Control
The remote control provides convenient access to all functions without needing to bend down.
Image: An individual comfortably using the remote control while exercising, with an inset showing the remote control's dedicated storage slot on the elliptical.
- All buttons on the remote control correspond to the functions on the main control panel.
- Ensure the remote control is pointed towards the elliptical's display for optimal responsiveness.
Workout Modes
The Amonax elliptical offers both manual and preset workout modes.
Image: A visual explanation of the Manual (HR) mode, allowing free speed and direction adjustment, and the Preset (P1, P2, P3) modes with predefined speeds and directions. Also highlights the 30-minute automatic shut-off feature.
- Manual Mode (HR): Select "HR" using the FUNCTION button. In this mode, you have full control over the speed (5 levels) and direction (forward/reverse) using the SPEED and DIRECTION buttons.
- Preset Modes (P1, P2, P3): Select P1, P2, or P3 using the FUNCTION button. These modes offer predefined speed and direction patterns for varied workouts. Refer to the display for the active program.
Image: A graph illustrating the varying speed levels over time for Preset Modes P1, P2, and P3, demonstrating the dynamic nature of these programs. An elderly man is shown using the elliptical comfortably while reading.
Bidirectional Workouts
The Amonax elliptical allows for both forward and reverse pedaling. This feature enables you to target different muscle groups in your lower body, providing a more comprehensive and balanced workout.
Automatic Shut-off
For safety and to prolong the device's lifespan, the elliptical will automatically shut off after 30 minutes of continuous use. You can restart the device if you wish to continue your workout.
Benefits of Use
Regular use of the Amonax Mini Elliptical Pedal Exerciser can contribute to several health and wellness benefits:
- Rehabilitation and Mobility: Ideal for post-operative recovery (e.g., knee replacements) and for individuals seeking to improve overall mobility with low-impact exercise.
- Muscle Strengthening: Helps strengthen leg and ankle muscles.
- Circulation Improvement: Promotes better blood circulation, which can help with swollen feet.
- Balance Enhancement: Contributes to improved balance and stability.
- Stress Reduction: Gentle exercise can aid in stress reduction and overall mental well-being.
Image: An elderly individual in a wheelchair using the motorized elliptical, accompanied by text listing the benefits of motorized training, such as strengthening leg and ankle muscles, aiding circulation, improving balance, and reducing stress.
Image: A caregiver assisting an elderly man with knee exercises, illustrating that the elliptical provides a natural elliptical movement with no harsh impact on joints, unlike a treadmill.
Image: Two elderly individuals engaged in light exercise using the Amonax ellipticals from the comfort of their armchairs, demonstrating ease of use in a home setting.
Maintenance
Proper maintenance ensures the longevity and optimal performance of your Amonax Mini Elliptical.
- Cleaning: Wipe down the device with a soft, damp cloth after each use to remove dust and sweat. Do not use abrasive cleaners or solvents.
- Storage: Store the elliptical in a cool, dry place away from direct sunlight and extreme temperatures.
- Inspection: Periodically check all parts for any signs of wear or damage. Ensure all connections are secure.
Troubleshooting
If you encounter any issues with your Amonax Mini Elliptical, refer to the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Device does not turn on. | Not plugged in; power outlet issue; power cable damage. | Ensure the power cable is securely plugged into both the device and a working electrical outlet. Try a different outlet. Check the power cable for visible damage. |
| Remote control not working. | Batteries are dead or incorrectly inserted; remote not pointed at receiver. | Replace batteries with new ones, ensuring correct polarity. Point the remote directly at the elliptical's display panel. |
| Pedals are not moving smoothly. | Obstruction; internal issue. | Check for any foreign objects obstructing the pedal movement. If the issue persists, contact customer support. |
| Display is not showing data. | Device is off; display mode not selected. | Ensure the device is powered on. Press the DISPLAY or FUNCTION button to cycle through display modes. |
If the problem persists after attempting these solutions, please contact Amonax customer support for further assistance.
Specifications
| Feature | Detail |
|---|---|
| Model Number | MEP1 |
| Control Type | Remote Control |
| Display Type | Monochrome LED |
| Movement Type | Motorized Elliptical |
| Maximum Speed | 5 RPM |
| Minimum Speed | 1 RPM |
| Number of Resistance Levels | 5 |
| Operating Mode | Automatic |
| Power Source | Corded Electric |
| Material Type | Acrylonitrile Butadiene Styrene (ABS) |
| Number of Programs | 1 (Manual) + 3 (Preset) = 4 total programs |
| Batteries Included? | No |
| Target User | Mixed (suitable for various users, especially elderly and rehabilitation patients) |
| Product Dimensions (L x W x H) | 45 x 24 x 39 cm (17.7 x 9.4 x 15.3 inches) |
| Item Weight | 6.5 Kilograms (14.3 lbs) |
Warranty and Support
Amonax provides a 1-year warranty for spare parts availability in the EU, ensuring support for your product.
- Warranty Period: 1 Year for spare parts availability.
- Customer Support: For any questions, technical assistance, or warranty claims, please visit the official Amonax store on Amazon or contact their customer service directly.
- Online Store: Amonax Amazon Store
Image: Certificates of Compliance, indicating the product meets relevant standards.
