1. Introduction and Safety Information
This manual provides essential information for the safe and efficient operation of your Varpoolfaye 2.5 HP Variable Speed Pool Pump. Please read all instructions carefully before installation and use. Retain this manual for future reference.
1.1 General Safety Precautions
- Always disconnect power to the pump before performing any service or maintenance.
- Ensure the pump is installed by a qualified professional in accordance with local electrical and plumbing codes.
- Do not operate the pump if it is damaged or if any electrical components are exposed to water.
- Keep children and pets away from the pump during operation.
- The pump is designed for use with swimming pools only. Do not use for other purposes.
- Ensure proper ventilation around the pump to prevent overheating.
2. Product Overview
The Varpoolfaye 2.5 HP Variable Speed Pool Pump is designed for efficient water circulation and filtration in both above-ground and in-ground pools. It features a permanent magnet motor, variable speed technology, and a programmable timer for optimized performance and energy savings.
Figure 2.1: Permanent magnet motor design, highlighting low noise, overload protection, and durability for extended lifespan.
Figure 2.2: Illustration of the pump's powerful flow output, achieving up to 10567 GPH maximum flow and 64 feet maximum head.
Figure 2.3: Advanced variable speed technology significantly reduces energy consumption compared to traditional single-speed pumps.
3. Package Contents
Verify that all items are present and undamaged upon unpacking:
- Varpoolfaye 2.5 HP Variable Speed Pool Pump
- 2x 2'' Connectors
- 2x 2.5'' Connectors
- Instruction Manual
4. Setup and Installation
The pump is designed for quick setup and is suitable for both in-ground and above-ground pools. It features a self-priming unit for easy startup.
4.1 Plumbing Connections
The pump includes 2-inch and 2.5-inch adapters for versatile plumbing connections. Ensure all connections are secure and watertight to prevent leaks.
Figure 4.1: Plumbing adapter dimensions for connecting to 2-inch and 2.5-inch pipes. The adapters have two layers inside to fit 2.87-2.95 inch pipes snugly.
4.2 Electrical Connection
The pump operates on 220-240V. Ensure the electrical supply matches the pump's requirements and that all wiring is performed by a qualified electrician according to local codes.
5. Operating Instructions
The Varpoolfaye pool pump features an intuitive control panel with a digital display and programmable timer for easy operation and speed adjustment.
Figure 5.1: Digital control panel for adjustable flow and programmable timer settings.
5.1 Setting Time and Speed
Use the control panel to set the operating time and desired speed. The variable speed technology allows you to tailor performance for various tasks, from high-power cleaning to quiet, low-energy daily filtration.
Video 5.1: This video demonstrates how to set the time and speed schedules on the Varpoolfaye variable speed pool pump's control panel. It shows navigating through the menu, setting start and end times, and selecting the desired speed for scheduled operation.
5.2 Self-Priming Feature
The pump's self-priming design allows for quick startup without the need for manual filling, simplifying initial setup and restarts.
Video 5.2: This video provides an overview of the Varpoolfaye variable speed pool pump, highlighting its features and demonstrating its self-priming capability and quiet operation in an inground pool setting.
6. Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your pool pump.
6.1 Filter Basket Cleaning
The pump is equipped with an extra-large filter basket to collect debris such as leaves, branches, hair, and grit. The transparent cover allows for easy visual inspection of the filter status. Clean the basket monthly or as needed, depending on pool usage and debris levels.
Figure 6.1: The extra-large filter basket effectively captures various debris, reducing the frequency of cleaning.
6.2 Corrosion Protection
The pump features an IPX5 rain cover and a corrosion-resistant copper core motor, ensuring durability and reliable operation even in wet or humid climates. Periodically inspect the housing and connections for any signs of wear or corrosion.
7. Troubleshooting
If you encounter issues with your pump, refer to the following common troubleshooting steps:
- Pump not starting: Check power supply, circuit breaker, and ensure all electrical connections are secure.
- Low flow: Inspect the filter basket for clogs, check for air leaks in the suction line, and ensure the impeller is clear of debris.
- Unusual noise: Turn off the pump and check for any foreign objects in the impeller or housing. Ensure the pump is securely mounted.
- Error Codes: If an error code appears on the digital display, consult the specific error code section in the full manual (if available) or contact customer support.
For persistent issues, contact Varpoolfaye customer support.
8. Specifications
Detailed technical specifications for the Varpoolfaye 2.5 HP Variable Speed Pool Pump.

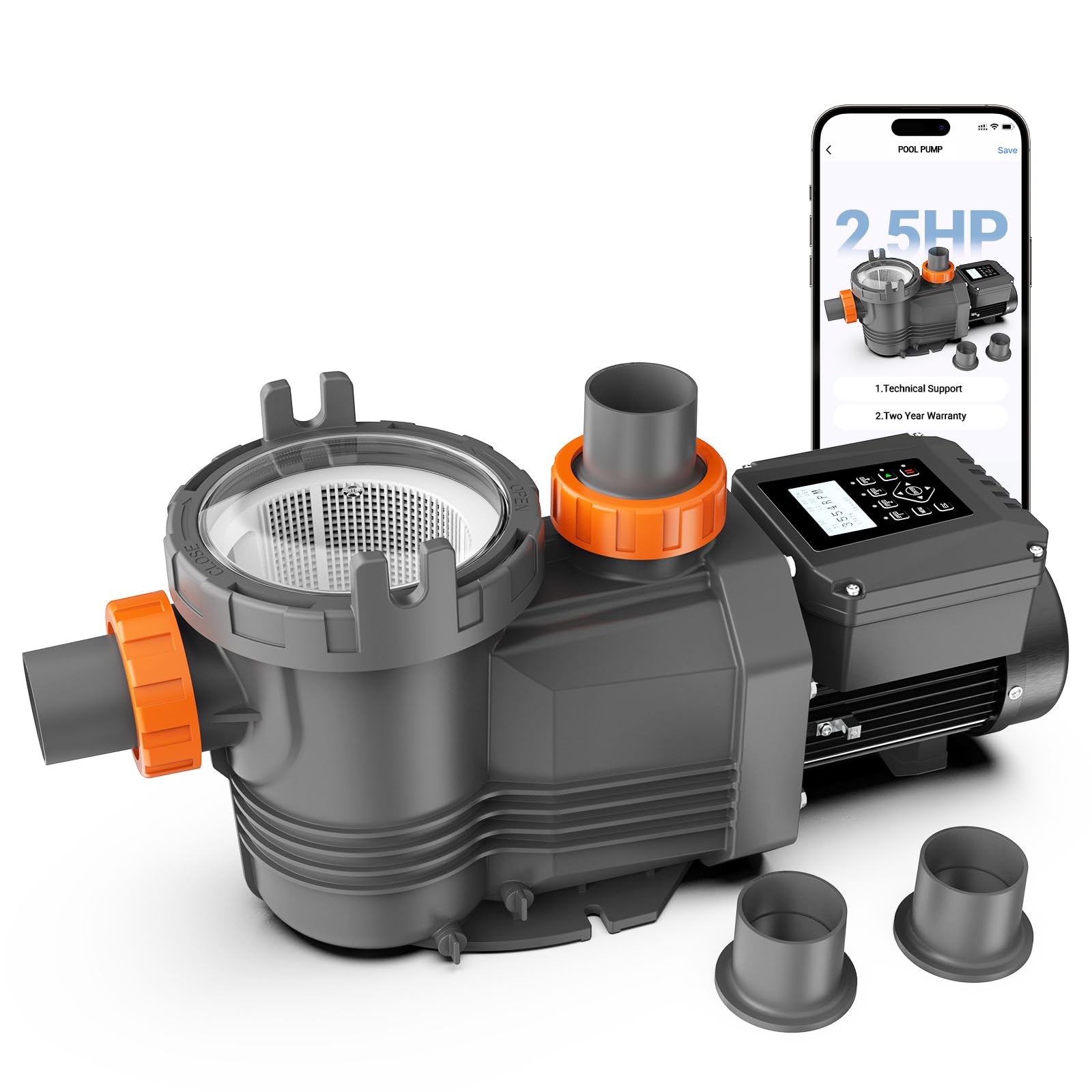

Figure 8.1: Overview of the pump's physical dimensions and included connectors.
| Attribute | Value |
|---|---|
| Manufacturer | Varpoolfaye |
| Model Number | XKP1807BP |
| Product Dimensions | 62.79 x 21.21 x 33.55 cm |
| Item Weight | 17.3 kg |
| Size | 2.5 HP |
| Colour | Grey |
| Material | Cast Iron Plastic |
| Power Source | AC |
| Voltage | 220-240 Volts |
| Horsepower | 2.5 Horsepower |
| Flow Rate | 176.12 Gallons Per Minute (10567 GPH) |
| Included Components | Pool Pump, 2x 2'' Connectors, 2x 2.5'' Connectors |
9. Warranty and Support
For warranty information, technical support, or service inquiries, please refer to the contact details provided with your purchase or visit the official Varpoolfaye website. Keep your purchase receipt as proof of purchase for warranty claims.
