FOVAL 1500W Pure Sine Wave Inverter P1500-2 User Manual

1. Introduction

Thank you for choosing the FOVAL 1500W Pure Sine Wave Inverter. This device converts 12V DC power from a battery into 110V AC power, suitable for a wide range of household and sensitive electronic appliances. With a continuous output of 1500W and a peak surge power of 3000W, it is designed for use in vehicles, RVs, off-grid solar systems, and home backup power solutions. This manual provides essential information for the safe and efficient operation, setup, and maintenance of your inverter.

The pure sine wave output ensures compatibility with inductive loads such as refrigerators and washing machines, as well as capacitive loads like computers and televisions, reducing current impact and extending appliance lifespan. Its robust aluminum alloy casing allows operation in temperatures ranging from 14°F to 104°F.

Image: The FOVAL 1500W Pure Sine Wave Inverter shown in an outdoor camping environment, illustrating its versatility in powering various electronic devices for recreational activities.

2. Safety Instructions

Please read and understand all safety instructions before installing or operating the inverter. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Grounding: Ensure the inverter chassis is properly grounded to prevent electrical hazards.
• Ventilation: Install the inverter in a well-ventilated area. Do not block cooling vents.
• Environment: Avoid exposure to water, rain, snow, spray, bilge, or excessive dust. Do not operate in areas where flammable fumes or gases may accumulate.
• Battery Connection: Connect the inverter only to a 12V DC battery. Ensure correct polarity (+ to + and - to -). Reverse polarity will damage the inverter.
• Load Capacity: Do not exceed the inverter's continuous power rating (1500W) or peak surge power (3000W). Overloading can cause damage and trigger safety protections.
• Maintenance: Do not attempt to service the inverter yourself. Refer all servicing to qualified personnel.
• Children: Keep the inverter out of reach of children.

The inverter features multiple safety protections including overheating, short circuit, overvoltage, undervoltage, overload, and grounding protection. These systems continuously monitor the circuit and respond in milliseconds to cut off risk, ensuring safe operation.

Image: A visual representation of the inverter's six safety protection features: Over-Load, Over-Heat, Short-Circuit, Low-Voltage, Over-Voltage, and Over-Current Protection.

3. Package Contents

Verify that all items are present in the package:

• FOVAL 1500W Pure Sine Wave Inverter
• Remote Control with Cable
• DC Input Power Cables (Red and Black)
• Instruction Manual (this document)
• Earth Wire

Image: A detailed view of all items included in the product package: the FOVAL 1500W Inverter, remote controller, external remote control cable, earth wire, power cables, and the user manual.

4. Setup Instructions

4.1 Component Identification

Image: A labeled diagram of the inverter's components, highlighting the cooling fan, positive and negative terminals, LCD display, power switch, remote switch connection, AC outlets, and ground terminal.

4.2 Connecting the Inverter

1. Placement: Place the inverter on a flat, stable surface in a well-ventilated area, away from direct sunlight, heat sources, and moisture.
2. Grounding: Connect the inverter's ground terminal to a proper earth ground using the provided earth wire. This is a critical safety step.
3. DC Input Connection:
   • Ensure the inverter's power switch is in the 'OFF' position.
   • Connect the red (positive) power cable to the inverter's positive (+) terminal and then to the positive (+) terminal of your 12V battery.
   • Connect the black (negative) power cable to the inverter's negative (-) terminal and then to the negative (-) terminal of your 12V battery.
   • Ensure all connections are tight and secure. Loose connections can cause overheating.
4. Remote Control (Optional): If using the remote control, connect its cable to the 'remote control' port on the inverter.

Image: A wiring diagram illustrating two common setup configurations for the FOVAL inverter: one integrated into a solar panel system with an MPPT controller and battery, and another showing a direct connection to a 12V battery.

5. Operating Instructions

5.1 Powering On/Off

1. After ensuring all connections are secure, press the 'ON/OFF' power switch on the inverter to turn it on.
2. The LCD display will illuminate, showing real-time operational data.
3. To turn off the inverter, press the 'ON/OFF' switch again.

5.2 Understanding the LCD Display

The intelligent LCD screen provides real-time monitoring of the inverter's status:

• Input Voltage (DC): Displays the current voltage of the connected 12V battery.
• Output Voltage (AC): Shows the stable 110V AC output voltage.
• Battery Level: An icon indicating the approximate charge level of the battery.
• Load Status (Wattage): Displays the current power consumption of connected devices. (Note: May not display for loads less than 100W).
• Warning Indicators: Icons and a buzzer will alert you to various fault conditions (see Troubleshooting section).

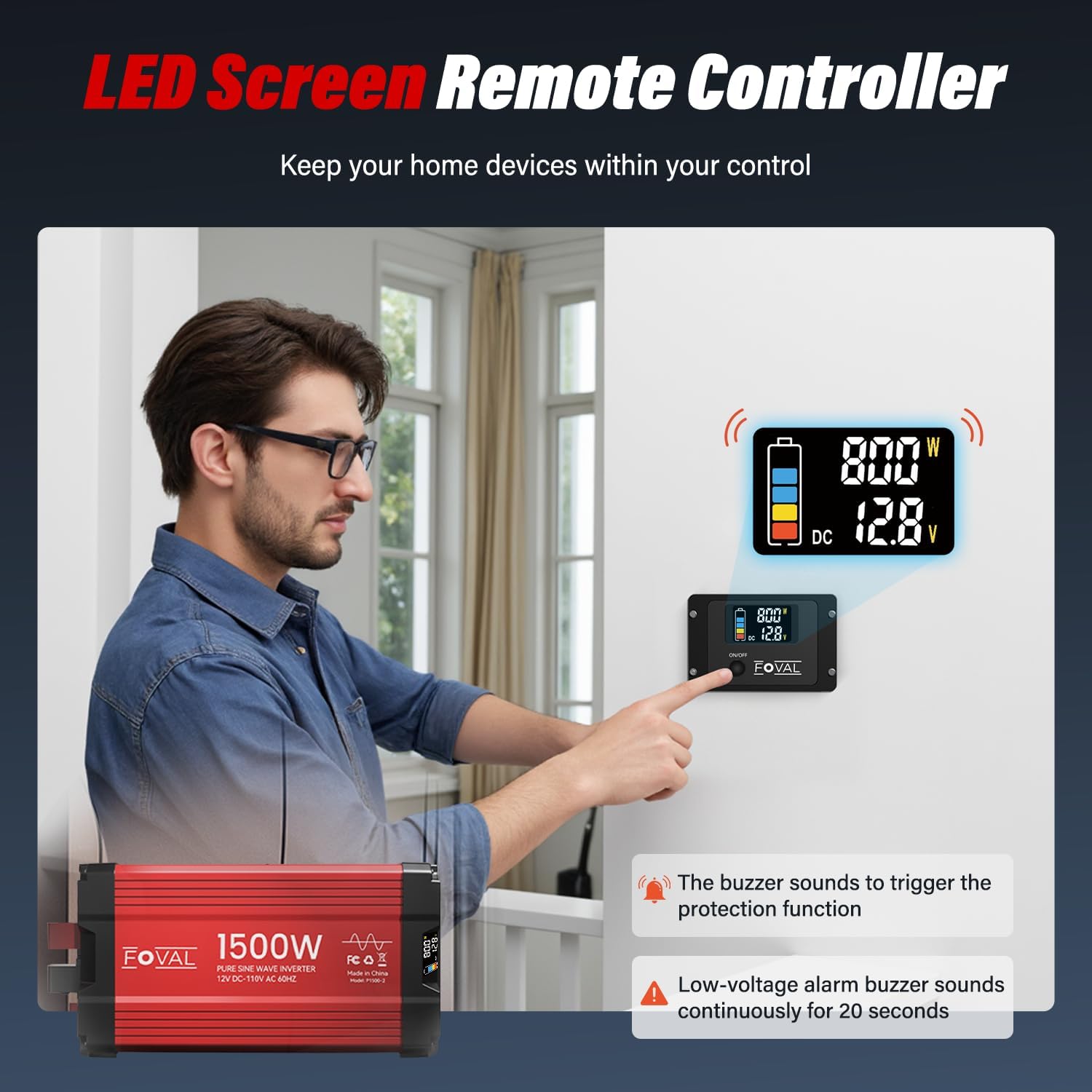

Image: A user operating the remote controller for the FOVAL inverter, with the remote's LED screen clearly displaying battery voltage and power output, mirroring the main unit's display.

5.3 Connecting AC Appliances

1. Ensure the inverter is powered on.
2. Plug your 110V AC appliances into the AC outlets on the inverter.
3. Do not exceed the inverter's continuous power rating. If the total wattage of your appliances exceeds 1500W, the inverter's overload protection will activate.

Image: The FOVAL 1500W Pure Sine Wave Inverter connected to a toaster and a coffee maker, demonstrating its ability to power common household appliances with high efficiency (over 92% conversion efficiency) and low total harmonic distortion (less than 3.8%).

5.4 Cooling Fan Operation

The inverter is equipped with dual intelligent cooling fans. These fans automatically adjust their speed based on the internal temperature and the load connected to the inverter. This intelligent control prevents overheating and conserves battery power.

• When the output power is less than approximately 250W, the fans may stop rotating for silent operation.
• As the load increases or internal temperature rises, the fans will activate and increase speed to maintain optimal operating temperature.

Image: The FOVAL 1500W Pure Sine Wave Inverter placed on a bedside table, emphasizing its quiet operation. The image highlights that the fan noise is less than 45dB when on, and less than 15dB when off, ensuring minimal disturbance.

6. Maintenance

Regular maintenance ensures the longevity and reliable performance of your inverter.

• Cleaning: Periodically clean the exterior of the inverter with a dry, soft cloth. Do not use liquid cleaners or solvents. Ensure cooling vents are free from dust and debris.
• Connections: Regularly check all DC input and grounding connections to ensure they are tight and free from corrosion. Loose connections can lead to power loss or overheating.
• Storage: If storing the inverter for an extended period, ensure it is clean, dry, and stored in a cool, well-ventilated area. Disconnect it from the battery.

7. Troubleshooting

The inverter's intelligent LCD display and audible buzzer provide warnings for various operational issues. Refer to the table below for common problems and their solutions.

The buzzer will sound an alarm promptly in case of emergencies, and for low-voltage conditions, it will sound continuously for 20 seconds to alert you.

8. Specifications

9. Warranty and Support

For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or contact FOVAL customer support directly. Keep your purchase receipt as proof of purchase.
