Benro NOVOFLEX NBBH 4 Series Aluminum Ball Head (NBBH4) Instruction Manual

1. Introduction

This manual provides comprehensive instructions for the safe and effective use of your Benro NOVOFLEX NBBH 4 Series Aluminum Ball Head. Please read this manual thoroughly before operating the product and retain it for future reference. The NBBH4 is designed for professional photographers and videographers, offering precise control and stable camera positioning.

2. What's in the Box

Carefully unpack your Benro NOVOFLEX NBBH 4 Series Ball Head and ensure all components are present:

• Benro NOVOFLEX NBBH 4 Ball Head
• Arca-Swiss Compatible Quick Release Plate
• Thread Brace
• Instruction Manual
• Allen Key (for adjustments)
• Mounting Screws

Figure 2.1: Included components of the NBBH4 Ball Head.

3. Product Features

• 4 Series Performance: Professional ball head control for smooth, stable positioning and accurate framing.
• Arca-Swiss Compatible: Quick-release clamp and plate for rapid camera attachment and universal compatibility.
• Dual-Locking Design: Independently operated pan and ball locks for precise horizontal rotation and tilt control.
• Friction Adjustment: Customizable resistance for fine-tuned handling, ideal for macro focusing, long exposures, and architectural photography.
• Aluminum Construction: Durable aluminum alloy with a standard tripod mounting interface for long-lasting reliability.

4. Setup

4.1 Attaching the Ball Head to a Tripod

1. Ensure your tripod's mounting plate is clean and free of debris.
2. Align the 3/8"-16 threaded hole on the base of the NBBH4 ball head with the mounting screw on your tripod.
3. Rotate the ball head clockwise until it is securely tightened onto the tripod. Do not overtighten.

4.2 Attaching the Quick Release Plate to Your Camera

1. Locate the 1/4"-20 mounting screw on the quick release plate.
2. Align the screw with the tripod socket on the base of your camera.
3. Use a coin or the provided Allen key to tighten the screw securely. Ensure the plate is flush against the camera body and does not wobble.

Figure 4.2: Securing the quick release plate to the camera.

4.3 Mounting the Camera to the Ball Head

1. Ensure the quick release clamp on the ball head is open by rotating the quick release knob counter-clockwise.
2. Slide the camera (with the attached quick release plate) into the clamp.
3. Once the plate is fully seated, rotate the quick release knob clockwise to securely lock the camera in place. Verify that the camera is firmly attached before releasing your grip.

Figure 4.3: Camera mounted on the NBBH4 Ball Head.

5. Operating Instructions

5.1 Ball Lock Control

The main lever on the side of the ball head controls the movement of the ball. Loosen the lever to allow the camera to tilt and swivel freely. Tighten the lever to lock the camera in your desired position.

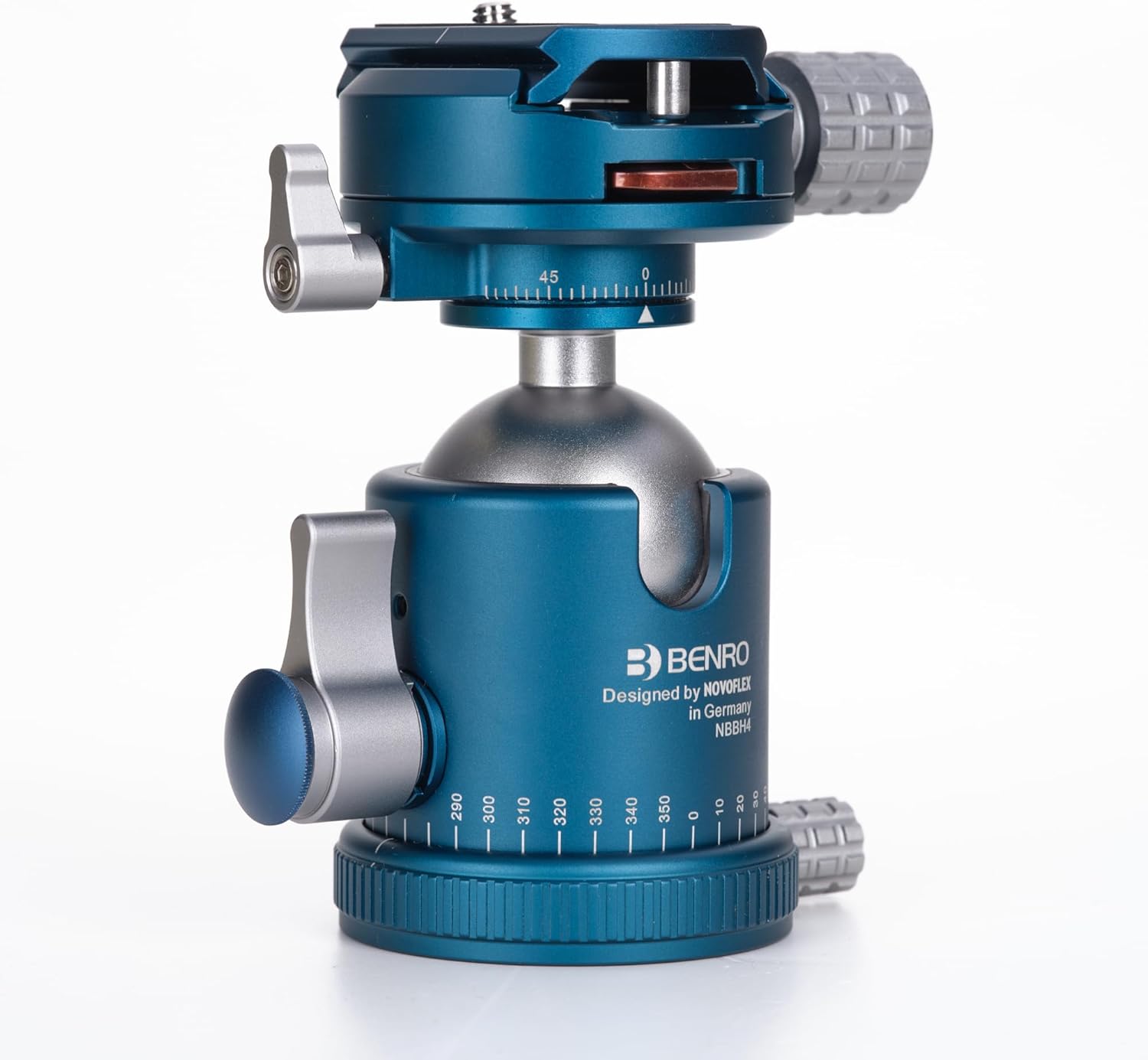

Figure 5.1: Ball lock lever (left) and pan lock knob (right).

5.2 Pan Lock Control

The smaller knob located on the base of the ball head controls the panning movement. Loosen this knob to rotate the camera horizontally 360 degrees. Tighten it to lock the panning position. This allows for panoramic shots without disturbing the camera's tilt angle.

Figure 5.2: Pan lock knob at the base of the ball head.

5.3 Friction Adjustment

The NBBH4 features a friction adjustment knob, typically integrated with the main ball lock lever or as a separate small knob. This allows you to set the resistance of the ball movement when the main lock is loosened. Adjust the friction to match the weight of your camera setup, providing smoother, more controlled movements and preventing sudden drops when repositioning.

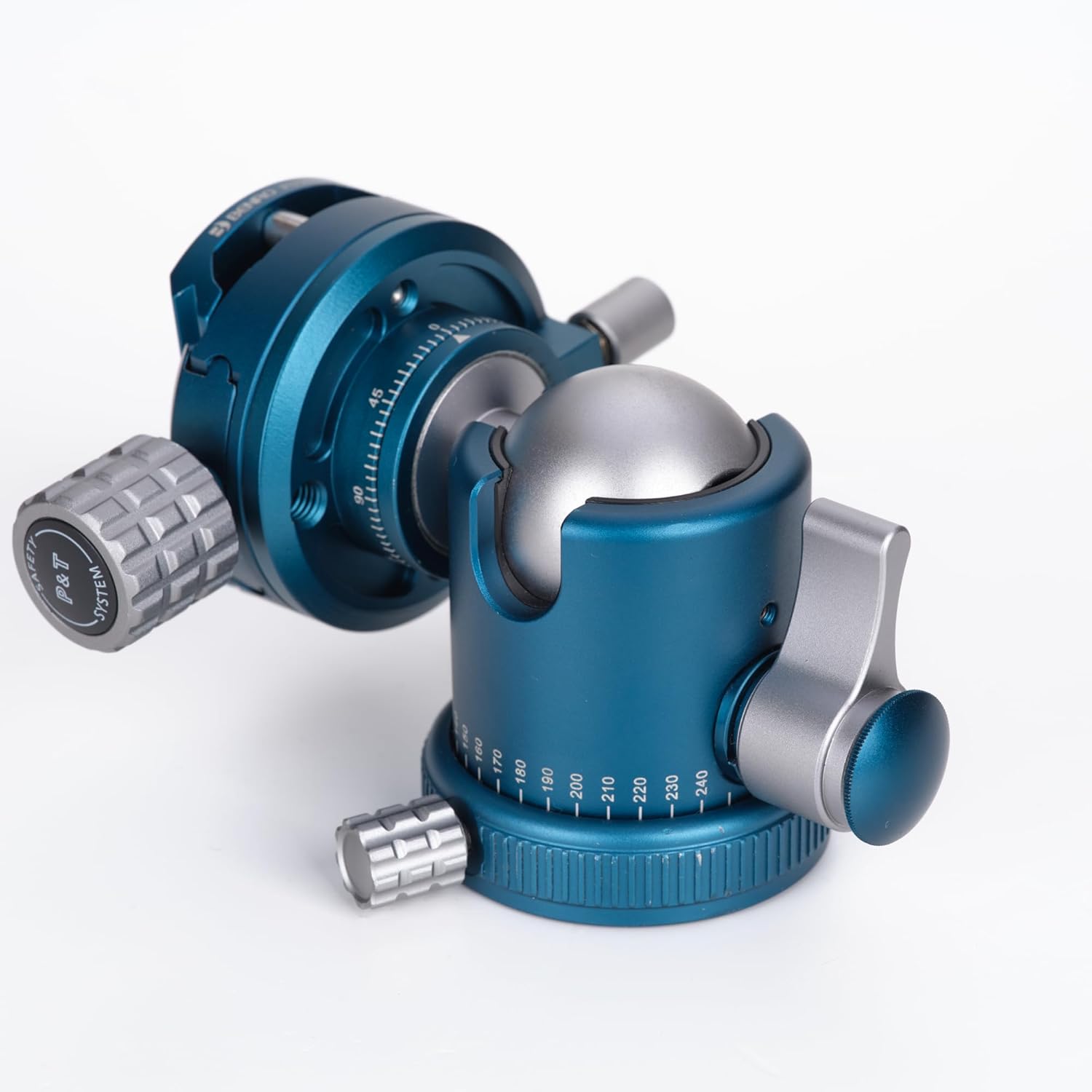

Figure 5.3: Friction adjustment knob.

6. Maintenance

• Cleaning: Use a soft, dry cloth to wipe down the ball head after each use. For stubborn dirt, a slightly damp cloth can be used, followed by immediate drying.
• Avoid Lubricants: Do not apply any lubricants or oils to the ball or locking mechanisms, as this can attract dust and impair performance.
• Storage: Store the ball head in a clean, dry environment, away from extreme temperatures and humidity.
• Inspection: Periodically check all screws and knobs for tightness. Use the provided Allen key to tighten any loose screws.

7. Troubleshooting

• Camera wobbles on ball head: Ensure the quick release plate is securely attached to the camera and the quick release clamp on the ball head is fully tightened.
• Ball movement is stiff or gritty: The ball head may require cleaning. Refer to the Maintenance section. Avoid using lubricants.
• Ball does not lock securely: Ensure the main ball lock lever is fully tightened. If the issue persists, check the friction adjustment; it might be set too low for your camera's weight.
• Panning movement is not smooth: Ensure the pan lock knob is sufficiently loosened. Clean the panning base if necessary.

8. Specifications

Figure 8.1: NBBH4 Load Capacity.

9. Warranty and Support

9.1 Warranty Information

A standard limited warranty of 3 years from the date of purchase is provided for the original owner. If you register the product online, the warranty is extended by an additional 2 years, totaling 5 years in applicable regions. Please visit the official Benro website for warranty registration and full terms and conditions.

9.2 Customer Support

For technical assistance, spare parts, or warranty claims, please contact Benro customer support through their official website or the contact information provided with your product packaging. Please have your model number (NBBH4) and proof of purchase ready when contacting support.
