AKOOTE YAA1FB Replacement Remote Control User Manual

For Air Conditioner Models: LI012CI-180P432, LI024CO-180P432, LI012HO-180V432, LI024CI-180P432, LI012HI-180P432

Introduction

This manual provides instructions for the setup, operation, and maintenance of your AKOOTE YAA1FB replacement remote control. This remote is designed to be compatible with specific room air conditioner models, including LI012CI-180P432, LI024CO-180P432, LI012HO-180V432, LI024CI-180P432, and LI012HI-180P432.

Please read this manual thoroughly before using the remote control to ensure proper functionality and to avoid any issues.

Product Overview

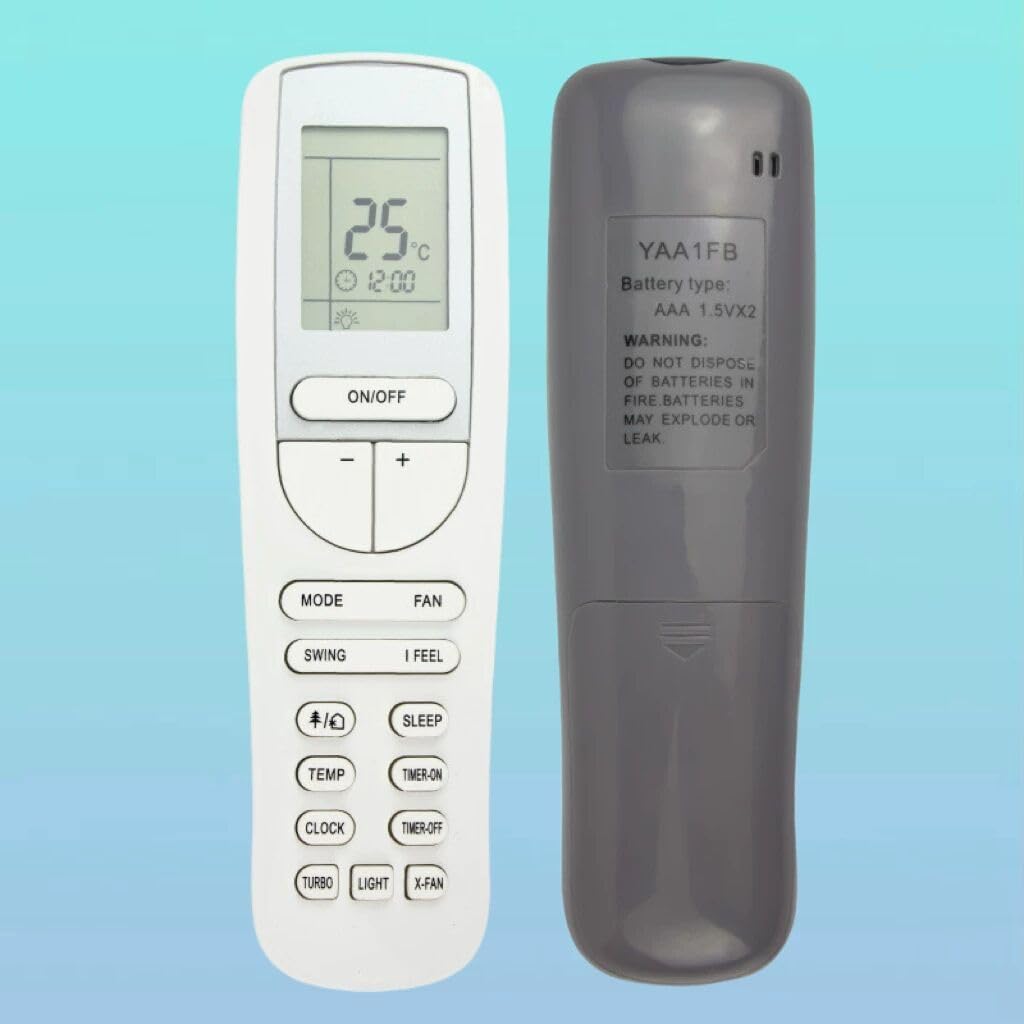

Front and back view of the AKOOTE YAA1FB replacement remote control.

Figure 1: Front (left) and back (right) view of the AKOOTE YAA1FB remote control. The front shows the LCD screen and various control buttons. The back displays battery information and warnings.

The AKOOTE YAA1FB remote control features an ergonomic design for comfortable handling. It operates using infrared technology to communicate with your air conditioner unit. The remote displays temperature in Celsius only.

Setup

1. Battery Installation

The remote control requires two AAA 1.5V batteries (not included). Follow these steps to install them:

Locate the battery compartment cover on the back of the remote control.
Slide the cover downwards to open the compartment.
Insert two AAA 1.5V batteries, ensuring the positive (+) and negative (-) terminals match the markings inside the compartment.
Slide the battery compartment cover back into place until it clicks securely.

Warning:

Do not dispose of batteries in fire. Batteries may explode or leak.
Replace all batteries at the same time. Do not mix old and new batteries.
Remove batteries if the remote control will not be used for an extended period.

Operating Instructions

Point the remote control directly at the air conditioner unit's receiver when operating. Ensure there are no obstructions between the remote and the unit.

Remote Control Buttons and Functions:

Close-up of the front of the AKOOTE YAA1FB remote control showing all buttons and the LCD screen.

Figure 2: Detailed view of the remote control's front panel, highlighting the LCD display and various function buttons.

ON/OFF: Press to turn the air conditioner unit on or off.
+/- (Temperature Adjustment): Press to increase or decrease the set temperature. The display shows temperature in Celsius.
MODE: Cycles through operating modes (e.g., Cool, Heat, Fan, Dry, Auto).
FAN: Adjusts the fan speed (e.g., Low, Medium, High, Auto).
SWING: Activates or deactivates the louver swing function for air distribution.
I FEEL: Activates the "I Feel" function, which senses the temperature at the remote's location for more precise control.
SLEEP: Activates or deactivates the sleep mode, which adjusts temperature gradually for comfort during sleep.
TEMP: Displays the current room temperature or the set temperature.
TIMER-ON: Sets a timer for the unit to turn on automatically.
TIMER-OFF: Sets a timer for the unit to turn off automatically.
CLOCK: Sets the current time on the remote's display.
TURBO: Activates maximum cooling or heating capacity for rapid temperature change.
LIGHT: Turns the display light on or off on the air conditioner unit.
X-FAN: Activates the X-Fan (or Anti-mildew) function, which runs the fan for a short period after shutdown to dry the evaporator.

Maintenance

1. Cleaning the Remote Control

To clean the remote control, wipe it gently with a soft, dry cloth. Do not use liquid cleaners, abrasive cleaners, or chemical sprays, as these can damage the remote's surface or internal components.

2. Battery Replacement

Replace batteries when the remote control's display becomes dim or when the remote no longer responds to commands. Refer to the "Battery Installation" section under Setup for detailed instructions.

Troubleshooting

Problem	Possible Cause	Solution
Remote control not responding.	Batteries are depleted or incorrectly installed. Obstruction between remote and AC unit. Remote control is too far from the AC unit.	Replace batteries, ensuring correct polarity. Remove any objects blocking the signal path. Move closer to the AC unit.
AC unit not responding to specific commands.	Incorrect mode selected. AC unit may not support all remote functions.	Verify the operating mode on the remote and AC unit. Consult your AC unit's manual for supported functions.
Display is dim or blank.	Batteries are low.	Replace batteries.

Specifications

Model: YAA1FB
Brand: AKOOTE
Compatible Air Conditioner Models: LI012CI-180P432, LI024CO-180P432, LI012HO-180V432, LI024CI-180P432, LI012HI-180P432
Connectivity Technology: Infrared
Power Source: 2 x AAA 1.5V Batteries (not included)
Temperature Display: Celsius only
Special Feature: Ergonomic design
Max Number of Supported Devices: 1 (one air conditioner unit)

Warranty and Support

Specific warranty information for this replacement remote control is not provided in the product details. For any support inquiries or issues, please refer to the seller or the original manufacturer of the remote control.
