CARSUN Portable Heavy Duty Tire Inflator Pump User Manual

1. Introduction

Thank you for choosing the CARSUN Portable Heavy Duty Tire Inflator Pump. This device is engineered for efficient and reliable tire inflation, featuring dual cylinders and dual motors for powerful performance. It is designed to inflate tires for various vehicles including pickups, ORVs, SUVs, and cars, and also includes accessories for other inflatable items like bicycles and air mattresses. This manual provides essential information for safe and effective operation, maintenance, and troubleshooting.

2. Important Safety Warnings

DO NOT operate the inflator continuously for more than 45 minutes. Allow it to cool down for at least 15 minutes after each continuous use to prevent overheating.
DO NOT leave the inflator unattended during operation.
Ensure the vehicle engine is running when using the inflator to avoid draining the car battery.
Keep out of reach of children.
Only use the inflator with a 12V DC power source (car cigarette lighter socket).
NOT suitable for heavy trucks or trailers with tires larger than 33 inches.
When disconnecting the threaded air hose after inflation, wait 2 minutes to prevent burns from hot components.
Avoid exposing the inflator to rain or moisture.

3. Package Contents

Please check the box for the following items:

CARSUN Portable Heavy Duty Tire Inflator Pump (Main Unit)
10.6 FT DC 12V Power Cord (integrated)
9.7 FT Air Hose (integrated, coiled)
Storage Bag
User Manual
2 x Air Nozzles
1 x Fuse
1 x Needle Valve Adapter (for sports balls)
1 x Presta-to-Schrader Adapter (for bicycle tires)

CARSUN Tire Inflator with all included accessories: manual, storage bag, inflatable tube, and various nozzles.

Figure 3.1: All items included in the CARSUN Tire Inflator package.

4. Product Overview

The CARSUN Tire Inflator features a robust design with intuitive controls and integrated storage solutions.

4.1 Main Unit Features

Digital Display: Shows current tire pressure and allows setting target pressure.
Control Buttons: Mode selection (M), Play/Pause, Light, and +/- for pressure adjustment.
Dual Cylinders & Motors: Provides powerful and fast inflation.
Integrated LED Light: For illumination during night use or emergencies.
Portable Handle: Ergonomic design for easy carrying.

Front view of the yellow and black CARSUN Portable Heavy Duty Tire Inflator Pump with its digital display and controls.

Figure 4.1: Front view of the CARSUN Tire Inflator.

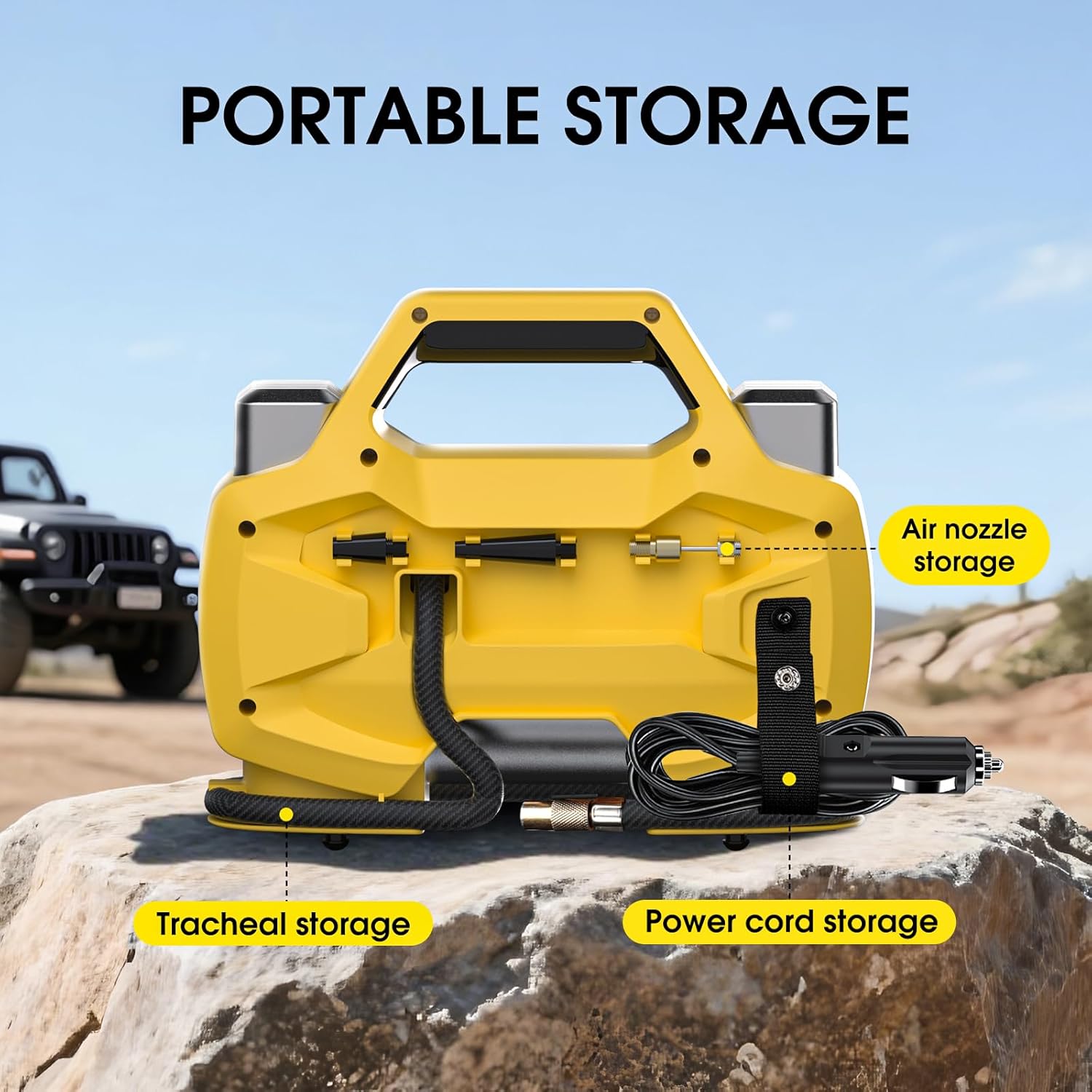

Back view of the CARSUN Portable Heavy Duty Tire Inflator showing integrated storage for the air hose and power cord.

Figure 4.2: Rear view showing portable storage for tracheal and power cords, and air nozzles.

5. Setup

Ensure your vehicle's engine is running to provide stable power to the inflator.
Locate the 12V DC cigarette lighter socket in your vehicle.
Uncoil the power cord from the back of the inflator.
Plug the 12V DC power plug into the vehicle's cigarette lighter socket.
The digital display on the inflator should illuminate, indicating it is powered on.

6. Operating Instructions

6.1 Inflating Tires

Connect Air Hose: Unscrew the valve cap from the tire. Securely screw the inflator's air hose connector onto the tire valve stem. For optimal connection, ensure it is threaded tightly.
Check Current Pressure: Once connected, the digital display will show the current pressure of the tire.
Select Mode (Optional): Press the 'M' button to cycle through different inflation modes (e.g., car, motorcycle, bicycle, ball, custom). Each mode has a default preset pressure, but you can adjust it.
Set Target Pressure: Use the '+' and '-' buttons to set your desired target pressure (PSI, BAR, KPA, or kg/cm²). Refer to your vehicle's door jamb sticker or owner's manual for recommended tire pressure.
Start Inflation: Press the Play/Pause button (►►) to begin inflation. The inflator will automatically stop once the preset target pressure is reached.
Disconnect: After inflation, wait approximately 2 minutes for the hose to cool down before unscrewing it from the tire valve to avoid burns. Replace the valve cap.

CARSUN Tire Inflator next to a car tire, illustrating fast inflation capability.

Figure 6.1: Fast inflation for car tires.

CARSUN Tire Inflator surrounded by various vehicle types it can inflate, including cars, SUVs, ORVs, and pickups.

Figure 6.2: Universal compatibility for various vehicle types.

Diagram showing the 10.6 ft power cord and 9.7 ft air tube of the CARSUN inflator, reaching all tires of an SUV.

Figure 6.3: Long power cord and air tube for convenient reach.

6.2 LED Light Functions

The integrated LED light can be activated by pressing the light bulb button (☀) on the control panel.

First Press: Turns on the steady LED light for illumination.
Second Press: Activates the flashing emergency light.
Third Press: Activates the SOS signal light.
Fourth Press: Turns off the LED light.

6.3 Official Product Video

Video 6.1: Official CARSUN video demonstrating the double cylinder tire inflator's features and usage.

7. Maintenance

Cleaning: Wipe the inflator with a damp cloth. Do not use harsh chemicals or abrasive cleaners.
Storage: Store the inflator in its provided storage bag in a cool, dry place, away from direct sunlight and extreme temperatures. Ensure the power cord and air hose are properly coiled and secured in their designated storage slots on the unit's back.
Fuse Replacement: If the inflator does not power on, check the fuse located in the 12V DC power plug. Replace it with the spare fuse provided if necessary.

8. Troubleshooting

Problem	Possible Cause	Solution
Inflator does not turn on.	No power from 12V DC socket; Blown fuse in plug.	Ensure vehicle engine is running and socket is functional. Check and replace fuse in the 12V DC plug.
Inflator stops before reaching target pressure.	Target pressure set too low; Overheating protection activated.	Verify target pressure setting. Allow unit to cool down for 15-20 minutes before resuming operation.
Pressure reading is inaccurate.	Loose connection to tire valve; Sensor calibration.	Ensure the air hose is securely threaded onto the tire valve. Use a separate, calibrated tire gauge to verify pressure if accuracy is critical.
Slow inflation.	Low vehicle battery voltage; Air leak in connection.	Ensure vehicle engine is running. Check for air leaks at the connection point and tighten if necessary.

9. Specifications

Brand: carsun
Model Number: CARSUN-008
Power Source: DC 12V
Max Pressure: 150 PSI
Continuous Working Time: Up to 45 minutes
Item Weight: 5.33 pounds
Package Dimensions: 11.3 x 9.53 x 6.38 inches
Manufacturer: CARSUN
Date First Available: April 24, 2025

10. Warranty & Support

For any product inquiries, technical support, or warranty claims, please contact the seller directly through your purchase platform. CARSUN offers protection plans for extended coverage, which can be purchased separately. Please refer to your purchase details for specific warranty terms and conditions.

Seller: carsun store

Protection Plans Available:

2-Year Protection Plan
3-Year Protection Plan
Complete Protect (monthly billing)

carsun CARSUN-008
