1. Product Overview
The Polibi 24-inch Bathroom Vanity is designed to provide functional storage and a modern aesthetic for small bathrooms. It features a ceramic sink, multiple drawers, and a cabinet with adjustable shelving, constructed from durable MDF and rubberwood for longevity.
Image 1.1: Front view of the Polibi 24-inch Bathroom Vanity.
Key Features:
- Ultra-Functional Storage Solutions: Combines three deep left-side drawers and a right-side cabinet with adjustable shelving, maximizing vertical space.
- Water-Resistant MDF & Rubberwood Durability: Constructed with moisture-resistant MDF panels and solid rubberwood legs, designed to withstand humidity and support heavy loads up to 150 lbs.
- Glossy Modern Aesthetic: Features a sleek glossy white finish and minimalist black knobs, complementing various bathroom decors.
- Space-Saving Compact Design: Measures 24" W x 18.3" D x 33.9" H, ideal for optimizing tight spaces.
- Customizable Heavy-Duty Organization: Engineered with reinforced joints and adjustable cabinet shelves for versatile storage.
Image 1.2: Illustration of the vanity's ample storage, including tip-out drawer, three main drawers, and cabinet with door shelf.
2. Important Safety Information
Please read and understand all safety instructions before assembly, installation, or use of this product. Failure to follow these instructions may result in injury or property damage.
- Always unplug and turn off power to electrical outlets before installing or maintaining the vanity.
- Avoid placing heavy objects on the vanity that could cause it to tip over.
- Do not use the vanity in areas with excessively high humidity or direct water contact to prevent warping and damage.
- Always use appropriate safety gear (e.g., gloves, eye protection) when handling heavy or sharp objects during installation.
- Ensure the vanity is installed on a level and stable surface to prevent tipping.
3. Package Contents
Verify that all components are present and undamaged before beginning assembly. If any parts are missing or damaged, contact customer support immediately.
- Vanity Cabinet (Main Frame)
- Ceramic Sink Top
- Drawers (x4)
- Cabinet Door
- Adjustable Shelf (for cabinet)
- Hardware Pack (screws, dowels, hinges, drawer slides, handles)
- Assembly Instructions (this manual)
4. Specifications
Detailed specifications for the Polibi 24-inch Bathroom Vanity (Model N725P280631).
| Feature | Detail |
|---|---|
| Brand | Polibi |
| Model Name | N725P280631 |
| Color | White |
| Product Dimensions (W x D x H) | 24" x 18.3" x 33.9" |
| Item Weight | 84.4 Pounds |
| Weight Limit | 150 Pounds |
| Mounting Type | Freestanding |
| Frame Material | MDF Board + Solid Rubber Wood |
| Top Material Type | MDF Board + Solid Rubber Wood (for vanity top, ceramic for sink) |
| Handle Material | Metal |
| Number of Drawers | 4 (including tip-out) |
| Number of Shelves | 2 (adjustable) |
| Assembly Required | Yes |

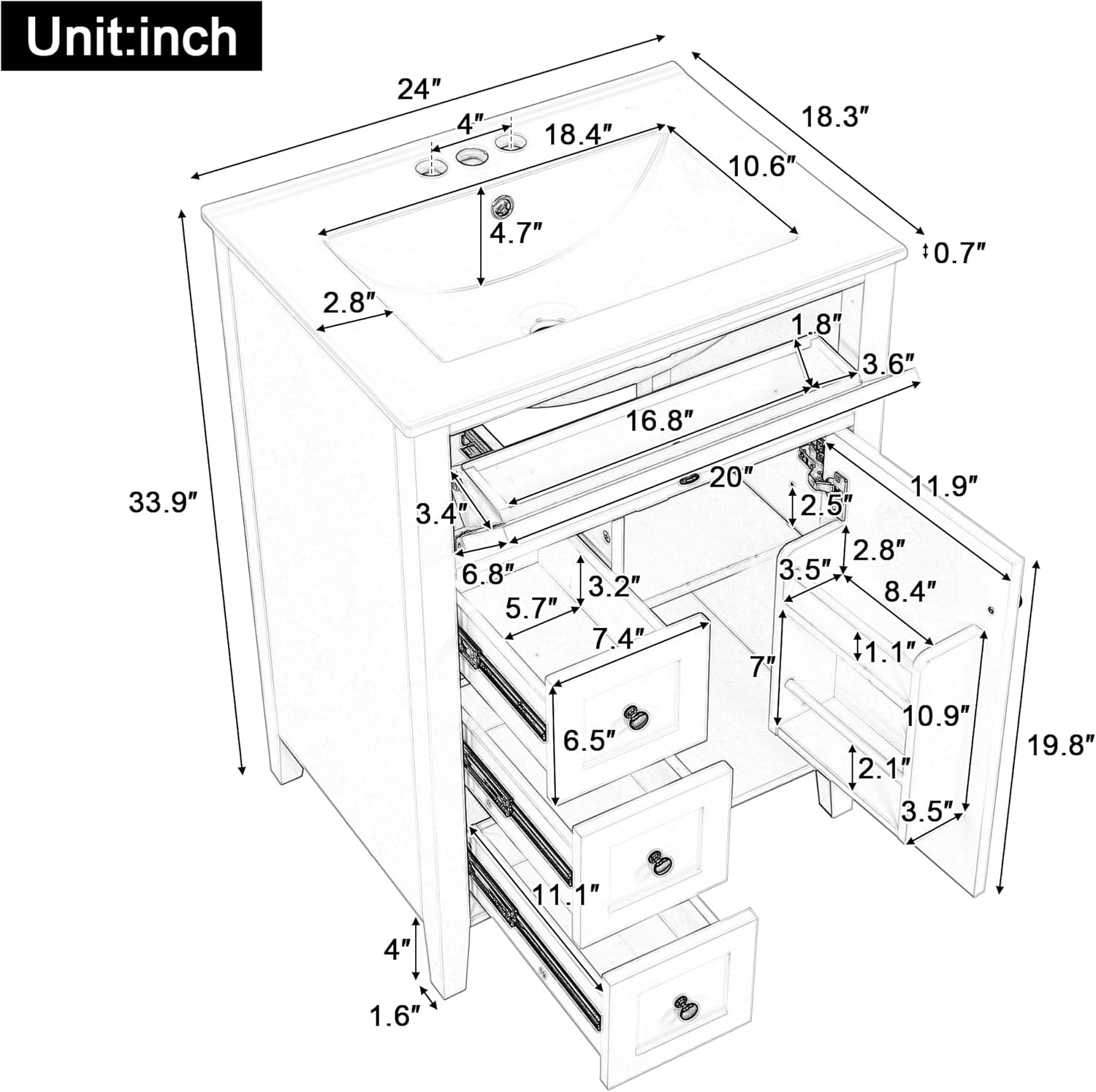

Image 4.1: Detailed dimensions diagram of the Polibi 24-inch Bathroom Vanity.
5. Setup and Installation
This section outlines the general steps for assembling and installing your Polibi bathroom vanity. It is recommended to have two people for assembly and installation due to the weight and size of the unit.
Tools Required (Not Included):
- Phillips Head Screwdriver
- Adjustable Wrench
- Level
- Silicone Sealant (for sink installation)
- Drill (optional, for pilot holes)
Assembly Steps:
- Unpack and Inspect: Carefully remove all components from the packaging. Check for any damage or missing parts against the package contents list.
- Assemble Cabinet Frame: Follow the included hardware instructions to assemble the main cabinet frame using screws and dowels. Ensure all connections are secure.
- Install Drawer Slides: Attach the drawer slides to the cabinet interior according to the instructions. Ensure they are level and aligned.
- Assemble Drawers: Construct the drawers and install the drawer slides onto them. Insert the assembled drawers into the cabinet.
- Attach Cabinet Door: Install the hinges onto the cabinet door and then attach the door to the cabinet frame. Adjust hinges for proper alignment and soft-closing function.
- Install Adjustable Shelf: Place the adjustable shelf supports at the desired height within the cabinet and position the shelf.
- Attach Handles: Securely fasten the black metal handles to all drawers and the cabinet door.
Sink and Faucet Installation:
Image 5.1: Close-up of the ceramic sink, showing pre-drilled faucet holes and chrome finish overflow.
- Prepare Faucet: Install your chosen 4-inch centerset faucet (not included) onto the ceramic sink top, following the faucet manufacturer's instructions.
- Install Drain Assembly: Attach the drain assembly to the sink, ensuring a watertight seal with plumber's putty or silicone sealant.
- Secure Sink to Vanity: Carefully place the ceramic sink top onto the assembled vanity cabinet. Apply a bead of silicone sealant around the top edge of the cabinet where the sink will rest to secure it and prevent water infiltration.
- Connect Plumbing: Connect the hot and cold water supply lines to the faucet and the drain pipe to the P-trap, ensuring all connections are tight and leak-free. Test for leaks before proceeding.
Final Placement:
- Position the assembled vanity in its desired location.
- Use a level to ensure the vanity is perfectly horizontal. Adjust the legs if necessary to achieve stability and prevent wobbling.
- For added stability, consider securing the vanity to the wall using appropriate wall anchors (not included) if local building codes or personal preference require it.
6. Operating Instructions
The Polibi bathroom vanity is designed for straightforward use and organization.
- Drawers: The vanity features three main drawers and one tip-out drawer. Gently pull the handles to open and push to close. Avoid forcing drawers if they feel stiff; check for obstructions.
- Cabinet: The right-side cabinet door opens to reveal an adjustable shelf. Use the shelf to store taller items or adjust its height to suit your needs. The door features soft-closing hinges for quiet operation.
- Sink: The ceramic sink is designed for daily washing. Ensure the faucet is properly installed and sealed to prevent leaks.

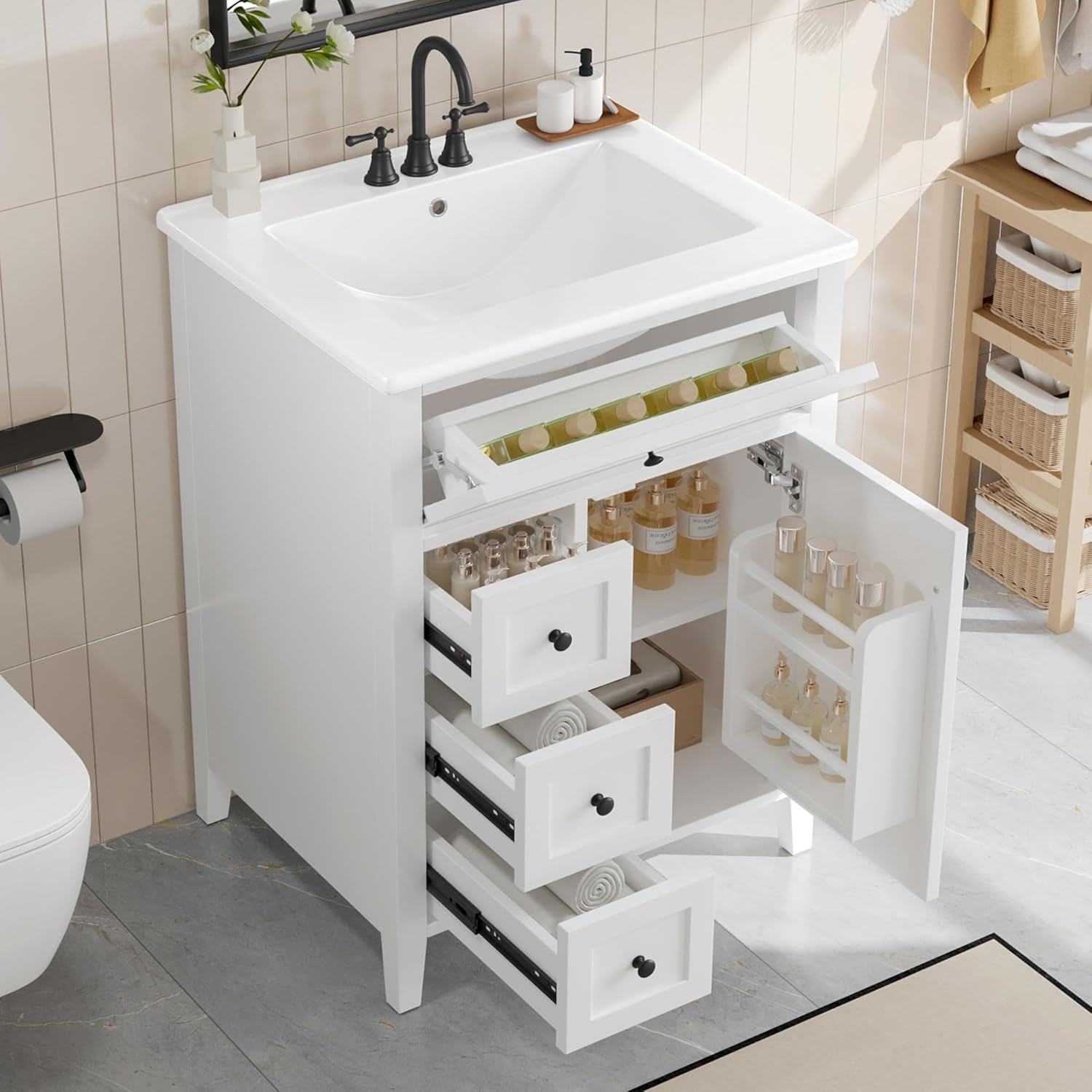

Image 6.1: The vanity with drawers and cabinet open, showcasing internal storage.
7. Maintenance
Regular cleaning and proper care will ensure the longevity and appearance of your Polibi bathroom vanity.
- General Cleaning: Wipe down all surfaces with a soft, damp cloth and a mild, non-abrasive cleaner. Avoid harsh chemicals, ammonia-based cleaners, or abrasive pads, as these can damage the finish.
- Sink Care: Clean the ceramic sink regularly with a non-abrasive bathroom cleaner. Rinse thoroughly after cleaning to prevent residue buildup.
- Spills: Immediately wipe up any water spills or splashes on the vanity surfaces to prevent water damage or staining.
- Hardware: Periodically check that all screws and hardware are tight. Retighten if necessary. Clean metal handles with a soft, dry cloth.
- Avoid Excessive Moisture: While the vanity is moisture-resistant, prolonged exposure to standing water or high humidity should be avoided. Ensure proper ventilation in the bathroom.
8. Troubleshooting
This section addresses common issues you might encounter with your vanity.
| Problem | Possible Cause | Solution |
|---|---|---|
| Drawers stick or do not close smoothly. | Obstruction in drawer slides; misaligned slides; loose hardware. | Remove drawer and check for obstructions. Ensure drawer slides are clean and properly aligned. Tighten any loose screws on slides or drawer boxes. |
| Cabinet door does not close properly. | Misaligned hinges; obstruction. | Adjust the cabinet door hinges. Check for items inside the cabinet that might be blocking the door. |
| Water leak from sink or plumbing. | Loose plumbing connections; improper sealant application. | Turn off water supply. Check and tighten all plumbing connections. Reapply silicone sealant around the sink if necessary. Consult a plumber if leaks persist. |
| Vanity wobbles or is unstable. | Uneven floor; loose leg connections. | Adjust the vanity legs to level the unit. Ensure all leg connections are securely tightened. |
9. Warranty Information
Polibi products are manufactured with quality and durability in mind. For specific warranty terms and conditions applicable to your Polibi 24-inch Bathroom Vanity (Model N725P280631), please refer to the warranty card included with your purchase or visit the official Polibi website.
Typically, warranties cover manufacturing defects in materials and workmanship under normal use. Damage resulting from improper installation, misuse, neglect, accidents, or unauthorized modifications is generally not covered.
10. Support
If you require assistance with assembly, installation, troubleshooting, or have questions regarding your Polibi 24-inch Bathroom Vanity, please contact Polibi customer support.
For the most up-to-date contact information, please visit the official Polibi website or refer to the contact details provided in your product packaging.
When contacting support, please have your model number (N725P280631) and purchase date readily available.
