ENEACRO SDS-MAX Hammer Drill

1. Introduction

Thank you for choosing the ENEACRO SDS-MAX Hammer Drill, Model Z1C-SKT-4001WP. This powerful industrial tool is designed for heavy-duty drilling and demolition tasks in concrete, brick, and masonry. Featuring a 1500W motor and 12 Joules of impact force, it delivers efficient and reliable performance. This manual provides essential information for safe operation, setup, maintenance, and troubleshooting to ensure optimal use and longevity of your tool.

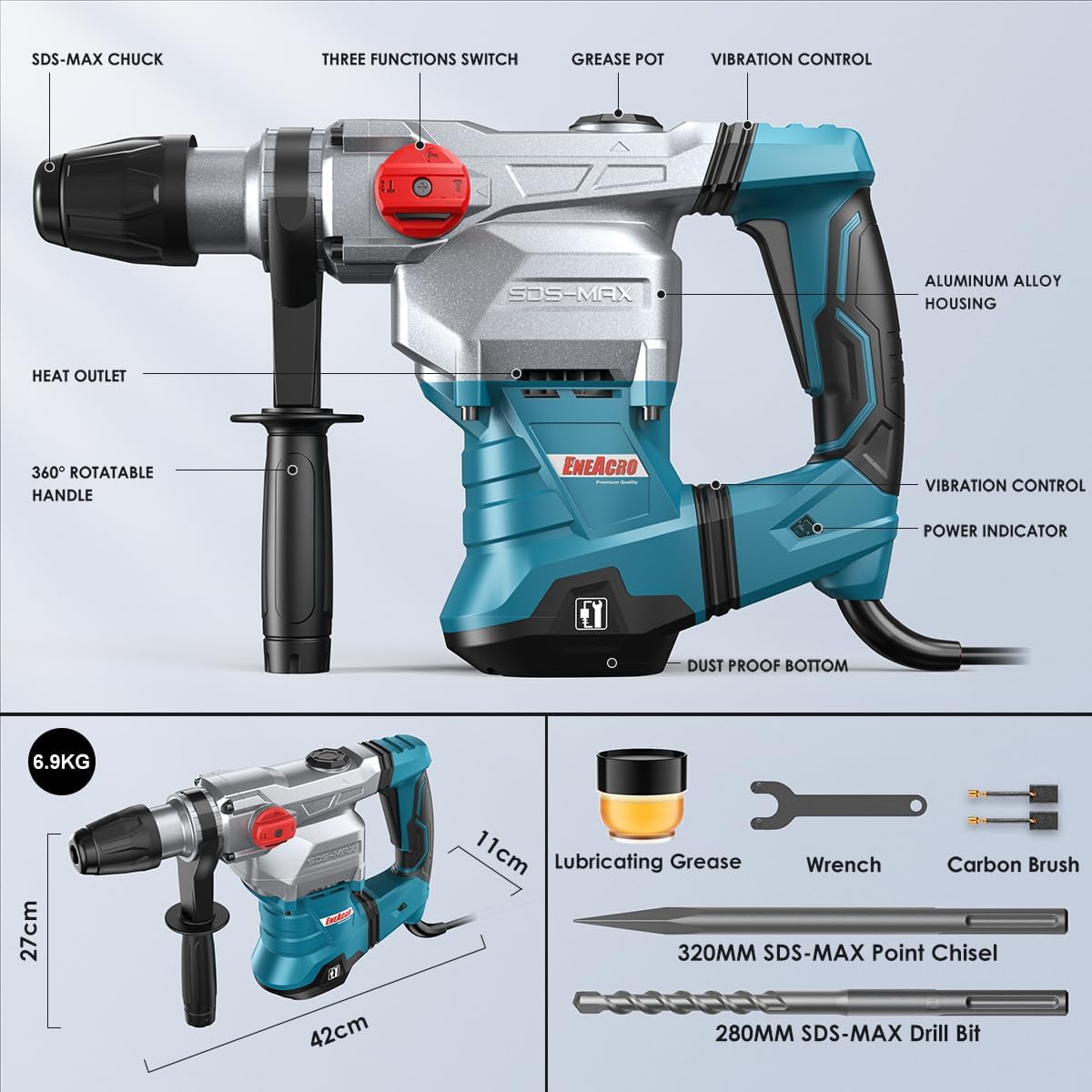

Image 1.1: ENEACRO SDS-MAX Hammer Drill, Model Z1C-SKT-4001WP, with key components labeled.

2. General Safety Instructions

Always follow basic safety precautions when using electrical tools to reduce the risk of fire, electric shock, and personal injury. Read all instructions carefully before operation.

• Work Area Safety: Keep your work area clean and well-lit. Cluttered or dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
• Electrical Safety: Power tool plugs must match the outlet. Never modify the plug in any way. Avoid body contact with earthed or grounded surfaces. Do not expose power tools to rain or wet conditions.
• Personal Safety: Always wear eye protection. Use hearing protection when operating noisy tools. Wear a dust mask if operations create dust. Dress properly; avoid loose clothing or jewelry.
• Tool Use and Care: Do not force the power tool. Use the correct power tool for your application. Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools.
• Service: Have your power tool serviced by a qualified repair person using only identical replacement parts.

3. Package Contents

Verify that all items are present upon unpacking. If any parts are missing or damaged, contact customer support.

• ENEACRO 4001WP Rotary Hammer (1 unit)
• SDS-MAX 280mm Drill Bit (1 unit)
• 320mm SDS-MAX Chisel (1 unit)
• Auxiliary Grip (1 unit)
• Replaceable Carbon Brush Set (1 set)
• Lubricating Grease (1 unit)
• Dust Cap (1 unit)
• Tool Bag (1 unit)

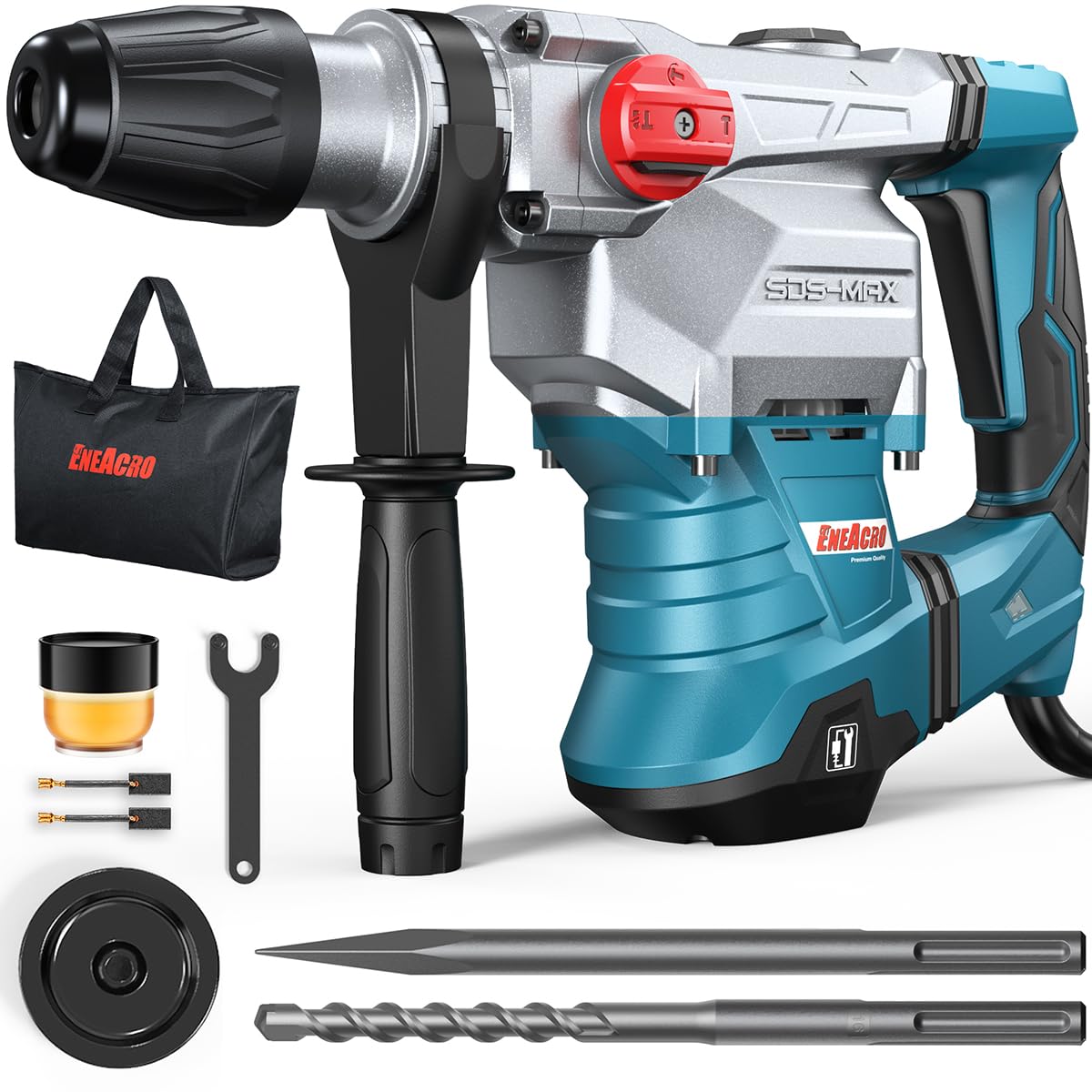

Image 3.1: Overview of the ENEACRO SDS-MAX Hammer Drill and included accessories, showing dimensions and individual components.

4. Setup and Assembly

4.1 Attaching the Auxiliary Grip

The 360° adjustable auxiliary grip provides better control and reduces fatigue. Loosen the grip clamp, slide the grip onto the front of the tool, and rotate it to the desired position. Tighten the clamp securely before operation.

4.2 Inserting SDS-MAX Bits

The SDS-MAX quick-release chuck allows for tool-free bit changes.

1. Clean the shank of the SDS-MAX drill bit or chisel.
2. Pull back the chuck collar and insert the bit into the chuck.
3. Rotate the bit slightly until it engages with the locking mechanism.
4. Release the chuck collar. The bit should be held firmly but have a slight axial play, which is normal for SDS-MAX systems.
5. To remove, pull back the chuck collar and pull the bit out.

Image 4.1: Close-up views of the heat outlet, aluminum alloy housing, anti-dust bottom, and SDS-MAX chuck mechanism.

5. Operating Instructions

The ENEACRO SDS-MAX Hammer Drill features three operating modes for various applications.

5.1 Mode Selection

Use the mode selector switch located on the side of the tool to choose the desired function:

• Hammer Drilling Mode: For drilling into concrete, stone, and other hard materials. This mode combines rotation and hammering action.
• Chisel-Only Mode (Demolition): For demolition work such as breaking concrete or removing tiles. This mode provides hammering action without rotation.
• Adjustable Chiseling Function: Allows you to adjust the angle of the chisel for optimal working position. To use, select this mode, rotate the chisel to the desired angle, then switch back to Chisel-Only mode to lock the position.

Image 5.1: Visual representation of the three operating modes: Hammer Drilling, Hammer Only (Chiseling), and Chisel Angle Adjustment.

5.2 Operation Guidelines

• Ensure the bit is securely inserted and the mode is correctly selected.
• Hold the tool firmly with both hands using the main handle and the auxiliary grip.
• Apply steady, moderate pressure. Do not force the tool; let the hammer action do the work.
• The integrated Safety Clutch will engage to protect against kickback if the bit binds in the material, reducing wrist strain.
• The Anti-Vibration System minimizes hand strain during prolonged use.

Image 5.2: Demonstrating the safety clutch feature during operation, which protects against kickback.

Image 5.3: Illustrating the vibration control feature, which minimizes workplace vibrations to reduce user fatigue.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your hammer drill.

6.1 Cleaning

• Always disconnect the tool from the power supply before cleaning.
• Wipe down the tool with a clean, damp cloth. Do not use harsh chemicals or abrasive cleaners.
• Ensure the dust-protected bottom construction and heat outlets are clear of debris to prevent overheating.

6.2 Lubrication

Periodically apply the provided lubricating grease to the SDS-MAX chuck and bit shanks to ensure smooth operation and prevent wear.

6.3 Carbon Brush Replacement

The carbon brushes are wear parts and should be inspected periodically. Replace them when they are worn down to their limit to maintain motor performance. Refer to the included carbon brush set for replacement instructions or consult a qualified technician.

7. Troubleshooting

This section addresses common issues you might encounter. For problems not listed here, contact customer support.

8. Technical Specifications

9. Warranty and Support

ENEACRO provides a 24-month defect-free service for this product. For any inquiries, technical assistance, or warranty claims, please contact ENEACRO customer support. We aim to provide a response within 12 hours.

For further information or to register your product, please visit the official ENEACRO website or refer to the contact details provided in your purchase documentation.
