1. Introduction
Thank you for purchasing the ELEMARA Lamborghini 12V Electric Ride-On Car. This manual provides important information for the safe assembly, operation, and maintenance of your new ride-on toy. Please read this manual thoroughly before use and retain it for future reference.
Image 1: The ELEMARA Lamborghini 12V Electric Ride-On Car, showcasing its distinctive yellow color and open scissor doors.
2. Safety Information
WARNING: CHOKING HAZARD - Small parts. Not recommended for children under 37 months. This product contains small parts; keep children away during assembly.
- Always supervise children when operating the ride-on car.
- Ensure the child wears appropriate safety gear, such as a helmet, when riding.
- Do not operate the vehicle near stairs, hills, roads, or swimming pools.
- Only one rider at a time.
- Ensure the seat belt is securely fastened before operation.
- Keep hands, hair, and clothing away from moving parts.
- Do not modify the electrical system.
3. Package Contents
Please check the package to ensure all items are present:
- 1 x Ride-On Car
- 1 x Remote Control
- 1 x User Manual
4. Assembly
Assembly is required for this product. Please follow the detailed instructions provided in the separate assembly guide (if included) or refer to the visual aids below for general steps.
- Unpack all components and verify against the package contents list.
- Attach the wheels according to the instructions, ensuring they are securely fastened.
- Connect the battery terminals.
- Install the steering wheel and seat.
- Perform a final check to ensure all parts are correctly assembled and secured.
5. Charging the Battery
The ride-on car is powered by a 12V rechargeable battery. Proper charging ensures optimal performance and battery longevity.
- First Use: Charge the battery for 18 hours before the first use.
- Regular Charging: Subsequent charging times are approximately 8 to 12 hours.
- Do not charge for more than 18 hours to prevent battery damage.
- Only use the charger provided with the product.
- Disconnect the charger once charging is complete.
Image 2: Visual representation of key specifications including motor (12V*2*35W), speed (1.9-3.1 mph), charging time (8-12 hours), and use time (30-45 minutes).
6. Operation
The ELEMARA Lamborghini ride-on car offers two modes of operation: manual control by the child and remote control by an adult.
6.1 Manual Control
Children can operate the car using the foot pedal and steering wheel. Ensure the child understands how to steer, accelerate, and brake safely.
6.2 Remote Control
Parents can use the remote control to guide the car, ensuring the child's safety, especially for younger users. The remote control typically allows for forward, reverse, left, right, and speed adjustments.
Image 3: Illustration of the dual driving modes, showing a child operating the car manually and an adult using the remote control. The remote control has a maximum distance of 25 meters.
6.3 Multimedia Functions
The car features a multifunctional control panel with a music player, Bluetooth connectivity, and USB input for enhanced riding enjoyment.
- Bluetooth: Pair your device to play music wirelessly.
- USB: Connect a USB drive for MP3 playback.
- LED Lights: Front LED headlights provide illumination.
Image 4: A child enjoying the ride-on car, highlighting the integrated multimedia features such as USB, Bluetooth, and music playback.
6.4 Driving Environment
The car is designed for various road surfaces, including brick, board, grass, and asphalt roads, providing versatility for outdoor play.
Image 5: The ELEMARA Lamborghini ride-on car demonstrating its adaptability to different terrains, including brick roads, wooden board paths, grassy areas, and asphalt surfaces.
7. Features
- Licensed Lamborghini Design: Authentic styling with aerodynamic features.
- Scissor Doors: Realistic and functional scissor doors.
- Comfortable Seat: Equipped with a safety belt for secure riding.
- LED Headlights: Functional front LED lights.
- Multifunctional Control Panel: Includes music player, Bluetooth, and MP3 capabilities.
- Dual Driving Modes: Child manual control and parental remote control.
- Easy Towing: Rear wheels allow for easy transport when the battery is depleted.

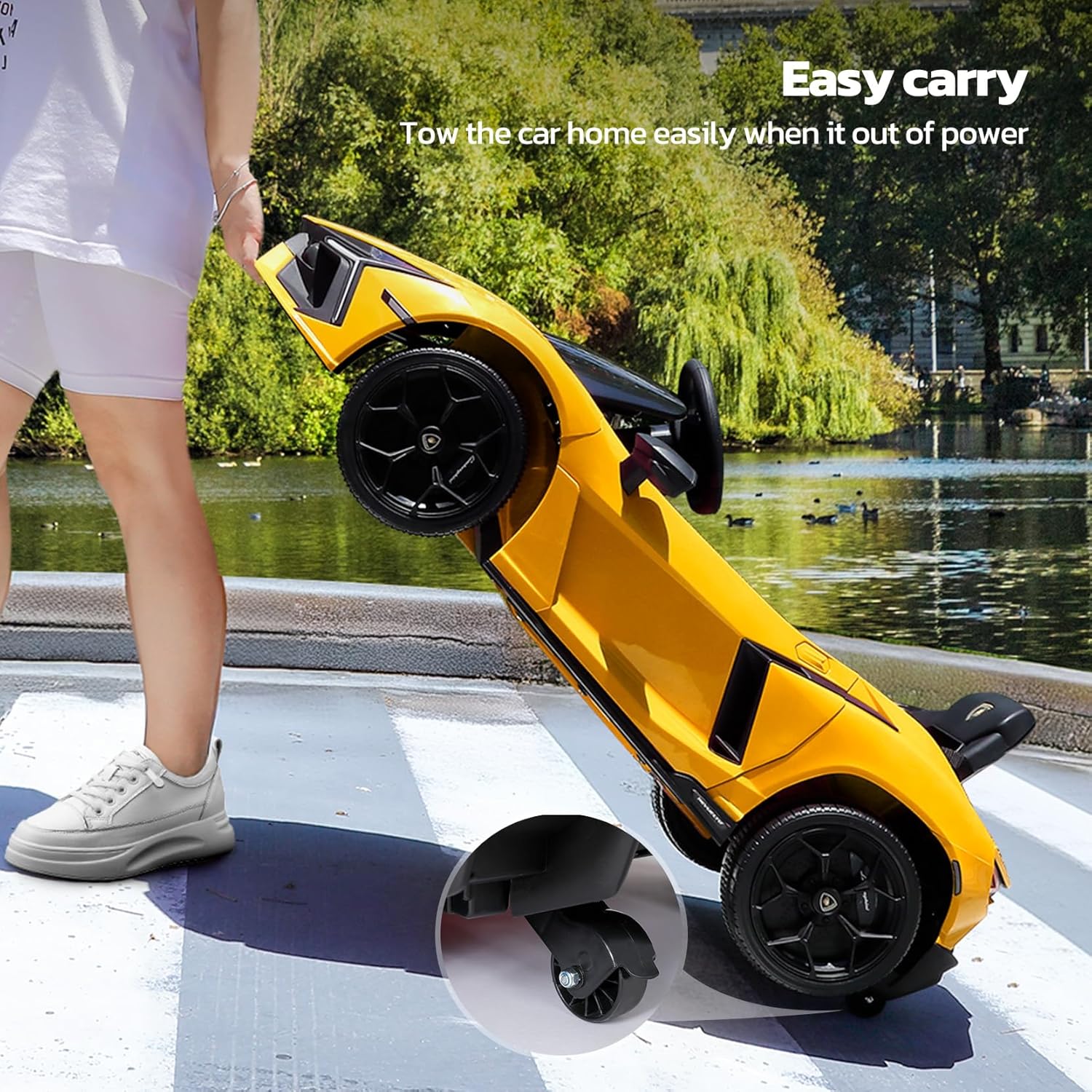

Image 6: A person easily towing the ride-on car by lifting the front, utilizing the small wheels located at the rear for convenient transport when the battery is low.
8. Maintenance
Regular maintenance ensures the longevity and safe operation of your ride-on car.
- Cleaning: Wipe the car with a soft, damp cloth. Do not use abrasive cleaners.
- Storage: Store the car in a dry, cool place away from direct sunlight.
- Battery Care: Charge the battery regularly, even if the car is not in use, to maintain battery health. If storing for extended periods, charge the battery once a month.
- Inspection: Periodically check all screws, nuts, and connections to ensure they are tight and secure.
9. Troubleshooting
If you encounter issues, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Car does not move | Battery low or disconnected; loose wiring; blown fuse. | Charge battery; check battery connections; inspect wiring; replace fuse if necessary. |
| Remote control not working | Remote batteries dead; remote not paired. | Replace remote batteries; re-pair remote control according to instructions. |
| Slow speed | Battery low; overloaded vehicle; operating on rough terrain. | Charge battery; ensure weight capacity is not exceeded; operate on smoother surfaces. |
10. Specifications
| Feature | Specification |
|---|---|
| Model Number | QLS-8603 |
| Dimensions (L x W x H) | 104.9 x 59.94 x 39.88 cm (41.3 x 23.6 x 15.7 inches) |
| Weight | 11.34 kg (25 lbs) |
| Battery | 12V Rechargeable |
| Motors | 2 x 35W |
| Speed | 1.9 - 3.1 mph (3-5 km/h) |
| Charging Time | 8 - 12 hours (18 hours for first charge) |
| Use Time | 30 - 45 minutes (approx.) |
| Recommended Age | 37 months and up |
| Weight Capacity | 66 lbs (approx. 30 kg) |
| Material | Metal |
| UPC | 840452632790 |
Image 7: Detailed dimensions of the ride-on car (41.3" L x 23.6" W x 15.7" H) and its maximum weight capacity of 66 lbs, scaled for a child.
11. Warranty and Support
For warranty information or technical support, please contact ELEMARA customer service. Keep your purchase receipt as proof of purchase.
Contact information can typically be found on the manufacturer's website or on the product packaging.
