1. Introduction
The Fazoxo BF11 Smart Bird Feeder Camera offers an innovative way to observe and interact with local birdlife. Featuring a 1080P Full HD camera with AI bird recognition, solar power, and instant notifications, this device enhances your bird watching experience. This manual provides detailed instructions to ensure optimal performance and enjoyment of your new smart bird feeder.
Image 1.1: The Fazoxo BF11 Smart Bird Feeder Camera, showcasing its design and key features including the camera, solar panel, and feeding tray.
2. What's Included
Your Fazoxo BF11 Smart Bird Feeder Camera package includes the following components:
- Bird Feeder Housing with integrated camera
- Solar Panel for continuous charging
- Mounting Bracket (for wall/pole)
- Tree Strap (for tree mounting)
- USB Charging Cable
- User Manual
- Small accessories for fruit/jelly (optional feeders)
- Installation screws and anchors
Image 2.1: All included components of the Fazoxo BF11 Smart Bird Feeder Camera, including the feeder, solar panel, mounting hardware, and accessories.
3. Setup Guide
3.1 Initial Charging & App Download
- Charge the Camera: Before installation, fully charge the built-in 5200mAh battery using the provided USB cable.
- Download the App: Scan the QR code in the user manual or search for the 'VicoHome' app in your smartphone's app store (Android/iOS). Install and create an account.
- Connect to Wi-Fi: Follow the in-app instructions to connect your camera to your 2.4GHz Wi-Fi network (5GHz is not supported).
3.2 Mounting Options
The Fazoxo BF11 offers versatile mounting options:
- Tree-mounted: Use the provided strap to secure the feeder to a tree trunk.
- Wall-mounted: Use the mounting bracket and screws to attach the feeder to a wall or fence.
- Pole-mounted: The mounting bracket can also be adapted for pole installation (pole not included).
Ensure the solar panel is positioned to receive maximum direct sunlight for continuous charging.
Image 3.1: The solar-powered bird feeder mounted on a wall, demonstrating its outdoor setup.
3.3 Filling the Feeder
Open the top lid of the feeder and pour your desired bird seed into the main compartment. The feeder has a capacity of 1.8 liters. You can also attach the optional fruit spikes or jelly feeder for a wider variety of bird food.
Video 3.1: A demonstration of how to install the bird feeder, including mounting and filling the seed compartment.
4. Operating Instructions
4.1 AI Bird Identification
The built-in AI can recognize over 11,000 bird species. This feature is ideal for learning about different birds visiting your feeder. Note that advanced species identification requires a cloud subscription. The basic version detects bird movement and stores confirmed bird videos.
Image 4.1: The AI bird recognition feature in action, identifying a Northern Cardinal at the feeder.
4.2 Instant Notifications & Cloud Storage
Receive instant notifications on your smartphone when birds are detected. Motion-activated videos are automatically saved to secure cloud storage (microSD cards are not supported). Cloud storage plans are available for 6 months or 1 year to ensure you never miss a moment.

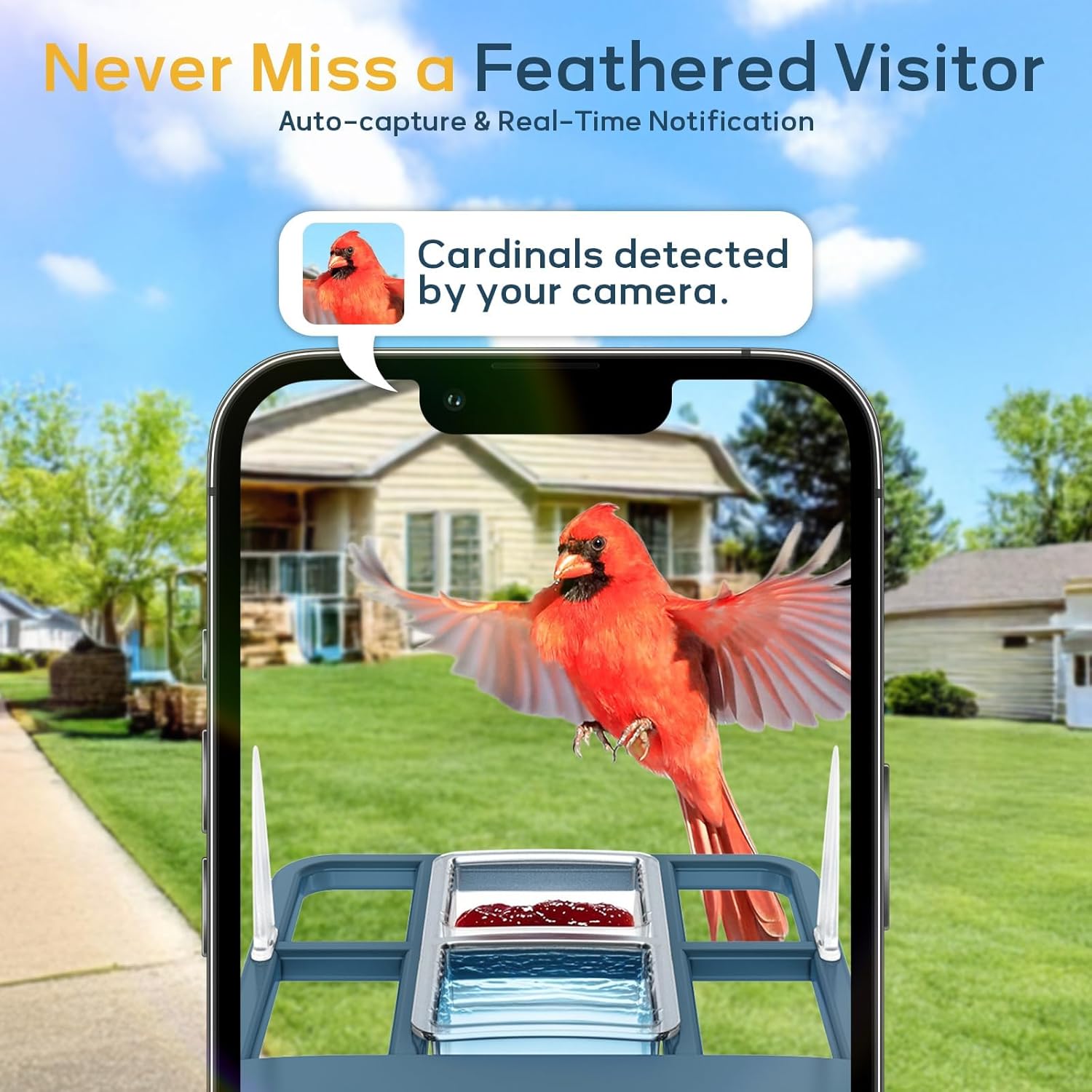

Image 4.2: A smartphone screen showing an instant notification indicating a cardinal has been detected by the camera.
4.3 1080P FHD Image Quality & Night Vision
The camera provides crystal clear 1080p HD video quality. Equipped with dual night vision modes (infrared and full color), it captures vivid recordings even in low-light conditions, allowing for continuous bird watching day and night.
Image 4.3: A split image showing the clear 1080P FHD video quality during the day and the effective night vision capabilities of the camera.
4.4 Sharing Features
Share your bird watching experience with family and friends through the app's sharing feature, allowing multiple users to enjoy the live feed and recorded videos.
Image 4.4: Illustration of multiple users sharing and viewing the bird feeder camera's feed on their mobile devices.
5. Maintenance
5.1 Weatherproof Design
The Fazoxo BF11 is IP65 weatherproof, ensuring reliable performance in various outdoor conditions including rain, snow, and sunshine. Regular checks for debris or blockages are recommended.

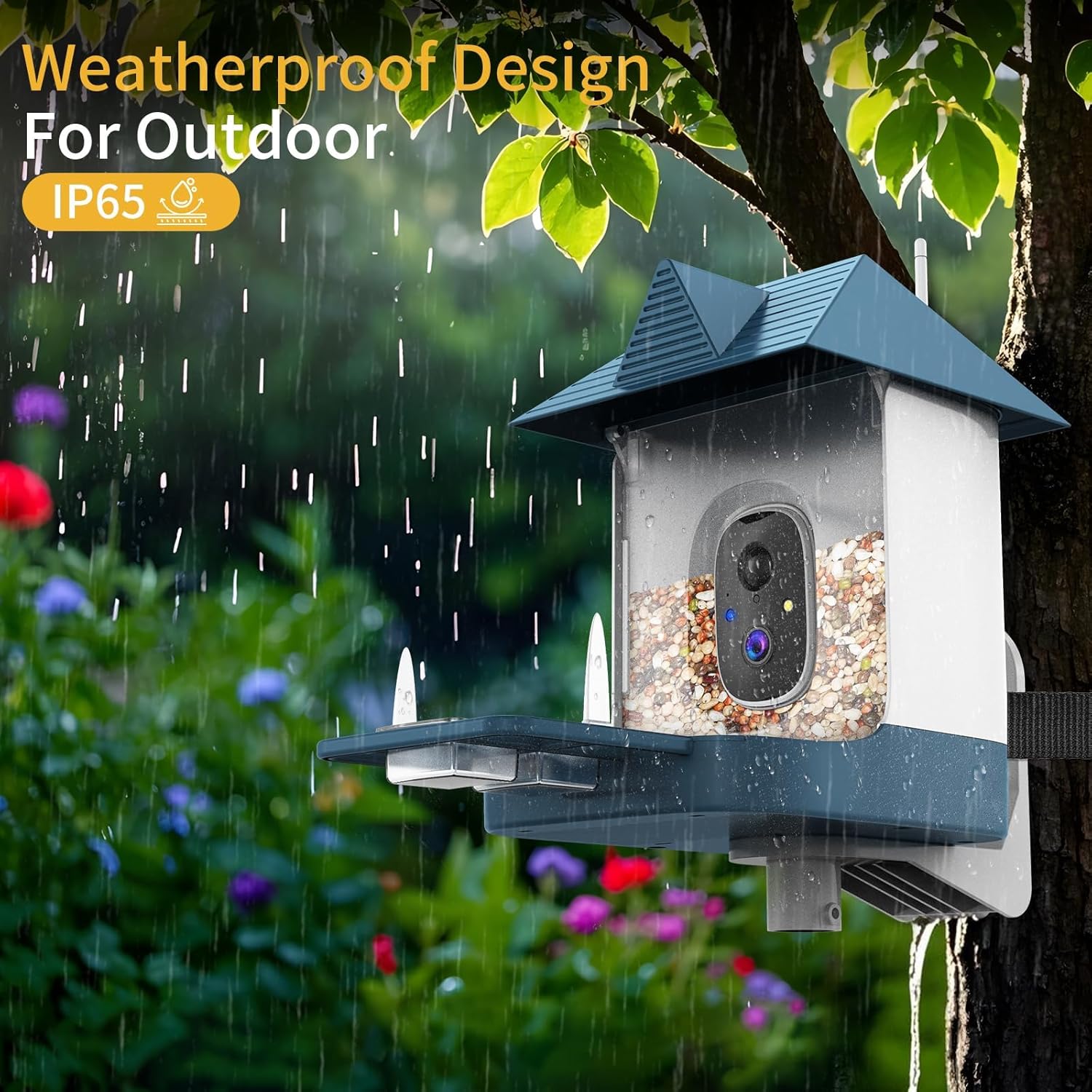

Image 5.1: The bird feeder camera demonstrating its weatherproof capabilities during rainfall.
5.2 Solar Power
The built-in 5200mAh battery is continuously charged by the solar panel. Ensure the solar panel is clean and positioned in an area with ample direct sunlight to maintain optimal battery levels and uninterrupted operation.
6. Troubleshooting
- Connectivity Issues: Ensure your Wi-Fi network is 2.4GHz. The camera does not support 5GHz Wi-Fi. Check your router's settings if you experience connection problems.
- Battery Not Charging: Verify the solar panel is clean and receiving direct sunlight. If issues persist, try charging the camera directly with the USB cable.
- AI Recognition Accuracy: Advanced species identification requires a cloud subscription. Basic detection focuses on bird movement.
- No Notifications: Check app settings to ensure notifications are enabled for the VicoHome app and your device.
7. Specifications
| Feature | Detail |
|---|---|
| Brand | Fazoxo |
| Model Number | BF11 |
| Camera Resolution | 1080P FHD |
| Night Vision | Infrared & Full Color |
| AI Recognition | Over 11,000 bird species (advanced features with subscription) |
| Power Source | Solar-powered, Built-in 5200mAh Lithium Ion battery |
| Connectivity | 2.4GHz Wi-Fi (5GHz not supported) |
| Weatherproof Rating | IP65 |
| Capacity | 1.8 Liters |
| Product Dimensions | 9.9"L x 8"W x 6.1"H |
| Item Weight | 1.79 Kilograms (3.94 pounds) |
8. Warranty and Support
For warranty information and customer support, please refer to the contact details provided in your product packaging or visit the official Fazoxo website. Keep your purchase receipt for warranty claims.
