DERCASS Metal Triple Bunk Bed Instruction Manual

1. Important Safety Information

Please read and understand all instructions before assembling and using this bunk bed. Keep this manual for future reference.

• Weight Capacity: The upper bed has a weight capacity of 250 lbs. Each of the bottom beds has a weight capacity of 350 lbs. Do not exceed these limits.
• Age Restriction: The upper bunk is not suitable for children under six years of age.
• Guardrails: Always use the guardrails on the upper bunk. Ensure they are properly installed and secured to prevent falls.
• Mattress Thickness: The recommended mattress thickness for the upper bed is 6 inches. For the bottom beds, the recommended mattress thickness is 8 inches. Ensure the mattress does not exceed the guardrail height.
• No Jumping: Do not allow jumping on the bed.
• Ladder Safety: Always use the ladder for entering and exiting the upper bunk. Ensure the ladder is securely attached.
• Regular Checks: Periodically check and ensure that all connectors are tight and the bed frame is stable.
• Ventilation: Ensure adequate ventilation around the bed.

2. Setup and Assembly

This DERCASS Metal Triple Bunk Bed requires assembly. It is designed for straightforward installation with clear instructions and all necessary tools included.

2.1 Unpacking and Component Check

• The product is shipped in two packages. Carefully unpack both packages and identify all components against the provided parts list.
• Ensure all hardware (screws, bolts, nuts, etc.) is present before beginning assembly. If any parts are missing or damaged, contact customer support immediately.

2.2 Assembly Process

Follow the step-by-step instructions provided in the included manual. Each part is numbered for easy identification.

• Assemble the bed frame components on a soft, clean surface to prevent scratches.
• Ensure all bolts are tightened securely, but do not overtighten until the entire structure is aligned.
• The bed can be assembled as an L-shape triple bunk bed or separated into three individual twin beds. Plan your desired configuration before final assembly.

Figure 1: Overall dimensions of the DERCASS Metal Triple Bunk Bed. The upper bed is 92.3 inches long, 41.7 inches wide, and 14.8 inches high (from mattress base to top of guardrail). The total height is 64.4 inches. The lower beds are 77.6 inches long and 41.7 inches wide.

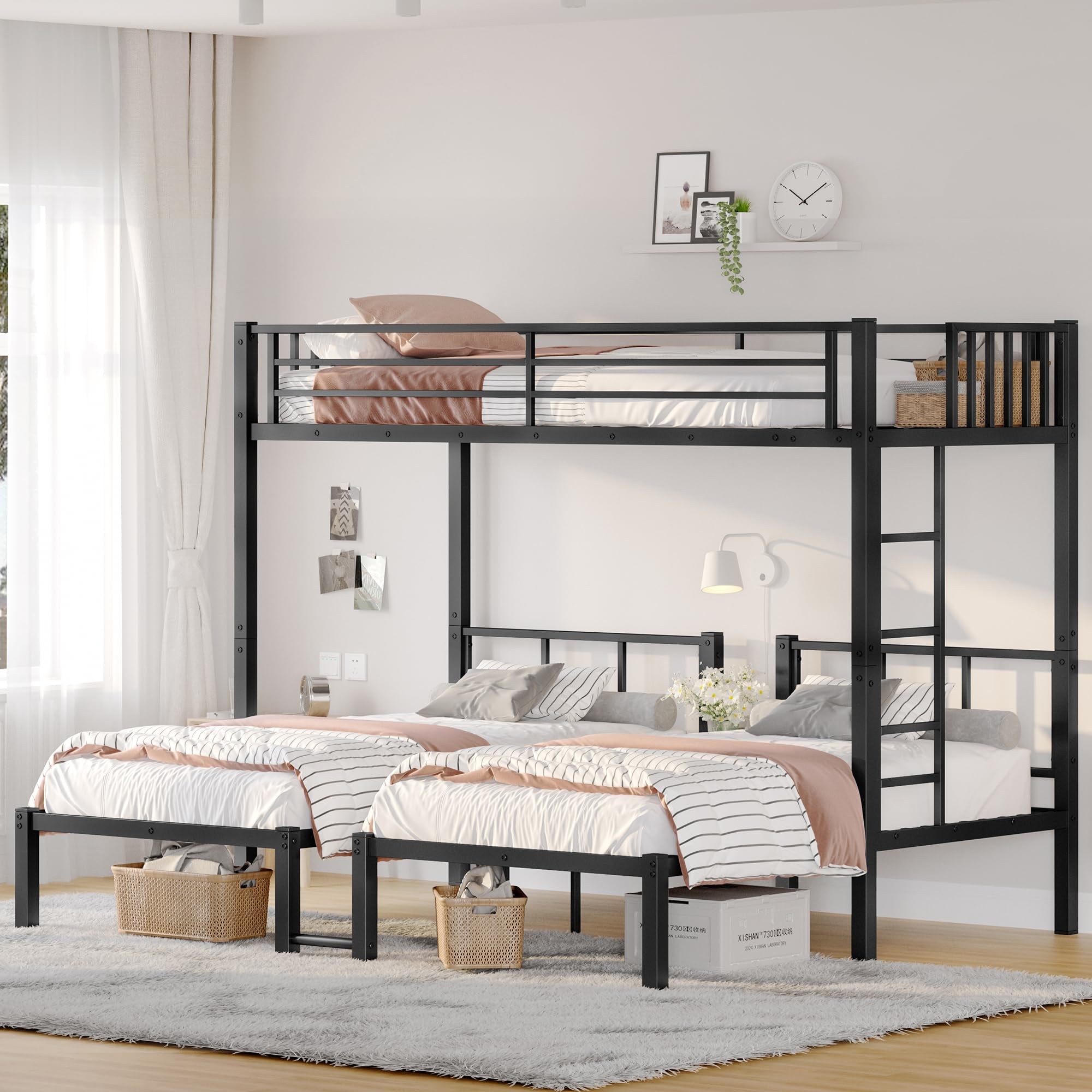

Figure 2: Front view of the DERCASS Metal Triple Bunk Bed in its L-shape configuration, highlighting the upper bunk and the two lower twin beds.

Figure 3: Side view of the DERCASS Metal Triple Bunk Bed, illustrating the ladder for upper bunk access and the overall metal frame construction.

3. Operating Instructions

This triple bunk bed offers versatile sleeping arrangements and integrated features for convenience.

3.1 Configuration Options

• L-Shape Triple Bunk Bed: The standard configuration provides an upper Twin XL bed and two lower Twin beds arranged in an L-shape, ideal for maximizing space.
• Three Separate Twin Beds: The bed frame can be detached to form three individual twin beds, offering flexibility as needs change.

Figure 4: The DERCASS Metal Triple Bunk Bed disassembled into three separate twin beds, demonstrating its versatility.

3.2 Integrated Features

• Upper Bed Shelf: The upper bed includes a shelf that can be used for storing clothes, books, or other small items. This shelf also allows the upper bed to accommodate a Twin XL mattress.
• Lower Bed Table: A small table is integrated between the two lower beds, providing a convenient surface for placing commonly used items or books.
• Built-in Ladder: A sturdy built-in ladder provides safe and easy access to the upper bunk.
• Protective Guardrails: All four sides of the upper bed are equipped with guardrails to ensure safety and prevent accidental falls.

Figure 5: Detail of the upper bunk, highlighting the integrated shelf and the protective guardrails.

Figure 6: Detail of the lower bed section, illustrating the small table positioned between the two twin beds.

4. Maintenance

Proper maintenance ensures the longevity and safety of your DERCASS Metal Triple Bunk Bed.

• Cleaning: Wipe the metal surfaces with a dry cloth to remove dust and dirt. Avoid using harsh chemicals or abrasive cleaners that could damage the finish.
• Hardware Check: Periodically inspect all bolts, screws, and connections to ensure they remain tight. Retighten any loose hardware to maintain stability and prevent squeaking.
• Structural Integrity: Regularly check the bed frame for any signs of damage, bending, or wear. If any issues are found, discontinue use and contact customer support.

5. Troubleshooting

This section addresses common issues you might encounter during assembly or use.

• Missing Parts/Hardware: If you find any parts or hardware missing upon unpacking, do not proceed with assembly. Refer to the parts list in your assembly manual and contact DERCASS customer support for replacements.
• Wobbly or Unstable Bed: Ensure all bolts and screws are fully tightened. If the bed still feels unstable, disassemble the affected section and reassemble, ensuring all components are correctly aligned before tightening.
• Squeaking Noises: Squeaking often indicates loose connections. Identify the source of the squeak and tighten the corresponding bolts. Applying a small amount of lubricant (e.g., silicone spray) to metal-on-metal contact points can also help.
• Difficulty Assembling: Review the assembly instructions carefully. Ensure you are using the correct hardware for each step. If you are still experiencing difficulties, consider seeking assistance from another person or contacting customer support.

6. Specifications

7. Warranty Information

Specific warranty details for the DERCASS Metal Triple Bunk Bed are typically provided at the point of purchase or within the product packaging. For comprehensive warranty information, including coverage duration and terms, please refer to the documentation included with your purchase or contact DERCASS customer support directly.

8. Customer Support

Should you have any questions regarding the assembly, operation, maintenance, or any other aspect of your DERCASS Metal Triple Bunk Bed, please do not hesitate to contact our customer support team.

We are committed to providing assistance and will do our best to resolve any issues you may encounter.

Please have your model number (W1580S0007) and purchase details ready when contacting support to ensure a swift resolution.
