1. Introduction and Overview
The Elica NikolaTesla Libra Black is an advanced induction hob featuring an integrated hood and an integrated scale. This appliance combines three essential kitchen functions into a single, sleek unit, designed to enhance cooking comfort and functionality. Its modern design, crafted from black tempered glass and durable cast iron grilles, integrates seamlessly into contemporary kitchen environments.
Key integrated features include:
- Induction Hob: Equipped with four cooking zones, offering the flexibility to combine two zones into a single large area using the Bridge Zone function, ideal for larger pots and pans.
- Integrated Hood: Features Autocapture technology, which automatically adjusts the suction power based on cooking intensity, ensuring optimal air purification.
- Integrated Scale: Allows for direct weighing on the hob surface, complete with tare, progressive weighing, and measurement memory functions for precise recipe execution.

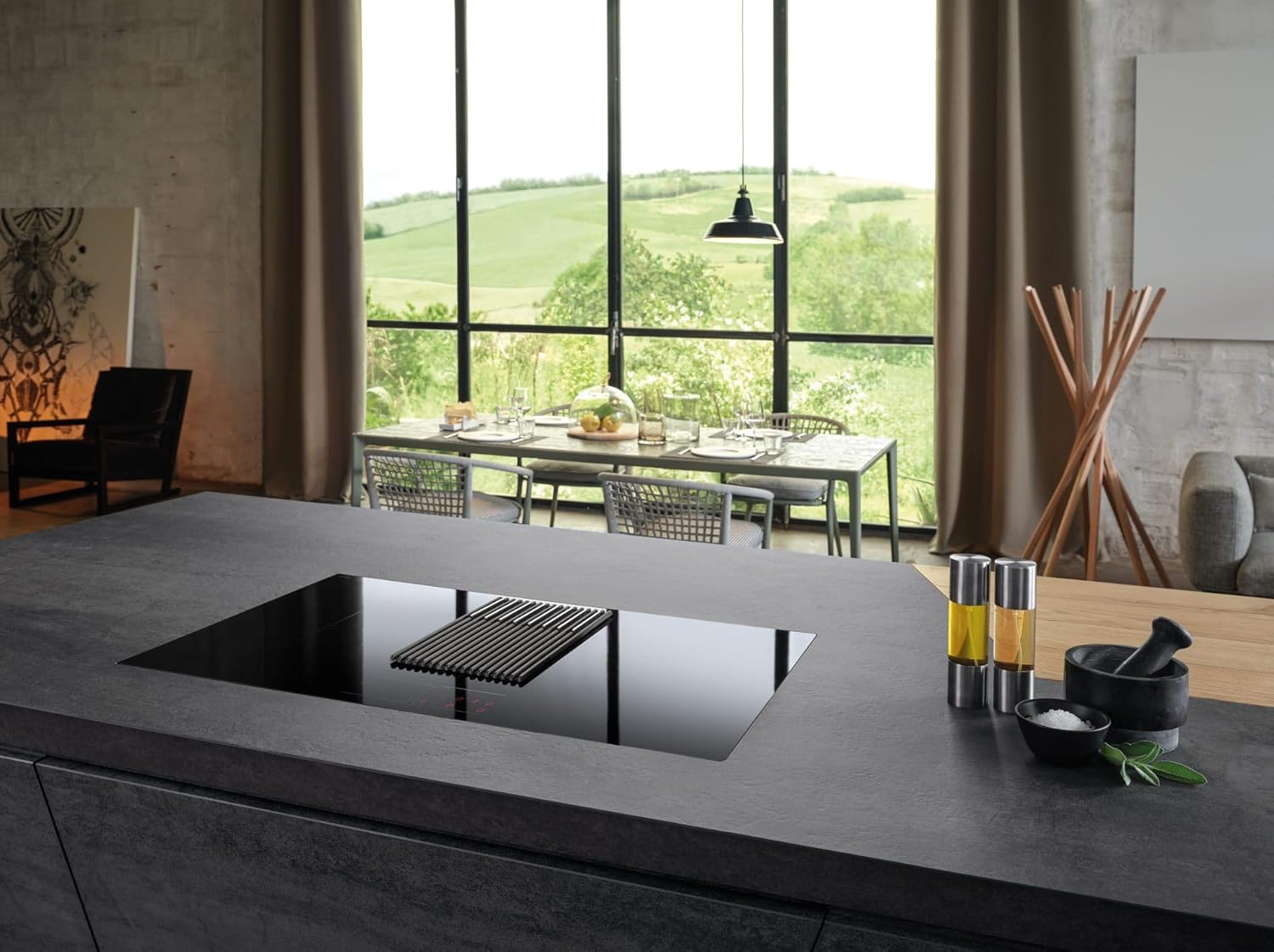

Image 1.1: The Elica NikolaTesla Libra Black induction hob with integrated hood, showcasing its seamless integration into a modern kitchen setting.
2. What's in the Box
Upon unpacking, ensure all components are present and undamaged. The package should contain:
- Elica NIKOLATESLA LIBRA EVO BL/A/83 Induction Hob with Integrated Hood
- Installation Manual
- User Guide
- Mounting Hardware (if applicable)
3. Setup and Installation
The Elica NikolaTesla Libra is designed for 'Total Integration' and 'Super Easy Installation'. However, for safety and optimal performance, professional installation by a qualified technician is strongly recommended.
3.1. Pre-Installation Checks
- Verify that the electrical supply meets the appliance's requirements (220-240V, 3.1 kW - 4.5 kW power limiter).
- Ensure adequate ventilation space is available for the integrated hood system.
- Confirm cabinet and countertop dimensions accommodate the appliance.
3.2. Dimensions and Cutout
The appliance dimensions are 83 cm (width) x 51.5 cm (depth) x 21 cm (height). The required cutout dimensions for installation are 80.7 cm x 49.2 cm. Refer to the detailed installation manual provided with the product for precise cutout templates and instructions.
3.3. Electrical Connection
Connect the appliance to a dedicated electrical circuit as per local electrical codes. The total power consumption is 7.4 kW. Ensure proper grounding.
3.4. Ducting or Recirculation Setup
The integrated hood can operate in either ducting (extraction) or recirculation (filtering) mode. Ensure the appropriate setup is configured during installation. For recirculation mode, ensure the Long Life Filter++ is correctly installed.
4. Operating Instructions
The Elica NikolaTesla Libra features intuitive touch slider controls for both the induction hob and the integrated hood.
4.1. General Controls
The appliance is controlled via a touch slider interface. The hob functions are managed by a 9P+B touch slider, while the hood functions use a 4S+B touch slider. These allow for precise adjustment of heating power and suction intensity.
Image 4.1: Operating the touch slider controls for the induction hob and integrated hood.
4.2. Induction Hob Operation
Place induction-compatible cookware centrally on the desired cooking zone. Use the touch slider to select the zone and adjust the power level (P+B for 9 power levels plus Boost).
- Cooking Zones: The hob has four cooking zones: Front Left (OCTA 21x19.1 cm, 1.65/1.85 kW), Front Right (OCTA 21x19.1 cm, 1.65/1.85 kW), Rear Left (OCTA 21x19.1 cm, 2.1/3 kW), Rear Right (OCTA 21x19.1 cm, 2.1/3 kW).
- Bridge Zone Function: To activate, select two adjacent cooking zones and press the Bridge Zone button. This combines them into a single large heating surface, ideal for griddle pans or large oval pots.
- Warming Mode: Select a cooking zone and activate the warming function to gently heat or keep food warm at a consistent low temperature.
- Stop&Go Function: Press the Stop&Go button to pause all active cooking zones. Press again to resume cooking with the previous settings.
- Child Lock: Activate the child lock to prevent accidental operation of the hob controls. Refer to the detailed manual for activation and deactivation steps.
- Timer: Set a precise cooking duration for individual zones. The zone will automatically switch off once the timer expires.

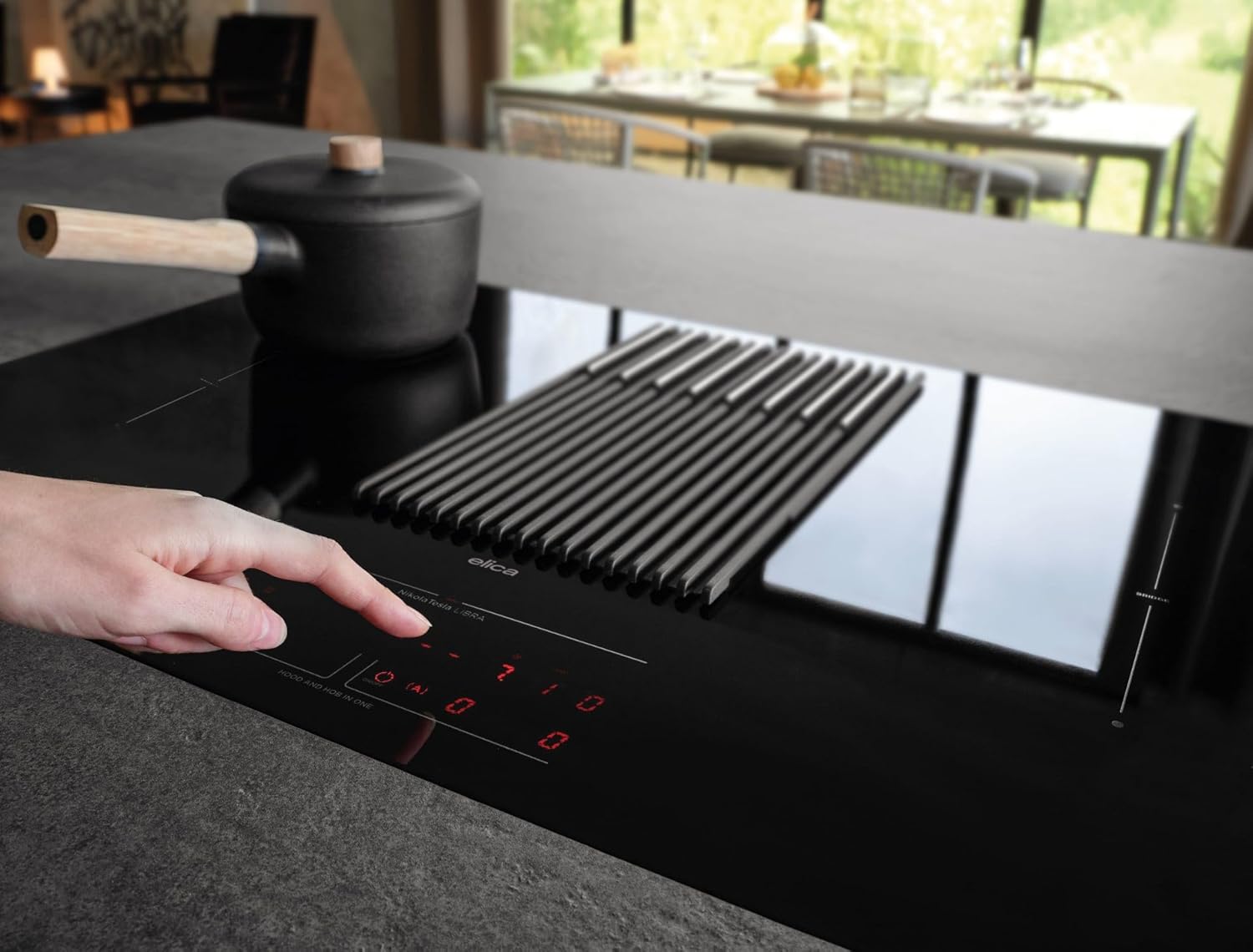

Image 4.2: Adjusting cooking power on the induction hob.
4.3. Integrated Hood Operation
The integrated hood effectively removes cooking fumes and odors. Use the 4S+B touch slider to control its functions.
- Autocapture Technology: When activated, the hood automatically detects the intensity of cooking vapors and adjusts its suction power accordingly, optimizing air purification and energy consumption.
- Manual Speed Adjustment: You can manually select from 4 speed settings (S) or activate the Boost mode (B) for maximum suction power (up to 600 m³/h in ducting mode).

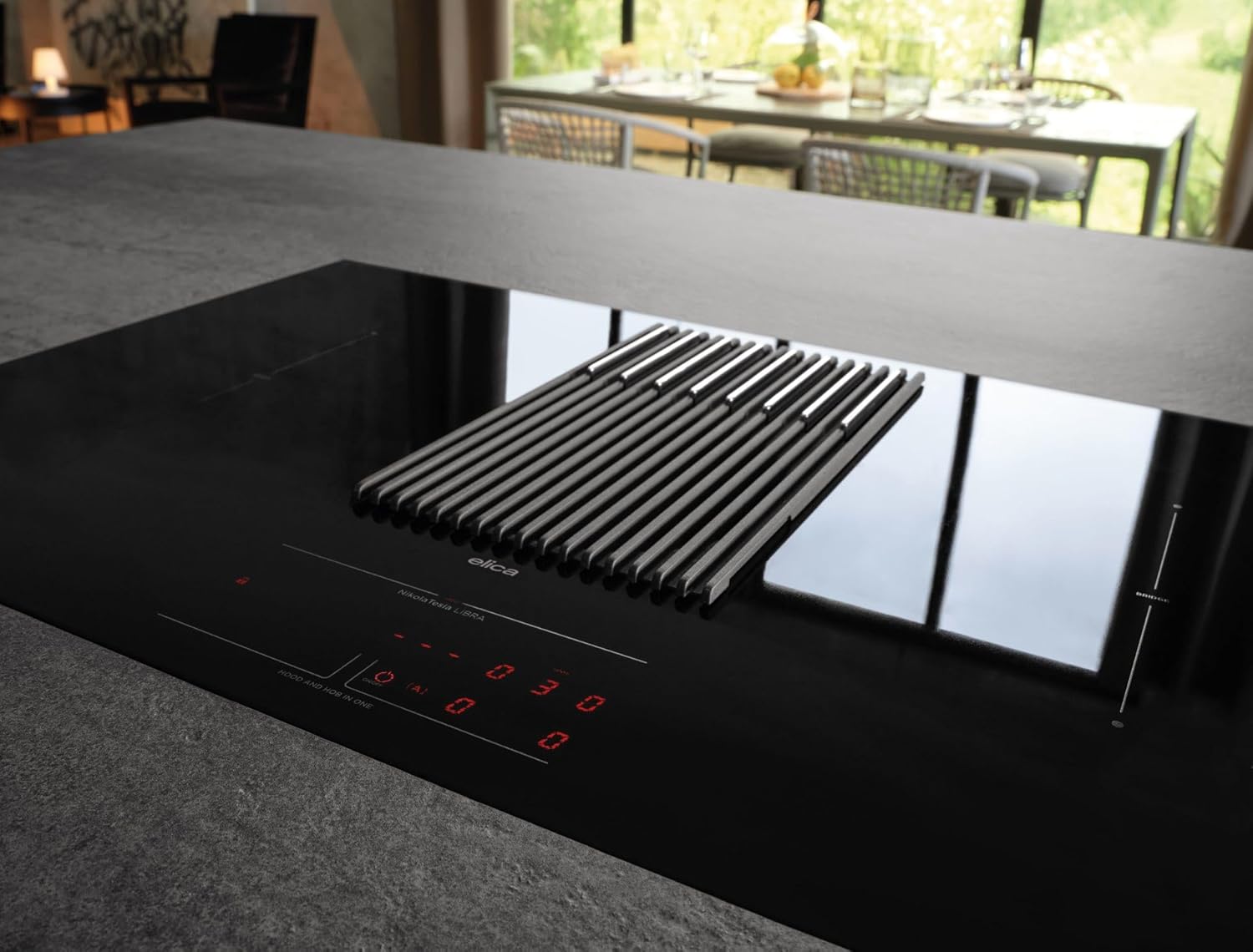

Image 4.3: The control panel and integrated hood grilles.
4.4. Integrated Scale Operation
The integrated scale allows for precise weighing of ingredients directly on the hob surface.
- Direct Weighing: Place an item on the designated weighing area (refer to the manual for exact location) to display its weight.
- Tare Function: Use the tare function to reset the scale to zero after placing a container, allowing you to weigh ingredients accurately.
- Progressive Weighing: Add ingredients one by one, using the tare function between additions, to measure multiple items in the same container.
- Measurement Memory: The scale can store previous measurements, useful for complex recipes.
Image 4.4: Utilizing the integrated scale for precise ingredient measurement.
5. Maintenance
Regular maintenance ensures the longevity and optimal performance of your Elica NikolaTesla Libra.
5.1. Long Life Filter++ Maintenance
The Long Life Filter++ is designed for extended use and can be regenerated. These filters maintain maximum efficiency for 3-5 years.
- Cleaning: The filters should be cleaned regularly (e.g., every 2-3 months depending on usage) by washing them in a dishwasher at a low temperature or by hand with mild detergent.
- Regeneration: After washing, regenerate the filters by baking them in an oven at 100°C (212°F) for approximately 10 minutes. This reactivates their filtering properties.
- Replacement: Replace the filters every 3-5 years, or sooner if their performance significantly degrades despite cleaning and regeneration.
5.2. Surface Cleaning
Clean the black tempered glass surface and cast iron grilles regularly using a soft cloth and a non-abrasive cleaner suitable for glass and metal surfaces. Avoid harsh chemicals or abrasive pads that could scratch the surface.
6. Troubleshooting
If you encounter issues with your Elica NikolaTesla Libra, refer to the following general troubleshooting steps. For more specific problems, consult the comprehensive troubleshooting section in the full product manual or contact customer support.
- Appliance Not Turning On: Check if the appliance is properly connected to the power supply and if the circuit breaker has tripped.
- Induction Hob Not Heating: Ensure that induction-compatible cookware is being used and that it is correctly positioned on the cooking zone.
- Hood Suction Weak: Check if the filters are clean and properly installed. Ensure there are no obstructions in the air ducts (if in ducting mode).
- Controls Unresponsive: Ensure the child lock is not activated. Try turning the appliance off and on again at the main power supply.
If the problem persists after attempting these steps, contact Elica customer support for assistance.
7. Specifications
| Feature | Specification |
|---|---|
| Model Number | PRF0196340 |
| Weight | 26.5 kg |
| Finish | Black Glass + Cast Iron |
| Dimensions (W x D x H) | 83 x 51.5 x 21 cm |
| Energy Class | A+ |
| Cutout Dimensions (W x D) | 80.7 x 49.2 cm |
| Total Power Consumption | 7.4 kW |
| Voltage | 220-240V |
| Power Limiter | 3.1 kW - 4.5 kW |
| Hood Control | Touch Slider 4S+B |
| Hood Total Consumption | 160 W |
| Hob Control | Touch Slider 9P+B |
| Air Absorption (Ducting Min/Max/Boost) | 160 m³/h / 480 m³/h / 600 m³/h |
| Air Absorption (Filtering Min/Max/Intensive) | 145 m³/h / 435 m³/h / 550 m³/h |
| Absorption Speed | 5.1 m/s |
| Sound Level (Hood Min-Max) | 38 dB(A) - 64 dB(A) |
| Sound Level (Filter Min-Max) | 41 dB(A) - 67 dB(A) |
| Cooking Zone - Front Left | OCTA 21x19.1 cm - 1.65/1.85 kW |
| Cooking Zone - Front Right | OCTA 21x19.1 cm - 1.65/1.85 kW |
| Cooking Zone - Rear Left | OCTA 21x19.1 cm - 2.1/3 kW |
| Cooking Zone - Rear Right | OCTA 21x19.1 cm - 2.1/3 kW |
8. Warranty and Support
Elica products are manufactured to high-quality standards and come with a manufacturer's warranty. For detailed information regarding the warranty period, terms, and conditions, please refer to the warranty card included with your product or visit the official Elica website.
For technical assistance, spare parts, or any inquiries regarding your Elica NikolaTesla Libra, please contact Elica customer support. Ensure you have your model number (PRF0196340) and purchase details available when contacting support.
You can find contact information for Elica customer service on their official website or in the documentation provided with your appliance.
