1. Introduction
This manual provides essential information for the installation, operation, and maintenance of your new UPTBSFLS Starter Motor for Loncin LX200 ATV Motorcycles. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the product.
This starter motor is designed as a replacement or repair part for faults and defects in Loncin LX200 ATV motorcycles. It is important to note that this is not an original manufacturer's part.
2. Product Overview

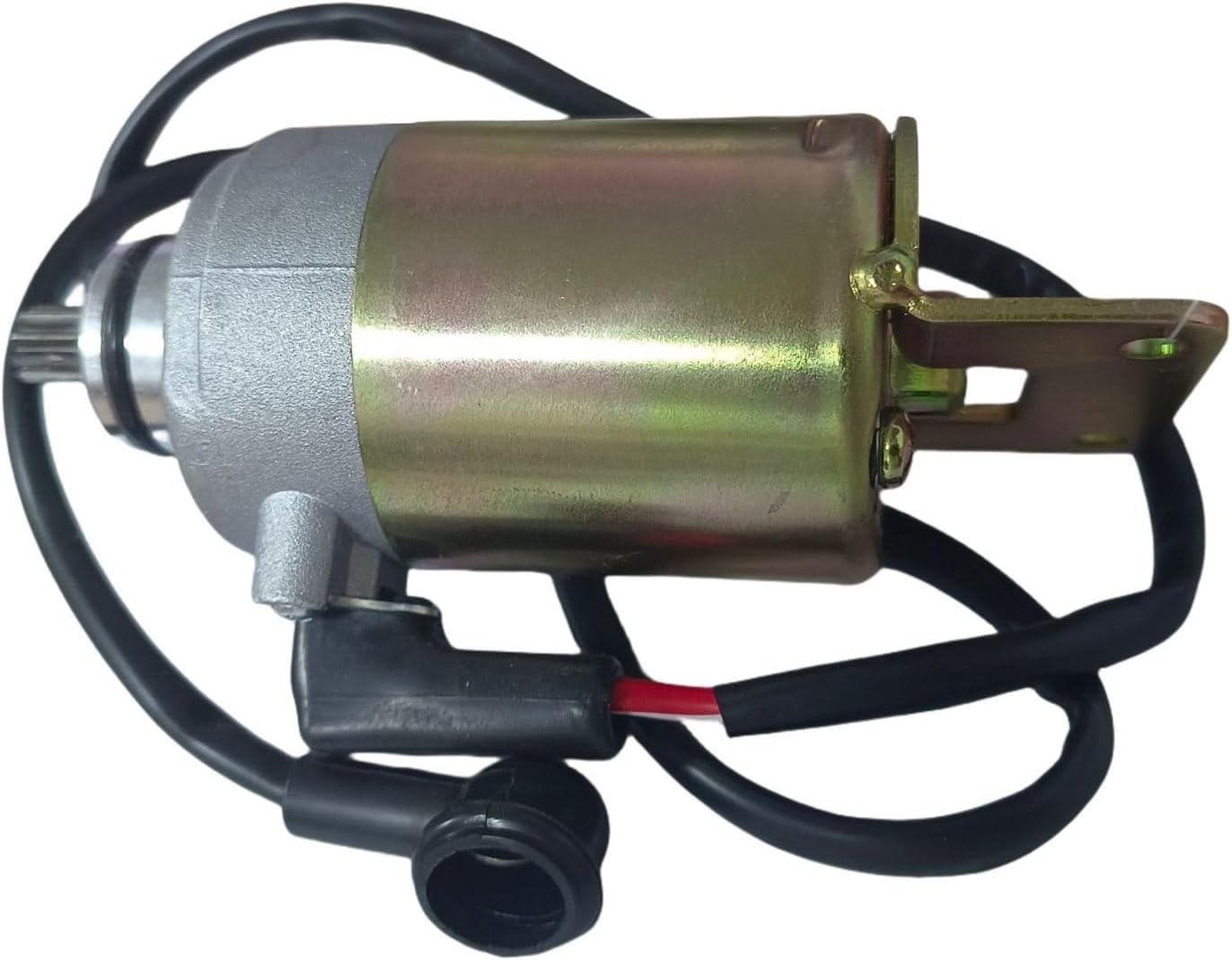

The UPTBSFLS Starter Motor is engineered for durability and reliable performance. Key features include:
- Waterproof Design: Constructed to withstand various environmental conditions.
- Durable Construction: Built with robust materials for extended service life.
- Carbon Brush Type: Utilizes carbon brushes for efficient electrical contact.
- Simple Installation: Designed for straightforward replacement without complicated steps.
3. Specifications
| Attribute | Detail |
|---|---|
| Product Name | Motorcycle Starter Motor |
| Compatibility | Loncin LX200 ATV Motorcycle |
| Brand | UPTBSFLS |
| Item Weight | 1000 Grams |
| Material | Metal |
| Number of Pieces | 1 |
| Assembly Required | No (Direct replacement) |
4. Setup and Installation
Installation of the starter motor is designed to be straightforward. However, it is recommended that installation be performed by a qualified mechanic or an individual with experience in motorcycle electrical systems.
4.1 Safety Precautions
- Always disconnect the negative terminal of the battery before beginning any electrical work on your motorcycle.
- Ensure the motorcycle is stable and on a level surface.
- Wear appropriate personal protective equipment (PPE), such as gloves and eye protection.
- Refer to your Loncin LX200 ATV's service manual for specific instructions regarding starter motor removal and installation.
4.2 Installation Steps
- Locate the Existing Starter Motor: Identify the position of the old starter motor on your Loncin LX200 ATV.
- Disconnect Wiring: Carefully disconnect all electrical wiring connected to the old starter motor. Note the position of each wire for correct re-connection.
- Remove Mounting Bolts: Unscrew and remove the bolts securing the old starter motor to the engine block.
- Remove Old Motor: Gently pull out the old starter motor. Be mindful of any gaskets or seals that may need replacement.
- Install New Motor: Position the new UPTBSFLS starter motor in place, ensuring it aligns correctly with the mounting points and the engine's flywheel/gear.
- Secure Mounting Bolts: Re-insert and tighten the mounting bolts. Refer to your ATV's manual for torque specifications.
- Reconnect Wiring: Reconnect all electrical wiring to the new starter motor, ensuring secure and correct connections.
- Reconnect Battery: Reconnect the negative terminal of the battery.
- Test Functionality: Attempt to start the ATV to confirm the new starter motor is functioning correctly.
Tip: Before placing the order, it is recommended to compare the model and year of your motorcycle with the product details to ensure compatibility.
5. Operating Instructions
Once installed, the UPTBSFLS Starter Motor operates as a direct replacement for your original starter motor. Its function is to crank the engine to initiate combustion.
5.1 Starting the ATV
- Ensure the ATV is in neutral or the clutch is engaged (if applicable).
- Turn the ignition key to the "ON" position.
- Press the starter button. The starter motor will engage, turning the engine over.
- Once the engine starts, release the starter button immediately. Do not hold the button down once the engine is running.
Note: Prolonged cranking can overheat the starter motor and drain the battery. If the engine does not start after a few seconds, release the button and wait for a short period before trying again.
6. Maintenance
The UPTBSFLS Starter Motor is designed for minimal maintenance. However, regular checks of your ATV's electrical system can help ensure its longevity and reliable performance.
- Battery Health: Ensure your ATV's battery is fully charged and in good condition. A weak battery can put undue strain on the starter motor.
- Electrical Connections: Periodically check all electrical connections to the starter motor and battery for corrosion or looseness. Clean terminals as necessary.
- Mounting Security: Verify that the starter motor remains securely mounted to the engine block.
- Environmental Exposure: While the motor is waterproof, excessive exposure to harsh chemicals or prolonged submersion should be avoided.
7. Troubleshooting
If you experience issues with your starter motor, consider the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Starter motor does not engage or makes a clicking sound. | Low battery charge, loose battery terminals, faulty starter solenoid, or wiring issue. | Charge or replace battery. Clean and tighten battery terminals. Check starter solenoid and wiring connections. |
| Starter motor cranks slowly. | Weak battery, corroded battery cables, or excessive resistance in the circuit. | Test battery voltage and charge if low. Inspect and clean battery cables and connections. |
| Starter motor spins but engine does not crank. | Bendix drive (starter gear) not engaging with flywheel, or damaged flywheel teeth. | Inspect the starter gear and flywheel for damage. This may require professional inspection. |
| Burning smell or smoke from starter motor. | Overheating due to prolonged cranking, short circuit, or internal damage. | Immediately stop attempting to start. Disconnect battery. Seek professional assistance as internal damage may be present. |
If the problem persists after attempting these solutions, it is recommended to consult a professional motorcycle mechanic.
8. Warranty and Support
This product is designed to be a reliable replacement part. While specific warranty details are not provided in this manual, the manufacturer is committed to customer satisfaction.
If you have any questions, concerns, or require assistance with your UPTBSFLS Starter Motor, please do not hesitate to contact the seller or manufacturer. We aim to reply to your inquiries as soon as possible.
When contacting support, please be prepared to provide the specific model and year of your Loncin LX200 ATV, as this information helps in providing accurate assistance.
