Patiowell Motorized Patio Umbrella Instruction Manual

Introduction

Thank you for choosing the Patiowell Motorized Patio Umbrella. This manual provides essential information for the safe and efficient use of your new umbrella. Please read these instructions carefully before assembly and operation, and retain them for future reference.

The Patiowell Motorized Patio Umbrella is designed to provide convenient and effective shade for your outdoor living spaces. Featuring a motorized open/close system, a long-lasting power bank, and durable construction, it offers a blend of comfort and reliability.

Safety Information

• Wind Conditions: Do not use the umbrella in strong winds. High winds can cause damage to the umbrella and potential injury. Close the umbrella immediately if strong winds are anticipated or occur.
• Anchoring: Ensure the umbrella base is properly weighted or anchored to prevent tipping, especially in moderate wind conditions.
• Clearance: Maintain adequate clearance around the umbrella during opening and closing to avoid obstructions or contact with people.
• Children and Pets: Keep children and pets away from the umbrella during operation. The motorized mechanism contains moving parts.
• Electrical Safety: The power bank and motor are designed for outdoor use with an IP64 weatherproof rating. However, avoid submerging the power bank or exposing it to excessive moisture. Ensure charging ports are dry before connecting cables.
• Maintenance: Regularly inspect the umbrella for any signs of wear or damage. Do not operate if any components are compromised.

Package Contents

Verify that all components are present in the package:

• Umbrella Canopy Assembly
• Umbrella Pole (Upper and Lower sections)
• Power Bank (10400mAh)
• Remote Control
• Charging Cable for Power Bank
• User Manual (this document)

Setup and Assembly

Assembly of the Patiowell Motorized Patio Umbrella is designed to be straightforward. It is recommended to fully charge the power bank before beginning the assembly process.

1. Charge the Power Bank: Before initial use, fully charge the 10400mAh power bank using the provided charging cable. The power bank features a battery life indicator.
2. Assemble the Pole: Connect the upper and lower sections of the umbrella pole. Ensure they are securely fastened.
3. Attach the Power Bank: Insert the charged power bank into its designated slot on the umbrella pole. Ensure it clicks into place securely.
4. Insert into Base: Place the assembled umbrella pole into a suitable, weighted umbrella base (sold separately). Ensure the base is stable and heavy enough to support the umbrella.
5. Secure the Canopy: If the canopy is not pre-attached, follow the instructions to securely attach it to the frame. The canopy is designed with a screw-locked mechanism for stability.

Assembly Video

Operating Instructions

Motorized Open/Close

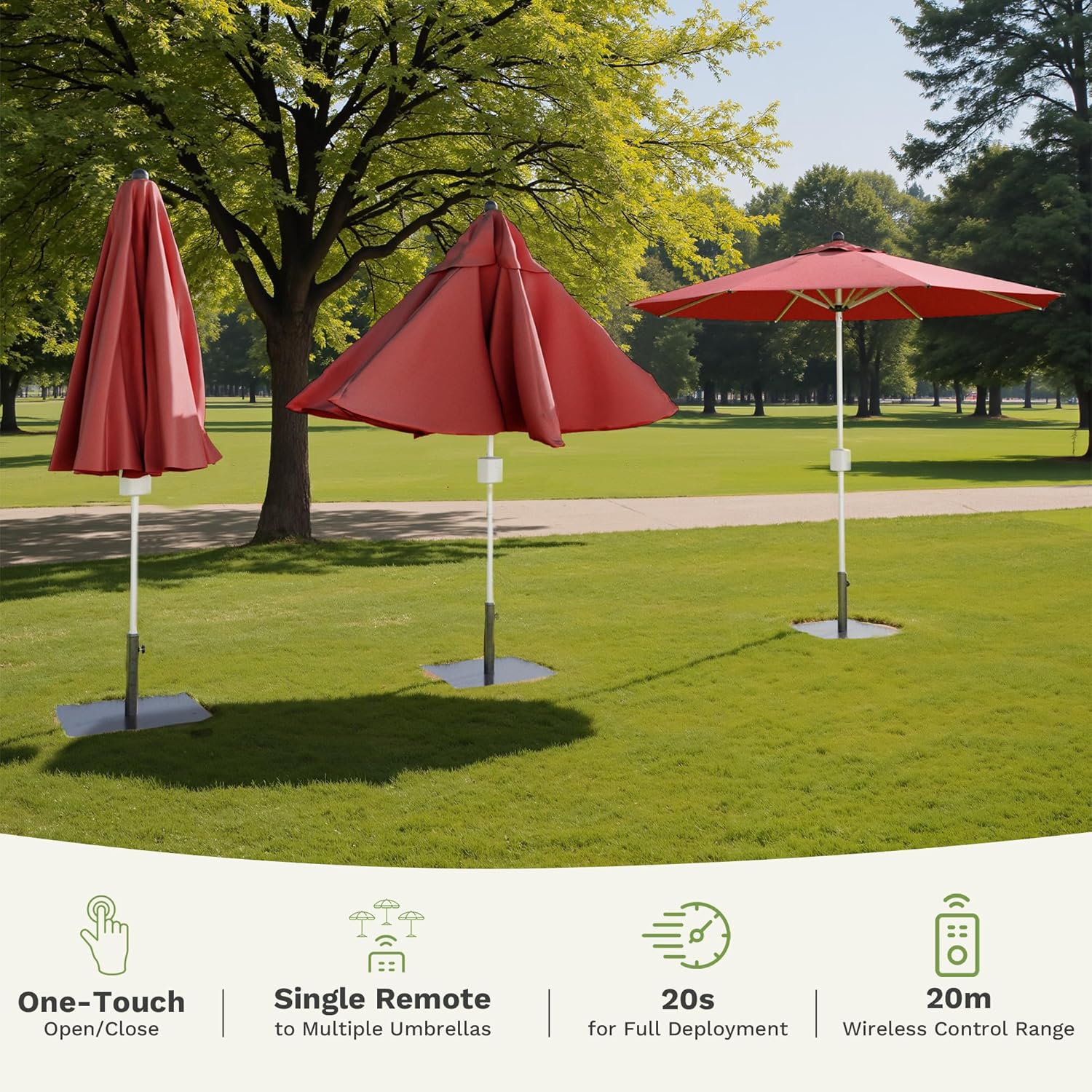

The Patiowell Motorized Patio Umbrella features a remote-controlled open and close mechanism.

• Opening: Press the 'Up' button on the remote control to automatically open the umbrella. The canopy will fully deploy in approximately 20 seconds.
• Closing: Press the 'Down' button on the remote control to automatically close the umbrella.
• Obstacle Detection: The motor is equipped with an auto-pause feature that will stop operation if an obstruction is detected.
• Remote Range: The remote control operates within a 20-meter wireless range and uses robust 433MHz signals, allowing control through walls.
• Multiple Umbrellas: A single remote can be programmed to control multiple Patiowell motorized umbrellas. Refer to the remote control pairing instructions for details.

Power Bank Usage

The integrated power bank not only powers the umbrella's motor but also serves as a portable charger for your devices.

• Battery Life: A single full charge provides approximately 3 months of daily umbrella use.
• Charging Devices: The power bank features dual-way fast charging ports (USB-A and USB-C) to charge your mobile devices.
• Battery Display: The power bank includes a real-time battery display to monitor its charge level.
• Detachable: The power bank is detachable, allowing it to be removed for charging or use as a standalone portable charger.

Manual Tilt

The umbrella features a manual tilt mechanism to adjust the canopy angle for optimal shade throughout the day.

• Locate the tilt button or lever on the umbrella pole.
• Press or engage the mechanism and gently tilt the canopy to the desired angle.
• Release the button/lever to lock the canopy in position.

Maintenance

Proper maintenance ensures the longevity and performance of your Patiowell Motorized Patio Umbrella.

• Cleaning the Canopy: The polyester canopy can be wiped with a damp cloth for general cleaning. If necessary, it can be machine washed. Ensure the canopy is completely dry before closing the umbrella for extended periods to prevent mildew.
• Frame Care: The anodized aluminum frame resists chipping and corrosion. Clean with a soft cloth and mild soap solution. Avoid abrasive cleaners.
• Power Bank Care: Keep the power bank dry and clean. Store it in a cool, dry place when not in use for extended periods. Recharge periodically to maintain battery health.
• Winter Storage: In colder climates or during off-season, it is recommended to store the umbrella indoors in a dry environment to protect it from harsh weather conditions.

Troubleshooting

If you encounter issues with your Patiowell Motorized Patio Umbrella, refer to the following common solutions:

• Umbrella Not Opening/Closing:
  • Check if the power bank is fully charged and securely inserted.
  • Ensure the remote control has working batteries and is within the 20m operating range.
  • Verify there are no obstructions preventing the canopy from moving.
• Remote Control Not Responding:
  • Replace the remote control batteries.
  • Re-pair the remote control with the umbrella if necessary (refer to specific pairing instructions in the full manual, if provided).
• Power Bank Not Charging Devices:
  • Ensure the power bank itself is charged.
  • Check the charging cable and device for proper connection.

For further assistance, please contact Patiowell customer support.

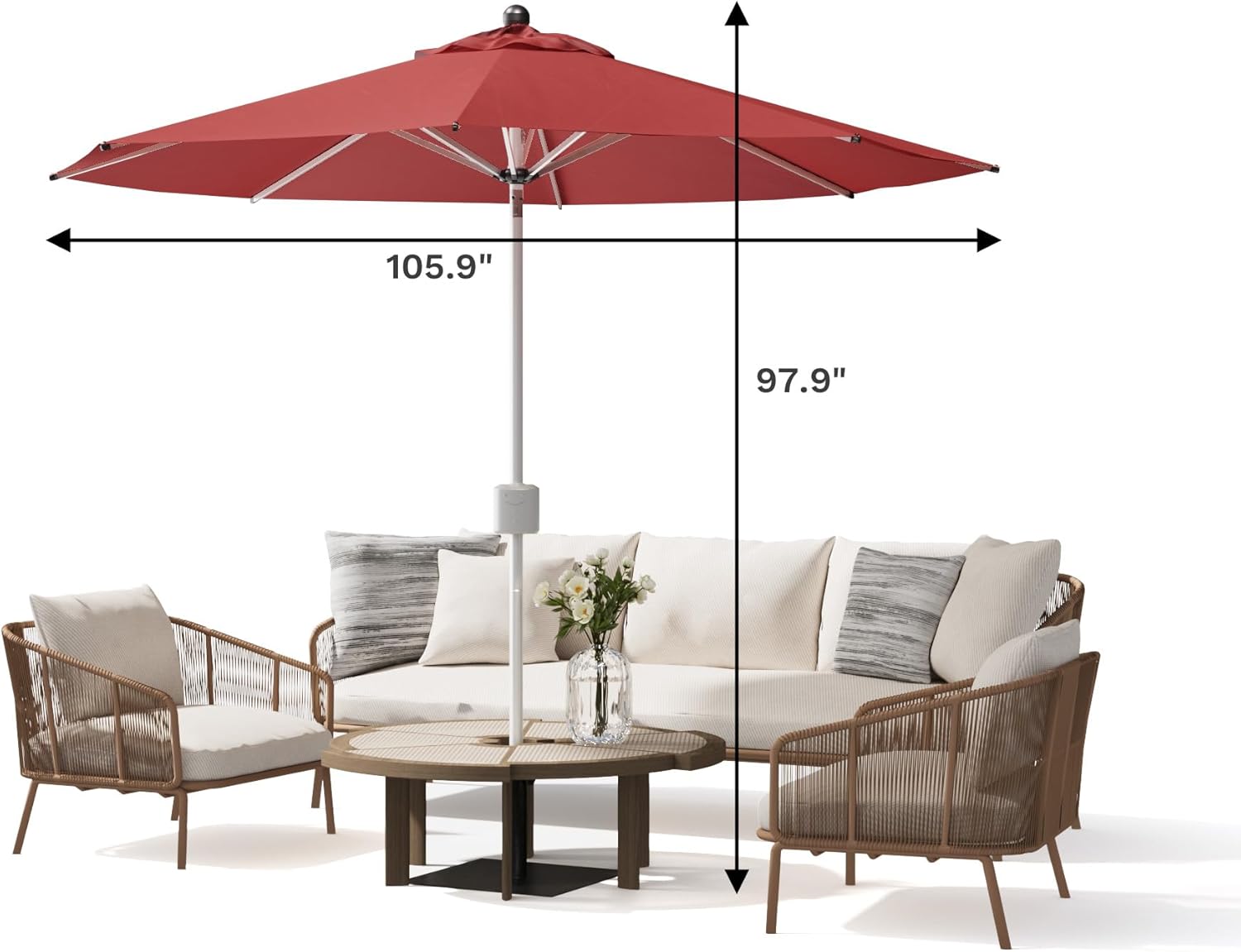

Specifications

Warranty and Support

The Patiowell Motorized Patio Umbrella comes with the following warranty:

• Canopy: 5-year guarantee against fading.
• Full Coverage: 1-year full coverage on all other components.

For warranty claims, technical support, or any questions regarding your product, please contact Patiowell customer service through the retailer's platform or the official Patiowell website.
