Mexen Velar L Duo Sliding Shower Enclosure User Manual

Introduction

Thank you for choosing the Mexen Velar L Duo Sliding Shower Enclosure. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new shower enclosure. Please read these instructions carefully before beginning installation and keep them for future reference.

The Mexen Velar L Duo is a square shower enclosure, measuring 100 x 100 cm, designed for modern bathrooms. It features elegant, frosted 8 mm thick tempered glass for privacy and durability, complemented by white profiles for a contemporary aesthetic. The sliding doors offer a comfortable entrance, and a protective coating simplifies cleaning.

Key Features:

• Soft-close mechanism: Doors close smoothly and quietly, enhancing user comfort.
• Magnetic seals: Ensure complete watertightness and eliminate water leakage issues.
• Adaptive wall profiles: Compensate for wall irregularities, making it easier to fit the enclosure in any bathroom.
• Self-cleaning nano-coating: Minimizes limescale buildup and facilitates keeping the enclosure clean.
• Detergent resistance: Glass and profiles maintain their appearance even after intensive cleaning with chemical agents.

Setup and Installation

The Mexen Velar L Duo shower enclosure requires assembly. It is designed for screw-in installation and includes a mounting kit. Professional installation is recommended to ensure proper functionality and watertightness.

Pre-Installation Checklist:

• Verify all components are present as per the packing list.
• Ensure the installation area is level and structurally sound.
• Confirm wall surfaces are suitable for drilling and mounting.
• Have necessary tools ready (e.g., drill, level, silicone sealant, measuring tape).

General Installation Steps:

1. Prepare the Area: Clean the installation site thoroughly. Ensure the shower tray or tiled floor is properly sealed and level.
2. Mount Wall Profiles: Position the wall profiles according to the dimensions. Use a level to ensure they are perfectly vertical. Mark and drill holes, then secure the profiles to the wall using appropriate fasteners. The adaptive wall profiles will help compensate for minor wall irregularities.
3. Install Fixed Glass Panels: Carefully insert the fixed glass panels into the wall profiles and secure them.
4. Assemble Sliding Door Mechanism: Attach the top and bottom rails. Install the rollers and guides for the sliding doors.
5. Install Sliding Doors: Carefully hang the sliding doors onto the rollers. Adjust for smooth operation.
6. Attach Handles and Seals: Install the door handles. Apply magnetic seals to ensure a watertight closure.
7. Seal the Enclosure: Apply a high-quality silicone sealant to all external joints between the profiles and the wall/shower tray to prevent water leakage. Allow adequate drying time before use.

Image: Front view of the Mexen Velar L Duo shower enclosure with frosted glass and white profiles, ready for installation.

Image: The Mexen Velar L Duo shower enclosure shown installed in a contemporary bathroom setting, with its sliding doors closed.

Image: The Mexen Velar L Duo shower enclosure with its sliding doors open, demonstrating the wide entrance for user access.

Operating Instructions

The Mexen Velar L Duo shower enclosure features smooth-gliding sliding doors for easy access. To operate the doors:

• Opening: Gently grasp the handle and slide the door along its track. The soft-close mechanism will ensure a smooth and controlled movement.
• Closing: Push the door until it meets the fixed panel and the magnetic seals engage. The soft-close mechanism will assist in a quiet and secure closure, preventing slamming.

Always ensure the doors are fully closed before starting the shower to prevent water leakage.

Maintenance

Regular cleaning and maintenance will prolong the life and appearance of your Mexen Velar L Duo shower enclosure.

Daily Care:

• After each use, rinse the glass panels and profiles with clean water to remove soap residue.
• Wipe down the glass with a soft cloth or squeegee to prevent water spots and limescale buildup. The self-cleaning nano-coating will significantly reduce the effort required.

Weekly/Bi-Weekly Cleaning:

• Use a mild, non-abrasive bathroom cleaner on the glass and profiles. The enclosure's detergent resistance ensures that the materials will maintain their appearance even after intensive cleaning with chemical agents.
• Avoid harsh chemicals, abrasive sponges, or scouring pads, as these can damage the surface finishes and the nano-coating.
• Clean the door tracks and rollers to ensure smooth operation. Remove any accumulated debris or hair.
• Inspect the magnetic seals for any signs of wear or damage. Clean them gently to maintain their effectiveness.

Image: A detailed view of the bottom track and seals, highlighting areas that require regular cleaning to ensure smooth door operation and watertightness.

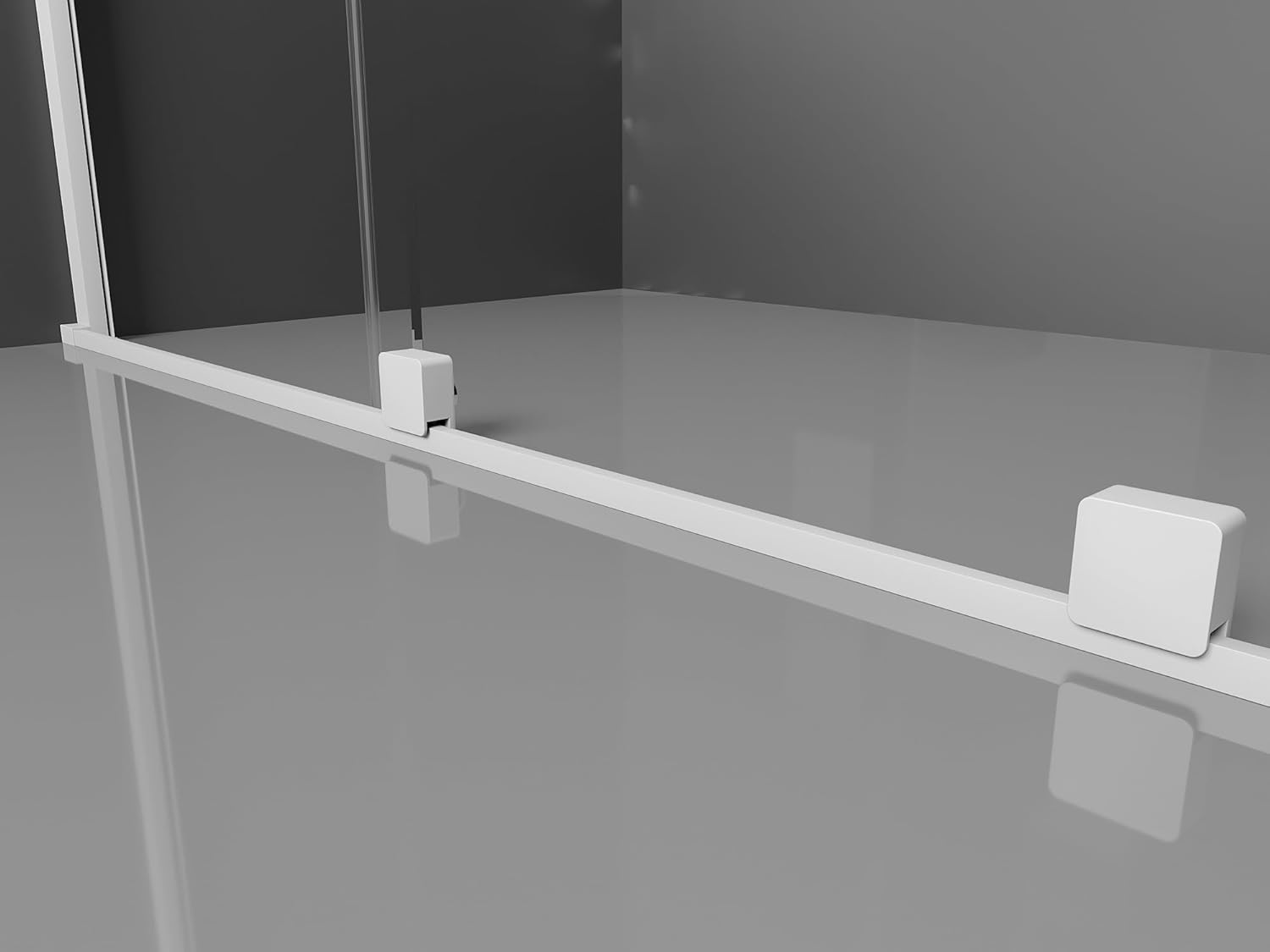

Image: A close-up of the bottom rail profile, showing its design and how it integrates with the glass panels.

Troubleshooting

This section addresses common issues you might encounter with your shower enclosure.

Issue: Water Leakage

• Check Seals: Ensure all magnetic and rubber seals are clean, intact, and properly aligned. Replace any damaged seals.
• Check Silicone: Inspect the silicone sealant around the base and wall profiles. Reapply sealant if cracks or gaps are present.
• Door Closure: Confirm that the sliding doors close completely and the magnetic seals engage fully.

Issue: Doors Not Sliding Smoothly

• Clean Tracks: Remove any dirt, soap scum, or debris from the top and bottom tracks.
• Inspect Rollers: Check the rollers for damage or wear. Clean them and ensure they are properly seated in the tracks. Lubricate with a silicone-based spray if necessary (avoid oil-based lubricants).
• Adjust Doors: If the doors are misaligned, consult the installation guide for adjustment procedures.

Issue: Limescale Buildup on Glass

• Regular Cleaning: Increase the frequency of daily rinsing and wiping.
• Limescale Remover: Use a specialized limescale remover safe for glass and coated surfaces. Always test on an inconspicuous area first.

Specifications

Image: An aerial view of the Mexen Velar L Duo shower enclosure, illustrating its square shape and how it fits into a bathroom layout.

Image: A close-up of the top corner profile, featuring the 'MEXEN' brand name, showcasing the quality finish.

Warranty Information

For specific warranty terms and conditions, please refer to the documentation provided with your purchase or contact Mexen customer service. Keep your proof of purchase for any warranty claims.

Customer Support

If you require further assistance with installation, operation, or troubleshooting, please contact Mexen customer support. Contact details can typically be found on the manufacturer's website or on your purchase documentation.
