Carson Akuma Buggy 500409082 1:8 4WD RTR Instruction Manual

Introduction

This manual provides essential instructions for the safe and efficient operation, setup, and maintenance of your Carson Akuma Buggy 500409082. Please read this manual thoroughly before operating the vehicle to ensure optimal performance and longevity.

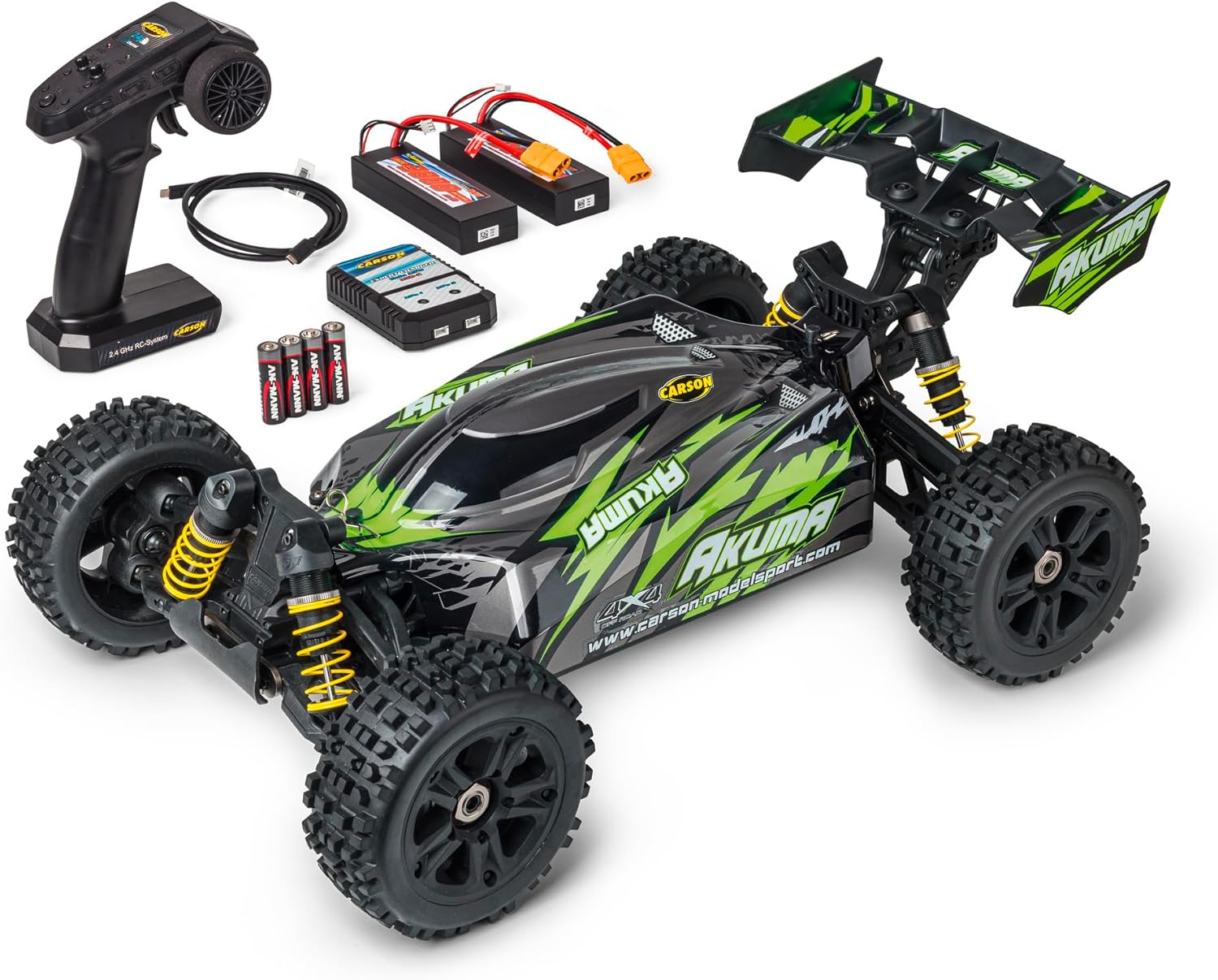

Image: The Carson Akuma Buggy 500409082, its 2.4 GHz remote control, two LiPo batteries, a charger, and four AA transmitter batteries, all included in the package.

Safety Guidelines

• Age Recommendation: This product is not suitable for children under 14 years of age. Adult supervision is recommended for all users.
• Operating Environment: Operate the vehicle in open areas, away from people, pets, and obstacles. Avoid public roads and areas with heavy pedestrian traffic.
• Water and Moisture: While the RC components are waterproof, avoid submerging the vehicle. Always dry the vehicle thoroughly after use in wet conditions.
• Battery Safety: Use only the specified LiPo batteries and charger. Follow all battery charging and handling instructions carefully to prevent fire or injury.
• Maintenance: Regularly inspect the vehicle for damage or loose parts. Perform maintenance as described in this manual.

Setup

1. Package Contents

Ensure all components are present:

• Carson Akuma Buggy 500409082
• 2.4 GHz Remote Control
• 2 x LiPo Batteries (7.4 V / 3800 mAh)
• 1 x LiPo Charger
• 4 x LR06 / AA Transmitter Batteries
• Instruction Manual

2. Battery Installation

1. Transmitter Batteries: Open the battery compartment on the remote control and insert the 4 LR06 / AA batteries, observing correct polarity. Close the compartment.
2. Vehicle LiPo Batteries: Securely place one of the LiPo batteries into the battery compartment of the buggy. Connect the XT90 connector from the battery to the vehicle's ESC (Electronic Speed Controller). Ensure the battery is firmly held by the straps.

Image: A detailed view of the Carson Akuma Buggy's battery compartment, showing a LiPo battery properly installed and secured with hook-and-loop straps.

3. Charging LiPo Batteries

Use the provided charger to fully charge both LiPo batteries before first use. Follow the charger's specific instructions. Always charge batteries on a non-flammable surface and never leave charging batteries unattended.

4. Transmitter Pairing (2.4 GHz RC-System)

The vehicle and transmitter are typically pre-paired from the factory. If re-pairing is necessary, consult the detailed instructions provided with the 2.4 GHz RC system for your specific model.

Operating

1. Basic Controls

• Throttle: Pull the trigger on the remote control to accelerate forward. Push the trigger away from you to brake or reverse.
• Steering: Turn the steering wheel on the remote control left or right to steer the vehicle.

2. Driving Tips

The Carson Akuma Buggy is designed for all-terrain performance, capable of reaching speeds up to 70 km/h. Its 4WD system and high-grip tires provide excellent traction.

• Start with slow speeds to familiarize yourself with the controls.
• Practice steering and throttle control in an open, safe area.
• The adjustable oil pressure shock absorbers allow for customization to different terrains.
• Driving time is approximately 10 minutes on a full charge under full load conditions.

Image: The Carson Akuma Buggy positioned on a dirt track, ready for off-road driving, showcasing its robust design in an outdoor environment.

Image: The Carson Akuma Buggy in dynamic motion, navigating an uneven dirt path and displacing soil, demonstrating its powerful off-road capabilities.

Maintenance

1. Cleaning

• After each use, especially in dirty or wet conditions, clean the vehicle.
• Use a soft brush or compressed air to remove dirt and debris from the chassis, suspension, and motor area.
• Wipe down the body with a damp cloth. Ensure all electronic components are dry before storage.

2. Inspections

• Regularly check all screws and fasteners for tightness.
• Inspect the tires for wear and tear.
• Check the steering servo and linkages for smooth operation. The 20 kg waterproof steering servo with metal gears is designed for durability.
• Examine the chassis plate (3 mm aluminum) and suspension arms for any damage.

Image: A detailed view of the Carson Akuma Buggy's internal mechanics, highlighting the robust steering servo and suspension linkages, crucial for precise control.

Image: An underside perspective of the Carson Akuma Buggy, showcasing its durable 3mm aluminum chassis plate and the robust suspension system.

3. Storage

When not in use, store the vehicle in a cool, dry place, away from direct sunlight. Disconnect and remove batteries from both the vehicle and the transmitter for long-term storage.

Troubleshooting

• Vehicle not responding: Check battery connections in both the vehicle and transmitter. Ensure batteries are charged. Verify the transmitter and receiver are powered on and paired.
• Reduced performance/short run time: Batteries may not be fully charged or are nearing the end of their lifespan. Check for obstructions in the drivetrain.
• Erratic steering/throttle: Check for interference (e.g., other 2.4 GHz devices). Ensure steering linkages are free from obstruction and not damaged.
• Motor not running: Check all motor connections. Ensure the ESC is properly connected and powered.

Specifications

Image: A visual representation of the Carson Akuma Buggy's size relative to an adult, indicating a length of 51.5 cm for scale.

Warranty and Support

Carson is committed to providing high-quality RC vehicles. For specific warranty information and support, please refer to the documentation included with your product or visit the official Carson website. As a specialist in remote-controlled vehicles for over 30 years, Carson ensures exceptional quality and product safety.

For any issues not covered in this manual, please contact Carson customer support.
