JOYING JY-UTD08N8 10.1 Inch Double DIN Android 13 Car Stereo User Manual

1. Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your JOYING JY-UTD08N8 10.1 Inch Double DIN Car Stereo. This advanced head unit features Apple CarPlay, Android Auto, Android 13 operating system, 8GB RAM, 128GB storage, a convenient volume knob, mirror link functionality, AM/FM radio, Bluetooth connectivity, steering wheel control (SWC) compatibility, and integrated GPS navigation.

Key Features:

• Fast Boot: Starts up instantly and enters the user interface in approximately 2 seconds after the initial 30-40 second boot.
• Optical Fiber and Coaxial Digital Output: Connects to external amplifiers for ultimate sound quality.
• Built-in 4G Module: Supports SIM card insertion for internet access (data only, no calls/SMS). Compatible with FDD-LTE: B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B38/B66/B71 and TDD-LTE: B41.
• GPS Navigation: Features precise GPS engines, including antennas, for accurate real-time navigation. Supports offline maps and synchronization with mobile phone map data via CarPlay/Android Auto.
• High-Quality Sound: Equipped with TDA7851 DSP Chip and a 48-Band Graphic Equalizer, delivering 4x50W Max Output Power.
• Split-screen Multitasking: Allows running multiple applications simultaneously on the 10.1-inch IPS screen.
• HDMI Output: Provides full digital image and sound output for external displays, supporting 1080P clear picture without delay.
• Upgraded Cooling: Dual heat sink design for superior heat dissipation and enhanced performance stability.
• Upgraded WiFi Signal: Independent WiFi antenna ensures stable signal quality and fast internet access (802.11a/b/g/n/AC, 2.4GHz/5GHz).
• Personalized Settings: Customizable car boot logo, wallpapers, and changeable button colors.

2. What's in the Box

Upon opening your JOYING JY-UTD08N8 package, you should find the following components:

• 10.1" Radio Unit (x1)
• Double Din Cage (x1)
• Left & Right Bracket (x1 set)
• Reinforced Shims (x1 set)
• Installation Manual (x1)
• WiFi Antenna (x1)
• GPS Antenna (x1)
• 4G Antenna (x2)
• External Mic (x1)
• USB Cable (x2)
• AR Cable (x1)
• Screen Ribbon Cable (x1)
• ISO Cable (x1)
• User Manual (x1)

Image: All components included in the JOYING JY-UTD08N8 package, neatly organized.

3. Setup and Installation

Proper installation is crucial for optimal performance. It is recommended to consult a professional if you are unfamiliar with car stereo installations.

Pre-Installation Notes:

• You may need an installation frame kit with an inner size of 178 x 102mm, a special ISO harness, an amplifier adapter, or a canbus decoder depending on your car's specific situation.
• This unit does not support factory car GPS antennas, backup cameras, Bluetooth, USB, or microphones.
• Only JOYING accessories are supported. Optional accessories like DVR, OBDII scanner, reverse camera, TPMS, and steering wheel controller are not included and must be ordered separately.

Installation Steps:

1. Prepare the Dash: Carefully remove your existing car stereo and dash trim.
2. Install Chassis: Secure the Double Din Cage and Left & Right Brackets to the main unit. The fixing position of the brackets can be extended or telescoped to achieve the best fit for your car's center console.
3. Connect Wiring: Connect the provided ISO Cable, USB Cables, AR Cable, Screen Ribbon Cable, and antennas (WiFi, GPS, 4G) to the main unit. Ensure all connections are secure.
4. Mount the Unit: Carefully slide the assembled unit into the dash opening and secure it using screws.
5. Attach Display: Connect the 10.1-inch display to the main unit.
6. Test Functionality: Before reassembling the dash, power on the unit and test all core functions (audio, display, touch, navigation, etc.).
7. Reassemble Dash: Once all functions are verified, reassemble the dash trim.

Image: Illustration of the upgraded installation structure, showing adjustable brackets for wider vehicle compatibility.

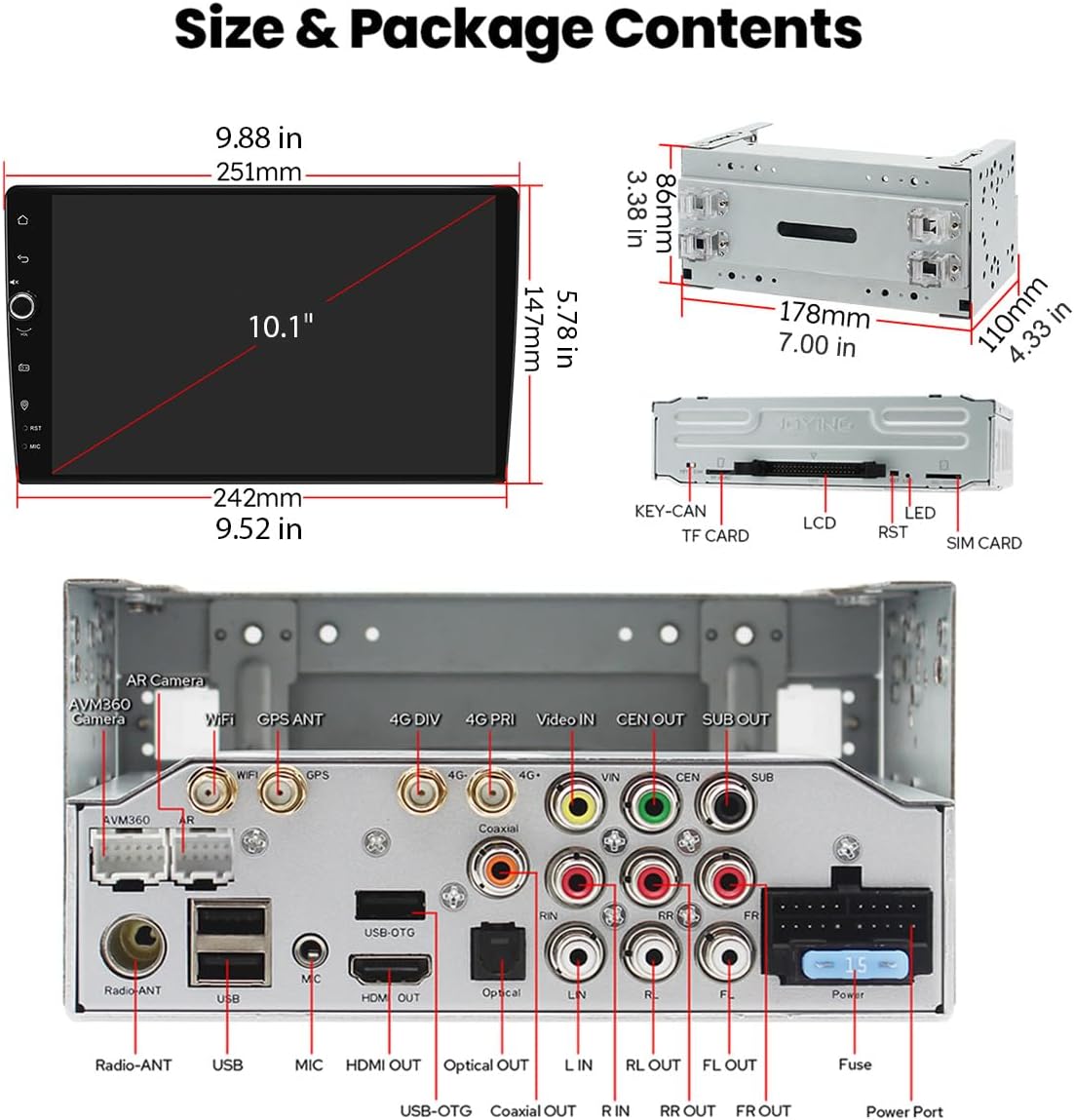

Image: Rear view of the JOYING JY-UTD08N8 unit with various ports labeled, along with overall dimensions.

4. Operating Instructions

Basic Operation:

• Power On/Off: The unit will automatically power on when the car ignition is turned on.
• Volume Control: Use the physical volume knob for easy adjustment.
• Touchscreen Interface: Navigate through menus and applications using the responsive capacitive touchscreen.

Smart Features:

• Apple CarPlay & Android Auto: Connect your mobile phone via USB cable or Bluetooth to share phone apps on the larger screen. Access navigation, make calls, and listen to music.
• GPS Navigation: Utilize the precise GPS for real-time navigation. Download offline maps for use in areas without data connectivity.
• AM/FM Radio: Tune into your favorite radio stations.
• Bluetooth: Connect your phone for hands-free calls and audio streaming.
• Steering Wheel Control (SWC): Supports steering wheel controls for easy switching of songs, radio channels, and volume adjustment (may require an extra canbus cable for cars with CAN system).
• Mirror Link: Display your smartphone screen directly on the head unit.
• Split-screen Multitasking: Run two apps side-by-side, for example, navigation and music player.
• HDMI Output: Connect external monitors (e.g., headrest screens) to display content from the head unit.

Image: Demonstrates connecting a mobile phone to the car radio for CarPlay and Android Auto functionality.

Image: Shows the integration of steering wheel controls for safe and convenient operation of the car stereo.

Image: Icons representing additional features such as Fast Boot, GPS Navigation, AM/FM Radio, Hands-free Call, Picture-in-Picture, 3 USB ports, Micro SD Card Slot, and 4G SIM Card Slot.

Image: Demonstrates the split-screen multitasking feature, allowing two applications to run simultaneously on the display.

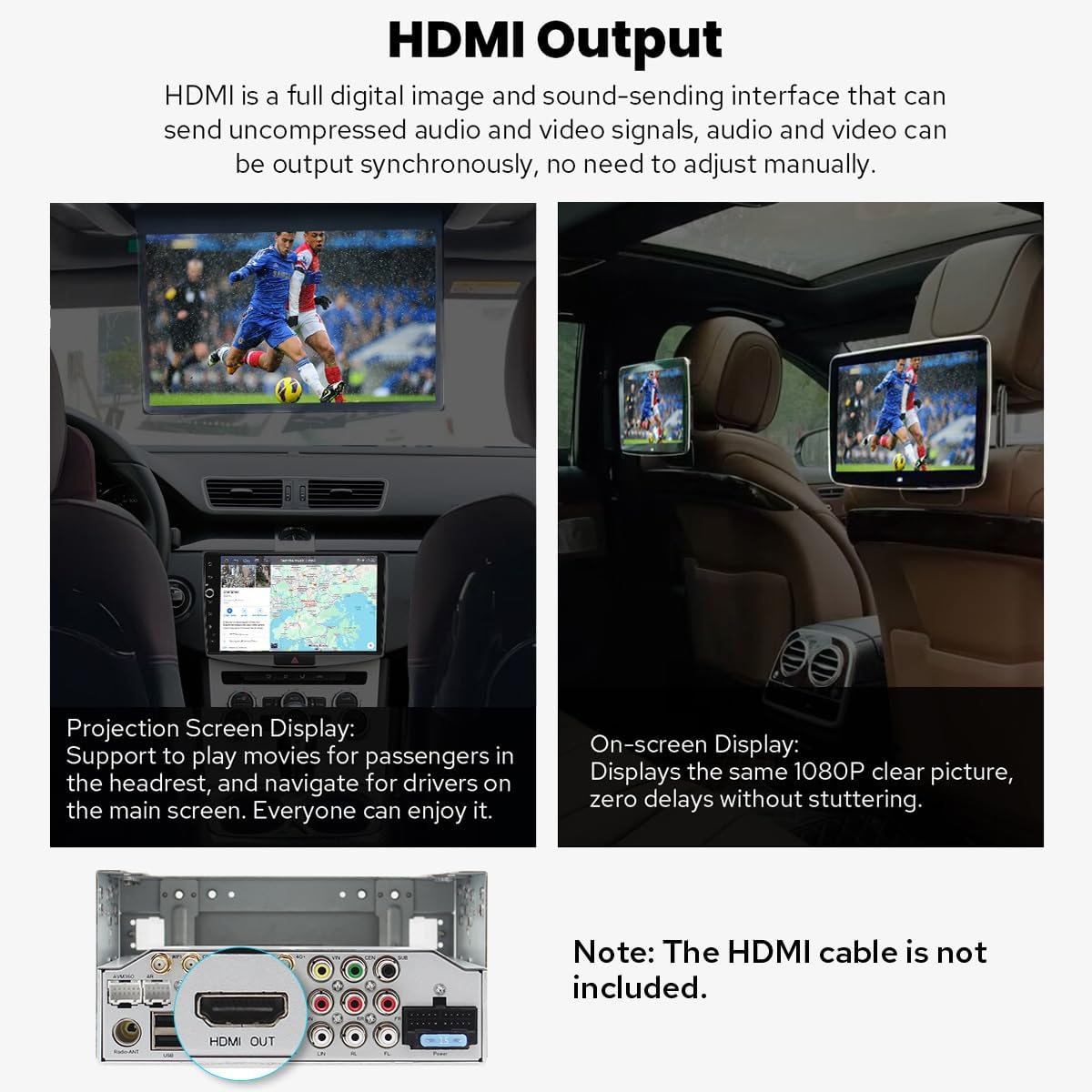

Image: Illustrates the HDMI output feature, showing content mirrored to headrest screens for passenger entertainment and simultaneous navigation on the main screen.

5. Maintenance

To ensure the longevity and optimal performance of your JOYING JY-UTD08N8 car stereo, follow these general maintenance guidelines:

• Screen Cleaning: Use a soft, lint-free cloth to gently wipe the touchscreen. Avoid abrasive cleaners or harsh chemicals.
• Software Updates: Regularly check for and install software updates to ensure the system has the latest features and bug fixes.
• Temperature Control: Avoid exposing the unit to extreme temperatures. The upgraded cooling system helps manage internal heat, but prolonged exposure to direct sunlight in a parked car can still affect performance.
• Connection Checks: Periodically check all wiring connections to ensure they are secure and free from corrosion.

6. Troubleshooting

If you encounter any issues with your JOYING JY-UTD08N8 car stereo, please refer to the following general troubleshooting tips:

• No Power: Check all power connections and ensure the car's ignition is on. Verify the fuse in the wiring harness.
• No Sound: Check speaker connections, volume levels, and audio output settings. Ensure external amplifiers (if used) are powered on and correctly connected.
• Touchscreen Unresponsive: Try restarting the unit. If the issue persists, ensure the screen ribbon cable is securely connected.
• GPS Signal Issues: Ensure the GPS antenna is properly installed and has a clear view of the sky.
• Bluetooth Connectivity Problems: Ensure Bluetooth is enabled on both the head unit and your mobile device. Try unpairing and re-pairing the devices.
• CarPlay/Android Auto Not Working: Verify your USB cable is functional and securely connected. Ensure your phone's software is up to date.

For more specific issues or persistent problems, please contact JOYING customer support or consult a qualified car audio technician.

7. Specifications

8. Warranty and Support

Your JOYING JY-UTD08N8 car stereo comes with a 2 Years Warranty from the manufacturer. Please retain your proof of purchase for warranty claims.

For technical support, troubleshooting assistance, or warranty inquiries, please refer to the contact information provided in your User Manual or visit the official JOYING website.
