1. Introduction
This manual provides comprehensive instructions for the assembly, operation, maintenance, and troubleshooting of your LOVMOR 96 Inch Built-in/Walk-in Closet Organizer System. Please read this manual thoroughly before installation and use to ensure proper setup and safe operation. This system is designed to provide versatile and customizable storage for your clothing and accessories.

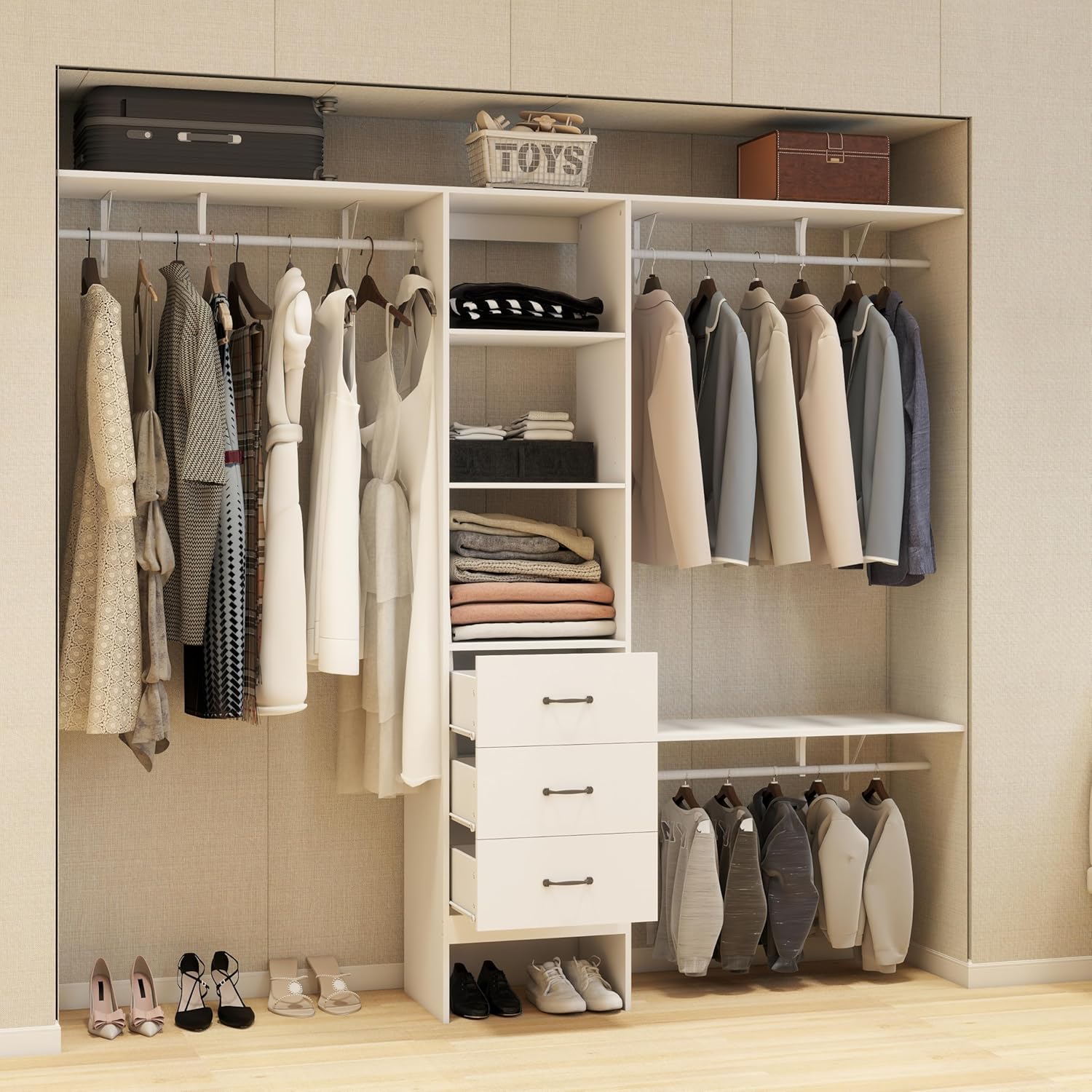

Figure 1.1: Fully assembled LOVMOR 96 Inch Closet Organizer System, showcasing its storage capabilities with various clothing items, shoes, and accessories.
2. Safety Information
Please observe the following safety precautions to prevent injury or damage to the product:
- Always follow assembly instructions carefully. Incorrect assembly can lead to instability.
- Ensure the closet system is securely mounted to a wall using the provided anti-tip safety design. This is critical to prevent tipping.
- Do not exceed the maximum weight capacity for shelves and hanging rods. Refer to the Specifications section for details.
- Keep small parts and hardware away from children during assembly to prevent choking hazards.
- Use appropriate tools for assembly. Do not overtighten screws, as this may damage the MDF material.
- Periodically check all connections and fasteners to ensure they remain tight and secure.
3. Components Overview
The LOVMOR Closet Organizer System includes the following main components:
- MDF Panels (various sizes for shelves, side panels, and drawer components)
- 3 Deep Drawers with hardware
- Adjustable Shelves (quantity varies based on configuration)
- 3 Expandable Hanging Rods
- Mounting Hardware (screws, wall anchors, anti-tip brackets)
- Assembly Fasteners and Connectors
Figure 3.1: The LOVMOR Closet Organizer System structure without clothing, illustrating the central drawer unit, shelving towers, and hanging rod supports.
4. Setup and Installation
Before beginning assembly, ensure you have all parts listed in the Components Overview and the necessary tools (e.g., screwdriver, level, drill). It is recommended to have two people for assembly.
4.1. Planning Your Configuration
The LOVMOR system is modular and customizable. Plan your desired layout within your closet space (60" to 96" wide) before assembly. Consider the placement of the central drawer unit, shelving towers, and expandable hanging rods.
Figure 4.1: Examples of various modular configurations possible with the LOVMOR closet system, demonstrating its adaptability to different closet sizes and storage needs.
4.2. Dimensions and Measurements
Refer to the dimension diagram for precise measurements of individual components. This will assist in planning and ensuring proper fit within your space.
Figure 4.2: Detailed dimension diagram showing the overall measurements of the LOVMOR closet system (96.06" L x 15.74" W x 82.67" H) and individual drawer dimensions.
4.3. Assembly Steps (General Guidelines)
- Unpack and Identify: Carefully unpack all components and verify against the parts list.
- Assemble Central Unit: Begin by assembling the central drawer unit according to the detailed instructions provided in the included installation manual.
- Attach Side Panels/Shelving Towers: Connect the side shelving towers to the central unit.
- Install Adjustable Shelves: Insert the adjustable shelves into the desired positions. The shelving towers offer 4 height-adjustable positions.
- Mount Hanging Rods: Install the expandable hanging rods between the shelving units. Ensure they are level and securely fastened.
- Wall Mounting: Secure the entire system to the wall using the anti-tip safety design and appropriate wall anchors. This step is crucial for stability and safety.
Figure 4.3: Illustration demonstrating the adjustability of the shelves within the LOVMOR closet system, indicated by red arrows showing vertical movement.
5. Operation and Usage
The LOVMOR Closet Organizer System is designed for efficient and flexible storage.
- Hanging Rods: Utilize the three expandable hanging rods for shirts, dresses, coats, and other garments. Each rod can support approximately 70 lbs.
- Adjustable Shelves: Position the adjustable shelves to accommodate various items such as folded clothes, handbags, shoes, or storage bins. The open shelves offer 5-position adjustability for accessories.
- Drawers: The three deep drawers are ideal for storing folded clothing, undergarments, accessories, or other personal items.
- Top Shelving: The reinforced upper storage shelves can support up to 150 lbs, suitable for luggage, seasonal items, or bulk storage.
Figure 5.1: Close-up view of a hanging rod supporting clothing, with a text overlay indicating a capacity of approximately 70 pounds per rod.
Figure 5.2: The top shelf of the closet system, shown storing luggage and pillows, demonstrating its capacity for larger or seasonal items.
Figure 5.3: An alternative configuration of the LOVMOR 96 Inch Closet Organizer System, demonstrating its versatility in organizing different types of garments and accessories.
6. Maintenance and Care
To ensure the longevity and appearance of your LOVMOR Closet Organizer System, follow these maintenance guidelines:
- Cleaning: Wipe surfaces with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals, as they may damage the UV-painted finish.
- Spills: Promptly clean any spills to prevent staining or damage to the MDF. The triple-layer UV coating offers scratch-resistant and waterproof properties.
- Hardware Check: Periodically inspect all screws, bolts, and connections to ensure they are tight. Retighten if necessary.
- Weight Distribution: Distribute weight evenly across shelves and hanging rods to prevent stress on the structure.
7. Troubleshooting
If you encounter issues with your closet system, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| System feels unstable or wobbly. | Loose connections; improper wall mounting; uneven floor. | Ensure all fasteners are tightened. Verify the system is securely anchored to the wall using the anti-tip brackets. Check if the floor is level; use shims if necessary. |
| Drawers do not slide smoothly. | Misaligned drawer slides; obstruction; overtightened screws. | Check that drawer slides are correctly installed and aligned. Remove any obstructions. Ensure screws are tight but not overtightened. |
| Hanging rods sag. | Exceeded weight capacity; improper installation. | Reduce the weight on the rod. Ensure the rod supports are firmly attached and the rod is correctly seated. Refer to the 70 lbs per rod capacity. |
| Difficulty adjusting shelves. | Shelf pins not fully inserted; obstruction. | Ensure shelf pins are fully inserted into the desired holes. Check for any debris or obstructions in the pinholes. |
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | LOVMOR |
| Product Dimensions (L x W x H) | 96.06 x 15.74 x 82.67 inches |
| Item Weight | 111.6 pounds |
| Material | E1-grade MDF (Medium-Density Fiberboard) |
| Finish Type | Painted, Triple-layer UV coating |
| Color | White |
| Mounting Type | Wall Mount (with anti-tip safety design) |
| Total Weight Capacity | 1000 Pounds |
| Hanging Rod Capacity (each) | 70 Pounds |
| Upper Storage Shelf Capacity | 150 Pounds |
| Adjustable Shelves | 4 positions (height-adjustable shelving towers), 5 positions (open shelves) |
| Expandable Rods | Yes, 3 included |
| Drawers | 3 deep drawers |
| Customizable Width | Fits spaces from 60" to 96" wide |
| UPC | 759242272767 |
9. Warranty and Support
For warranty information or technical support regarding your LOVMOR Closet Organizer System, please refer to the documentation included with your purchase or contact LOVMOR customer service directly. Contact details are typically available on the manufacturer's official website or through your retailer.
When contacting support, please have your model number (LOVMOR) and purchase date available.
