IKEA KRUSNATE Ceiling Spotlight with 4 Spots, White - Instruction Manual

Introduction

This manual provides essential information for the safe and efficient use of your IKEA KRUSNATE Ceiling Spotlight. Please read these instructions carefully before installation and operation, and retain them for future reference.

The IKEA KRUSNATE Ceiling Spotlight is designed to illuminate your space with precision. It features four individually adjustable spotlights mounted on a sleek 52 cm track, offering flexibility in directing light. Its clean white finish and minimalist design allow it to blend seamlessly with white ceilings, providing focused illumination for various purposes.

Important Safety Information

• Professional Installation Required: This fixture requires professional wired-in installation. Do not attempt to install it yourself unless you are a qualified electrician.
• Power Disconnection: Always disconnect power at the main circuit breaker before installation, maintenance, or changing bulbs.
• Bulb Compatibility: Each spotlight accommodates a GU10 LED bulb (sold separately). Ensure bulbs are compatible and do not exceed the maximum total capacity of 34W for the fixture.
• No Dimmer Compatibility: This model is not compatible with dimmer switches.
• Indoor Use Only: Designed for indoor use in dry locations.
• Heat: Light sources can become hot. Allow bulbs to cool before handling.

What's in the Box

Upon unpacking, ensure all components are present and undamaged. The package includes:

• IKEA KRUSNATE Ceiling Spotlight with 4 Spots

Note: GU10 LED bulbs are sold separately and are not included with the fixture.

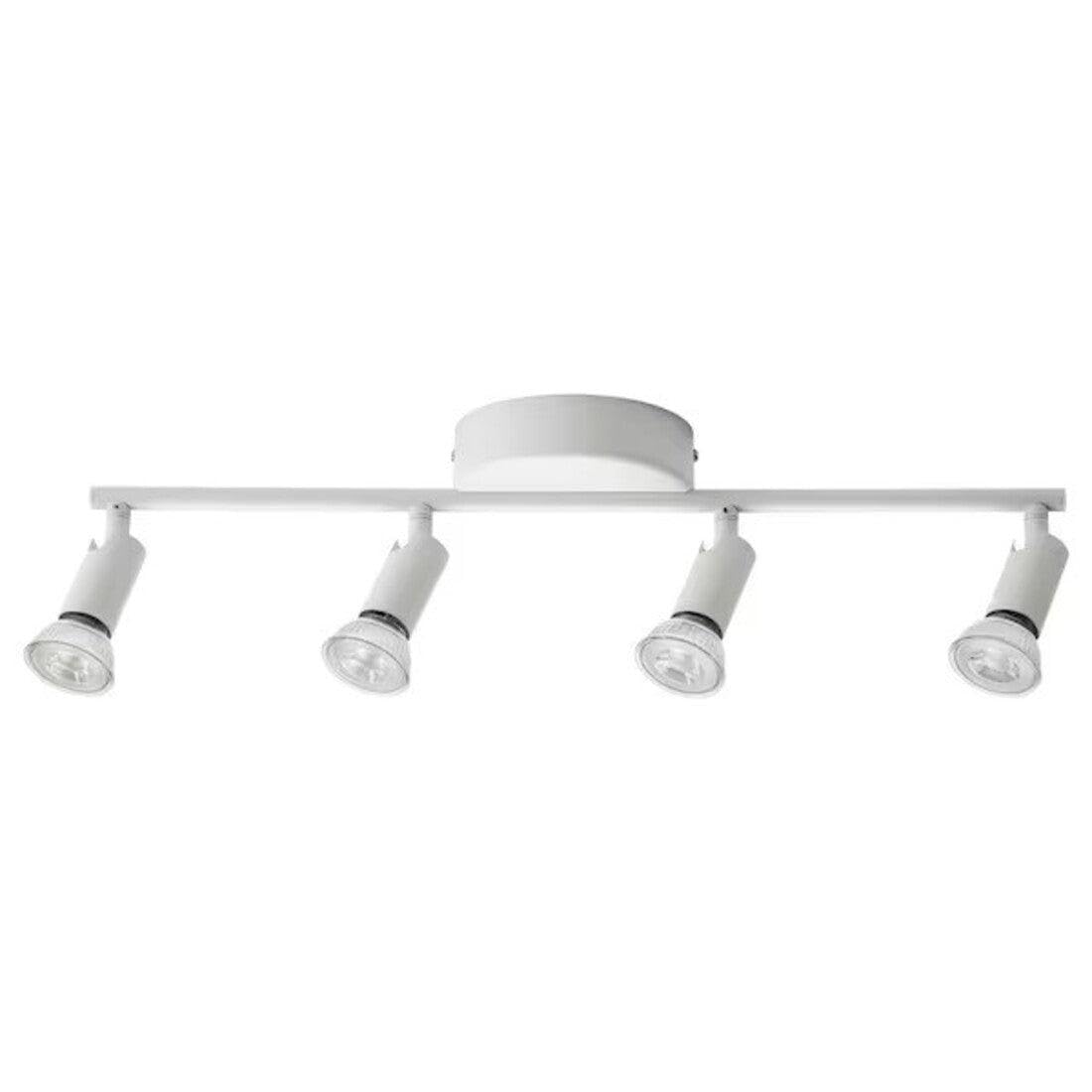

Image: The IKEA KRUSNATE Ceiling Spotlight, showing the white track with four adjustable spotlights.

Setup and Installation

Important: Installation must be performed by a qualified electrician in accordance with local electrical codes and regulations.

1. Prepare for Installation:
   • Ensure the main power supply to the installation area is turned off at the circuit breaker.
   • Unpack the ceiling spotlight and inspect for any damage.
2. Mounting the Fixture:
   • Position the ceiling cup against the ceiling at the desired location.
   • Mark the drilling points for the mounting screws.
   • Drill pilot holes and secure the mounting bracket (if separate) or the ceiling cup directly to the ceiling using appropriate hardware for your ceiling type.
3. Electrical Connection:
   • Connect the household electrical wires to the fixture's wires according to standard wiring practices (Live to Live, Neutral to Neutral, Ground to Ground). Ensure all connections are secure.
   • Carefully tuck the wires into the ceiling cup.
4. Securing the Fixture:
   • Attach the main spotlight track assembly to the mounted ceiling cup, ensuring it is firmly secured.
5. Installing Bulbs:
   • Insert GU10 LED bulbs (sold separately) into each of the four spotlight sockets. Ensure they are fully seated.
6. Final Check:
   • Once installation is complete, restore power at the circuit breaker.
   • Test the light fixture to ensure proper operation.

Image: The IKEA KRUSNATE Ceiling Spotlight installed above a kitchen island, demonstrating its use in a practical setting.

Operating Instructions

The IKEA KRUSNATE Ceiling Spotlight is designed for straightforward operation once installed.

1. Turning On/Off:
   • Operate the spotlight using the standard wall switch connected to the fixture's circuit.
2. Adjusting Spotlights:
   • Each of the four spotlights can be individually adjusted to direct light as needed. Gently pivot and tilt each spotlight head to achieve the desired illumination angle.

Image: The IKEA KRUSNATE Ceiling Spotlight illuminating a hallway, showcasing its ability to provide focused light in narrow spaces.

Maintenance and Care

Proper care ensures the longevity and optimal performance of your spotlight.

• Cleaning:
  • Always disconnect power before cleaning.
  • Wipe the fixture with a dry cloth. Do not use abrasive cleaners, solvents, or wet cloths, as these can damage the finish or electrical components.
• Bulb Replacement:
  • Ensure power is off and bulbs have cooled completely before attempting to replace them.
  • Gently twist and pull out the old GU10 bulb.
  • Insert the new GU10 LED bulb by aligning the pins and pushing it firmly into the socket, then twisting slightly to secure.

Image: A close-up view of one of the IKEA KRUSNATE spotlights, showing the GU10 bulb socket and the adjustable mechanism.

Troubleshooting

If you encounter issues with your IKEA KRUSNATE Ceiling Spotlight, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact IKEA customer support or a qualified electrician.

Product Specifications

Warranty and Support

For information regarding warranty, returns, or technical support, please refer to your purchase documentation or contact IKEA customer service directly. Keep your proof of purchase for any warranty claims.

Manufacturer: Ikea

Importer: IKEA

Part Number: 90564194

Date First Available: 27 May 2025

For further assistance, visit the official IKEA website or contact their customer support line.
