CVXDD Harvester Bearings EW204-EW212, EWP207 Three-Layer Seal Instruction Manual

Introduction

This manual provides essential instructions for the proper installation, operation, and maintenance of CVXDD Harvester Bearings, including models EW204, EW205, EW206, EW207, EW208, EW209, EW210, EW211, EW212, and EWP207. These bearings are designed with a three-layer seal for enhanced durability and superior load-bearing capacity, making them suitable for demanding agricultural machinery applications.

Please read this manual thoroughly before installation and use to ensure optimal performance and longevity of your bearings.

Safety Precautions

• Always wear appropriate personal protective equipment (PPE), including safety glasses and gloves, when handling bearings.
• Ensure machinery is powered off and secured against accidental startup before beginning any installation or maintenance work.
• Use only appropriate tools for installation and removal to prevent damage to the bearing or surrounding components.
• Avoid direct impact on the bearing seals or races during handling and installation.
• Keep bearings clean and free from contaminants.

Setup and Installation

Proper installation is crucial for the performance and lifespan of your CVXDD bearings. Follow these steps carefully:

1. Preparation

• Inspect the shaft and housing for cleanliness, burrs, or damage. Ensure all surfaces are smooth and free of debris.
• Verify that the shaft diameter and housing bore dimensions match the bearing specifications.
• Ensure the bearing is clean and free from any packaging material. Do not remove the protective grease until just before installation.

2. Bearing Installation

1. Shaft Mounting: For bearings with an eccentric locking collar or set screws, slide the bearing onto the shaft. Ensure the bearing is seated firmly against any shoulders or spacers.
2. Locking Collar/Set Screws: If applicable, rotate the eccentric locking collar in the direction of shaft rotation until it locks onto the shaft. Tighten the set screws (if present) evenly to the manufacturer's recommended torque specifications.
3. Housing Installation: Carefully insert the bearing unit into the housing. Ensure proper alignment to prevent binding or excessive force during insertion.
4. Securing: Secure the housing to the machine frame using appropriate fasteners, ensuring even tightening to prevent distortion.

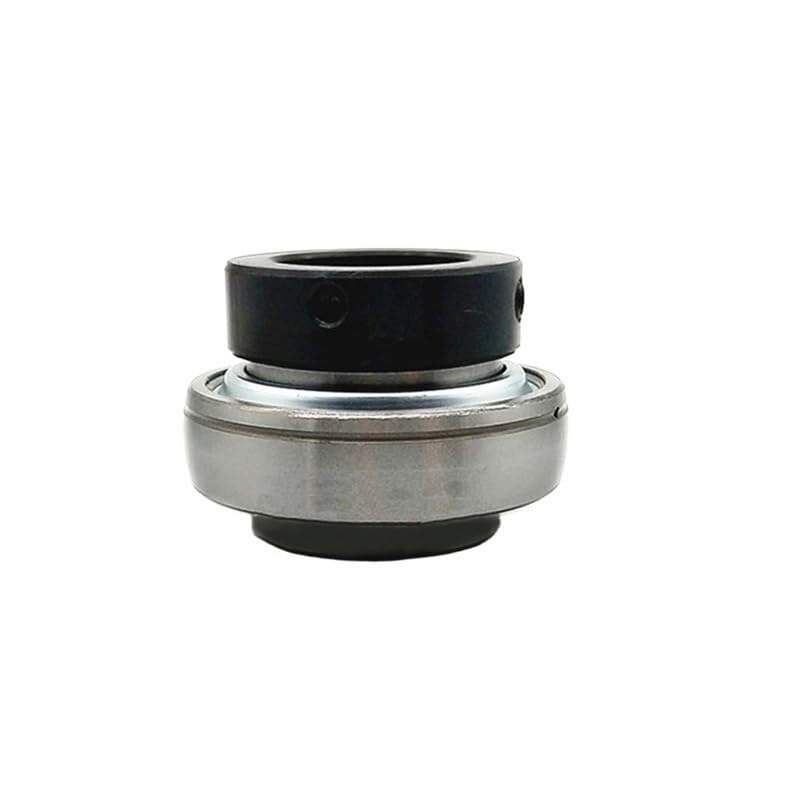

Figure 1: A CVXDD Harvester Bearing assembly, showing the outer race, inner race, and the integrated three-layer seal system.

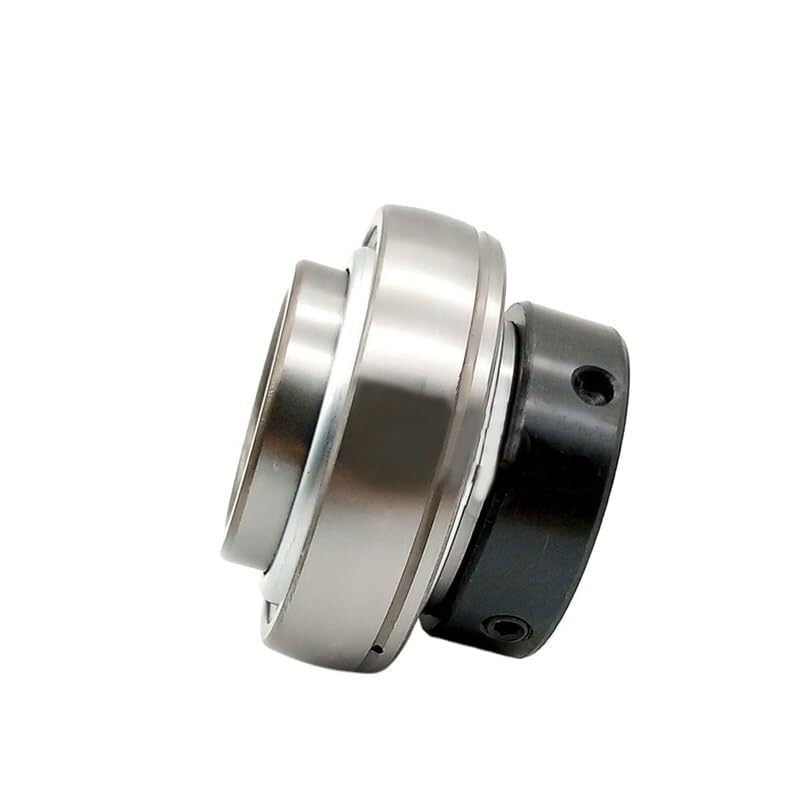

Figure 2: Side view of the CVXDD Harvester Bearing, highlighting the robust construction and the locking mechanism for shaft attachment.

Operating Guidelines

• Initial Run-in: After installation, operate the machinery at reduced speed and load for a short period to allow the bearings to seat properly.
• Monitoring: Regularly monitor bearing temperature, noise, and vibration during operation. Any unusual changes may indicate a problem.
• Load and Speed: Ensure that the operating loads and speeds do not exceed the bearing's specified limits. Refer to the specifications section for details.
• Environmental Conditions: While these bearings feature a three-layer seal for protection, avoid prolonged exposure to extreme contaminants or moisture beyond their design limits.

Maintenance

Regular maintenance extends the life and ensures reliable performance of your CVXDD bearings.

1. Lubrication

• These bearings are pre-lubricated and sealed for life in many applications. However, for severe operating conditions or specific models, re-lubrication may be required. Consult your machinery's service manual or a bearing specialist.
• If re-lubrication is necessary, use a high-quality lithium-based grease suitable for agricultural machinery and bearing applications.
• Avoid over-greasing, as this can lead to excessive heat generation and seal damage.

2. Inspection

• Periodically inspect the bearings for signs of wear, corrosion, or damage to the seals.
• Check for any looseness in the mounting or housing.
• Listen for unusual noises during operation, which could indicate internal damage.

Figure 3: Disassembled view of a CVXDD Harvester Bearing, illustrating the inner and outer components and the robust three-layer seal design.

Troubleshooting

This section provides solutions to common issues encountered with bearings. If the problem persists, contact CVXDD support.

Specifications

The following specifications apply to the CVXDD Harvester Bearings series (EW204-EW212, EWP207) with three-layer seals. Specific dimensions vary by model.

Note: For precise dimensions and load ratings for specific models (e.g., EW204, EW211), please refer to the product packaging or contact CVXDD technical support.

Warranty and Support

CVXDD bearings are manufactured to high-quality standards. This product is covered by a standard manufacturer's warranty against defects in materials and workmanship under normal use and service. The specific terms and duration of the warranty may vary. Please retain your proof of purchase.

For technical assistance, warranty claims, or further information, please contact CVXDD customer support through their official channels. Provide your product model number and purchase details when contacting support.
