WLIVE Farmhouse 7-Drawer Dresser (Model ASNG139ZX) Instruction Manual

1. Introduction

This manual provides detailed instructions for the assembly, safe operation, and proper maintenance of your WLIVE Farmhouse 7-Drawer Dresser. Designed with a rustic aesthetic and practical functionality, this dresser offers ample storage and can serve multiple purposes in your home.

Please read all instructions carefully before beginning assembly and retain this manual for future reference.

Figure 1.1: WLIVE Farmhouse 7-Drawer Dresser

2. Product Overview

The WLIVE Farmhouse 7-Drawer Dresser is constructed from durable engineered wood, featuring a brown wood top and retro square handles. It is designed to provide significant storage capacity and stability.

Key Features:

• Spacious Storage: Includes four large drawers and three middle drawers.
• Durable Construction: Crafted from engineered wood for long-term use and scratch resistance.
• Smooth Operation: Drawers feature smooth metal slides for easy opening and closing.
• Versatile Top Surface: The wood top can support a TV up to 65 inches and other items.
• Enhanced Safety: Equipped with an anti-tipping device for stability.

Dimensions and Capacities:

• Overall Dimensions (D x W x H): 14.96 inches x 51.18 inches x 31.50 inches
• Tabletop Weight Capacity: Up to 110 lbs
• Each Drawer Weight Capacity: Up to 22 lbs

Figure 2.1: Product Dimensions and Capacities

Figure 2.2: Dresser supporting a 65-inch TV

3. Assembly Instructions

Assembly of the WLIVE Farmhouse 7-Drawer Dresser requires careful attention to detail. All parts and accessories are coded for easy identification. Please follow the detailed installation instructions provided in the packaging.

Before You Begin:

• Unpack all components and verify against the parts list in your instruction booklet.
• Ensure you have the necessary tools (typically a screwdriver).
• Assemble on a soft, clean surface to prevent scratches.

General Assembly Steps:

1. Frame Construction: Begin by assembling the main frame of the dresser, connecting the side panels, back panel, and support beams using the provided hardware.
2. Drawer Assembly: Construct each drawer individually. Attach the front, back, and side panels, then secure the bottom panel. Install the drawer slides and handles.
3. Drawer Insertion: Carefully insert the assembled drawers into the main frame, ensuring they slide smoothly on the installed rails.
4. Top Panel Attachment: Secure the top panel to the assembled frame.
5. Anti-Tipping Device Installation: This is a critical safety step. Attach the anti-tipping device to the back of the dresser and secure it to a wall stud according to the instructions. This prevents the dresser from tipping over, ensuring the safety of household members and pets.

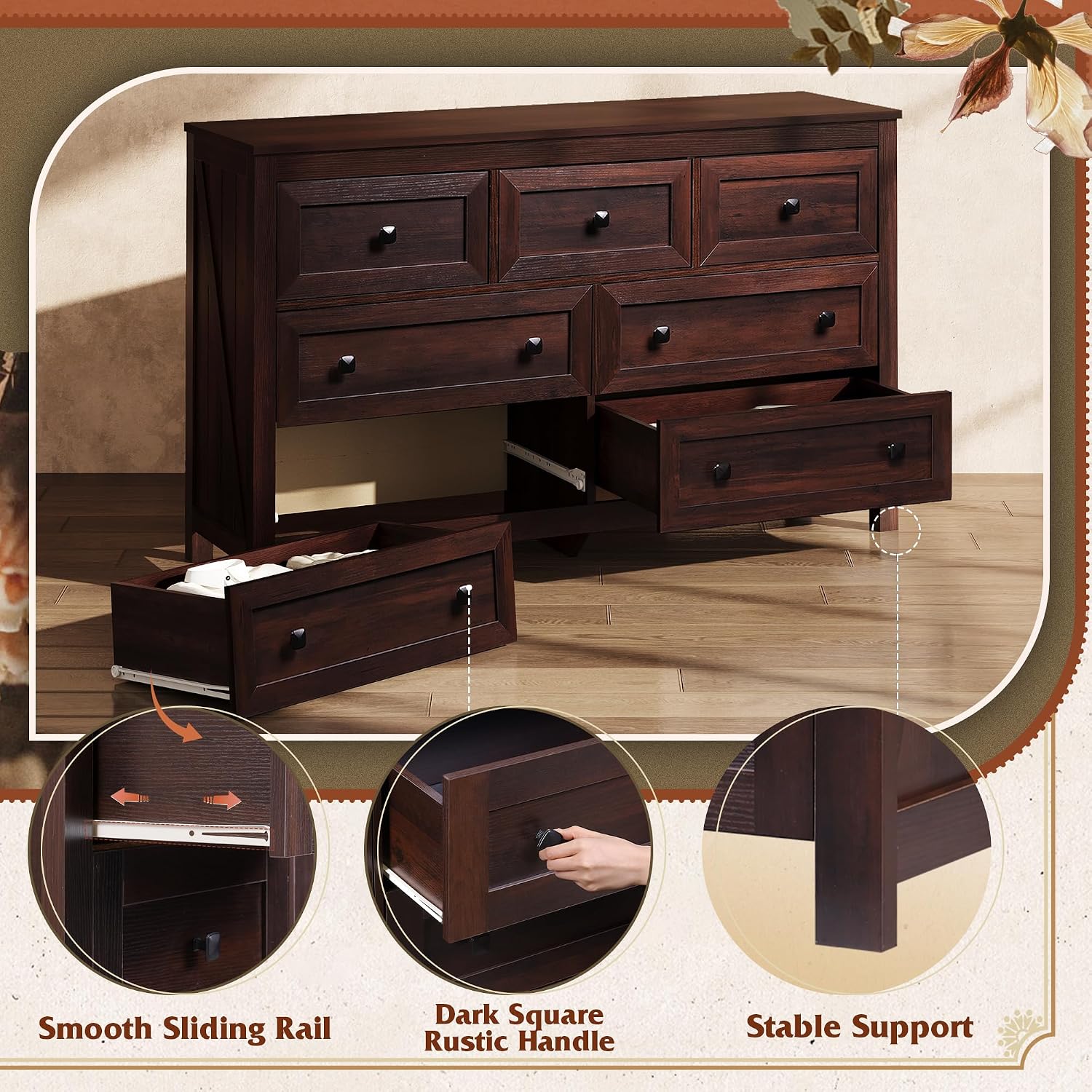

Figure 3.1: Structural details including drawer slides and handles

Figure 3.2: Anti-tip lock installation details

4. Operating Instructions

Using your WLIVE dresser is straightforward. The drawers are designed for smooth operation and ample storage.

Drawer Usage:

• To open a drawer, gently pull the handle. The metal slides ensure a smooth motion.
• To close a drawer, push it firmly until it is fully seated within the frame.
• Avoid overloading drawers. Each drawer has a maximum weight capacity of 22 lbs.

Top Surface Usage:

• The top surface can hold items such as a television (up to 65 inches), lamps, books, or decorative items.
• Do not exceed the tabletop weight capacity of 110 lbs.
• Distribute weight evenly across the surface.

5. Maintenance

Proper care will help maintain the appearance and longevity of your dresser.

Cleaning:

• Wipe surfaces with a soft, damp cloth.
• Avoid using harsh chemicals or abrasive cleaners, as these can damage the finish.
• Promptly clean up spills to prevent staining.

General Care:

• Periodically check all screws and fasteners to ensure they are tight. Retighten as necessary.
• Keep the dresser away from direct sunlight and extreme temperature changes to prevent warping or fading.

6. Troubleshooting

If you encounter any issues with your dresser, refer to the following common solutions:

Drawer Not Sliding Smoothly:

• Ensure the drawer slides are properly aligned and free of obstructions.
• Check that all screws securing the slides to both the drawer and the frame are tight.
• Verify that the drawer is not overloaded, as excessive weight can hinder smooth movement.

Dresser Wobbles:

• Confirm that the dresser is placed on a level surface.
• Check all frame connections and tighten any loose screws.
• Ensure the anti-tipping device is correctly installed and securely anchored to the wall.

If problems persist, please contact customer support for further assistance.

7. Safety Information

Your safety is paramount. Please adhere to the following guidelines:

• Anti-Tipping Device: Always install and properly secure the included anti-tipping device to a wall stud. This is crucial to prevent serious injury from tipping furniture.
• Weight Limits: Do not exceed the specified weight capacities for the tabletop (110 lbs) and individual drawers (22 lbs). Overloading can compromise stability and structural integrity.
• Children's Safety: Keep children away from open drawers and discourage climbing on the dresser. Ensure drawers are closed when not in use.
• Placement: Place the dresser on a stable, level surface. Avoid placing it in high-traffic areas where it could be easily bumped.

8. Specifications

9. Warranty and Support

WLIVE is committed to providing quality products and customer satisfaction.

Customer Support:

If you encounter any problems during assembly, operation, or if you have questions about your product, please contact WLIVE customer support for solutions. Refer to the contact information provided in your product packaging or on the official WLIVE website.

This storage drawer unit comes with detailed installation instructions, and parts and accessories are coded to facilitate accurate and faster installation.
