Godox ML100R RGB LED Light Instruction Manual

1. Introduction

Thank you for purchasing the Godox ML100R RGB LED Light. This compact and versatile lighting solution offers full-color adjustability, a wide color temperature range, and various creative effects, making it ideal for a wide range of photography and videography applications. This manual provides essential information for safe and effective operation of your ML100R light.

2. Package Contents

Please check to ensure all items are included in your package:

• ML100R Light *1
• Battery Handle *1
• Lens Reflector ML-L15 *1
• Adapter *1
• AC Power Cord *1
• Holder AD-E2 *1
• Bag*1

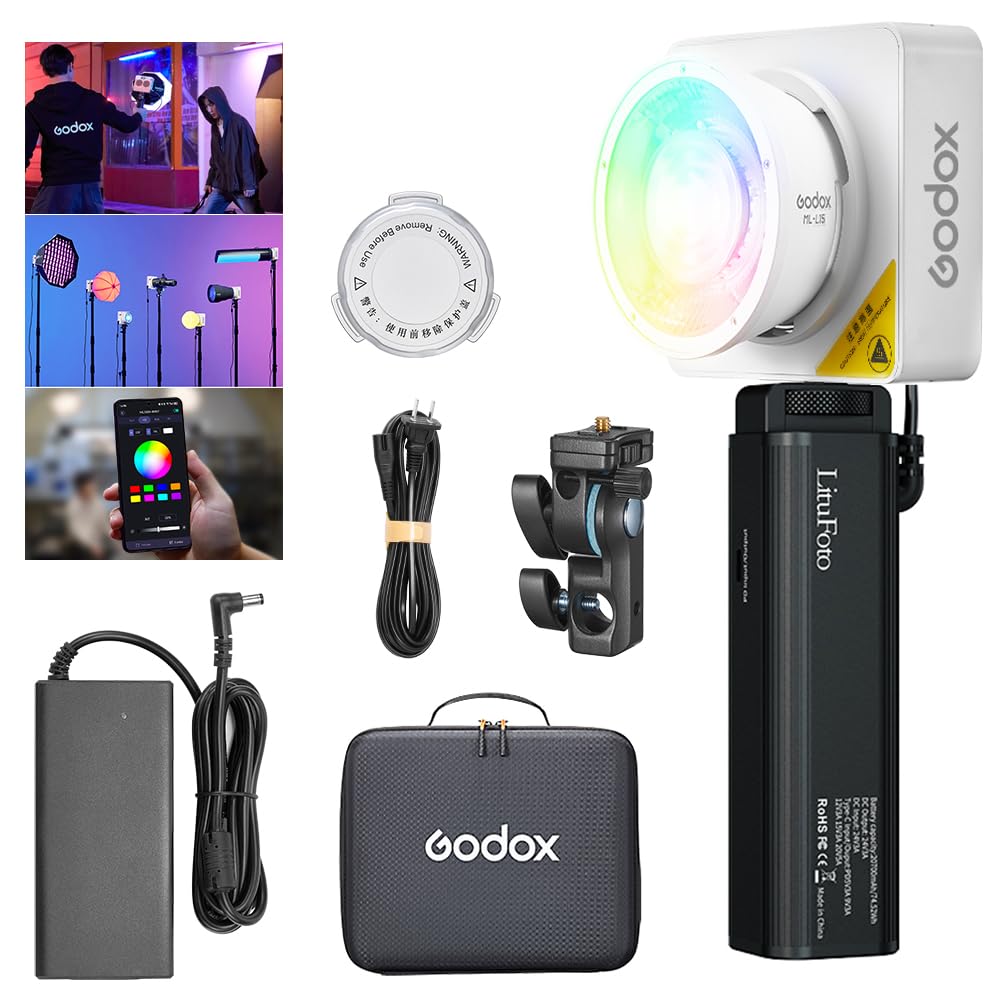

Image: Godox ML100R RGB LED Light and its accessories neatly packed in a carrying case.

3. Product Overview

The Godox ML100R is a compact and powerful RGB LED light designed for exceptional performance in various shooting environments. It features a full-color adjustable function, ensuring consistent and professional lighting with precise control over color.

Key Features:

• Superior Color Performance: Innovative mixing technology for even lighting, GM adjustability for precise color correction, and a wide color temperature range from 1800K to 10000K.
• Compact and Portable: Designed for versatility and ease of transport, making it perfect for outdoor shoots.
• Godox Mount Ecosystem: Compatible with a wide range of compact modifiers and accessories.
• 14 FX Effects: Pre-programmed effects to create diverse atmospheres.

Image: The ML100R demonstrating its vivid color capabilities, ranging from warm 1800K to cool 10000K, with various color outputs.

4. Setup

4.1 Attaching the Lens Reflector

1. Align the Lens Reflector ML-L15 with the front of the ML100R light.
2. Gently push and twist the reflector clockwise until it locks securely into place.

4.2 Mounting the Light

Use the included Holder AD-E2 to mount the ML100R onto a tripod or light stand. Ensure the mount is securely tightened to prevent accidental falls.

4.3 Power Connection

Connect the AC adapter to the ML100R's DC input port and then plug the AC power cord into a suitable power outlet. Alternatively, use compatible battery solutions for portable operation (see Section 7 for details).

5. Operating Instructions

5.1 Basic Controls

The ML100R features intuitive controls for quick adjustments:

• Power Button: Press and hold to turn the light ON/OFF.
• Menu Button: Access various settings and modes.
• Mode Button: Switch between CCT, HSI, RGB, and FX modes.
• Dimming Dial: Adjust brightness intensity.
• CCT/Hue Dial: Adjust color temperature in CCT mode or hue in HSI/RGB modes.

5.2 App Control

Enhance your lighting efficiency by controlling the ML100R via the Godox Light App. Whether adjusting HSI or CCT, or connecting and controlling multiple lights simultaneously, the app provides comprehensive control.

Image: The Godox Light App interface displaying controls for color temperature, HSI, RGB, and FX effects.

5.3 Color Temperature Adjustment (CCT Mode)

The ML100R offers a wide color temperature range from 1800K to 10000K. Use the CCT/Hue dial or the Godox Light App to select your desired color temperature, from warm sunset tones to crisp daylight.

5.4 FX Effects Mode

The light features 14 pre-programmed FX effects to quickly create diverse atmospheres. These include natural elements like fire and lightning, as well as creative options such as cop car and party effects. Select and customize these effects via the light's menu or the Godox Light App.

Image: A visual representation of the 14 creative FX effects, including RGB Cycle, Party, Flash, Lightning, Explosion, TV, Candle, Fire, Fireworks, Welding, Police Car, SOS, Cloudy, and Broken Bulb.

5.5 Instructional Videos

6. Accessories and Compatibility

The ML100R is part of the expanding Godox Mount ecosystem, offering compatibility with a wide range of compact modifiers and newly introduced versatile accessories.

6.1 Godox Mount Ecosystem

Equipped with the Godox Mount, the ML100R is compatible with various compact modifiers, including lens reflectors, softboxes, and projection attachments. For broader compatibility with standard Bowens mount accessories, the optional ML-GB Bowens Mount Adapter can be purchased separately.

Image: An illustration of the Godox Mount ecosystem, showcasing the ML100R with various compatible accessories such as the Air Soft Tube, Collapsible Fresnel Attachment, Mini Projection Attachment, and different softboxes.

6.2 Versatile Accessories

Explore unique and creative lighting effects with specialized accessories:

• Collapsible Fresnel Attachment ML-CFL5: Intensifies brightness and offers adjustable angles for uniform, high-saturation lighting.
• Mini Projection Attachment ML-SP: Allows for creative visual projections.
• Air Soft Tube ML-S1A: Transforms your ML100R into a soft light tube, ideal for portrait photography.

Image: A display of the ML100R with various accessories, including a softbox, diffusion dome, projection attachment, and air soft tube, demonstrating diverse lighting setups.

Image: The Collapsible Fresnel Attachment ML-CFL5 shown in three configurations (unfolded, mid-folded, folded) with corresponding illuminance data for red, green, and blue light at 1 meter.

7. Power Options

The ML100R offers versatile power solutions for both studio and on-the-go use:

• AC Power Supply: Use the included DC adapter and AC power cord for continuous power.
• Portable Battery Solutions: Supports four portable battery options for enhanced mobility. Compatible batteries include Godox AK-B01, Godox AK-B02, and Godox BG02 (sold separately).
• USB-C & Power Bank: For additional flexibility, the light can be powered via USB-C with a compatible power bank.

Image: The Godox ML100R shown with five different power configurations: direct AC power, BG02 Battery Grip, AK-B02 V-mount Battery Supply, AK-B01 NPF Battery Supply, and a USB-C & Power Bank setup.

8. Specifications

9. Maintenance

To ensure the longevity and optimal performance of your Godox ML100R, follow these maintenance guidelines:

• Cleaning: Use a soft, dry cloth to clean the light body and accessories. For the lens, use a specialized lens cleaning cloth. Avoid using harsh chemicals or abrasive materials.
• Storage: Store the light in a cool, dry place away from direct sunlight and extreme temperatures. When not in use for extended periods, remove any attached batteries.
• Ventilation: Ensure the ventilation grilles are clear of dust and debris to prevent overheating. The ML100R features excellent ventilation to prevent overheating during operation.

10. Troubleshooting

If you encounter issues with your ML100R, refer to the following common solutions:

• Light Not Turning On: Check the power connection. If using batteries, ensure they are fully charged and correctly inserted.
• App Connection Issues: Ensure Bluetooth is enabled on your device and the light. Restart both the light and the app.
• Inconsistent Light Output: Verify that all accessories are securely attached and that the light's settings (CCT, intensity) are correctly configured.
• Overheating: The ML100R is designed with excellent ventilation. If you experience overheating, ensure the ventilation grilles are not obstructed and the light is operating within its recommended environmental conditions.

11. Warranty and Support

For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or visit the official Godox website. Keep your purchase receipt as proof of purchase for warranty claims.
