1. Important Safety Information
Please read all instructions carefully before installing and operating the air conditioner. Keep this manual for future reference. Failure to follow these instructions may result in property damage, personal injury, or death.
- Electrical Safety: Ensure the power supply matches the unit's requirements (220V-1Ph-50/60Hz). Do not use extension cords. Always ground the unit properly.
- Installation: Installation must be performed by a qualified professional. Improper installation can lead to water leakage, electric shock, or fire.
- Operation: Do not insert fingers or objects into the air inlet/outlet. Do not operate with wet hands.
- Children and Vulnerable Persons: This appliance is not intended for use by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction. Children should be supervised to ensure they do not play with the appliance.
- Maintenance: Always turn off the power supply before cleaning or performing maintenance. Use only authorized service personnel for repairs.
- Refrigerant: This unit uses R-410A refrigerant. Handle with care and ensure proper ventilation during service.
2. Product Overview

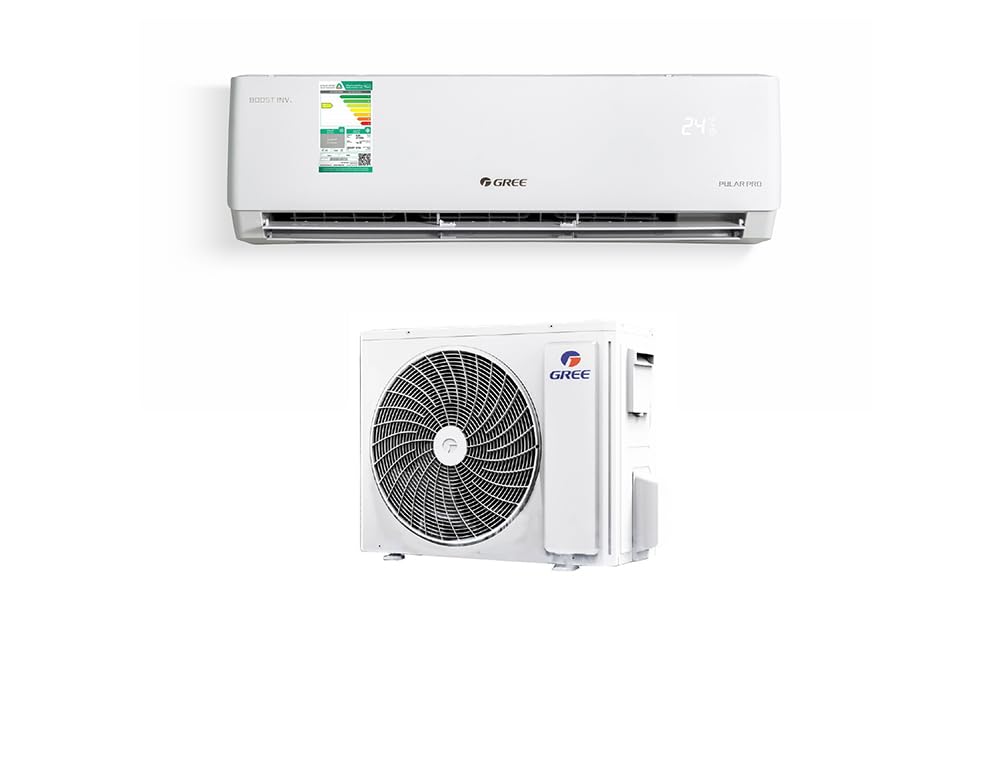

The Gree GWC18AGD-S3DTA1A is a Polar Pro Inverter Split Air Conditioner designed for efficient cooling of residential spaces. It features advanced G-Boost inverter technology and integrated Wi-Fi for convenient control.
Key Features:
- Advanced Inverter Technology: Provides efficient and stable cooling performance.
- Integrated Wi-Fi: Allows remote control via a smartphone application.
- 18000 BTU Cooling Capacity: Suitable for cooling large rooms.
- Fast Cooling: Achieves desired temperature quickly, within 60 seconds.
- Odor Removal: Helps maintain fresh indoor air quality.
- Self-Cleaning Function: Enhances unit hygiene and efficiency.
- Long Air Supply Distance: Distributes cool air up to 13 meters.
Energy Efficiency Label:
This image displays the Saudi Energy Efficiency Label for the Gree GWC18AGD-S3DTA1A air conditioner. It indicates a cooling capacity of 5.28 kW (18000 BTU), a SEER of 15.05 BTU/(WA), and an annual energy consumption of 4462 kWh. The unit is rated 'B' for energy efficiency and is a split-type air conditioner manufactured in China by Gree, with registration number E03117/2022 and standard reference SASO 2663/2021. The label also states that heating is not applicable for this model.
For verification of the certificate, please visit: sls.gov.sa
3. Installation and Setup
The installation of this split air conditioner requires specialized tools and knowledge. It is strongly recommended that installation be carried out by a certified and experienced technician to ensure proper functioning and safety.
General Installation Notes:
- Location: Choose a location for both indoor and outdoor units that allows for optimal airflow, easy maintenance, and minimal noise.
- Mounting: Ensure both units are securely mounted to prevent vibration and noise.
- Drainage: Proper drainage for condensate water is essential to prevent leaks.
- Electrical Connection: Connect the unit to a dedicated power circuit as per local electrical codes. The unit requires 220V.
- Refrigerant Piping: Ensure refrigerant lines are properly insulated and sealed to prevent leaks and maintain efficiency.
4. Operating Instructions
Your Gree air conditioner can be controlled via the included remote control or through the integrated Wi-Fi feature using a smartphone application.
Remote Control Functions:
- Power Button: Turns the unit ON or OFF.
- Mode Button: Cycles through available modes: Cool, Fan, Dry, Auto. This model is Cool Only.
- Temperature Adjustment: Use the Up/Down arrows to set the desired temperature.
- Fan Speed: Adjusts the fan speed (Low, Medium, High, Auto).
- Swing Button: Controls the vertical louver movement for air distribution.
- Timer Function: Sets the unit to turn ON or OFF automatically after a specified time.
- Sleep Mode: Adjusts temperature and fan speed for comfortable sleep and energy saving.
- Turbo/Fast Cool: Activates maximum cooling power for rapid temperature reduction.
Wi-Fi Connectivity:
To use the Wi-Fi feature, download the official Gree+ app from your smartphone's app store. Follow the in-app instructions to connect your air conditioner to your home Wi-Fi network. This allows you to control the unit remotely, set schedules, and monitor its status.
5. Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your air conditioner. Always disconnect power before performing any maintenance.
Air Filter Cleaning:
- Open the front panel of the indoor unit.
- Remove the air filters.
- Clean the filters with a vacuum cleaner or wash them with lukewarm water and mild detergent.
- Rinse thoroughly and allow to dry completely before reinstalling.
- Clean filters every two weeks or more frequently depending on usage and air quality.
Outdoor Unit Cleaning:
- Periodically check the outdoor unit for debris, leaves, or dirt accumulation on the condenser coils.
- Carefully remove any obstructions. For deep cleaning, contact a professional technician.
Seasonal Maintenance:
- Before the cooling season, ensure all components are clean and functioning correctly.
- Check for any unusual noises or odors during operation.
6. Troubleshooting
Before contacting service, review the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not turn ON | No power supply; Remote control batteries are dead; Circuit breaker tripped. | Check power connection; Replace batteries; Reset circuit breaker. |
| Insufficient cooling | Dirty air filters; Blocked outdoor unit; Doors/windows open; Temperature setting too high. | Clean air filters; Clear obstructions; Close openings; Lower temperature setting. |
| Unusual noise | Loose parts; Unit not level; Fan obstruction. | Check for loose parts; Ensure unit is level; Remove obstructions. If noise persists, contact service. |
| Water leakage | Clogged drain pipe; Improper installation. | Clear drain pipe; Contact a professional for inspection and repair. |
If the problem persists after attempting these solutions, please contact qualified service personnel.
7. Specifications
| Feature | Specification |
|---|---|
| Brand | Gree |
| Model Name | GWC18AGD-S3DTA1A |
| Cooling Capacity | 18000 British Thermal Units (1.5 Ton) |
| Refrigerant | R-410A |
| Voltage | 220 Volts |
| Power Source | Corded Electric |
| Annual Energy Consumption | 4462 kWh |
| Noise Level | 43 Decibels |
| Special Features | Fast Cooling, Integrated Wi-Fi, Inverter Technology |
| Control Method | Remote, via App |
| Product Dimensions (DxWxH) | 22D x 98.2W x 31H cm |
| Item Weight | 50 Kilograms |
| Installation Type | Split System |
| Compressor Type | Rotary Scroll |
| Outdoor Unit Required | Yes |
| BEE Energy Efficiency Rating | B |
8. Warranty and Support
This Gree air conditioner comes with a one-year warranty from the date of purchase. The warranty covers manufacturing defects under normal use conditions.
For warranty claims, technical support, or service inquiries, please contact your authorized Gree dealer or service center. Keep your purchase receipt and warranty card as proof of purchase.
For further information or to locate a service center, please refer to the contact details provided in your purchase documentation or visit the official Gree website for your region.
