1. Important Safety Information
Please read all instructions carefully before installation and use of this bathtub. Failure to follow these instructions may result in injury or property damage. Retain this manual for future reference.
- Electrical Safety: Ensure all electrical connections are performed by a qualified electrician and comply with local codes. The air blower requires a 110V, 60Hz, 15A dedicated circuit with a GFCI outlet.
- Water Temperature: Do not exceed 104°F (40°C) to avoid hyperthermia.
- Slip Hazard: The bathtub features a non-slip bottom, but caution should always be exercised when entering or exiting the tub.
- Weight Capacity: The stainless steel bracket supports a bearing capacity up to 1000 LBS. Ensure the floor can support the combined weight of the tub, water, and user(s).
- Children: Supervise children at all times when they are near or in the bathtub.
2. Specifications
| Feature | Specification |
|---|---|
| Exterior Dimensions (L x W x H) | 67" x 31-1/2" x 23-5/8" |
| Seating Size (L x W) | 45-1/4" x 19-5/8" |
| Water Depth | 17-3/4" |
| Capacity | 59 Gallons |
| Material | 100% Premium Grade High Gloss White LUCITE Acrylic, reinforced with ASHLAND Resin & Fiberglass |
| Overflow and Drain Finish | Oil Rubbed Bronze |
| Air Jets | 208 |
| Power Requirement | 110V, 60Hz, 15A dedicated circuit, GFCI outlet |
| Certifications | UL1795, ASME A112.19.7/CSA B45.10, CSA B45.5/IAPMO Z124, CSA C22.2 No.218. IPC and NPC |
| Item Weight | 93 Pounds |
Dimensions Diagram
This diagram illustrates the key measurements of the bathtub, including its overall length (67 inches), width (31.5 inches), height (23.63 inches), and water depth (17.75 inches).
3. Setup and Installation
Professional installation is recommended to ensure proper function and compliance with local plumbing and electrical codes. Measurements are approximate and subject to change without notice. Verify all dimensions before installation.
Pre-Installation Checks
- Ensure the installation area has adequate floor support for the bathtub's weight when filled.
- Confirm access to a dedicated 110V, 60Hz, 15A GFCI-protected electrical circuit for the air blower.
- Verify plumbing connections for hot and cold water supply and drainage are available.
Component Identification

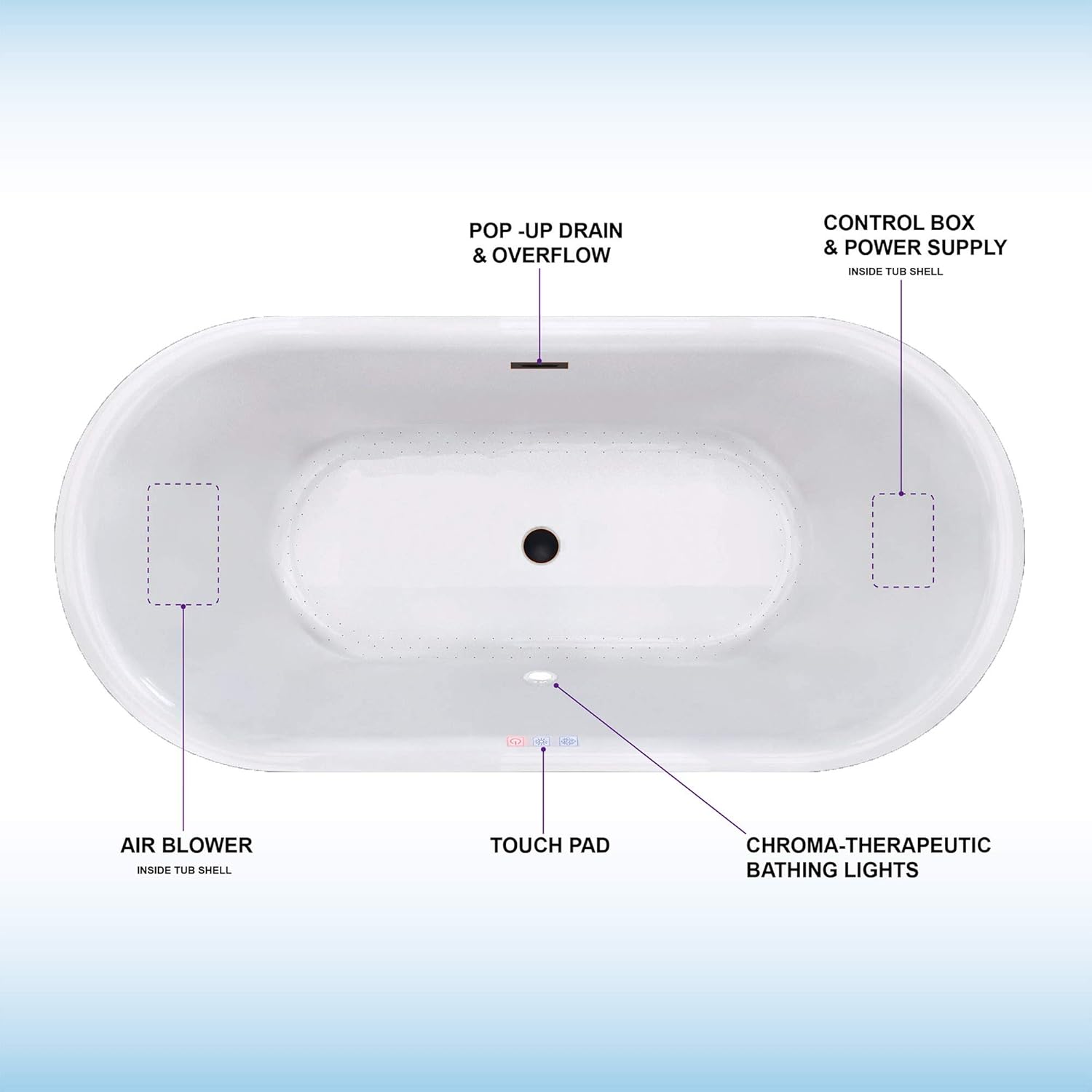

This image identifies key components such as the pop-up drain, overflow, touch pad, air blower, and the location of the control box and power supply.
Drain and Overflow Installation
The bathtub is equipped with an Oil Rubbed Bronze pop-up drain and overflow system. Ensure all connections are sealed properly to prevent leaks.
The WOODBRIDGE leak-proof drain system is designed to meet and exceed UPC code requirements, preventing potential leaks and damage during installation.
Non-Slip Design
The bathtub features a non-slip bottom surface for enhanced safety, meeting ASTM standards for slip resistance.
The non-slip design on the bathtub bottom provides a textured surface for improved grip and safety.
Compliance and Certifications
The WOODBRIDGE bathtub complies with industry standards such as UL1795, ASME A112.19.7/CSA B45.10, CSA B45.5/IAPMO Z124, CSA C22.2 No.218, IPC, and NPC.
4. Operating Instructions
The bathtub features an integrated touch panel for controlling the air massage and chromatherapy functions.
Air Massage Function
The bathtub is equipped with 208 air jets that release thousands of bubbles for a gentle air massage. To activate, locate the touch pad on the rim of the tub and press the designated button for air massage.
The air bubble bath feature provides a soft tissue massage, promoting relaxation and circulation.
Chromatherapy (LED Lights)
The bathtub includes 7 color LED lights to enhance your bathing experience. These lights can be activated via the touch panel. The colors cycle automatically.
The chromatherapy feature offers a relaxing visual experience with a continuous cycle of seven colors.
The LED lights create an ambient atmosphere, enhancing the bathing experience.
5. Maintenance
Proper care and maintenance will ensure the longevity and appearance of your WOODBRIDGE bathtub.
Cleaning Instructions
The bathtub is made from Lucite acrylic, which is non-porous and easy to clean. Use a soft cloth and non-abrasive cleaners. Avoid harsh chemicals or abrasive pads that can scratch the surface.
The non-porous Lucite acrylic surface prevents bacteria growth and is simple to wipe clean.
Material Durability and Warmth Retention
The bathtub's construction with Lucite acrylic and fiberglass reinforcement provides excellent durability and insulation, keeping water warm longer.
Lucite acrylic offers superior warmth retention, ease of cleaning, durability, and resistance to UV fading.
The insulating properties of Lucite acrylic help maintain the desired water temperature for extended periods.
The reinforced double-wall design with multiple layers of acrylic and fiberglass ensures maximum insulation and structural integrity.
Fade Resistance
The Lucite acrylic material is 100% fade-resistant, ensuring the bathtub retains its high-gloss white finish over time.
The bathtub's material is designed to resist fading from UVA exposure, maintaining its aesthetic appeal.
6. Troubleshooting
This section provides general guidance for common issues. For complex problems, contact customer support.
- No Power to Air Blower/Lights: Check the GFCI outlet for tripping. Ensure the power cord is securely plugged in. Verify the dedicated circuit breaker is not tripped.
- Weak Air Bubbles: Ensure the water level is appropriate. Check for any obstructions in the air jets.
- Water Leakage: Immediately turn off water supply. Inspect all plumbing connections for tightness. If the leak persists, contact a qualified plumber or customer support.
- Lights Not Changing Color: The chromatherapy lights cycle automatically. There is no manual control for color selection or speed adjustment.
7. Warranty and Support
Warranty Information
WOODBRIDGE bathtubs are warranted to be free of defects in material and workmanship for 1-Year from the date of purchase.
Extended Warranty: Get 1 extra year warranty by logging in and registering your product on the WOODBRIDGE website.
Customer Support
For installation help, replacement parts, or any product-oriented queries, please contact the WOODBRIDGE support team. Our USA-based team is available to assist you.
Contact our USA-based support team for assistance with installation, parts, or any product-related questions.
