1. Introduction
Thank you for choosing the Cult SmartStrideElite AC Motorized Treadmill. This manual provides essential information for the safe and efficient operation of your new fitness equipment. Please read all instructions carefully before assembly and use to ensure proper function and user safety. Retain this manual for future reference.
Image 1.1: The Cult SmartStrideElite AC Motorized Treadmill in operation.
2. Important Safety Information
To reduce the risk of serious injury, read all instructions and warnings before using this treadmill. The manufacturer is not responsible for personal injury or property damage sustained by or through the use of this product.
- Always choose a treadmill that can support at least 20 kg more than your current weight. The SmartStrideElite supports a maximum user weight of 150 kg.
- Always unplug the treadmill from the electrical outlet before moving, cleaning, servicing, or adjusting any part of the machine.
- Keep children and pets away from the treadmill during operation.
- Place the treadmill on a level, stable surface with adequate clearance around it.
- Wear appropriate athletic footwear during use.
- If you experience pain, dizziness, or shortness of breath, stop exercising immediately.
- Use the safety key at all times. Attach the clip to your clothing before starting your workout.
3. Package Contents
Verify that all components are present before beginning assembly:
- Cult SmartStrideElite Treadmill Unit
- User Manual (this document)
- Tool Kit for Assembly
- Lubricant for Maintenance
- Safety Key
4. Setup and Assembly
Assembly of the Cult SmartStrideElite treadmill is required. Please follow the instructions provided in the included tool kit and user manual. For visual guidance, refer to the installation video below or consider technician-assisted installation.
Image 4.1: Installation options: Self-installation with provided tools or technician-assisted service.
Video 4.1: Product overview and demonstration of features including setup and folding. This video shows the treadmill in use, highlighting its display, motor, and folding mechanism.
5. Operating Instructions
5.1 Powering On and Initial Use
Connect the treadmill to a grounded electrical outlet. Insert the safety key into its designated slot on the console. The display will illuminate, indicating the treadmill is ready for use. Press the START button to begin your workout.
5.2 Motor and Performance
The SmartStrideElite is equipped with a 4 HP continuous (8 HP peak) brushless AC motor, designed for consistent and powerful performance. It supports speeds ranging from 1 to 20 km/hr. The brushless AC motor offers high energy efficiency, low noise operation, and a long lifespan of over 8,000 hours, ensuring durability and reduced maintenance.
Image 5.2.1: Illustration of the brushless AC motor, highlighting its efficiency and quiet operation.
Image 5.2.2: Key advantages of the brushless AC motor, including energy efficiency and extended lifespan.
5.3 Smart LED Display and Controls
The treadmill features a large 399 x 548 mm LED display with a smartknob control. This display provides real-time feedback on your workout metrics, including speed, time, distance, calories burned, incline level, and heart rate. Use the smartknob to easily navigate through settings and adjust parameters during your exercise.
Image 5.3.1: The Smart LED Display showing various workout statistics.
Image 5.3.2: Overview of the Smart LED Display and its tracked metrics.
5.4 Auto Incline and Preset Programs
Enhance your workout intensity with 20 levels of automatic incline. Adjust the incline to simulate various terrains, from flat roads to challenging mountain treks. The treadmill also includes 20 built-in preset programs designed to help you achieve diverse fitness goals.
Image 5.4.1: Visual representation of the 20-level auto-inclination feature.
Image 5.4.2: Examples of workout modes achievable with the 20-level auto-inclination.
5.5 Running Area and Stability
The treadmill provides a spacious running area of 52 x 150 cm (20.47” x 59.06”), offering ample space for comfortable strides. Its robust alloy steel frame ensures stability during intense workouts, supporting users up to 150 kg.
Image 5.5.1: Treadmill design engineered for stability, showing key performance metrics.
5.6 Folding and Transport
For convenient storage, the SmartStrideElite features a hydraulic folding system. This allows for easy and safe folding of the treadmill when not in use. Integrated transport wheels facilitate effortless relocation of the unit within your home.

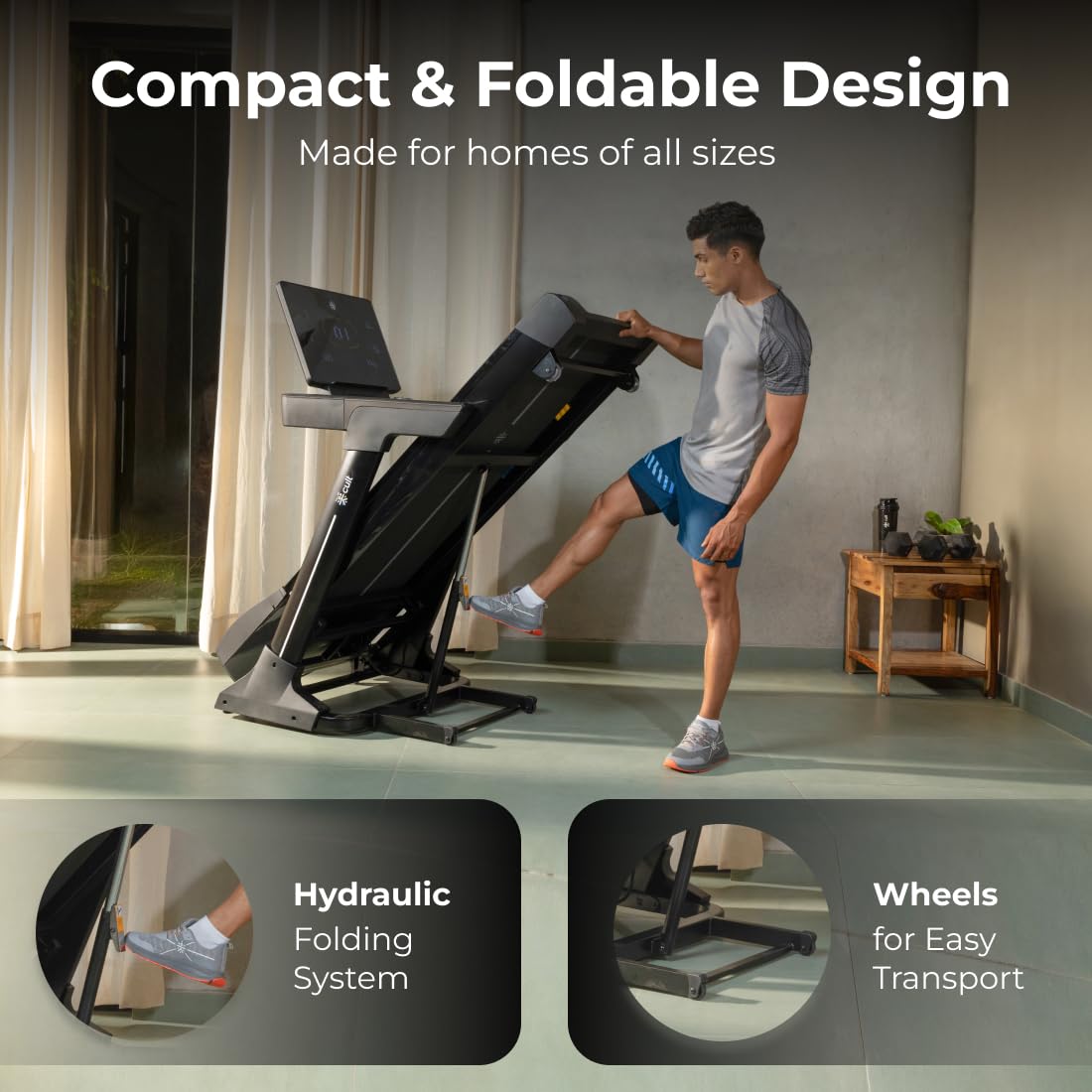

Image 5.6.1: The treadmill's compact and foldable design with hydraulic system and transport wheels.
Image 5.6.2: The sleek and space-saving design of the treadmill when folded.
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your treadmill.
- Lubrication: The treadmill requires manual lubrication to maintain smooth and consistent belt performance. Refer to the specific instructions in your user manual for the correct lubrication procedure and frequency. Use only the lubricant provided or recommended by CULT.
- Cleaning: Regularly wipe down the treadmill with a damp cloth to remove dust and sweat. Avoid using abrasive cleaners or solvents.
- Belt Adjustment: Periodically check the running belt for proper tension and alignment. Adjust as needed according to the detailed instructions in the full user manual.
- Power Cord Inspection: Inspect the power cord for any damage before each use. Do not use the treadmill if the cord is damaged.
7. Troubleshooting
This section addresses common issues you might encounter with your treadmill. For more detailed troubleshooting or issues not listed here, please contact customer support.
- Treadmill does not power on: Ensure the power cord is securely plugged into a functional outlet and the safety key is correctly inserted into the console. Check the circuit breaker.
- Running belt slips or hesitates: The running belt may require tension adjustment or lubrication. Refer to the maintenance section for guidance.
- Unusual noises during operation: Stop the treadmill immediately. Inspect for any loose parts or foreign objects. If the noise persists, contact customer support.
- Inaccurate display readings: Ensure all connections to the display console are secure. If the issue persists, a sensor calibration or replacement might be needed by a qualified technician.
8. Specifications
| Feature | Detail |
|---|---|
| Brand | CULT |
| Model | SmartStrideElite |
| Motor Type | Brushless AC Motor |
| Motor Horsepower | 4 HP Continuous (8 HP Peak) |
| Maximum Speed | 20 Kilometers per Hour |
| Maximum Weight Recommendation | 150 Kilograms |
| Auto Incline Levels | 20 Levels |
| Preset Programs | 20 |
| Display Type | LED (399 x 548 mm) |
| Metrics Measured | Calories Burned, Distance, Speed, Time, Heart Rate, Incline |
| Running Area | 52 x 150 cm (20.47” x 59.06”) |
| Product Dimensions (D x W x H) | 224D x 86.2W x 156.6H Centimeters |
| Item Weight | 118 kg |
| Frame Material | Alloy Steel |
| Special Features | Auto Incline, Shock Absorbent, Wheeled, Hydraulic Folding |
| Power Source | Corded Electric |
9. Warranty and Support
CULT provides the following warranty for the SmartStrideElite AC Motorized Treadmill:
- Motor: 1 year warranty for manufacturing defects.
- Parts: 1 year warranty for manufacturing defects.
- Frame: 3 years warranty for manufacturing defects.
For warranty claims, technical assistance, or any questions regarding your treadmill, please contact CULT customer support. Ensure you have your purchase details and model information available.
Manufacturer: CULTSPORT PRIVATE LIMITED, No 17 & 17C BDA, 3rd Sector, HSR Layout, Bangalore, Karnataka, India - 560102
